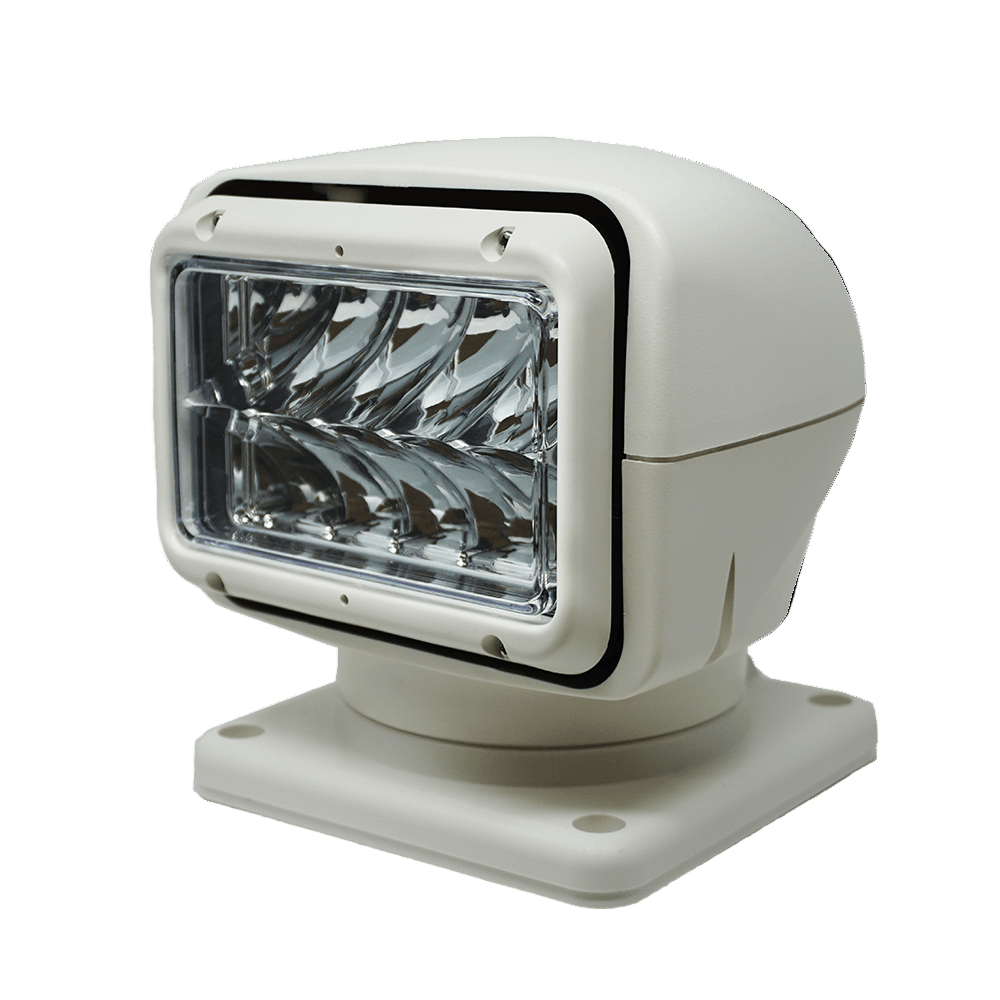

ACR RCL-95 Wireless & Wired Remote Control LED Searchlight - 12V / 24V

ACR RCL-95 Wireless & Wired Remote Control LED Searchlight - 12V / 24V.                     Ref: LA-22028, 22135

The all new RCL-95 LED searchlight was designed for performance and simplicity. With an industry best 460,000 candelas using 10 High Flux (50W) LEDs, you have visibility over ¾ of a nautical mile to light the way to your destination. The RCL-95 LED’s sleek design makes it an attractive and cost-effective choice for small to medium sized recreational powerboats as well as light commercial vessels. Use either the wired dash mount joystick control or the wireless handheld remote to rotate the light 360 degrees continuously at either a fast or slow speed without the hassle of a hard stop. With an 8 degree beam angle, the light can tilt an impressive 135 degrees  to make lighting draw bridges, buoys and docks a breeze.

The auto-home feature will conveniently park the searchlight back at the desired starting location each time you turn the searchlight off. The RCL-95 is weather resistant with the electronics located in the IP68 water-resistant light head instead of the base for increased protection. The ASA housing and lens are sealed against the elements for years of trouble-free operation.

RCL-95 LED searchlight with either the wired dash mount joystick control or the wireless handheld remote to rotate the light 360 degrees continuously at either a fast or slow speed without the hassle of a hard stop.  With an 8-degree beam angle, the light can tilt an impressive 135 degrees to make lighting draw bridges, buoys, and docks a breeze.  The auto-home feature will conveniently park the searchlight back at the desired starting location each time you turn the searchlight off.  The RCL-95 is the brightest led boat searchlight that is weather resistant with the electronics located in the IP68 water-resistant light head instead of the base for increased protection. The ASA housing and lens are sealed against the elements for years of trouble-free operation.

Key Features:

• 10 High Flux LEDs (OSRAM)
• 460,000 Candela, Max Beam Distance 4,501 Feet (1,372 m) one of the brightest led boat searchlight
• Wireless Handheld Remote and Wired Dash Mount Joystick (Both Included)
• 360^o Continuous Rotation and 135^o Tilt
• Auto-home return when off
• 4 Amps (12V) to 2 Amps (24V)
• Efficient, long-life LED’s – 50,000 operating hours
• UV & Weather Resistant
• Simple Installation (12-24V Power Connection and 5M Wired Joystick Control Cable)
• Perfect for work trucks, vans, boats, and workboats

For detailed dimensions, see last picture,

Specifications:

• Size: 5.9 x 7.1 x 7.5\” (15 x 18 x 19 cm)
• Weight: 1.9 kg (searchlight only)
• Material: Acrylonitrile Styrene Acrylate (ASA) Housing for improved weather resistance
• Colour: White or Black
• Operation: Wireless Handheld Remote (included) / 433.92 MHz and Wired Dash Mount Joystick (included with 16.4’ (5m) cable)
• Peak Beam Candle Power: 460,000
• Beam Maximum Distance: 4,501 ft (1,372 meters)
• Beam Pattern / Angle: Spot / 8o
• Elevation Angle: 135°
• Rotation: 360° Continuous
• Rotation Speed: Fast 19° per second, slow 12° per second
• Elevation Speed: 11° per second
• Lamp: LED 50W (OSRAM x 10) / 50,000 hour life
• IP Rating: IP 56 (Housing) / IP 68 (LED Module)
• Footprint Diameter (distance between mounting holes): 4.92” x 4.92” (12.5 x 12.5 cm)
• Total Footprint (dimensions of searchlight base): 6.06” x 6.06” (15.4 x 15.4 cm)
• Power Requirements: 12 or 24 V DC
• Warranty: 2 Years
• Patents: D752,267 / 9,249,960 / 9,890,923 / 10,012,369
• Approvals: FCC / CE / R10 - BOOS
