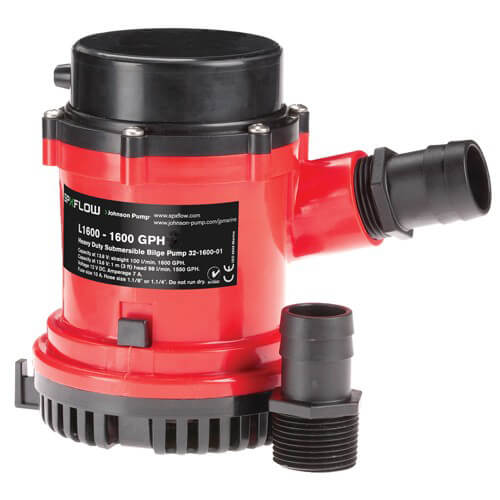

Johnson SPX Flow L1600 Heavy Duty Submersible Bilge Pump
Johnson SPX Flow L1600 Heavy Duty Submersible Bilge Pump
SKU:AF-10-1600-01
Delivery available | lead times vary
Collection available | usually ready in 2-4 days
The best choice when you are looking for a high performance, heavy duty bilge pump that is designed to meet & exceed the tough demands of commercial & recreational duty.
This pump has a liquid cooled, 12-pole motor with double ball bearings for extended service life. The L2200 motor is sealed off by a mechanical seal that eliminates shaft wear & allows for service & replacement, while the L1600 has a lip seal.
The L4000 high capacity, heavy duty bilge pump has been developed by Johnson Pump as the premier pump in our submersible bilge pump range. Featuring a robust motor design, mechanical shaft seal, high impact ABS plastic and unique threaded port design, the L4000 will out perform all other comparable pumps on the market.
Universal base plate and a choice of 1.1⁄2" or 2" ports makes for a simple installation. All pumps include a removable check valve.
- Capacities of 1600 GPH
- Liquid cooled, 12-pole motor with double ball bearings for extended service life
- Shaft of stainless steel (SS2343)
- Impeller is carefully designed and tested to maximize head and flow
- Universal base plate and choice of two different ports makes for a simple installation
- Removable check valve included
- Heavy Duty Submersible Pumps can be combined with either an electronic float switch or the Ultima Switch for automatic operation
| Flow Rate Description | 100 LPM (1600 GPH) | 100 LPM (1600 GPH) |
| Automatic Bilge Pumps | No | No |
| Hose Size | 1-1/8" & 1-1/4" | 1-1/8" & 1-1/4" |
| Brand | Johnson | Johnson |
| Model | L1600 | L1600 |
| Voltage Description | 12V DC | 24V DC |
| Amps Description | 7A | 3.5A |
| Fuse | 10A | 6A |
