• Lewmar CPX1 Vertical Windlass Kit - 6mm
1 1

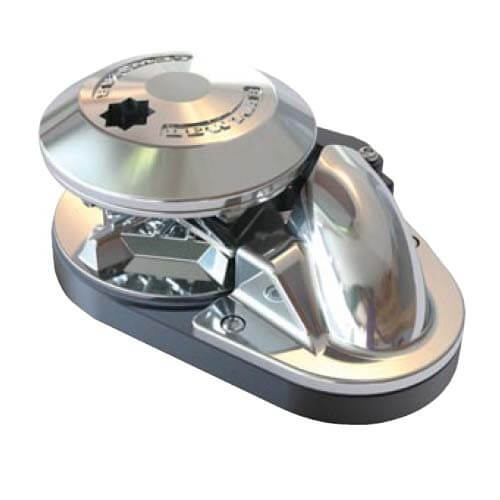

Lewmar CPX1 Vertical Windlass Kit

Lewmar CPX1 Vertical Windlass Kit

LM-6671011006

£1,212.95
£1,212.95
Sale Sold out
Tax included. Shipping calculated at checkout.
Size

Delivery available  |  lead times vary

Collection available  |  usually ready in 2-4 days

The CPX vertical lightweight windlass range compliments the current V range.  These windlasses feature the tried and tested worm-wheel gearbox architecture and use quality materials throughout - hard anodised aluminium for the base and cast stainless steel for the gypsy top cap and chain pipe cover.

  • 15% lighter than comparable all-stainless windlass
  • New architecture with reduced parts
  • Easier to service
  • Highly reliable, light weight, high performance windlass

Kit Includes:  Deck unit, Gypsy, Motor Gearbox, Rocker Switch, Circuit Breaker and Contactor

Model CPX1 12V 6mm ISO CPX1 12V 7mm ISO CPX1 12V 8mm DIN
Voltage 12V
Chain 6mm ISO 7mm ISO 8mm DIN
Motor Power 700W
Max Pull 454kg
Working Load 113kg
Max Line Speed 19 metres per minute
Normal Current Draw 80A
Circuit Breaker 90A
Approximate Weight 17.5kg
