Supergain Crow VHF Stainless Whip Antenna

Supergain Crow VHF Stainless Whip Antenna

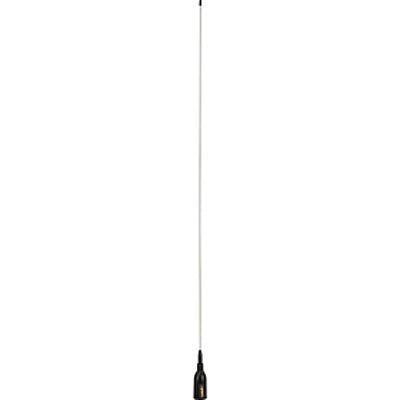

Supergain Crow antenna 860mm universal stainless steel VHF antenna 20m cable with bracket. Crow is a 3dB gain VHF multipurpose antenna designed for any type of boat: it’s 860mm / 34” length only and very easy to be installed thanks to the supplied “L” bracket. With its black flexible stainless steel whip and integrated 20m (66’) RG58C/U coax cable, it’s the right choice to have a good VHF performance on all kind of vessels.

Key Feature

• 3 dB Gain
• Length: 860mm / 34”
• Easily Installed

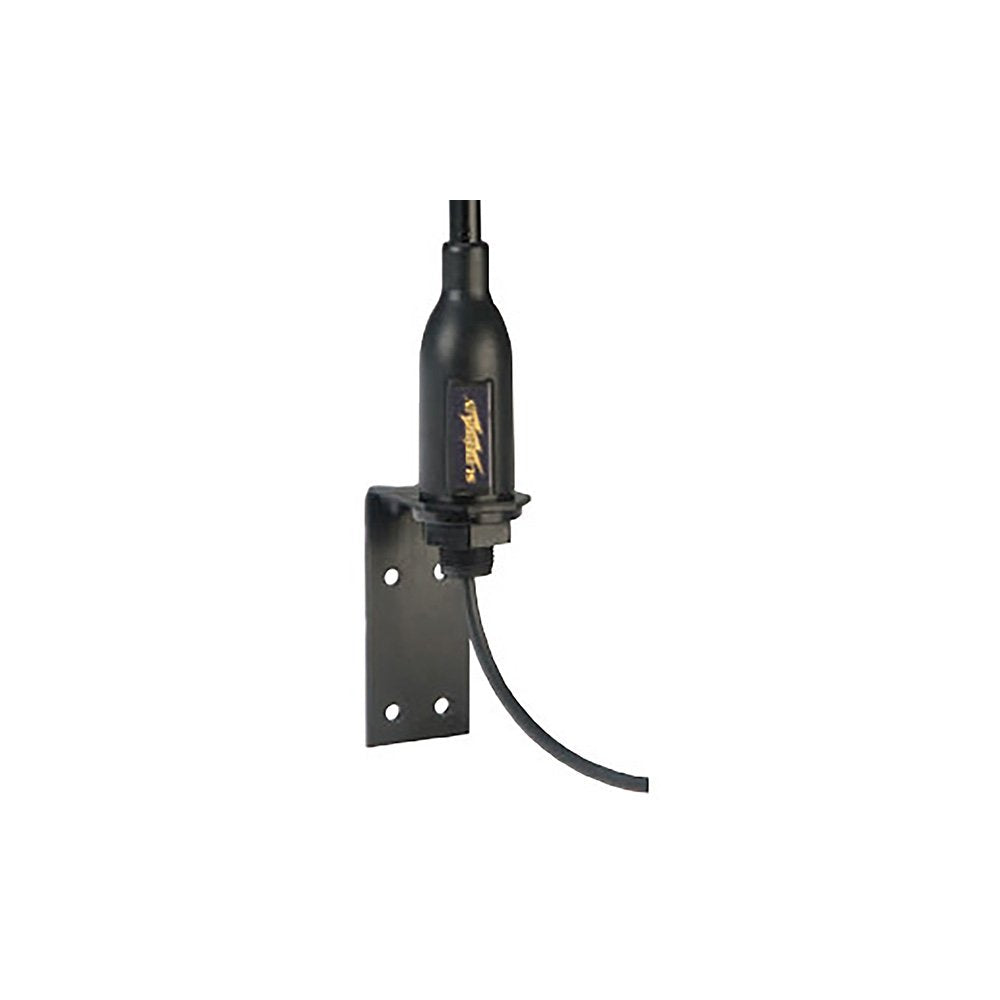

• L Bracket included
• Flexible Stainless Steel whip
• Integrated 20m (66’) RG58C/U Coax Cable

 Specifications:

• FREQUENCY RANGE: 156/162 MHz
• GAIN AVERAGE: 3 dB
• IMPEDANCE: 50 ohms
• POLARIZATION: Vertical
• SWR: <1.4 at 156.8 MHz
• MAX INPUT POWER: 50 W
• DC GROUND: Reads 10K ohms
• ANTENNA LENGTH: 860mm (34”)
• ANTENNA WEIGHT: 140g (5 oz)
• TERMINATION: Cable

Accessories Included:

• 20m (66’) Integrated Coax Cable
• Integrated Bracket
