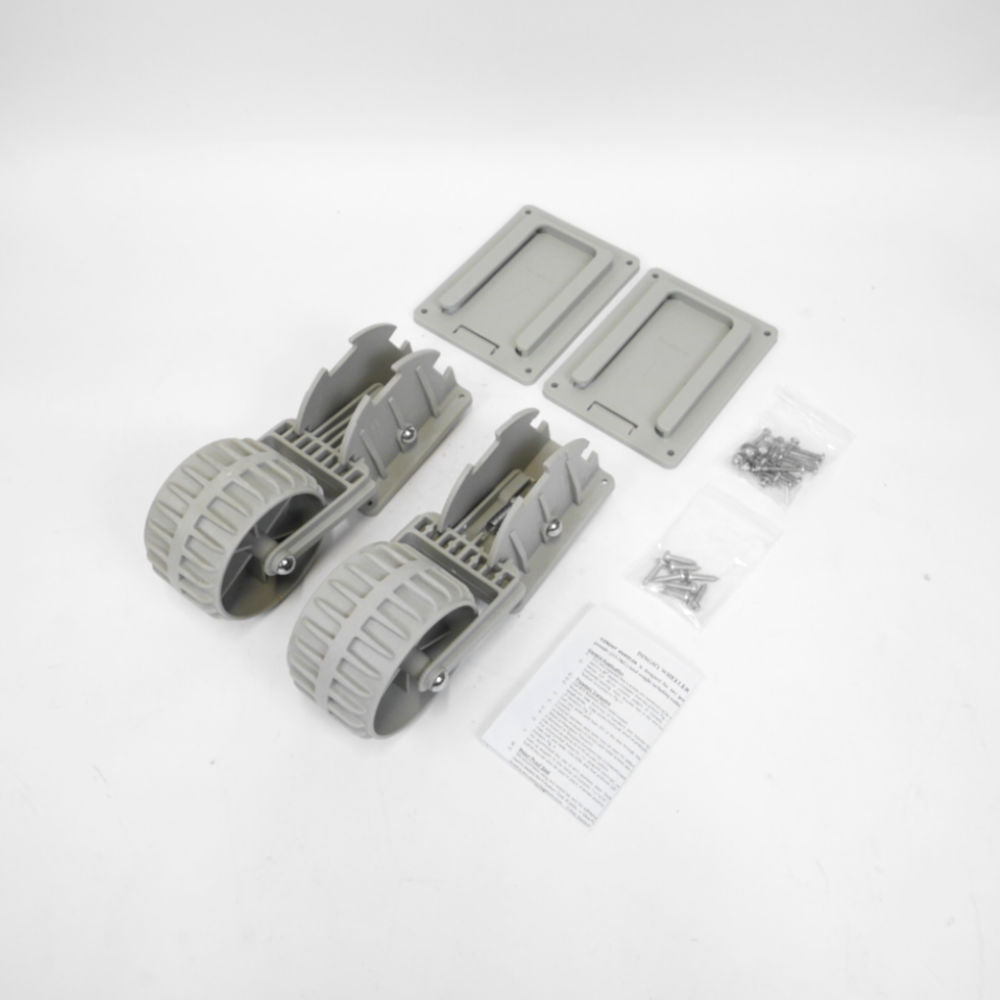

Compact Dinghy Launching Wheels with Removal Kit in Grey.
The Sliding Brackets allow wheels to be fixed on or taken off the transom easily, perfect for storing and transporting.
Set of 2 compact maintenance free Dinghy Launching Wheels suitable for fitting onto wooden, fiberglass or aluminium transom. Very convenient when transferring boat to launching site, specially with an outboard attached and other equipment in the boat.
Recommended for craft up to 3.6m in length and payload up to 112kg (or 250lb).
Usage: Wheels can easily be re-positioned to upright (for launching), straight, or downward (for towing on land), and removed fully for storage or to be put on other boats.
Construction: Tough Thermoplastic body with stainless steel spring and pins.
Box Contains:
- Set to 2 launching wheels
- Wheel removal kit (Slide on/off brackets)
- Stainless steel fixing bolts.
- Instructions
Max Payload: 112kg (250lb). Not suitable for vehicle towing.
Dimensions/Weight:
- Size of Fixing Base (of Removal Kit): 150mm (w) x 200mm (h)
- Fixing Base screw hole centres: 123mm (w) x 173mm (h)
- Size of Fixing Base (of Wheels only): 110mm (w) x 150mm (h)
- Fixing Base screw hole centres: 82mm (w) x 132mm (h)
- Ground Clearance, (from bottom of fixing base): 150mm
- Wheel Size: 8.5 cm (wide), 13cm (diameter).
- Wheels weigh approx 2kg.
Share
Hi after fitting wheels one of them would not lock down as the bracket was twisted so had to grind away to make it work, all ok until one of the wheels slid out of the bracket while on the water, fortunately I picked it up a low tide, the little clip on the bottom of of the detaching bracket does not stick out far enough to stop wheels sliding out so have now screwed the the whole lot together so no quick release. so all in all they turned out to be a bit of a pain. regards John
