Jabsco 33799-0000 "Handy Boy" Manual Utility Hand Pump Kit

The Jabsco 33799-0000 Handy Boy is a portable brass hand-pump kit for bilge water, engine oil and diesel transfer, with output up to approximately 7 litres per minute.

Its oil-resistant neoprene plunger provides suction on the first stroke, while the supplied transfer hoses and rigid draw tubes reach sumps, dipstick tubes and confined tanks. It must not be used for petrol, solvents or other liquids with a flash point below 37.8°C.

Product Identification

• Brand: Jabsco
• Product name: Jabsco 33799-0000 Handy Boy Hand Pump Kit
• Model / part number: 33799-0000
• Marine Scene SKU: CW-33799-0000
• Product category: Portable multipurpose liquid-transfer hand pump
• Quantity supplied: One selected product or kit

What Is the Jabsco Handy Boy Used For?

It is used for manual bilge pumping, engine-oil draining, diesel transfer and other portable liquid-transfer jobs where electrical power is unavailable or unnecessary.

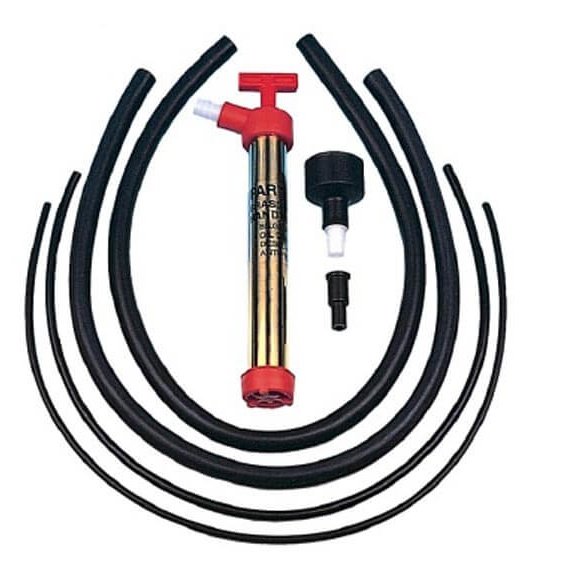

What Is Included?

• One Jabsco 33799-0000 brass hand pump
• Two approximately 0.9 m lengths of 13 mm hose
• Approximately 1 m semi-rigid 8 mm outside-diameter draw tube
• Approximately 1 m semi-rigid 6 mm outside-diameter draw tube
• Intake adaptor and reducer components

What Is Not Included?

• Permanent hose or pipework unless specifically listed
• Mounting screws or clips unless specifically listed

Which Products or Systems Is This Compatible With?

• Bilge water, engine oil and diesel fuel within the stated temperature and flash-point limits
• 13 mm (1/2 in) inlet and discharge hose
• Oil-drain and liquid-transfer points accessible by the supplied draw tubes

How Do I Select the Correct Model or Confirm Compatibility?

• Choose this kit where a compact portable pump and multiple hoses are required
• Do not pump petrol, solvents or liquids with a flash point below 37.8°C
• Keep engine oil below 60°C before transfer
• Flush and clean the pump after diesel use to protect neoprene components

Construction and Design

• Long-life brass cylinder
• Oil-resistant neoprene plunger and end components
• Brass shaft
• Moulded handle
• Tool-free serviceable hand-pump construction

Installation and Safety

Connect only to hose or tube of the stated size and confirm that the pumped liquid is compatible with the pump materials. Keep the suction path short and airtight, secure the pump during use and clean it after transferring contaminated liquid.

Maintenance

Rinse or clean the pump after use, inspect hoses and valves for damage, and replace perished rubber components before the next operation.

Key Features

• Up to approximately 7 LPM
• Manual operation without electrical power
• Suitable for bilge water, engine oil and diesel
• Multiple hoses and draw tubes included
• Brass and oil-resistant neoprene construction
• Compact approximately 305 mm body

Frequently Asked Questions

Can the Handy Boy pump petrol?
No. Jabsco warns against petrol, solvents and other liquids with a flash point below 37.8°C.

Can it drain engine oil through a dipstick tube?
Yes. The kit includes narrow semi-rigid draw tubes intended for access to confined oil-drain points, subject to the engine layout.

How do I know whether this part is compatible?
Match the exact Jabsco model or part number first, then confirm the connection size, voltage, dimensions and application shown in the specification table.

Are installation accessories included?
Only the components listed under “What Is Included?” are supplied. Hose, wiring, fittings, switches and fasteners are excluded unless stated otherwise.

Specifications
