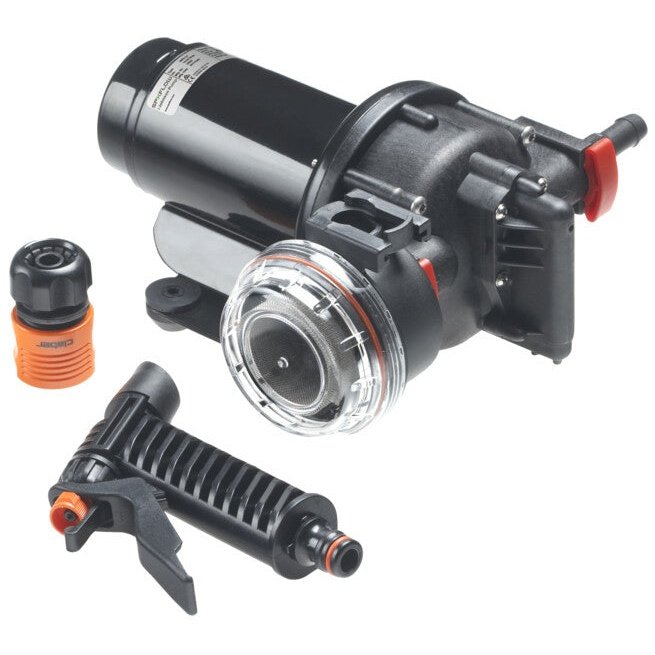

Johnson Aqua Jet Washdown Water Pump 5 Bar 70 PSI - 3.5 GPM - 12v

Johnson Aqua Jet Washdown Water Pump 5 Bar 70 PSI - 3.5 GPM - 12v

Location:

SKU:AF-10-13399-03

Regular price £179.95
Regular price Sale price £179.95
Sale Sold out
Tax included. Shipping calculated at checkout.

Johnson Aqua Jet Washdown Water Pump 3.5 GPM - 12v.              Ref21: 10-13399-03           DX13

The quiet and pulsation-free Aqua Jet five-chamber diaphragm wash down pumps provide the perfect wash down solution for cleaning recreational equipment. With a higher pressure of up to 5 bar, clean-up is faster and easier than ever before.

Key Features:

  • Up to 5 bar (73 psi) pressure
  • Whisper quiet operation
  • Five-chamber construction
  • Smooth flowing
  • Self-priming
  • Integrated pressure switch turns pump on and off automatically when the spray nozzle is opened and closed
  • Dry running without damage
  • Low power consumption
  • Easy, low cost maintenance
  • PUMProtector inlet strainer and trigger nozzle included as standard
  • Quick disconnect fitting
  • Hose connections for ½" hose. Both BSP and NPT connections included
  • Long service life

As the pump runs, pressure is increased until it reaches the pre-defined pressure level 5 bar – 70 psi. When the pre-defined pressure level is reached the integrated pressure switch automatically shuts the pump off. The pump is equipped with positively checking outlet valves which ensure that the pressure is maintained after the pump shuts off.

When water is demanded the pressure decreases. After a moderate drop in pressure, the integrated pressure switch automatically turns the pump back on. Due to their durable construction and thoughtful design, the WD-pumps will provide many years of service.

Specifications:

  • Weight: 2kg
  • Fuse: 15 A
  • Cut off Pressure: 5 bar / 70 psi
  • Capacity: 13 Litre Per Minute (3.5 GPM)
  • Voltage: 12v DC
  • Motor: 120W
  • Body: PA/PPA
  • Valves: Nitrile
  • Diaphragm: Santoprene
  • Connection: 9.5mm (3/8") BSP x 12.7mm  (1/2") barb

Dimensions:

  • Length: 236.5 mm
  • Width: 210 mm
  • Height: 116 mm
