Nuova Rade DIABLO Inboard Plastic Fuel And Water Tank With Easy Switch Fuel/Water Plate
Nuova Rade DIABLO Inboard Plastic Fuel And Water Tank With Easy Switch Fuel/Water Plate
Location:
Get 10% Off Everything*, Use Coupon Code BLACK10 *Excludes Liferafts & Windlasses
SKU:
Couldn't load pickup availability
DIABLO line of horizontal tanks is made of recyclable HDPE material, consisting of a full range of 10 models complying with international standards.
DIABLO can be used for fuels such as gasoline, diesel, ethanol, alternative fuels and organic vegetable oils. It can be also used for either fresh or waste water.
The advantage of this line of tanks is the ‘EASY SWITCH’ plate, which can be purchased separately based on the use of the tank, and it is manually interchangeable.
The plate used for fuel comes in red colour, the plate for fresh water in blue colour and the one for waste water in brown colour.
It is secured and sealed by rotation of the piece itself and is blocked into position by means of a locking pin that prevents loosening. To clean the tank just lift the locking pin and remove the hatch by unscrewing it.
| Title | Capacity | Length | Width | Height |
|---|---|---|---|---|
| DIABLO Tank 37lt H.230mm / L.500mm w/o Plate | 37lt | 500mm | 360mm | 230mm |
| DIABLO Tank 48lt H.230mm / L.650mm w/o Plate | 48lt | 650mm | 360mm | 230mm |
| DIABLO Tank 60lt H.230mm / L.800mm w/o Plate | 60lt | 800mm | 360mm | 230mm |
| DIABLO Tank 70lt H.230mm / L.950mm w/o Plate | 70lt | 950mm | 360mm | 230mm |
| DIABLO Tank 82lt H.230mm / L.1100mm w/o Plate | 82lt | 1100mm | 360mm | 230mm |
| DIABLO Tank 49lt H.305mm / L.500mm w/o Plate | 49lt | 500mm | 360mm | 305mm |
| DIABLO Tank 64lt H.305mm / L.650mm w/o Plate | 64lt | 650mm | 360mm | 305mm |
| DIABLO Tank 78lt H.305mm / L.800mm w/o Plate | 78lt | 800mm | 360mm | 305mm |
| DIABLO Tank 93lt H.305mm / L.950mm w/o Plate | 93lt | 950mm | 360mm | 305mm |
| DIABLO Tank 108lt H.305mm / L.1100mm w/o Plate | 108lt | 1100mm | 360mm | 305mm |
Red Fuel Deck Plate
- 90° inlet nozzle, 38 mm dia. 1 1/2" thread.
- 90º Connector 17 mm dia. 3/4" thread.
- 90º Connector 11mm dia. 1/2" thread
- Internal gasket
- Cap 1 1/2" thread
- 2 x Cap 3/4" thread
- 1 x Cap 1/2" thread
- Red Plate

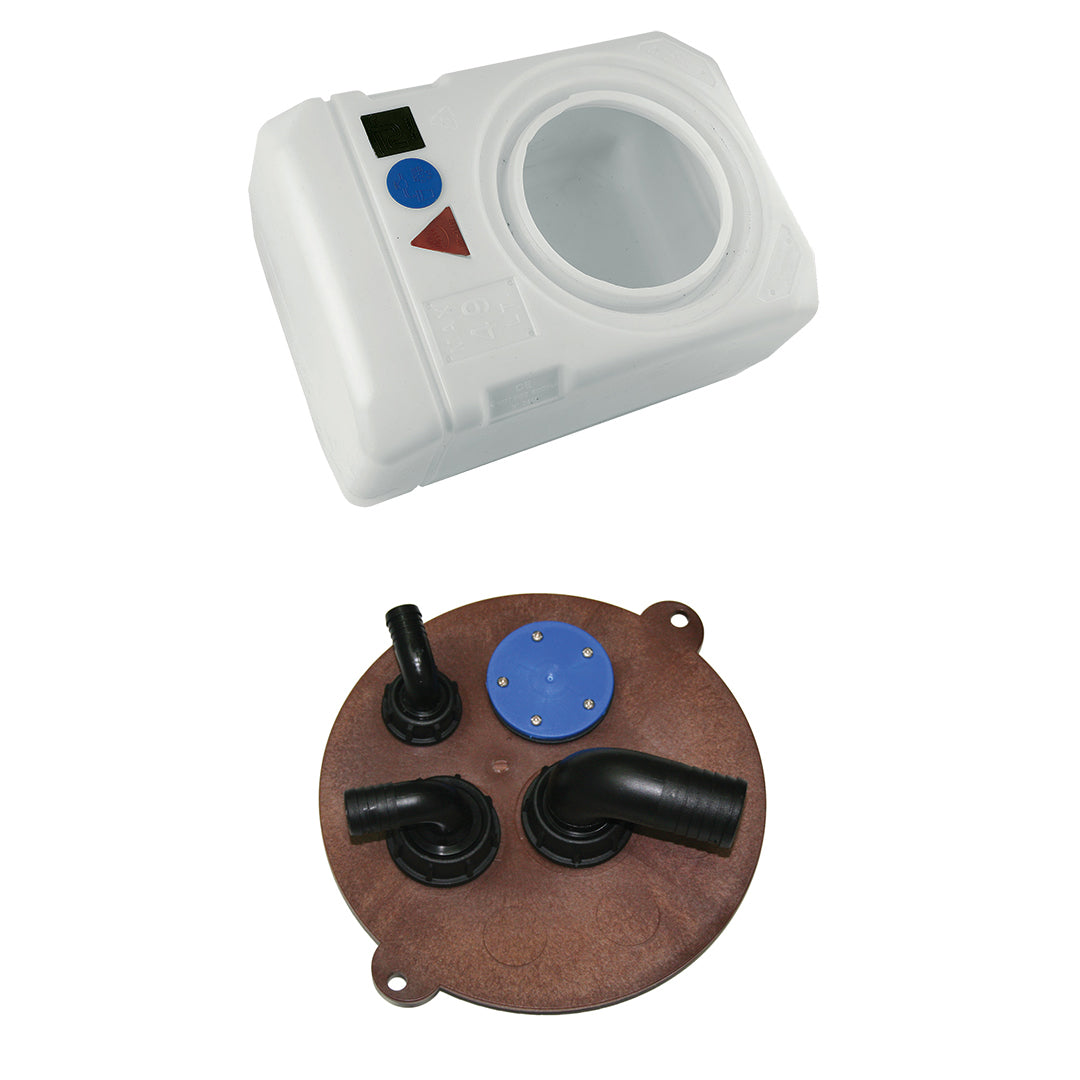

Brown Waste Water Deck Plate
- 2 x Connector 90°, 38mm dia, 1 1/2"thread.
- 2 x Connector 90°, 25mm dia, 1 1/2" thread.
- 1 x Set Connectors 90°, 25mm dia & 20mm dia, 1" thread.
- 1 x Internal Gasket 235mm dia, 17.5mm thick.
Blue Fresh Water Deck Plate
- 90° inlet nozzle, 38 mm dia. 1 1/2" thread.
- 90º Connector 17 mm dia. 3/4" thread.
- 90º Connector 13mm dia. 3/4" thread
- Internal gasket
- Blue Plate
