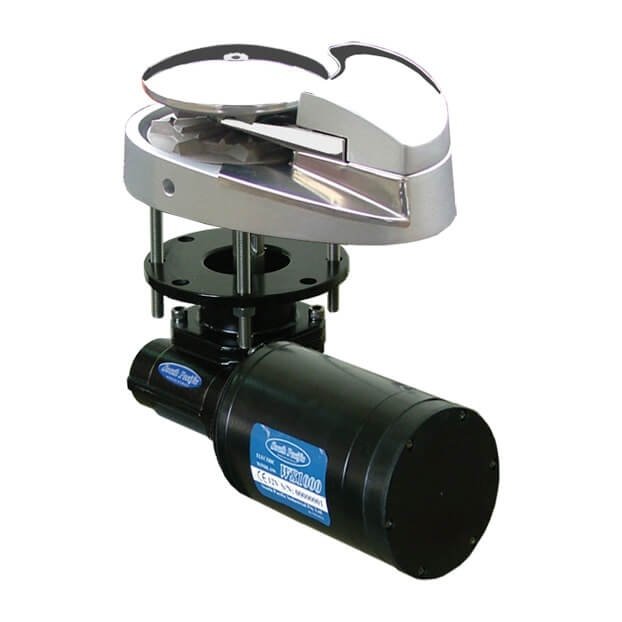

South Pacific PRO WA1100 Gypsy Vertical Windlass Kit - 8mm / 12v

South Pacific PRO WA1100 Gypsy Vertical Windlass Kit - 8mm / 12v.                     Ref: MZ-62037

South Pacific WA1100 series is designed for boats from 28ft to 42ft or to handle an anchor up to 18kg. The power unit is held horizontallyand beneath the deck which reducesthe space requirement of the unit but at the cost of a more complex gear box and power effeciency. The unit benefits from an improvedself-locking worm gear box which gives it high stress capacity and can also can reduce power consumption by up to 15%. The power unit can be oreinted in one of eight horizontal positions. A built in torque limiter absorbs sudden impacts to deliver a smoother operation and greater reliability.

This kit comes with:

• Windlass Pro WA1100
• Direct Control Switch SW-200 (no solenoid required)
• Circuit Breaker CB-001-30
• Fixing Bolts
• User Manual
• Mounting Template

Features:

• A torque limiter to deliver smoother operation and greater reliability
• Efficient heavy duty DC motor
• Stainless steel Gypsy takes both rope and chain
• Manual retrieval capable

Specifications

• Power: 1100W
• Operating Voltage: 12V
• Weight: 9kg
• Max. Working Load: 500kg
• Typical Working Load: 85kg
• Current Draw (Typical): 65A(12V)
• Current Draw (Max.):320A
• Gear type: worm gear
• Retrieval Speed: 20m/min
• Pay-Out Speed: 24m/min
• Dimension above deck: 195mm x 130mm x 140mm
• Gypsy 8mm chain which suits rope of 12mm-14mm

For detailed dimensions, see second image.
