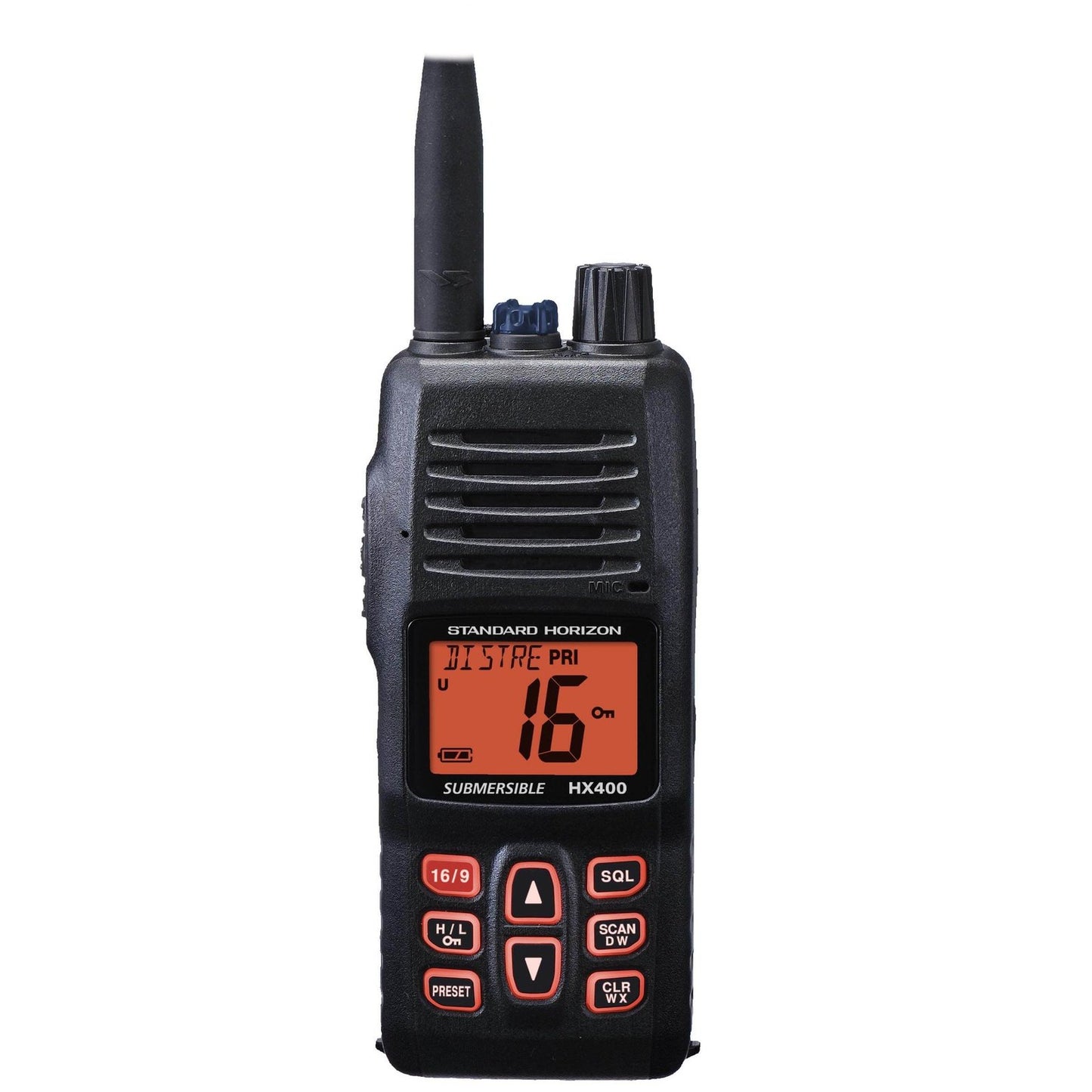

Standard Horizon HX400E Submersible Handheld PMR/VHF Radio
Standard Horizon HX400E Submersible Handheld PMR/VHF Radio
Location:
SKU:SH-HX400E
Standard Horizon HX400E
- Submersible IPX8 / 1.5M (4.92Ft) for 30 minutes
- Selectable 5 or 1 Watt transmit power output
- Supplied with 2300 mAh Li-Ion battery, AC and DC 3-hour quick chargers
- Built-in noise Cancelling Microphone and Voice Scrambler for clear and private communications
- 40 Programmable Land Mobile Channels 134 MHz to 174 MHz with CTCSS and DCS
- Programmable channel names
- NOAA Weather channels and Weather Alert
- Low battery indicator
- All USA, International and Canadian Marine Channels
- Optional speaker microphones and headsets available
- Programmable Scan, Priority Scan and Dual Watch
- Preset key used to recall up to 10 favorite channels
- Key lock
GENERAL
Battery Type and Capacity Li-ion 1800mAh
Supply Voltage 7.4V DC, Negative Ground (Battery Terminal)
Current Consumption 320 mA (AF Max)
Standby 50mA
Transmit 1.6 A(5W) / 0.8 A (1W)
Case size (W x H x D) 57 mm x 133 mm x 40 mm
(w/o knob & antenna)
Weight 350g with FNB-115Li,Belt Clip & Aerial
TRANSMITTER
RF Power Output 5W (HI) / 1W (LOW) (@7.4 V)
MOdulation Type Variable Reactance
Maximium Deviation .±5 kHz
Spurious Emission −75 dBc typical
Microphone Impedance 2 kÙ
RECEIVER (for Voice and Data)
Sensitivity 0.25 ìV for 12 dB SINAD
Adjacent Channel Selectivity 80 dB (25KHz) 70dB (12.5KHz) typical
Hum & Noise Ratio 40 dB
AF Output (Internal Speaker only) 700 mW @16 Ù for 10 % THD (@7.4 V)
