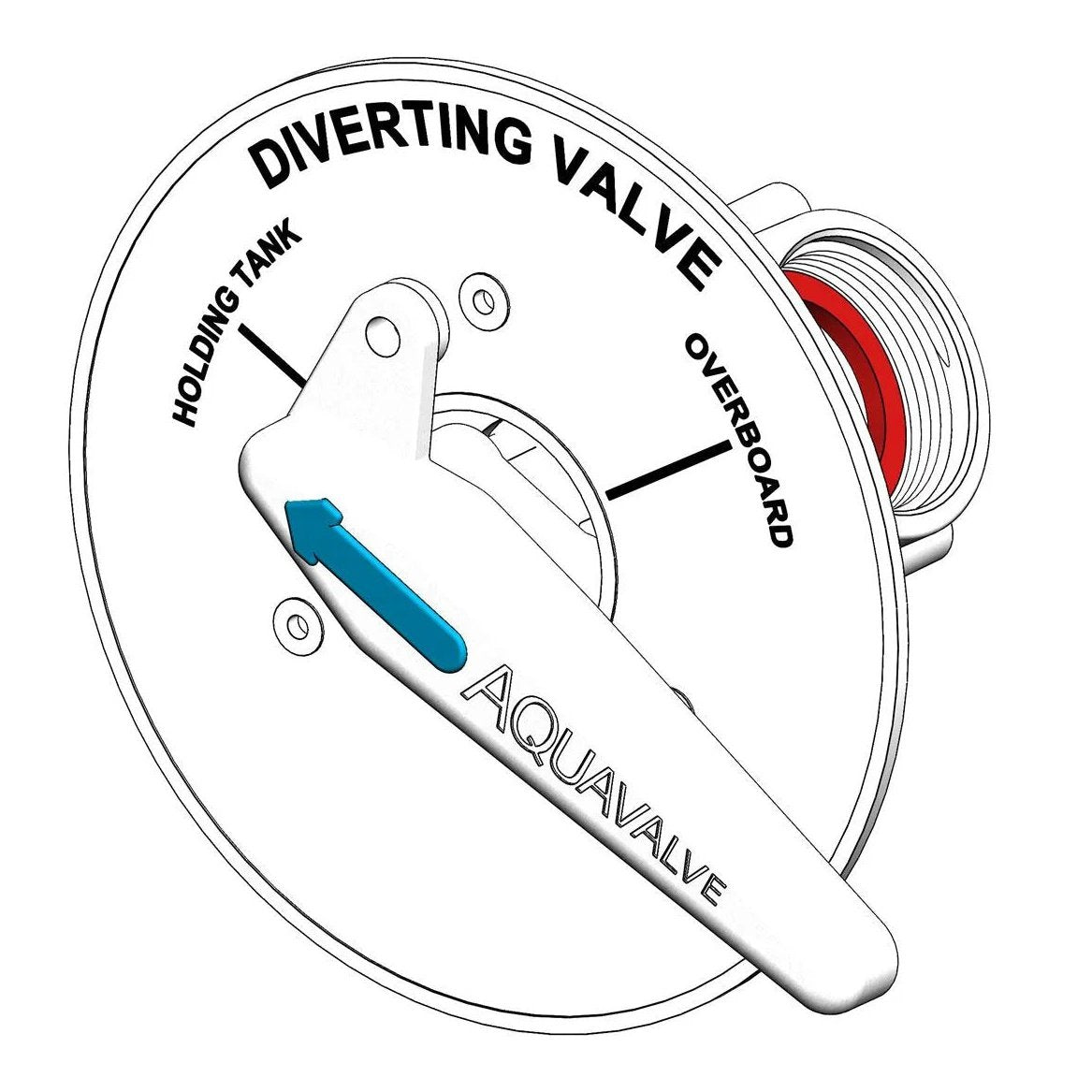

TruDesign Aquavalve Through Bulkhead Diverter Y Valve

The most versatile AquaValve on the market with the ability to mix and match fittings, adjust the angle of piping and flip the face plate to suit the installation. The TruDesign Aquavalve is designed for the diversion and control of the flow of effluent or water. Used in marine toilet applications the effluent can be channelled overboard or held in a holding tank for later discharge overboard or to a shore side facility.

The TruDesign Aquavalve is moulded from a glass-reinforced nylon composite. High strength, highmodulus glass fibres impregnated into the nylon provides dramatic strength, stiffness, toughness, and dimensional stability.

Features:

• Manufactured from a glass reinforced nylon composite - High strength and light weight.
• Stainless steel fasteners - Will not corrode in salt laden air.
• Easy installation - With a range of straight, 90° and 120° tails, and two seal options, plumbing in confined spaces is made easy.
• Handle position lockable - Legislation in some regions require the overboard discharge handle to be locked into the holding tank position when in ‘no discharge’ zones.
• Pressure tested - All valves are pressure tested to ensure quality and safety in respect to sealing and operation.
• Silicon seal - The Aquavalve® is the only valve on the market today with smooth movement and an excellent seal with good wear resistance.
• Composite spanner included - Avoids using pipe wrenches that gouge the fitting. Facilitates access in tight places.
• Fascia plate on standard model can be removed to reveal simple “open - open - inlet” labeling - Where product is not used for marine toilets, all toilet references are removed.
• Large operating temperature range - Suitable for all marine environments, from -40°C to +110°C
• Note bulkhead hole diameter for Aquavalve through Bulkhead is 49.0mm

Aquavalve (Through Bulkhead) Y Valve - Product Information

TruDesign Part Number: 90313
