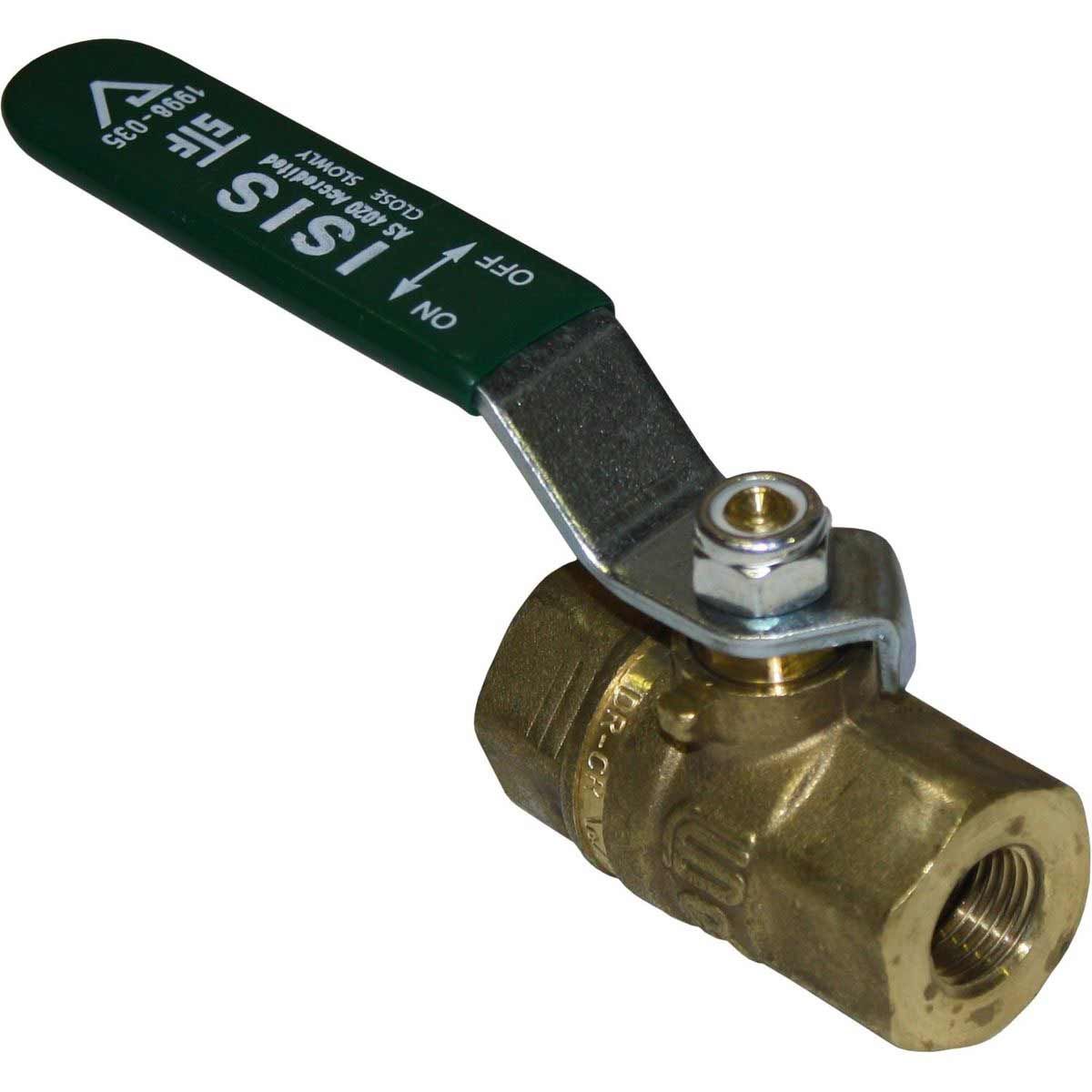

AG Brass DZR Ball Valve (Seacock)

AG Brass DZR Ball Valve (Seacock)

SKU: AF-1-70901

Get 7% Off Everything* - Use Coupon Code SALE7

*Excludes Liferafts & Windlasses

£21.95
£21.95
Sale Sold out
Tax included. Shipping calculated at checkout.
Size

Delivery available  |  lead times vary

Collection available  |  usually ready in 2-4 days   |  Location: P43

Description

This DZR Ball Valve is a robust, dezincification resistant ball valve that is particularly suitable for those installations where high aggressive water causes causes zinc leaching in the standard brass alloys and weakens the material molecular structure.

  • Dezincification resistant materials
  • Blow-out proof stem
  • Full bore
  • Very fast opening/closing in case of emergency
  • No maintenance - equipped with wrapping seats ensuring long life cycles
  • Antifriction ring forms the first automatic sealing at high pressure
  • Two self adjusting cone shaped seals, with Teflon sliding for second sealing at low pressure
  • 1 ‘O’ ring in EPDM for sealing at low pressure and vacuum

Suitable for:

  • Inlet for cooling engines
  • Generators
  • Air conditioning
  • Refrigeration units
  • Deck drain outlets
  • Exhaust outlets
  • Seawater inlets for toilets
  • Seawater outlets for toilets

Specification:

  • Temperature Limits: Fluids: -15°C to +120°C
  • Pressure Limits: Fluids: 25 Bar
  • Thread: Female Parallel Thread ISO 228/1

Materials:

  • Body & Threaded End: DZR Copper alloy CW602N (UNI EN 12165)
  • Gland: DZR Copper alloy CW614N (UNI EN 12164)
  • Stem: DZR Copper alloy CW602N (UNI EN 12164)
  • Ball: Chrome Plated DZR Copper alloy CW602N (UNI EN 12164)
  • Seals: Pure PTFE (Teflon)
  • O-ring: EPDM
  • Lever: Zinc plated steel, PVC coated Grip
  • Fixing Nut: Zinc plated steel
