Aluminium Rugged Heavy Duty Launching Wheels With Quick Release

A set of quality Retracting Aluminium Framed Pneumatic Wheels suitable for fitting onto transom.  Very convenient when transferring to launching site, with an outboard attached and other equipment in the boat.

• Low Profile appearance and unhindered operation of outboard.
• Recommended working load 120kg. Do not exceed 200kg.
• Launching and returning on shore: Use the handle to retract and extend the wheels. Wheel automatically locks in place in both positions.
• Construction: Aluminium frame, pneumatic wheels.

With Quick Release mounting studs, ideal for roll up inflatables when the wheels have to be removed from the transom for transport or storage.

• Fit and remove wheels quickly for storage and transport:  Wheel bracket is placed on studs on transom, and locked in position with thumb catches. Wheel brackets are removed quickly by unlatching the catches.

Installation:

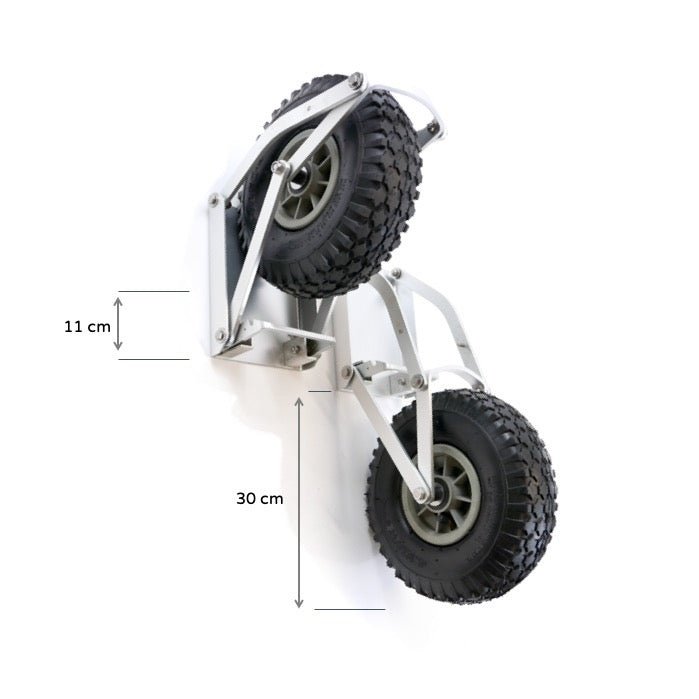

• When extended, wheels reach 30 cm below bottom of fixing plate.
• When retracted, wheels remain 11 cm above fixing plate.
• Dimensions of Bracket to fit on transom plate : 14 cm x 20 cm.
• Transom Plate holes: 6.5 mm holes, 10 cm x 13 cm centre.
• Tyre pressure: Not more than 25 psi
• Replacement wheel Size: 4.10/3.50-4
• Includes 6mm fixing bolts, nylon nuts and SS washers.
• 8 Stainless Steel Transom Studs

Regular Maintenance: Application of marine grease to wheel axle will produce smooth operation and improve service life.

Warning: Not for highway towing.
