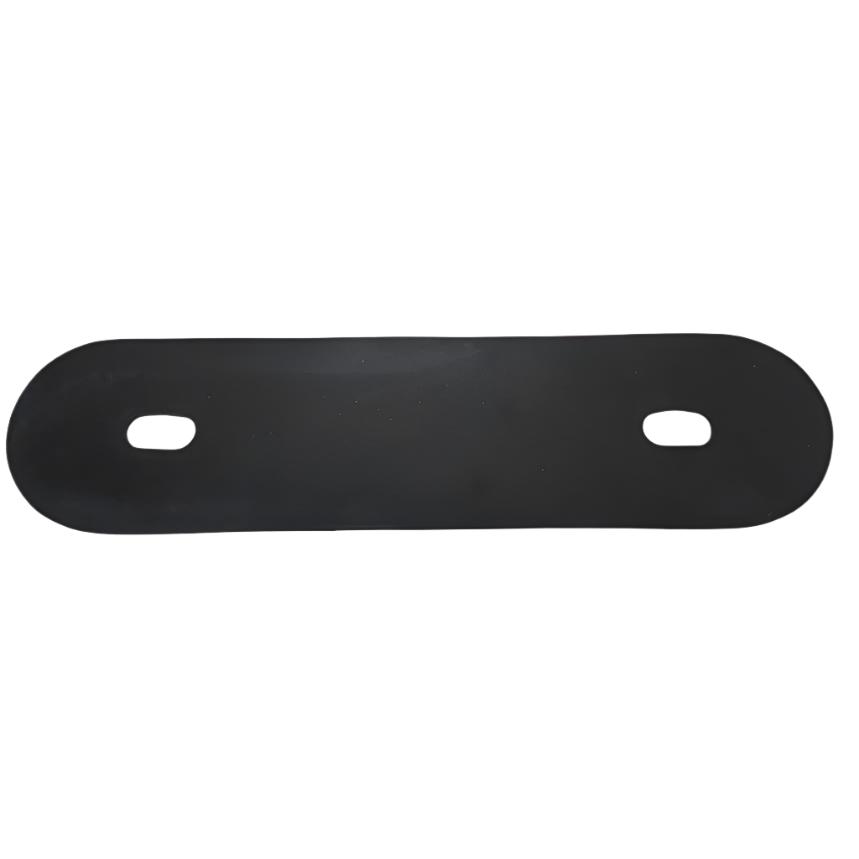

Tecnoseal GUA271E Rubber Bar Anode Backing Pad

Tecnoseal GUA271E Bar Anode Backing Pad is a neoprene mounting pad for the Tecnoseal 00271E, 00271EAL and 00271EMG bar-anode family; comparable MG Duff ZD78-style pattern. It sits between the anode body and the mounting surface to protect the surface and provide a correctly shaped bedding layer; the pad itself is not a sacrificial anode.

What Is This Backing Pad Used For?

The pad follows the footprint of the 00271E-family bar anode and helps separate the casting from the hull coating or mounting surface while distributing contact pressure beneath the anode body.

The anode must still be electrically connected through its strap, studs or specified bonding arrangement. A rubber or neoprene pad does not create electrical continuity and should not be placed over a contact point that the installation design requires to remain bare metal.

Key Features

• Brand: Tecnoseal
• Part number: GUA271E
• Marine Scene SKU: TS-GUA271E
• Product category: Bar Anode Backing Pad
• Material: Neoprene
• Compatibility: Tecnoseal 00271E, 00271EAL and 00271EMG bar-anode family; comparable MG Duff ZD78-style pattern
• Dimensions: 310mm × 75mm × 3mm
• Supply: Backing pad only; anode and mounting hardware are not included

Installation Guidance

Confirm the pad outline and fixing-hole positions against the anode before dismantling the existing installation. Clean the mounting surface, align the pad without folds or trapped debris, and refit the anode using suitable serviceable fasteners. Follow the vessel’s original bonding arrangement and tightening method.

Frequently Asked Questions

• Is the anode included? No. This listing is for the shaped backing pad only.
• Does the pad replace an electrical bonding connection? No. The anode must remain connected to the protected metal or vessel bonding system as specified for the installation.
• Should I select by appearance alone? No. Match the Tecnoseal part number, anode family and dimensions before ordering.

Specifications
