Barton Marine Size 3 Plain Blocks - 45mm

Barton Marine Size 3 Plain Blocks - 45mm

Location:

Get 7% Off Everything*, Use Coupon Code SALE7 *Excludes Liferafts & Windlasses

BR-BAN03090

£13.95
£13.95
Sale Sold out
Tax included. Shipping calculated at checkout.
Style

The size 3 Barton plain bearing blocks have 45mm (1” ¾) sheave size 3 block range incorporates modern design with stainless steel frames and the latest advanced materials, using 30% fibre glass filled nylon and Acetal sheaves to maximise their strength whilst keeping weight to a minimum

Suitable for use as mainsheet, vangs, lead blocks or wherever a powerful and compact purchase system is required on dinghies, dayboats and lightweight cruisers
Suitable for up to 10mm (3/8”) rope

  • Break load 800kg
  • SWL 400kg
  • Max. rope 10mm
  • Sheave diameter 45mm
Product Code Product Title Length Breakload Rope or Wire
Diameter		 Width Height Weight

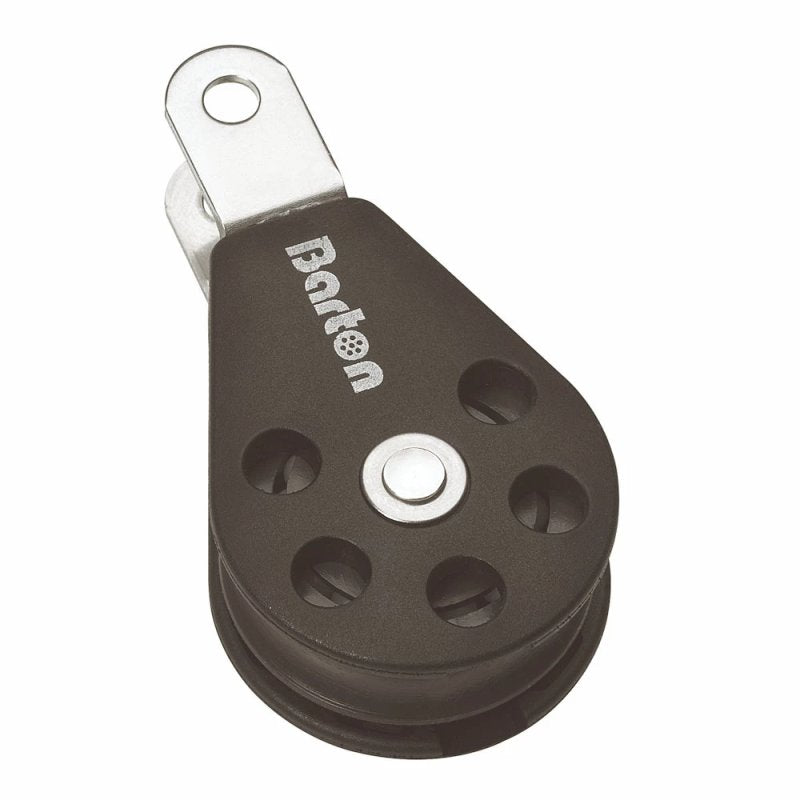

BAN03090 Barton Marine 45 mm Block - Single, Double Tang 87 mm 800 kg 10 mm 47 mm 28 mm 74 g

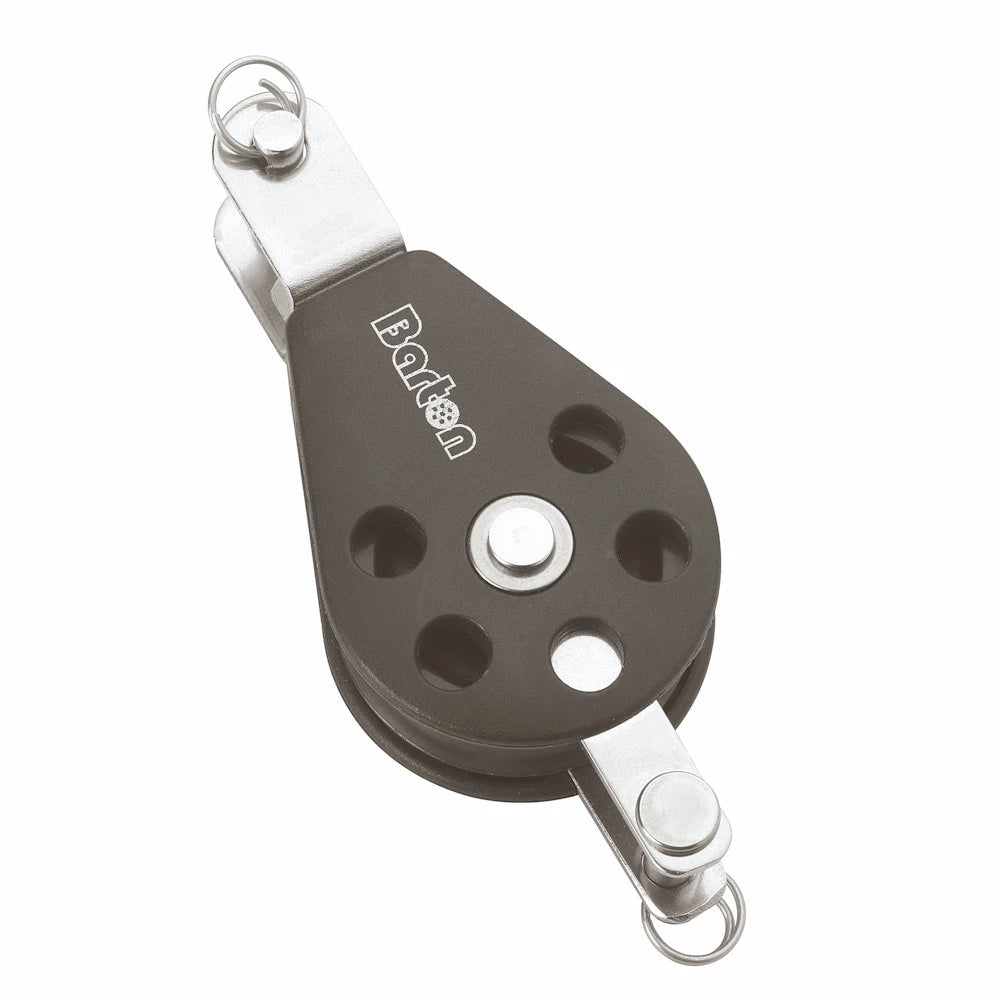

BAN03091 Barton Marine 45 mm Block - Single, Double Tang & Becket 103 mm 800 kg 10 mm 47 mm 28 mm 86 g

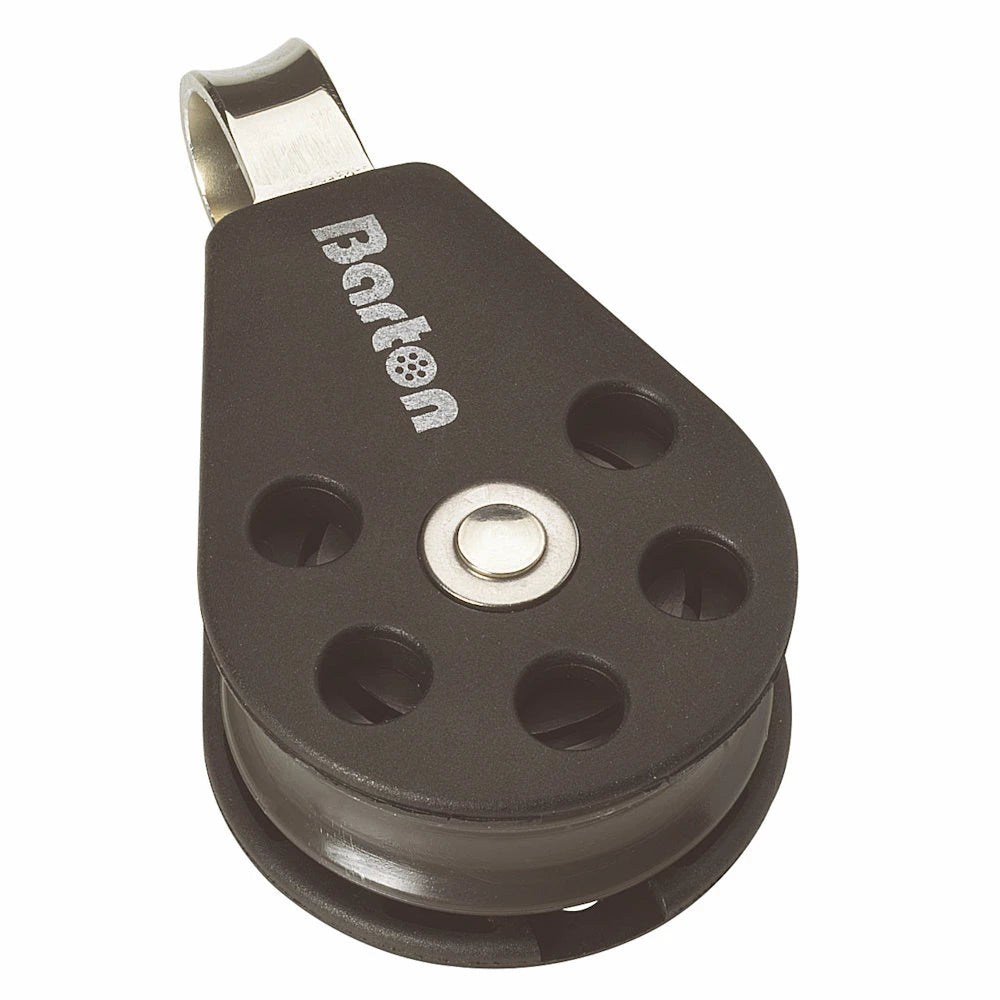

BAN03110 Barton Marine 45 mm Block - Single, Fixed Eye 81 mm 800 kg 10 mm 47 mm 28 mm 63 g

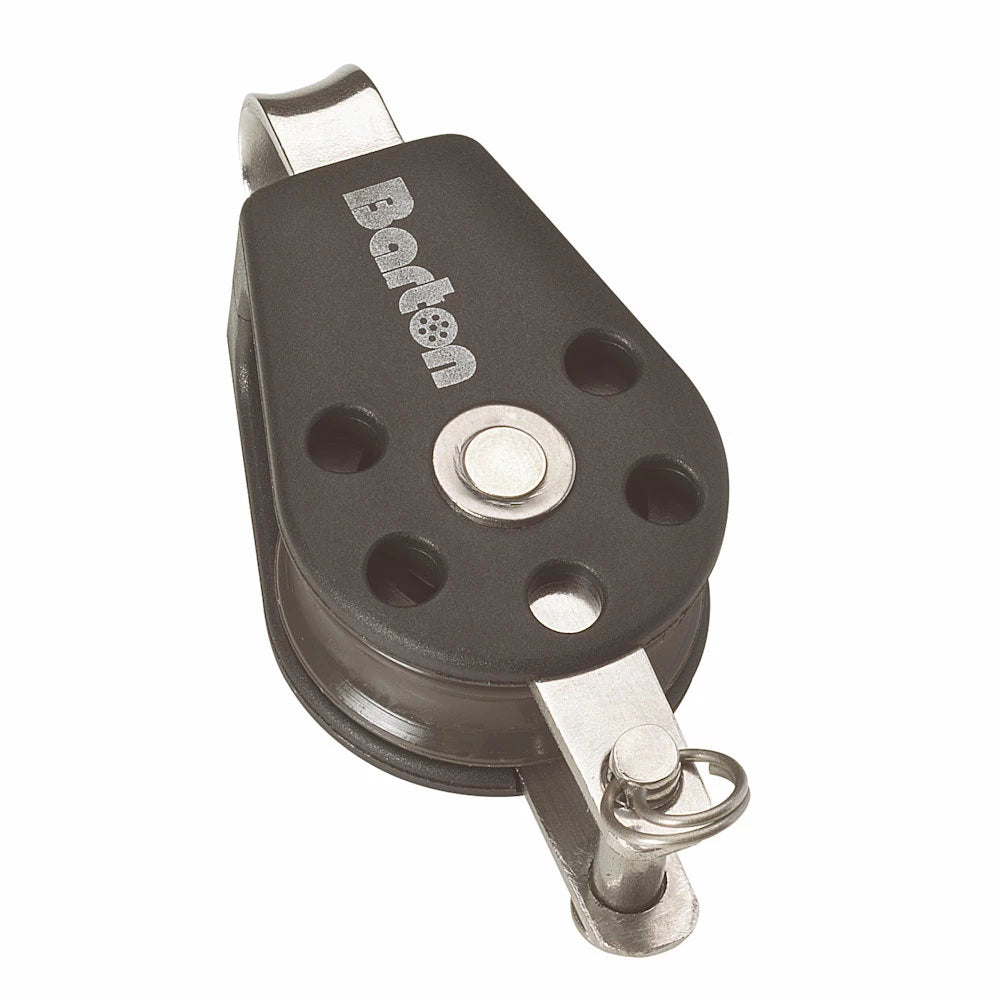

BAN03111 Barton Marine 45 mm Block - Single, Fixed Eye & Becket 97 mm 800 kg 10 mm 47 mm 28 mm 75 g

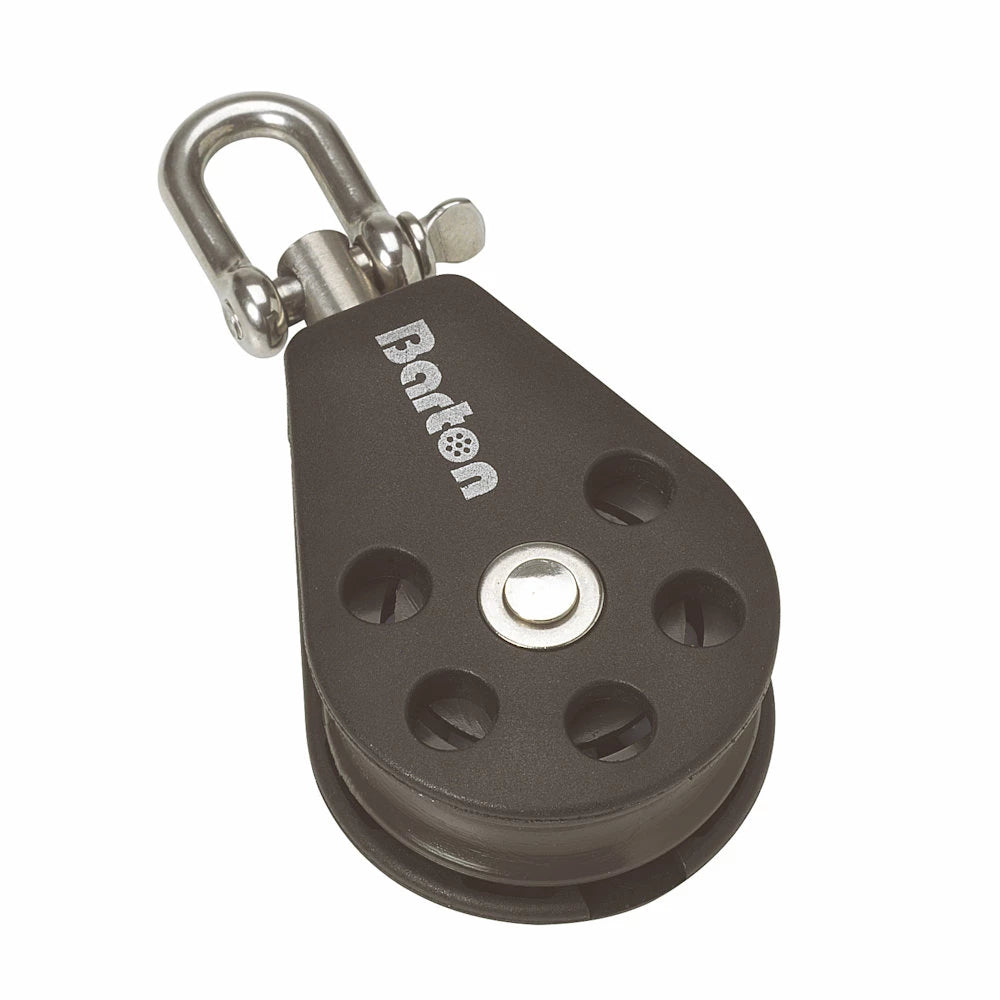

BAN03130 Barton Marine 45 mm Block - Single, Swivel 98 mm 800 kg 10 mm 47 mm 28 mm 78 g

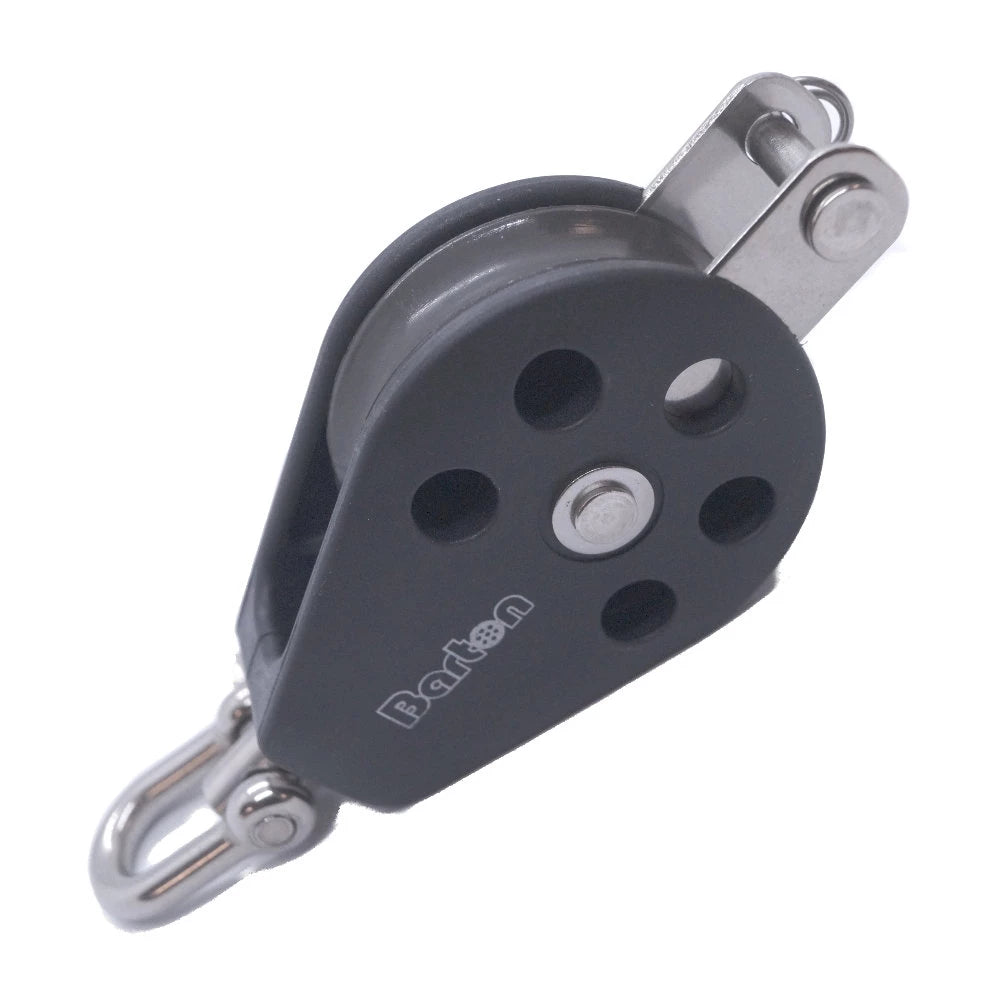

BAN03131 Barton Marine 45 mm Block - Single, Swivel & Becket 114 mm 800 kg 10 mm 47 mm 28 mm 91 g

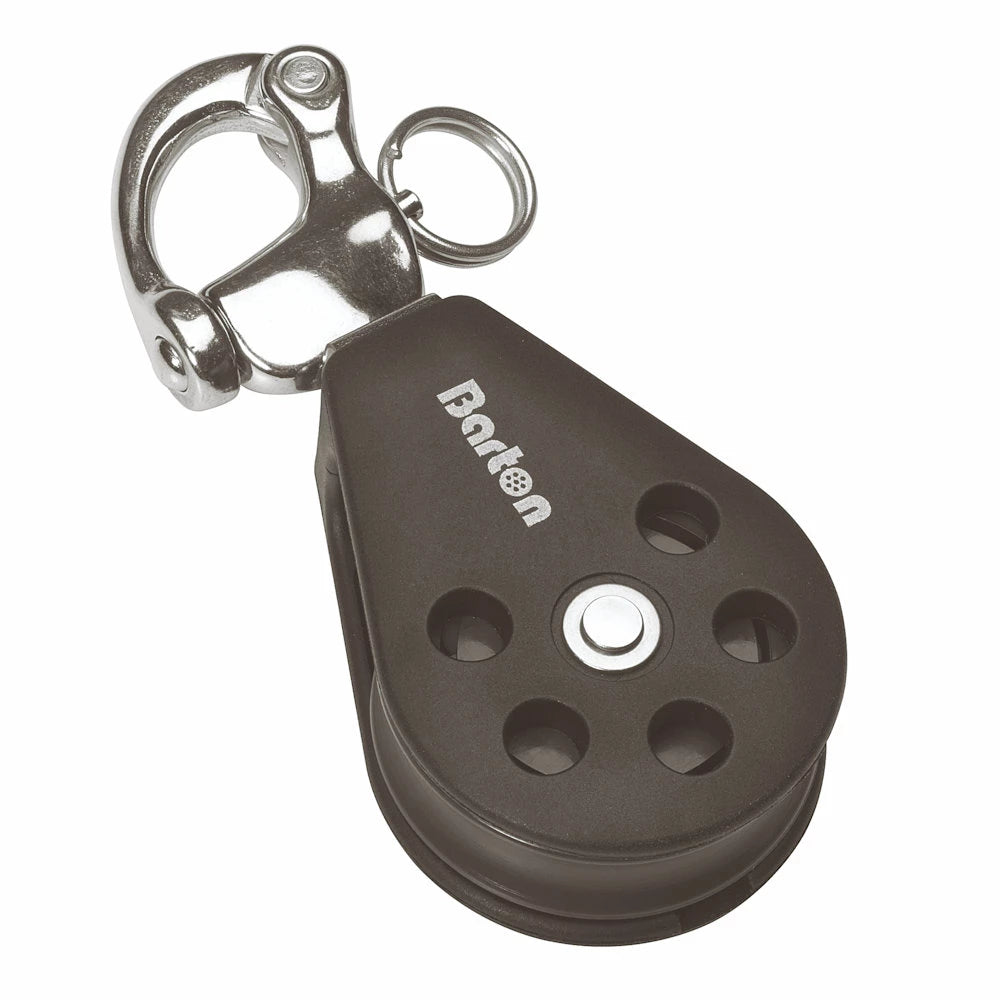

BAN03140 Barton Marine 45 mm Block - Single, Snap Shackle 108 mm 800 kg 10 mm 47 mm 28 mm 106 g

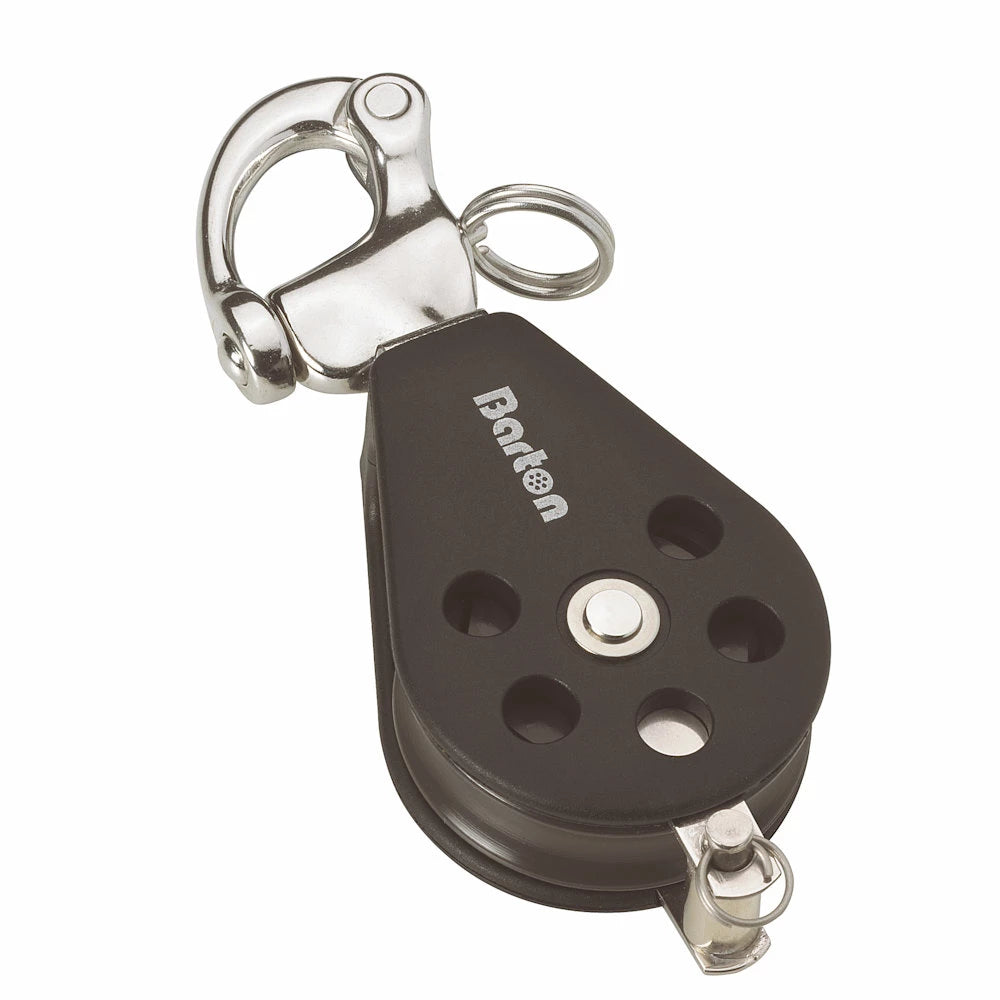

BAN03141 Barton Marine 45 mm Block - Single, Snap Shackle & Becket 124 mm 800 kg 10 mm 47 mm 28 mm 115 g

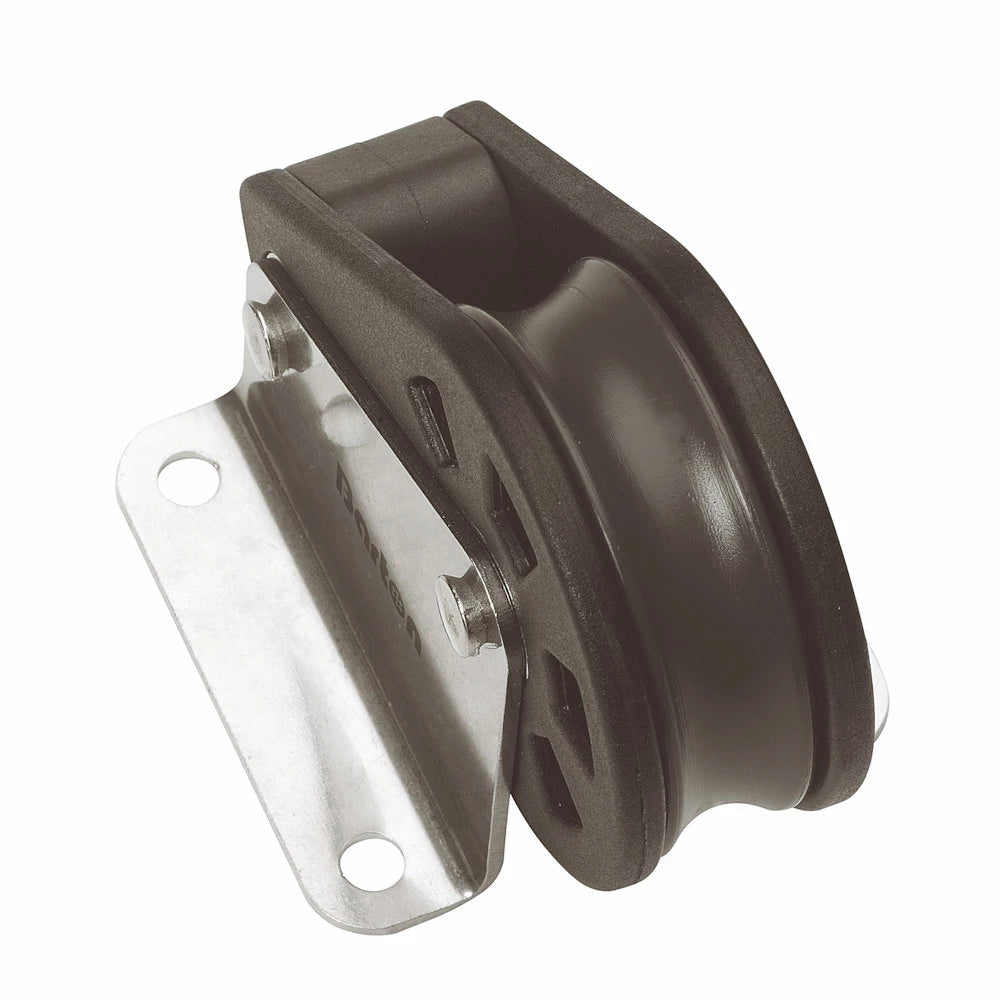

BAN03150 Barton Marine 45 mm Block - Single, Upright 73 mm 800 kg 10 mm 52 mm 61 mm 120 g

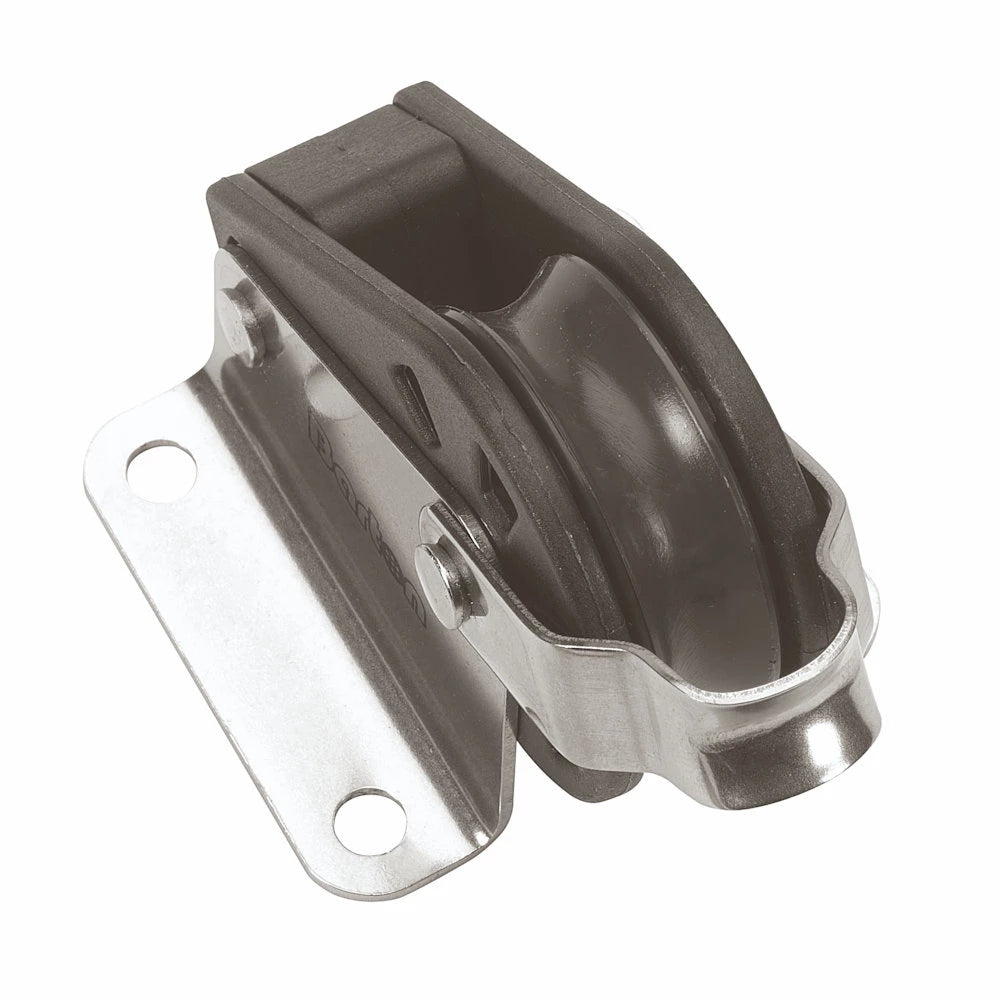

BAN03151 Barton Marine Upright Block & Fairlead 93 mm 52 mm 61 mm 129 g
BAN03160 Barton Marine 45 mm Block - Single, Cheek Block With Back Plate 93 mm 800 kg 10 mm 53 mm 23 mm 106 g
BAN03161 Barton Marine 45 mm Block - Curved Backing Plate (For Cheek Block) 93 mm 800 kg 10 mm 53 mm 7 mm 19 g

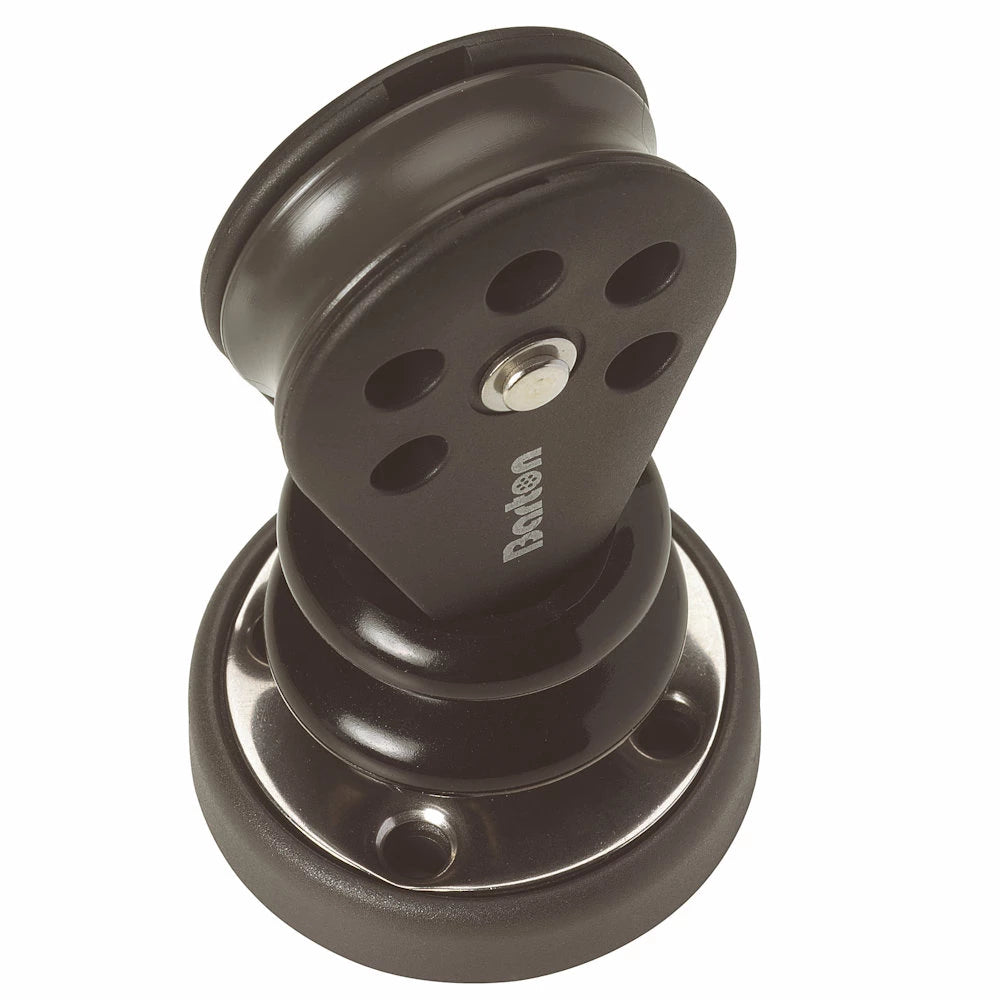

BAN03170 Barton Marine 45 mm Block - Single, Stand Up 112 mm 800 kg 10 mm 58 mm 58 mm 145 g

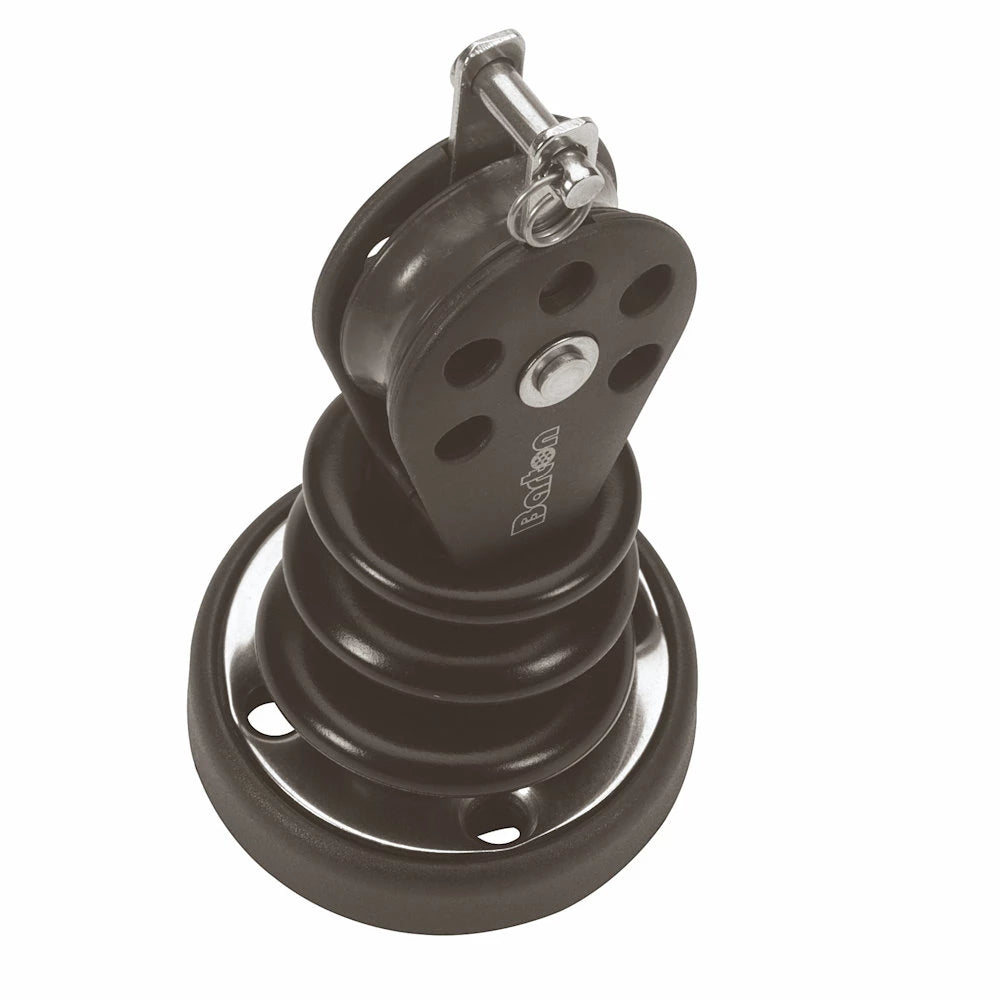

BAN03171 Barton Marine 45 mm Block - Single, Stand Up & Becket 126 mm 800 kg 10 mm 58 mm 58 mm 157 g

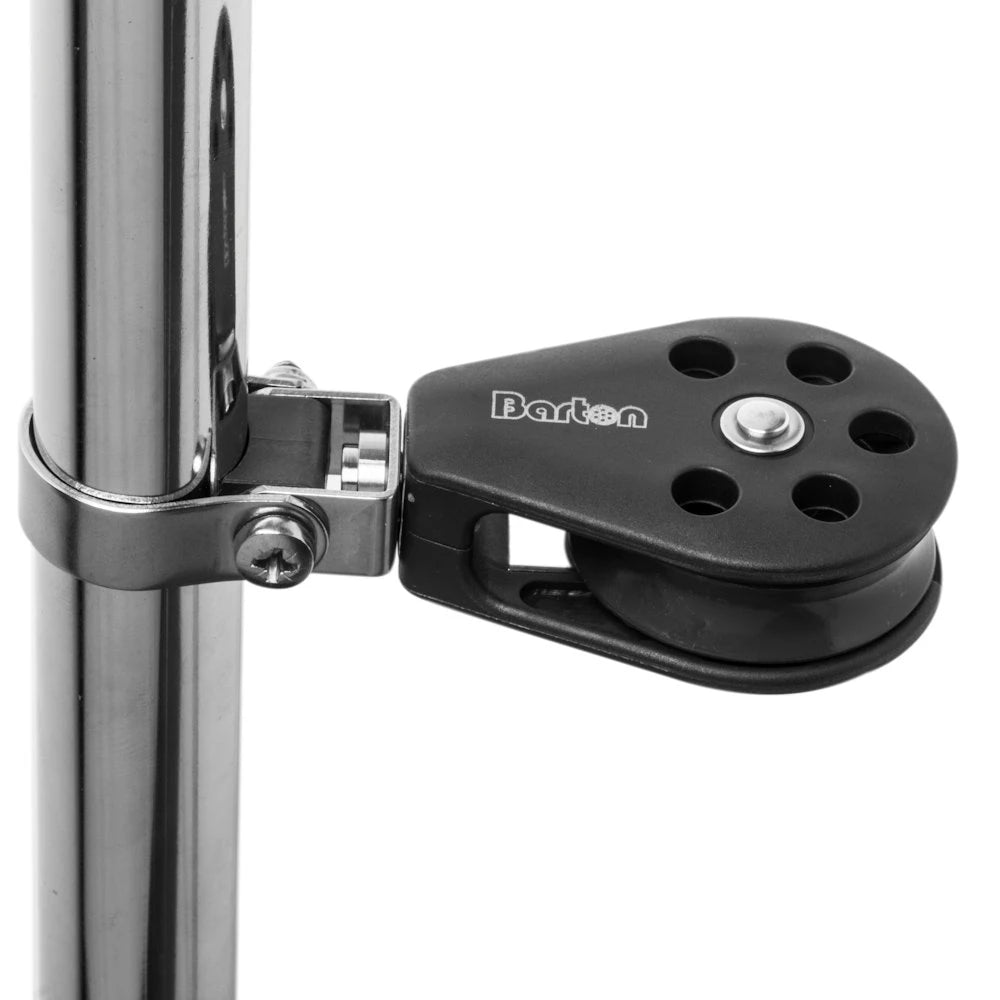

BAN03190 Barton Marine 45 mm Block - Single, Stanchion Lead 112 mm 800 kg 10 mm 47 mm 28 mm 93 g

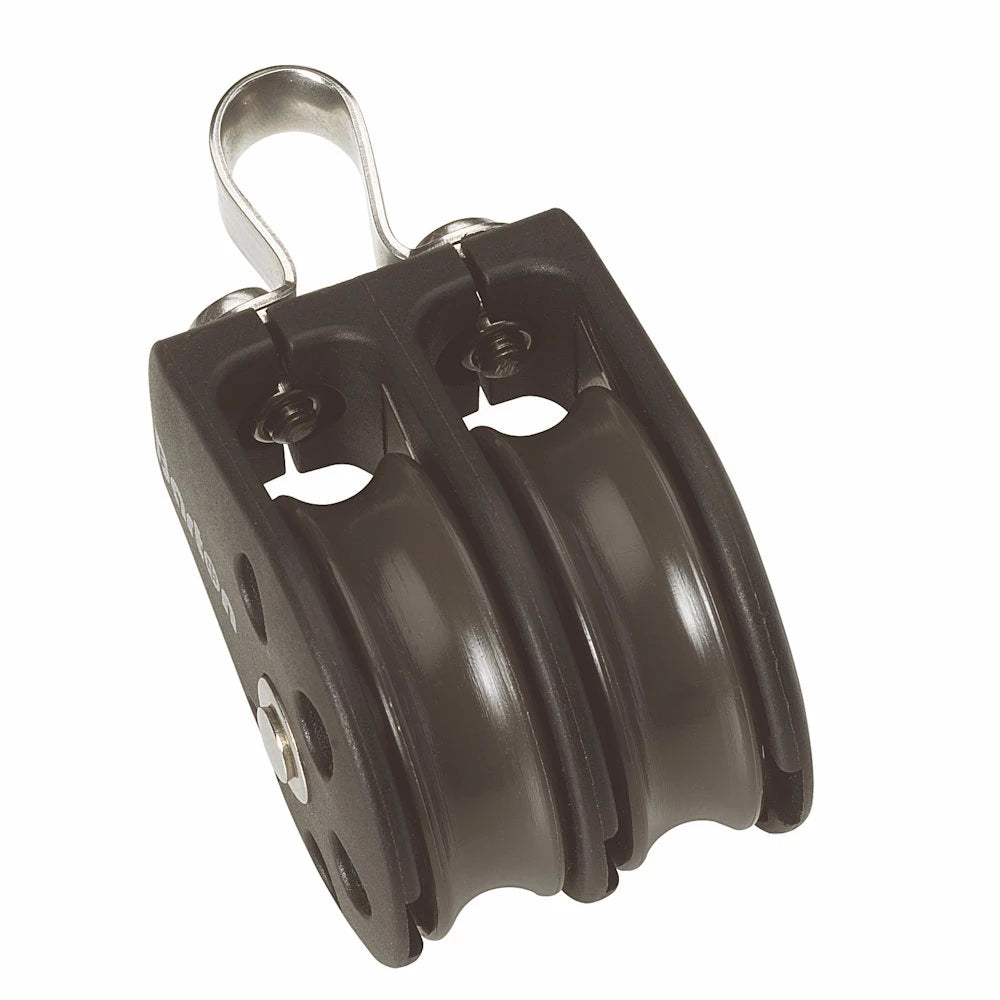

BAN03210 Barton Marine 45 mm Block - Double, Fixed Eye 80 mm 800 kg 10 mm 46 mm 47 mm 109 g

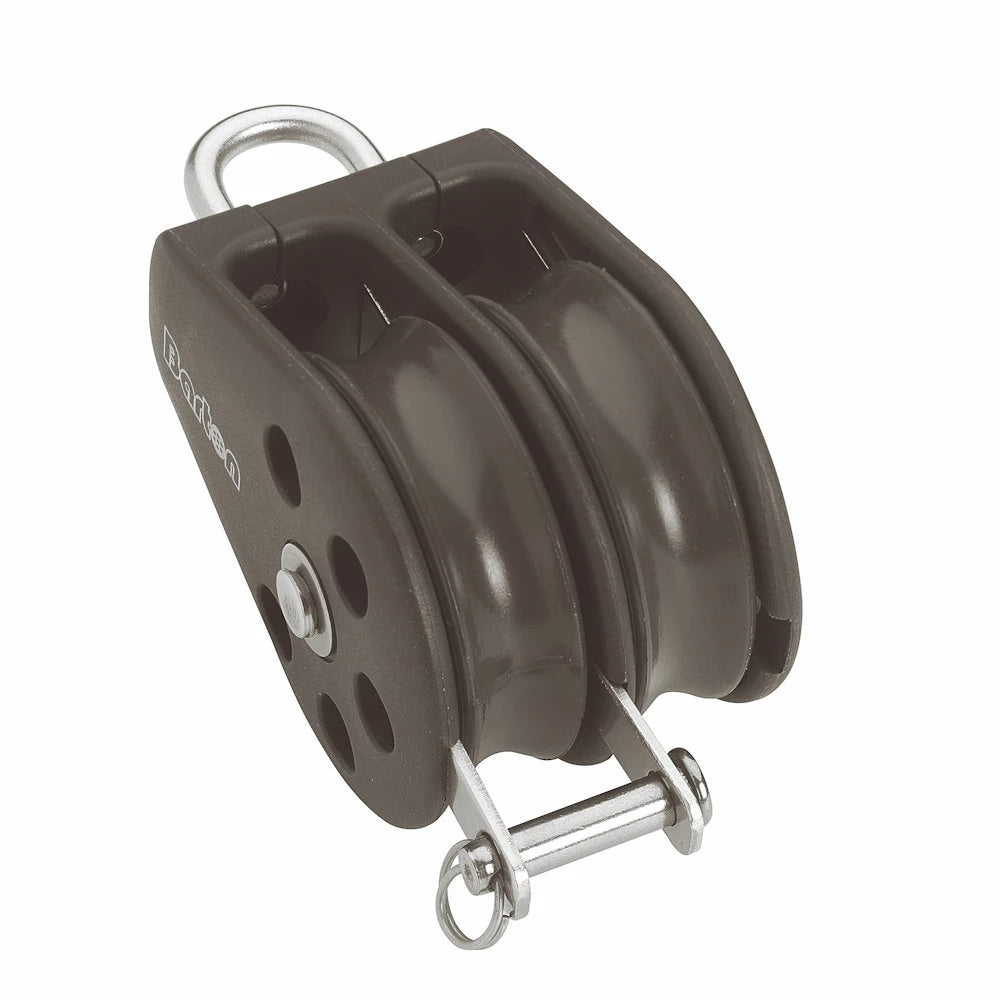

BAN03211 Barton Marine 45 mm Block - Double, Fixed Eye & Becket 95 mm 800 kg 10 mm 46 mm 47 mm 121 g

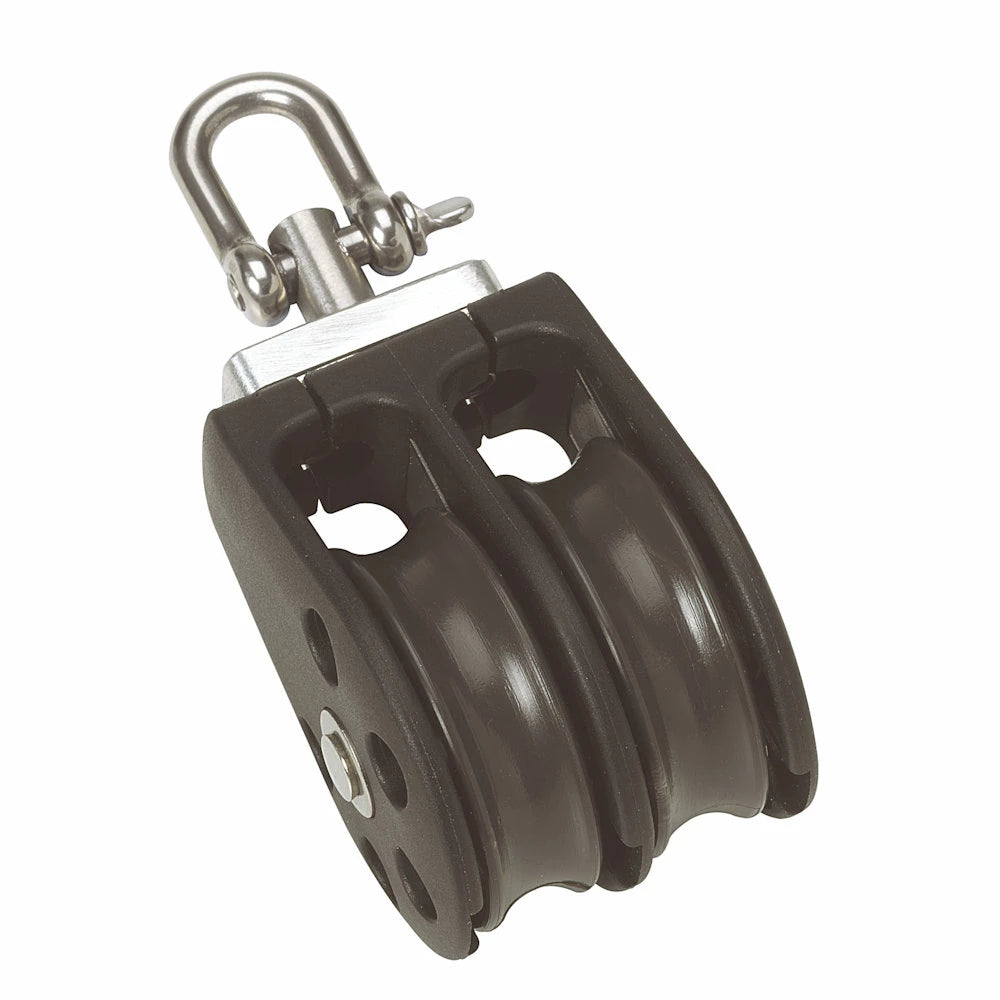

BAN03230 Barton Marine 45 mm Block - Double, Swivel 104 mm 800 kg 10 mm 46 mm 47 mm 131 g

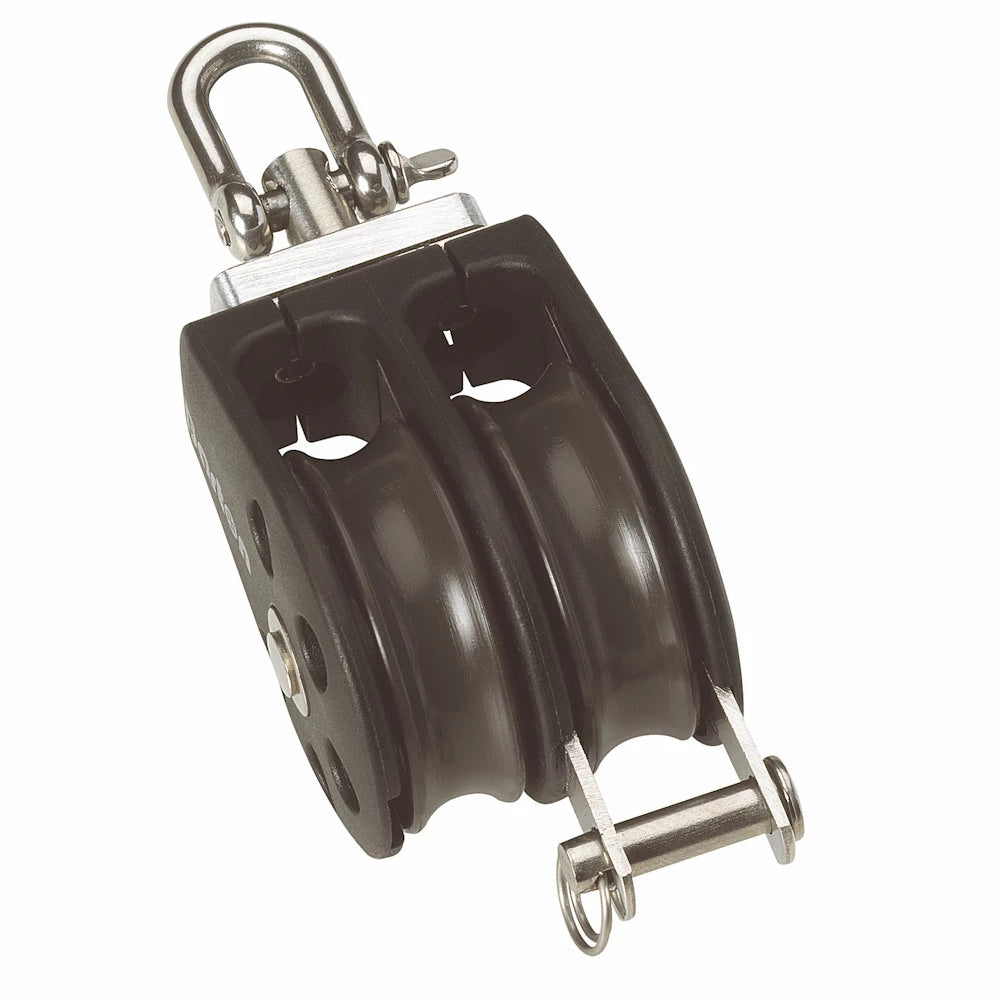

BAN03231 Barton Marine 45 mm Block - Double, Swivel & Becket 118 mm 800 kg 10 mm 46 mm 47 mm 143 g

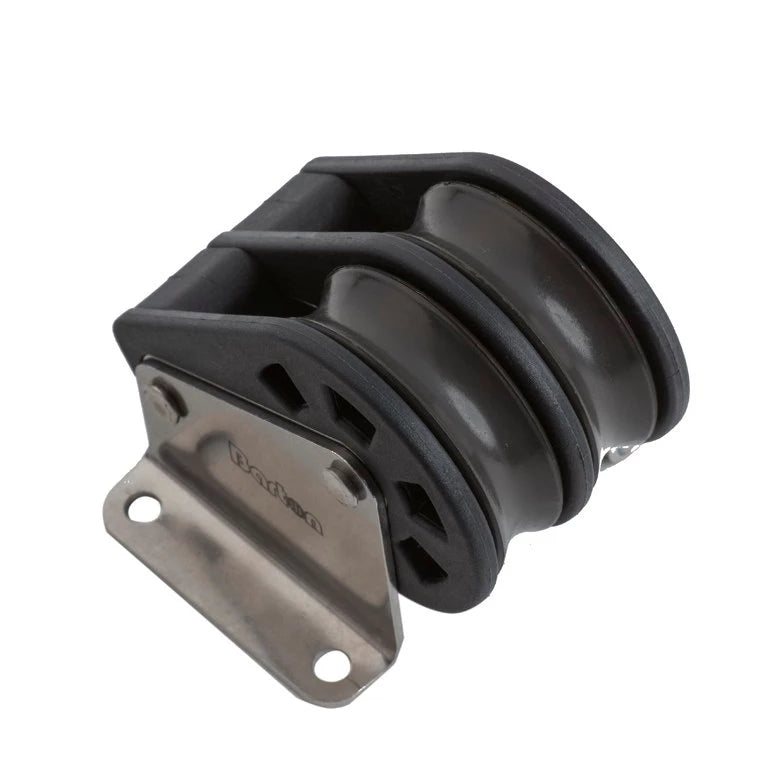

BAN03250 Barton Marine 45 mm Block - Double, Upright 74 mm 800 kg 10 mm 70 mm 60 mm 167 g

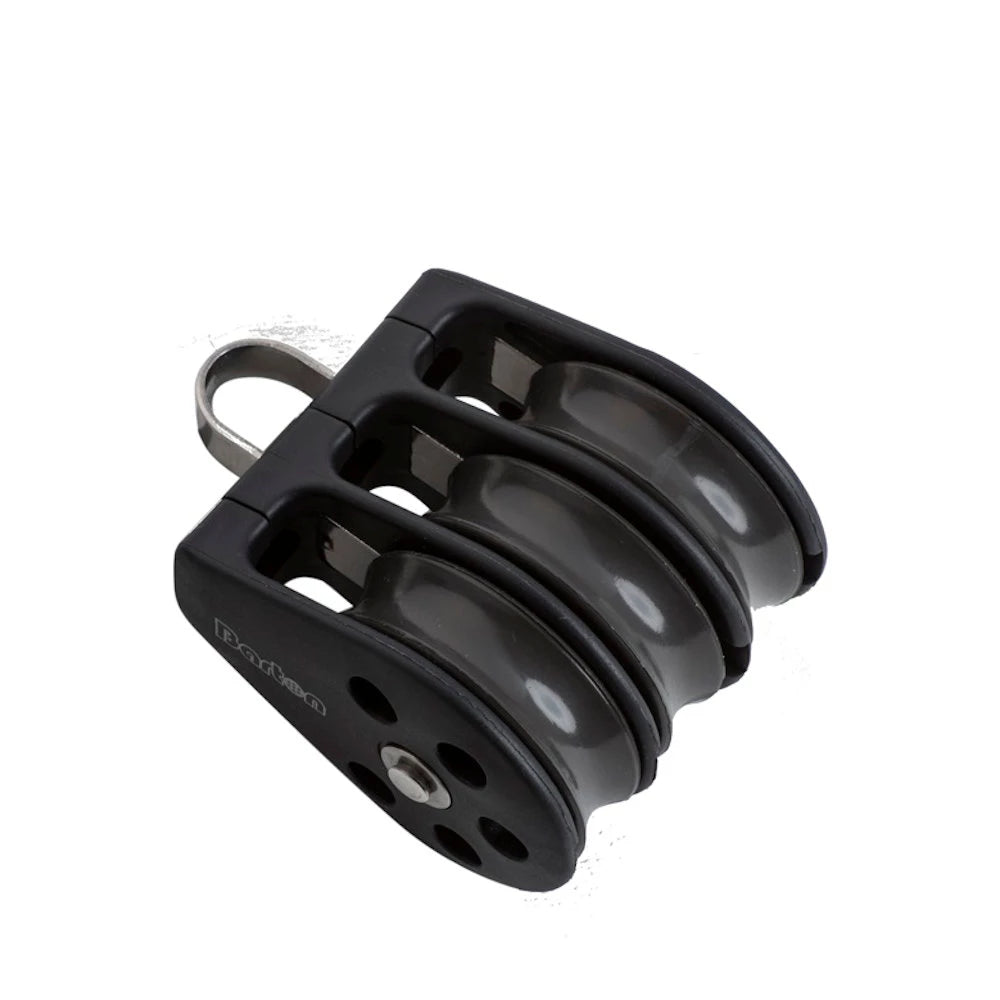

BAN03310 Barton Marine 45 mm Block - Triple, Fixed Eye 79 mm 800 kg 10 mm 63 mm 47 mm 151 g

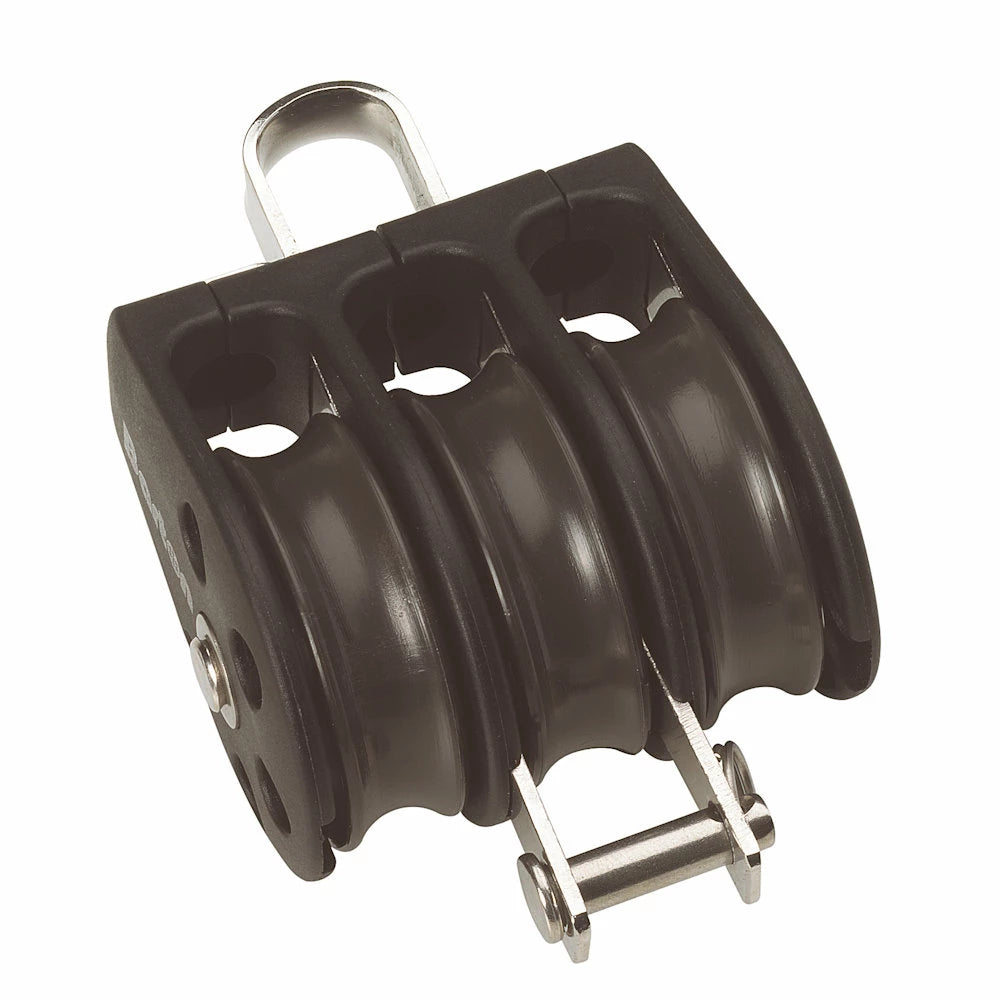

BAN03311 Barton Marine 45 mm Block - Triple, Fixed Eye & Becket 95 mm 800 kg 10 mm 63 mm 47 mm 160 g

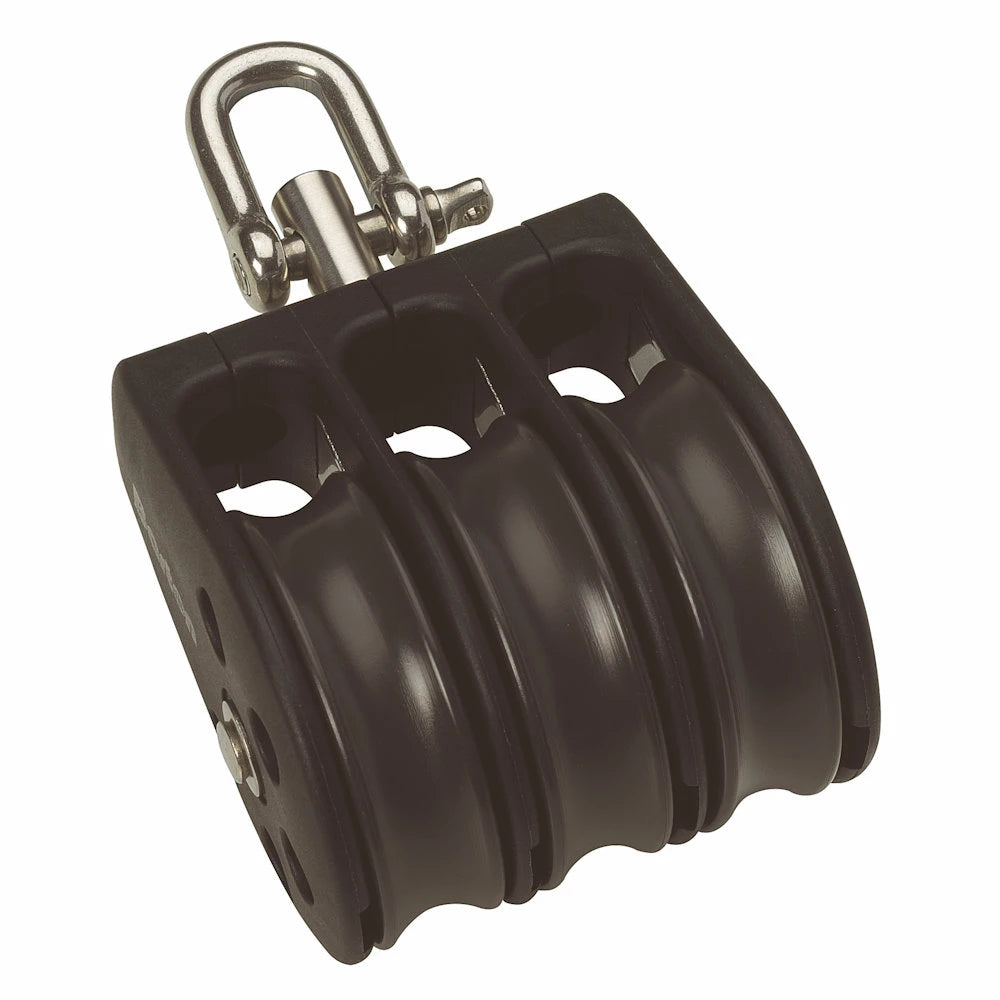

BAN03330 Barton Marine 45 mm Block - Triple, Swivel 96 mm 800 kg 10 mm 63 mm 47 mm 166 g

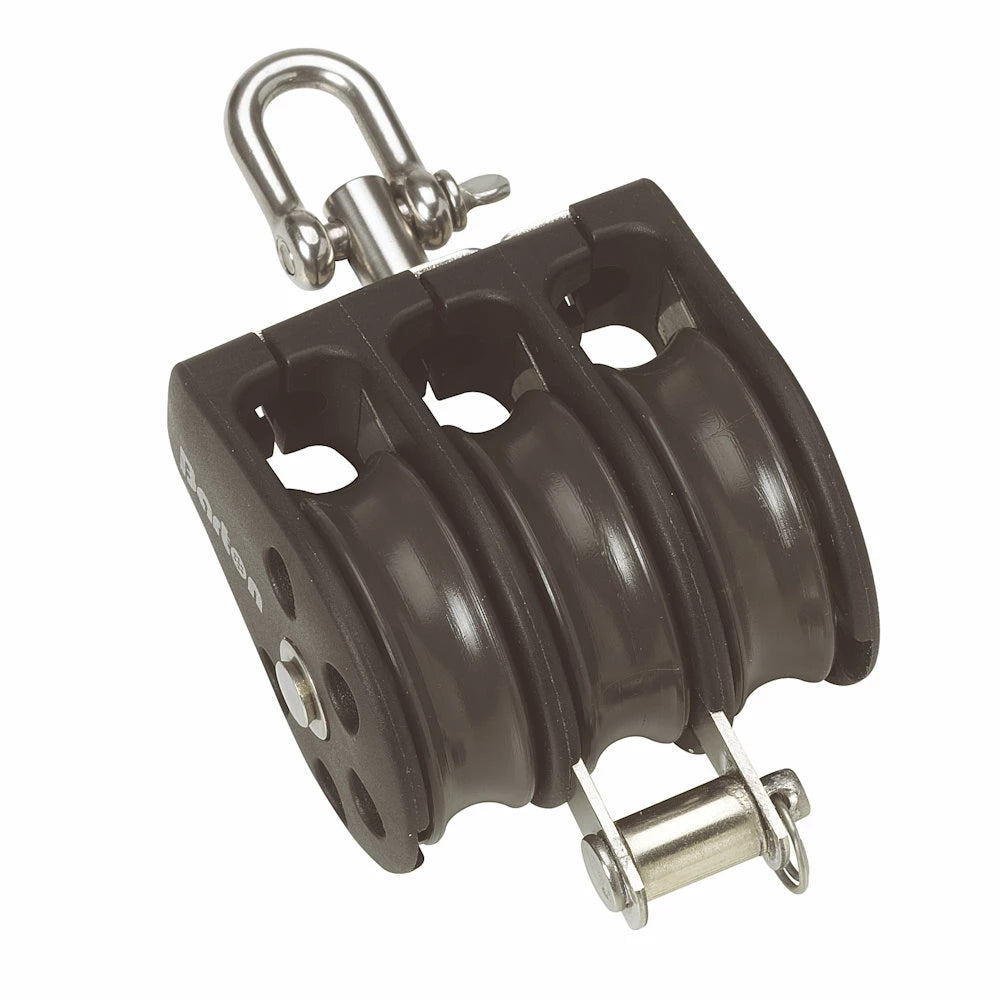

BAN03331 Barton Marine 45 mm Block - Triple, Swivel & Becket 112 mm 800 kg 10 mm 63 mm 47 mm 179 g

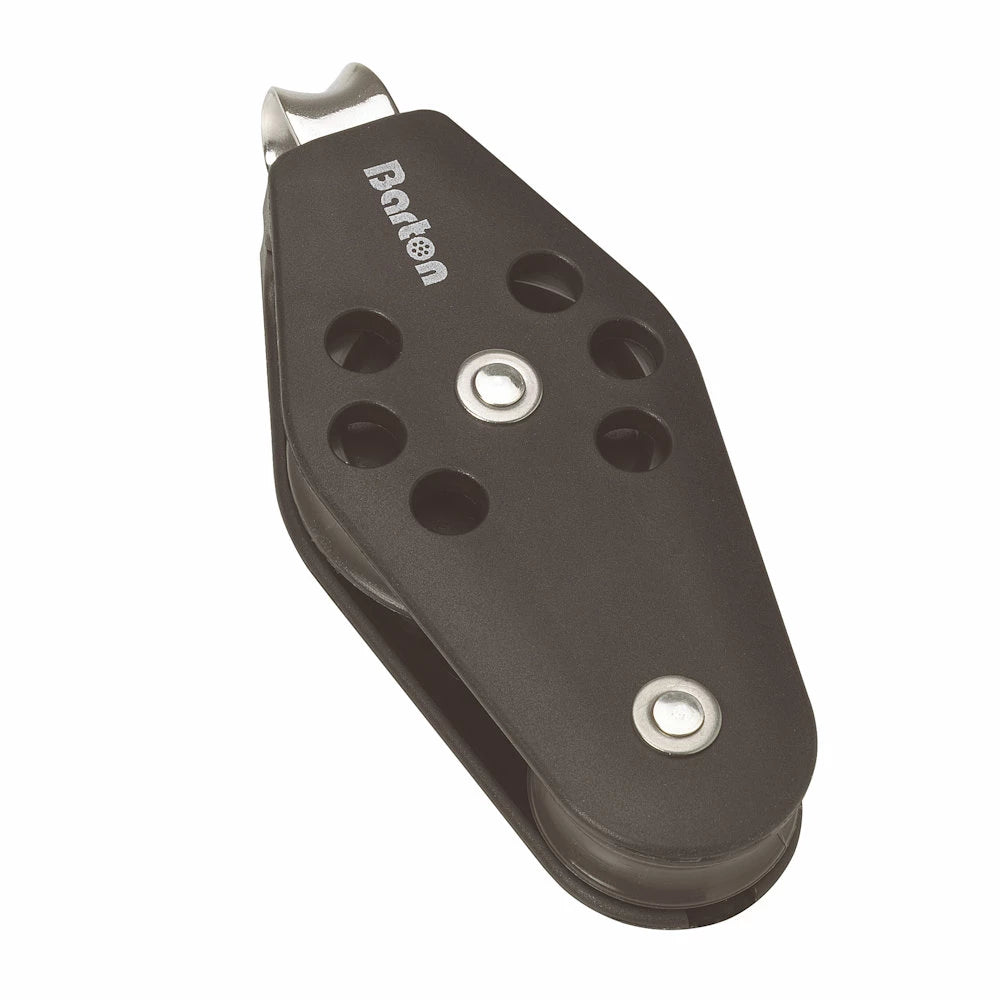

BAN03410 Barton Marine 45 mm Block - Fiddle, Fixed Eye 134 mm 800 kg 10 mm 60 mm 28 mm 129 g

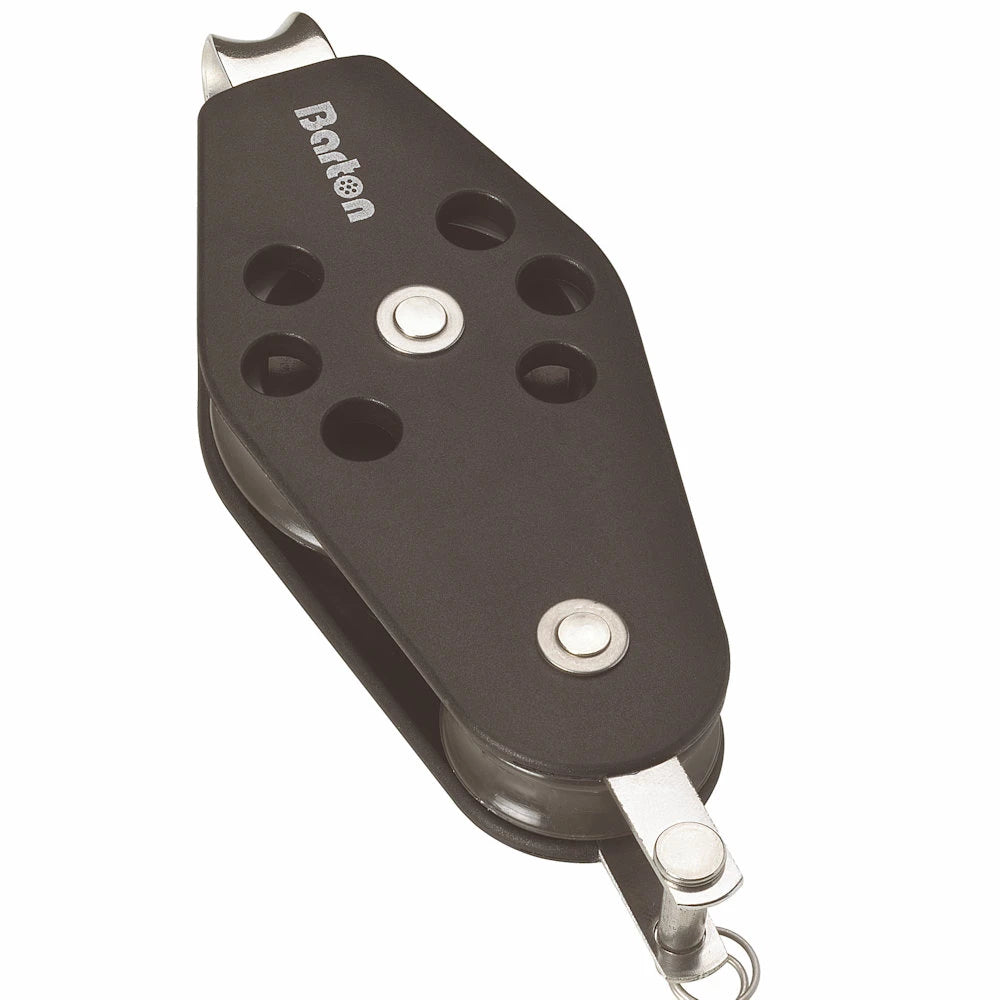

BAN03411 Barton Marine 45 mm Block - Fiddle, Fixed Eye & Becket 158 mm 800 kg 10 mm 60 mm 28 mm 138 g

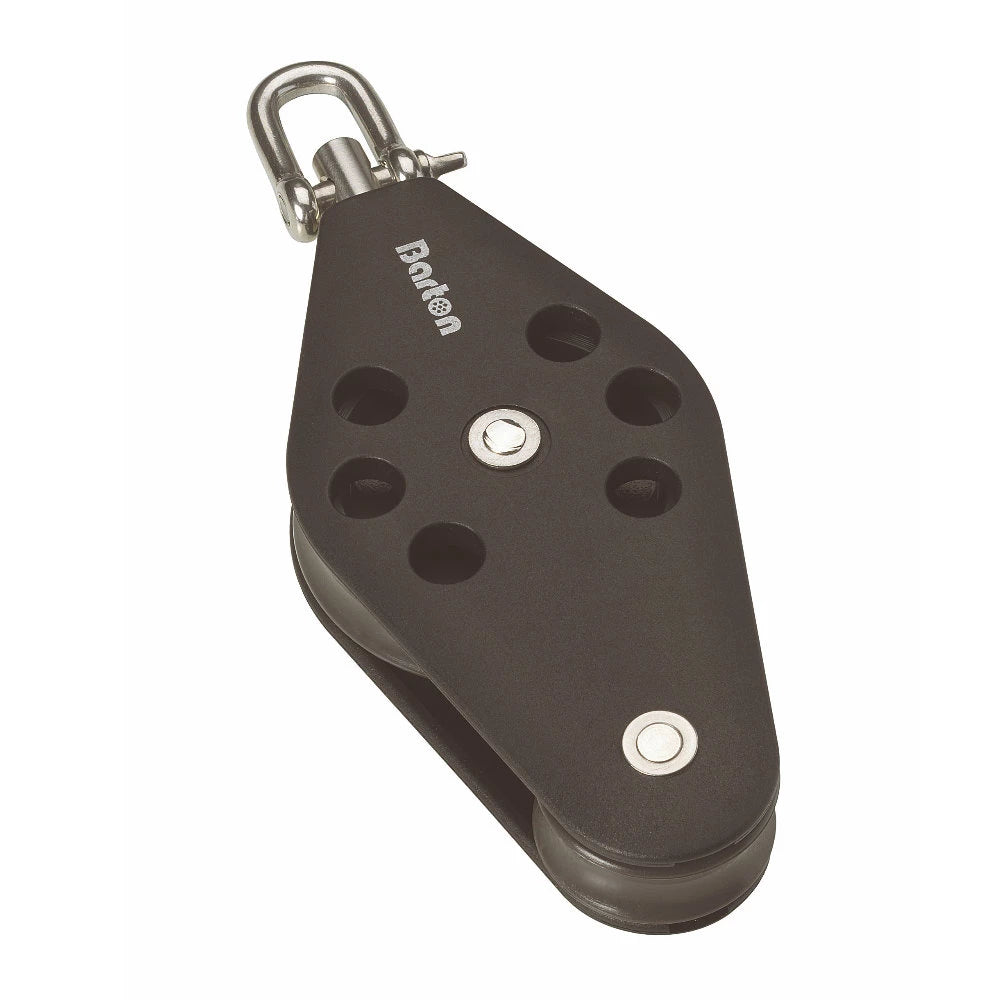

BAN03430 Barton Marine 45 mm Block - Fiddle, Swivel 150 mm 800 kg 10 mm 60 mm 28 mm 145 g

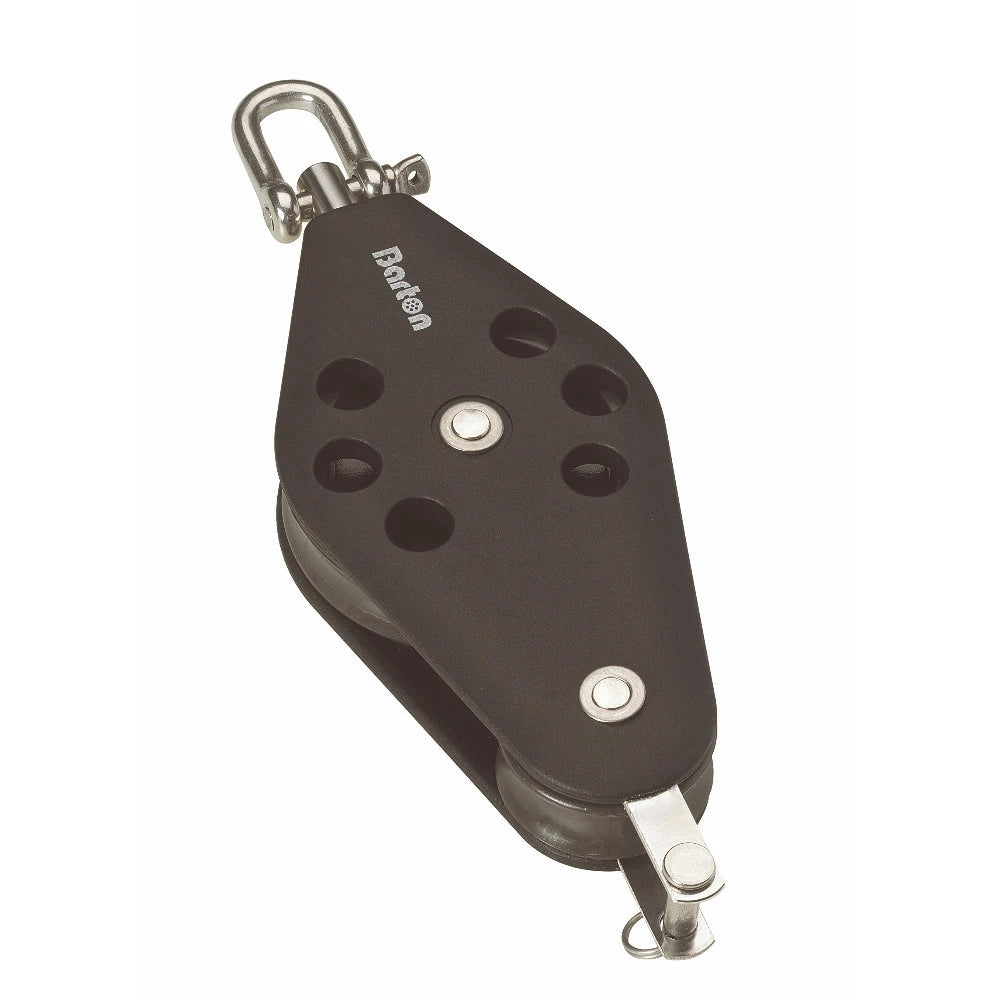

BAN03431 Barton Marine 45 mm Block - Fiddle, Swivel & Becket 175 mm 800 kg 10 mm 60 mm 28 mm 154 g

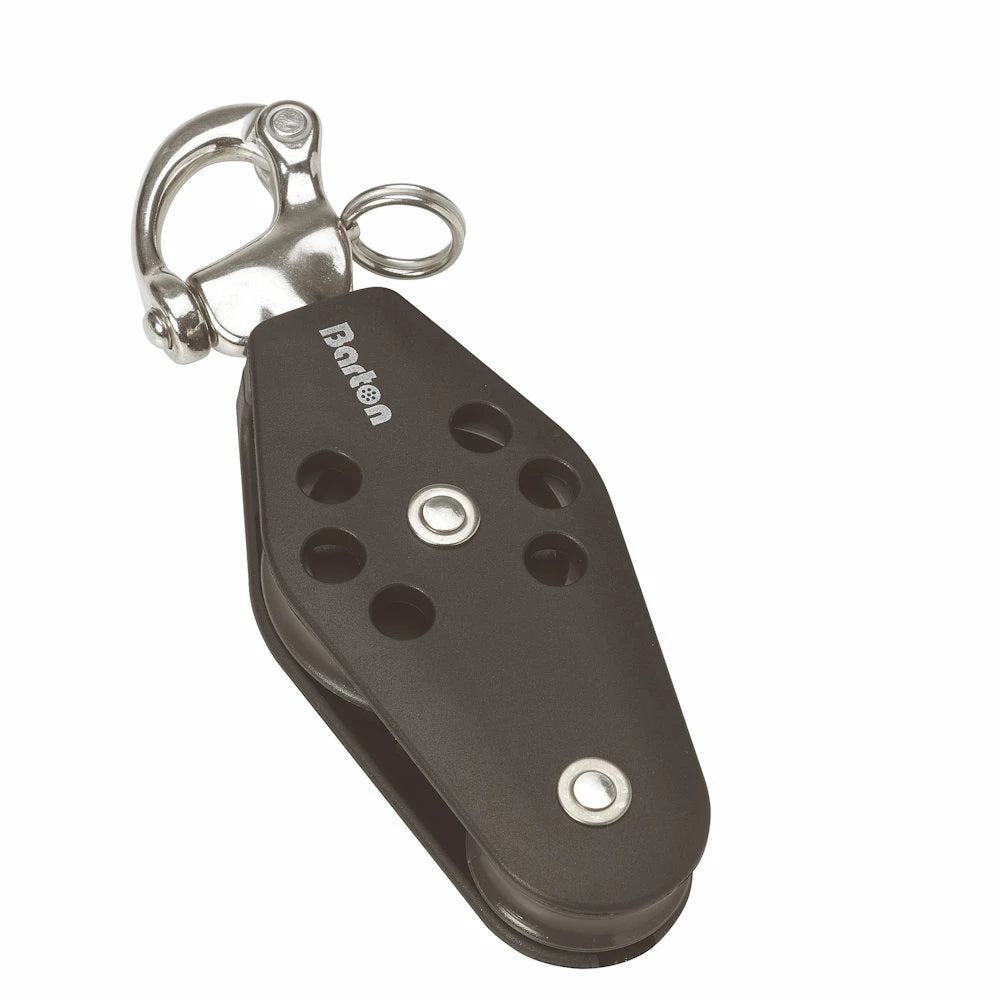

BAN03440 Barton Marine 45 mm Block - Fiddle, Snap Shackle 160 mm 800 kg 10 mm 60 mm 28 mm 172 g

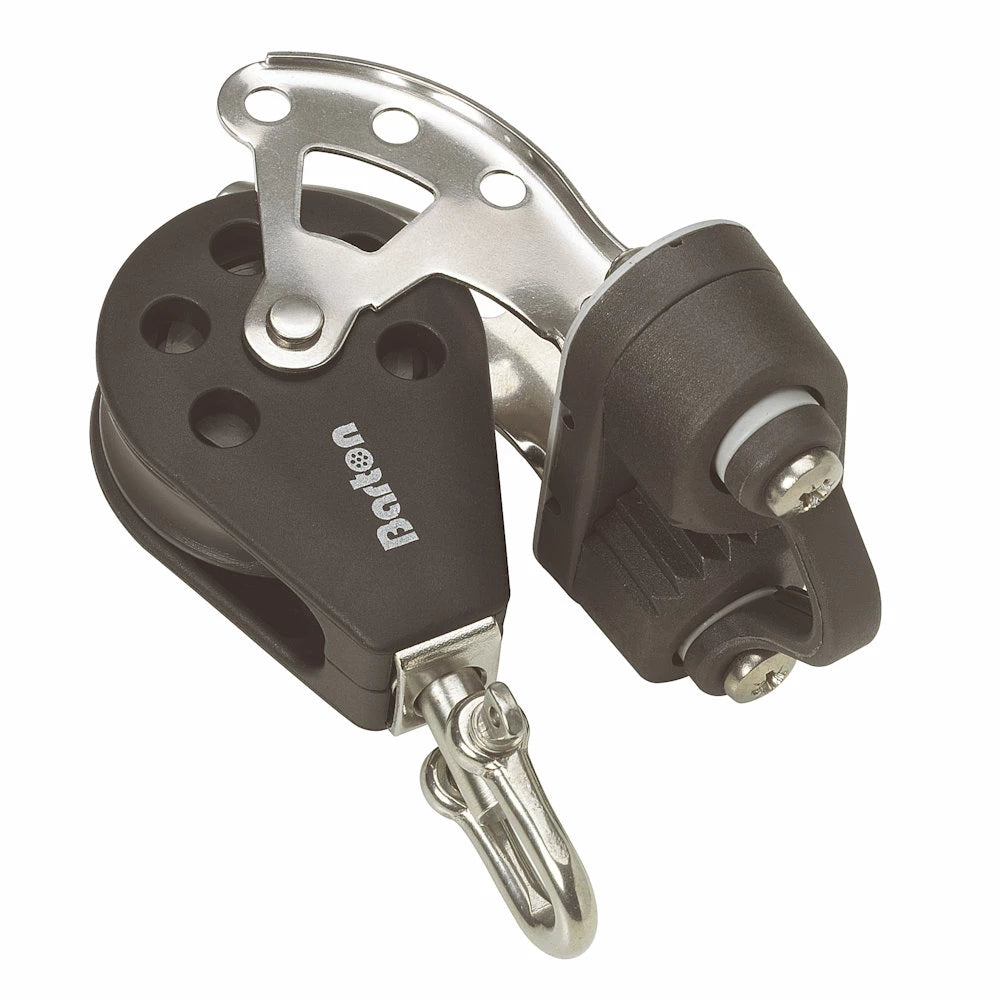

BAN03511 Barton Marine 45 mm Block - Single, Swivel & Becket & Cam 114 mm 800 kg 10 mm 92 mm 68 mm 174 g

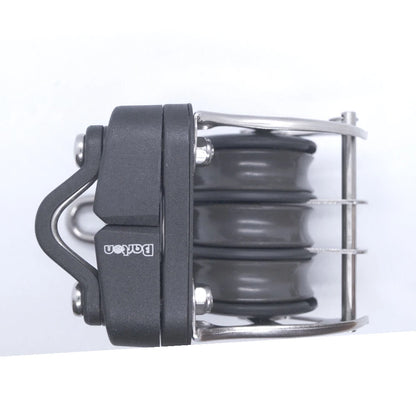

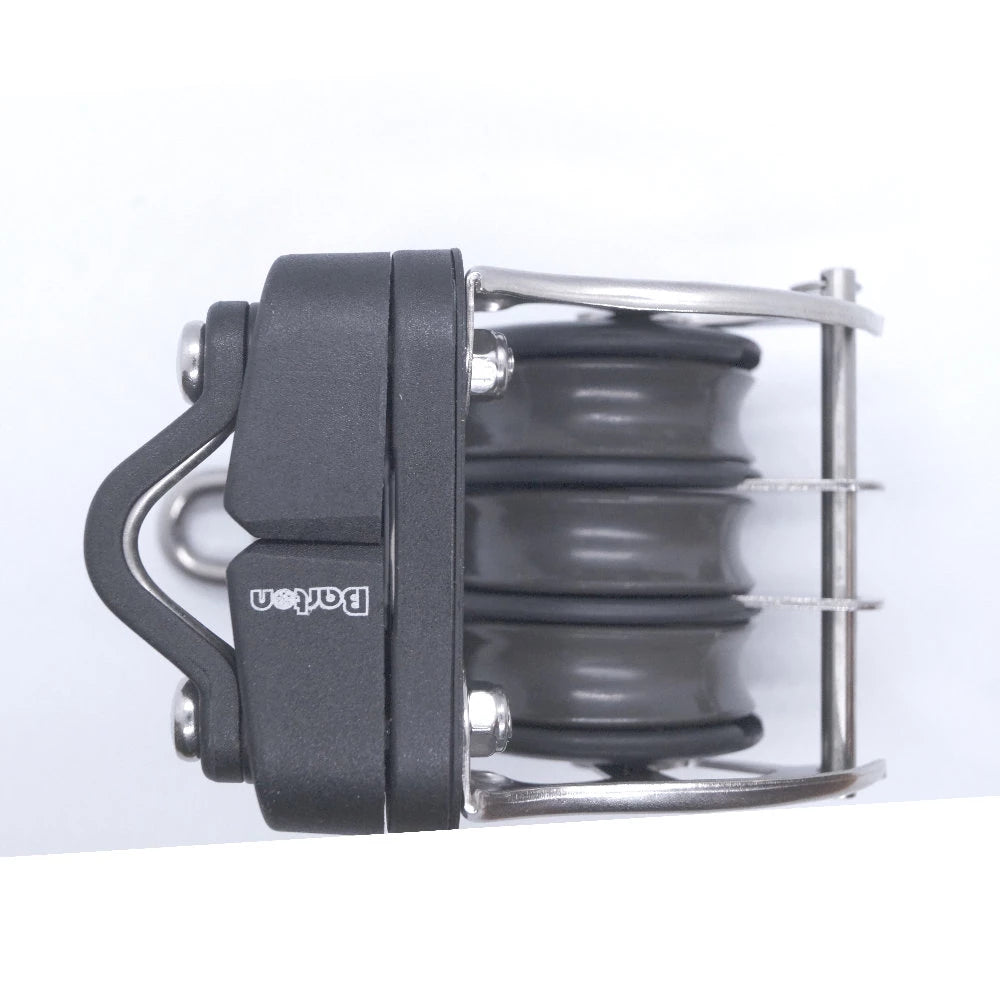

BAN03531 Barton Marine 45 mm Block - Triple, Swivel & Becket & Cam 115 mm 800 kg 10 mm 71 mm 78 mm 267 g

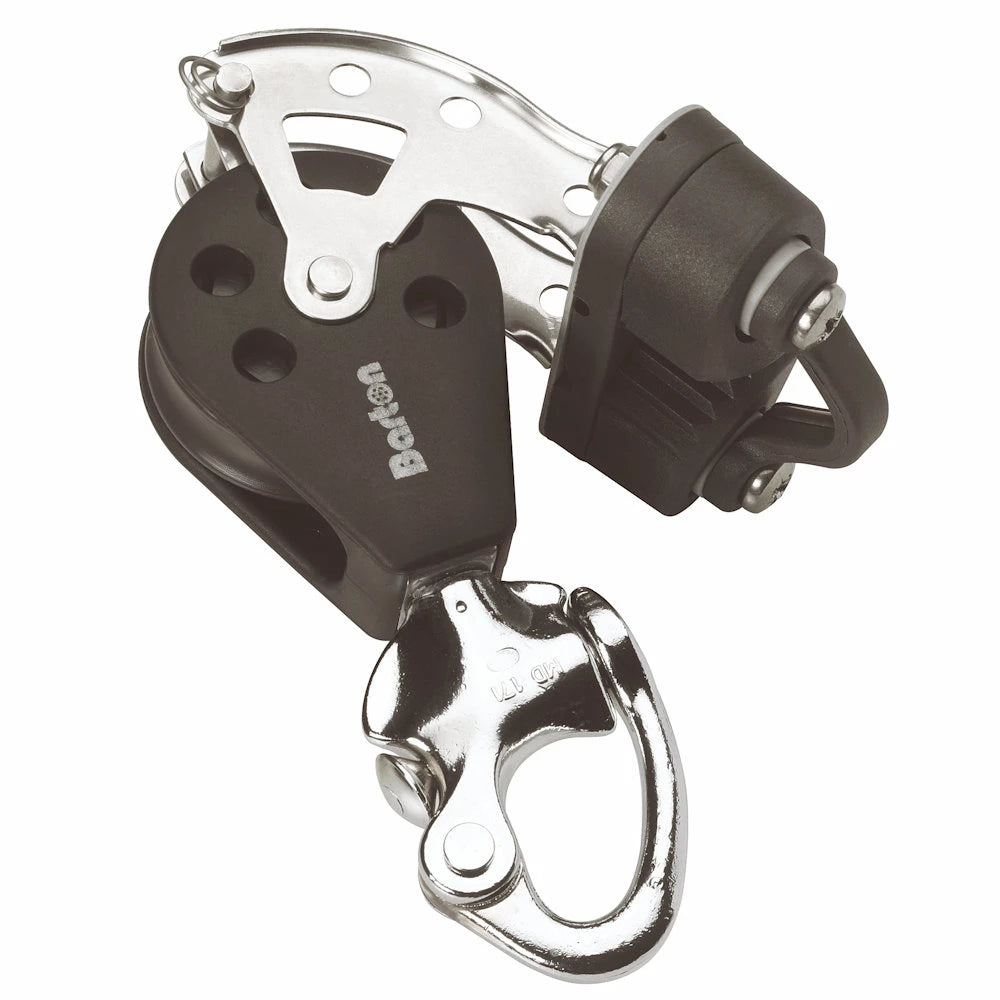

BAN03541 Barton Marine 45 mm Block - Single, Snap Shackle & Becket & Cam 124 mm 800 kg 10 mm 92 mm 68 mm 200 g

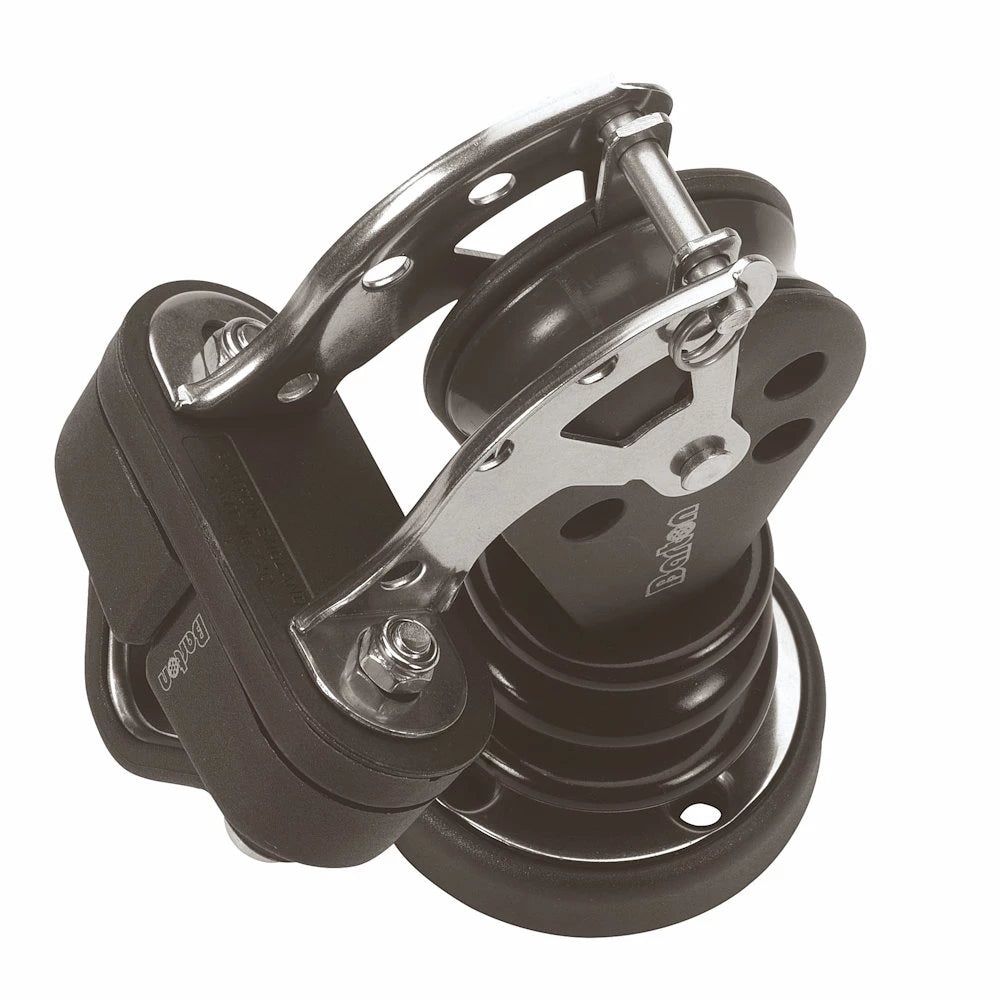

BAN03571 Barton Marine 45 mm Block - Single, Stand Up & Becket & Cam 127 mm 800 kg 10 mm 92 mm 68 mm 242 g

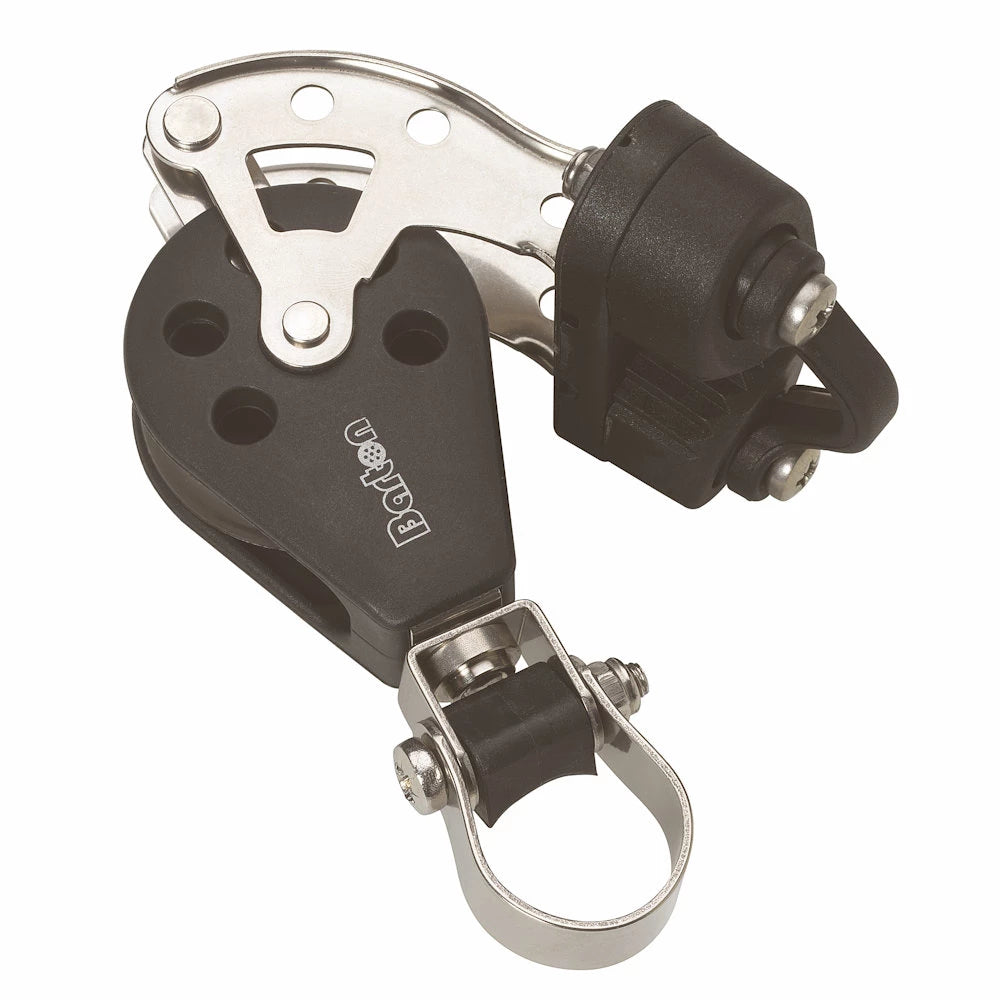

BAN03591 Barton Marine 45 mm Block - Fiddle, Stand Up & Becket & Cam 128 mm 800 kg 10 mm 92 mm 68 mm 188 g

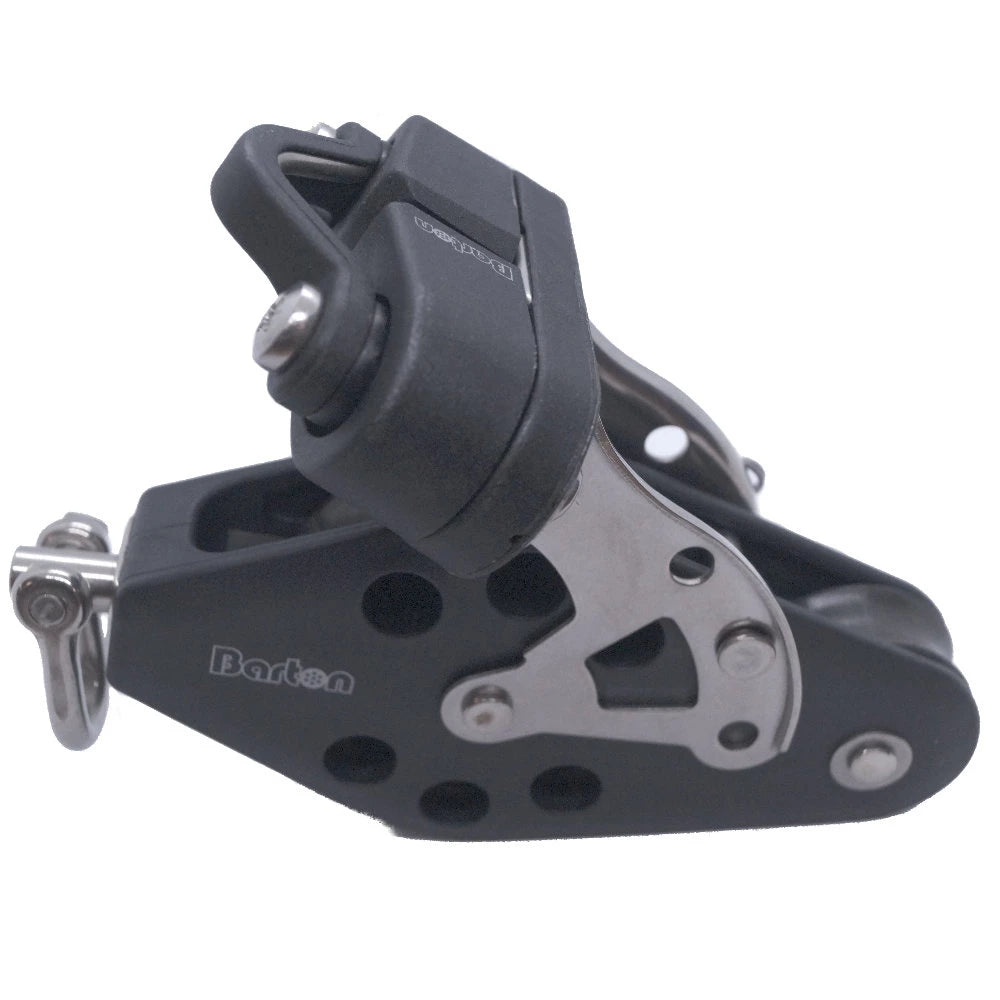

BAN03630 Barton Marine 45 mm Block - Fiddle, Swivel & Cam 150 mm 800 kg 10 mm 92 mm 68 mm 233 g

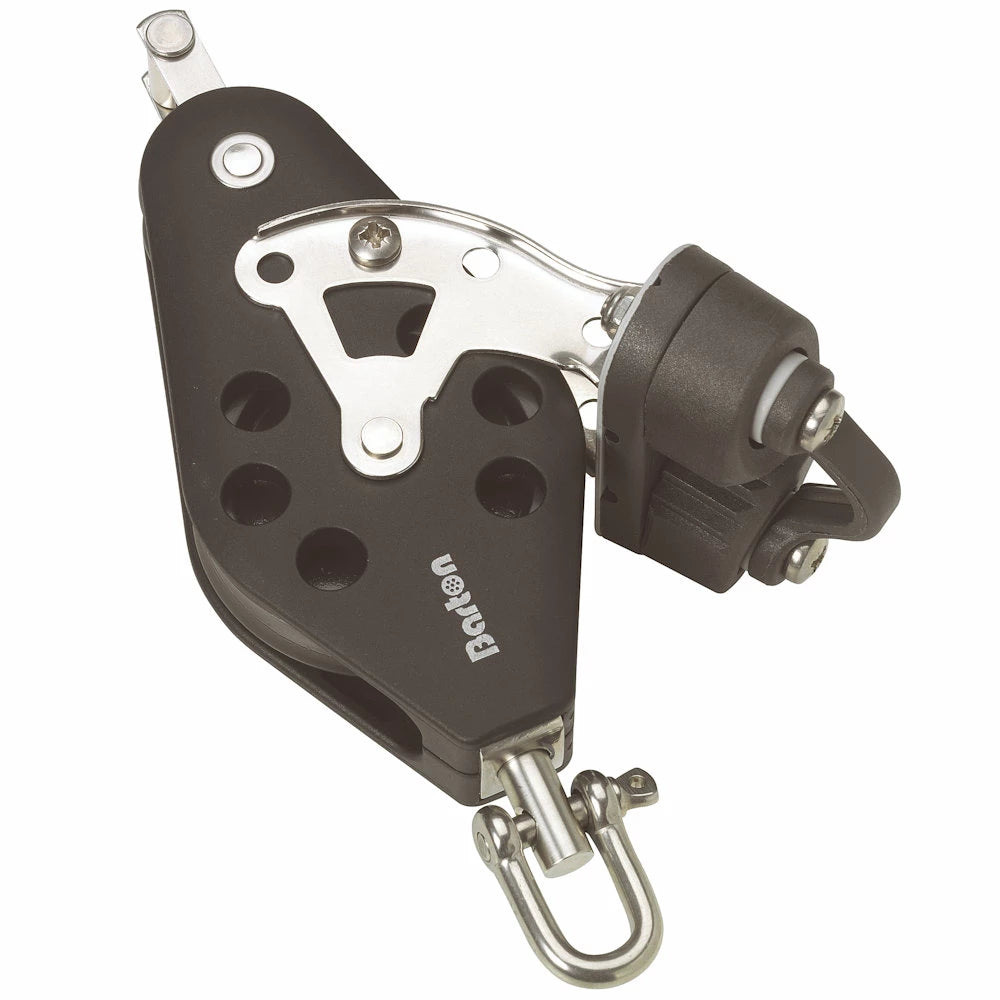

BAN03631 Barton Marine 45 mm Block - Fiddle, Swivel & Becket & Cam 175 mm 800 kg 10 mm 92 mm 68 mm 243 g

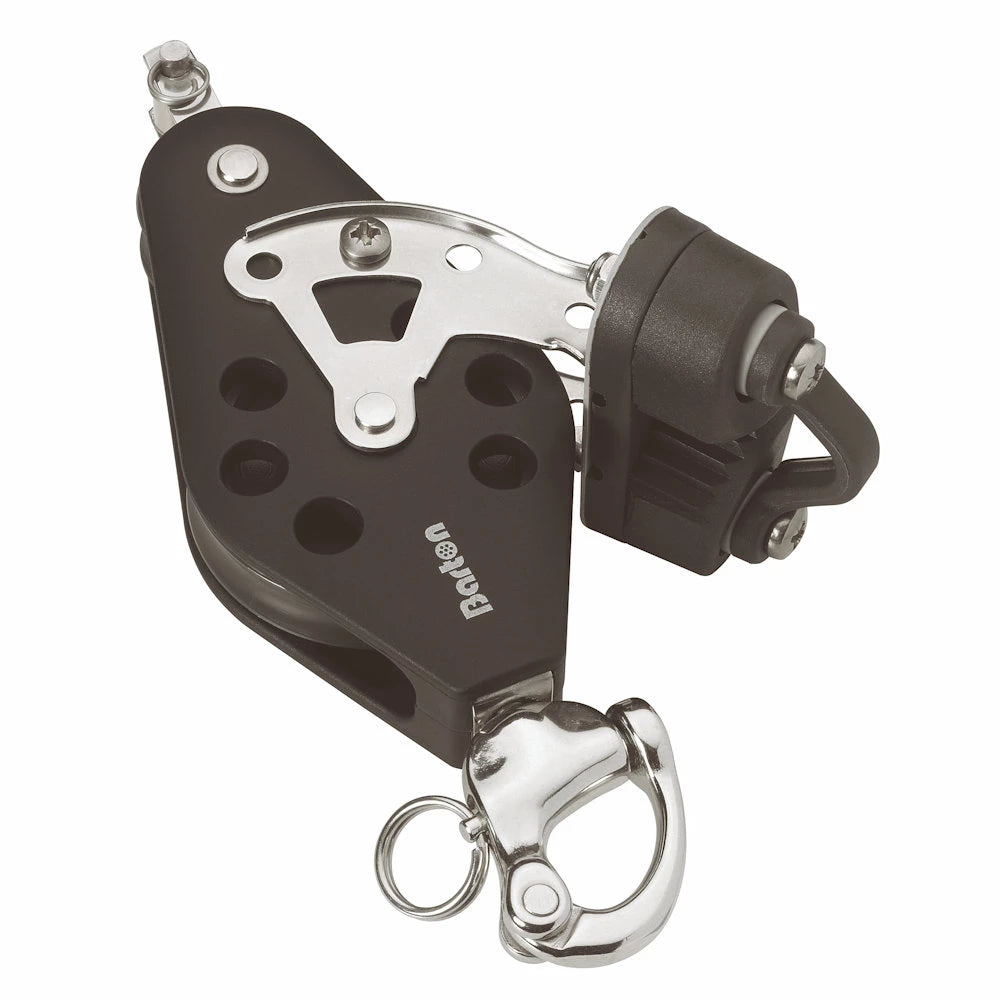

BAN03641 Barton Marine 45 mm Block - Fiddle, Snap Shackle & Becket & Cam 185 mm 800 kg 10 mm 92 mm 68 mm 270 g

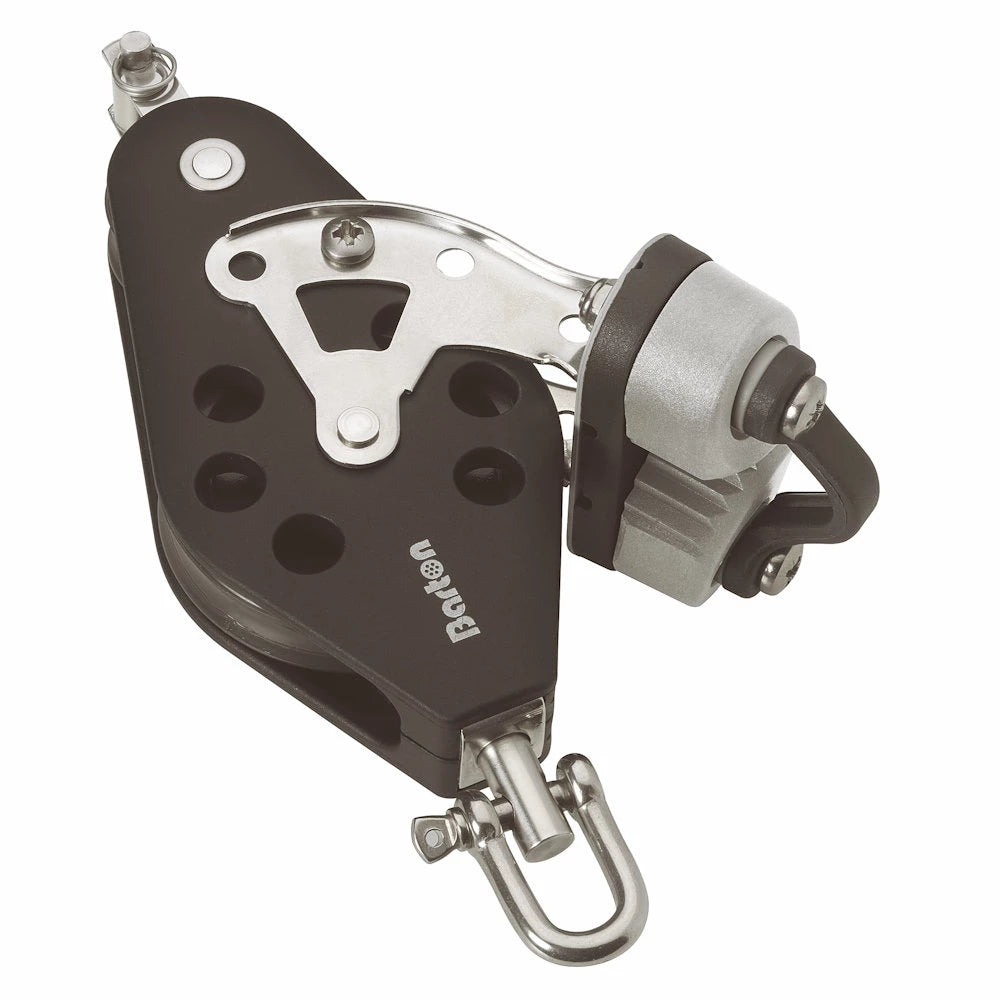

BAN03731 Barton Marine 45 mm Block - Fiddle, Swivel & Becket & Plastic Cam 175 mm 800 kg 10 mm 92 mm 68 mm 245 g
