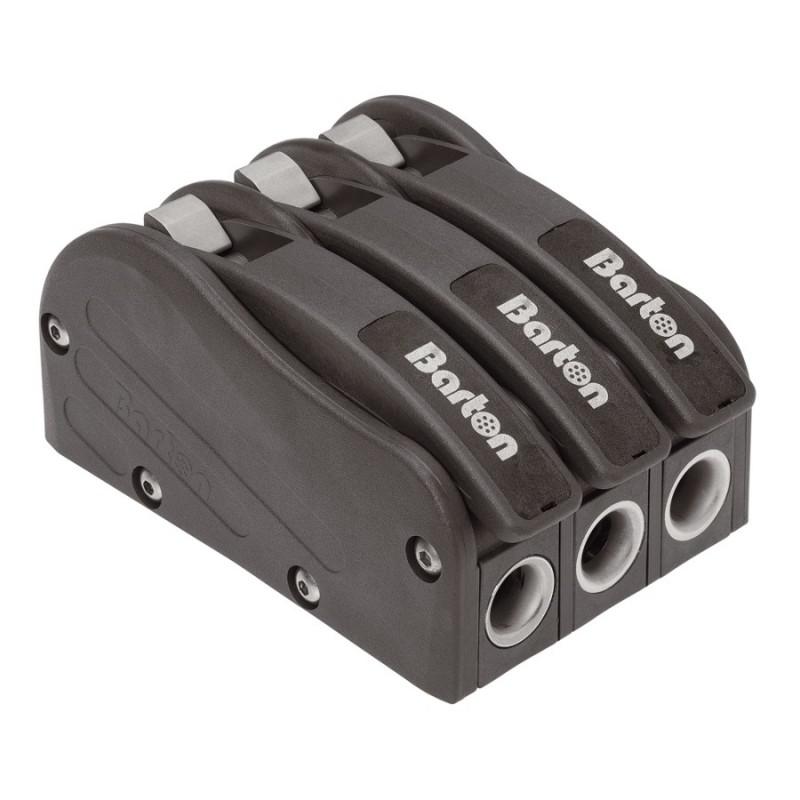

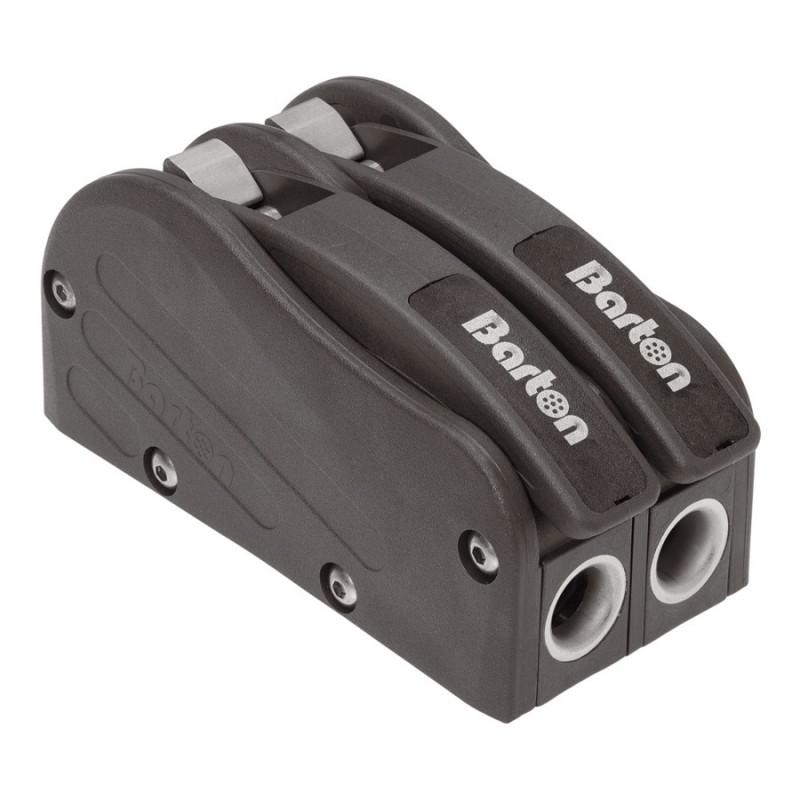

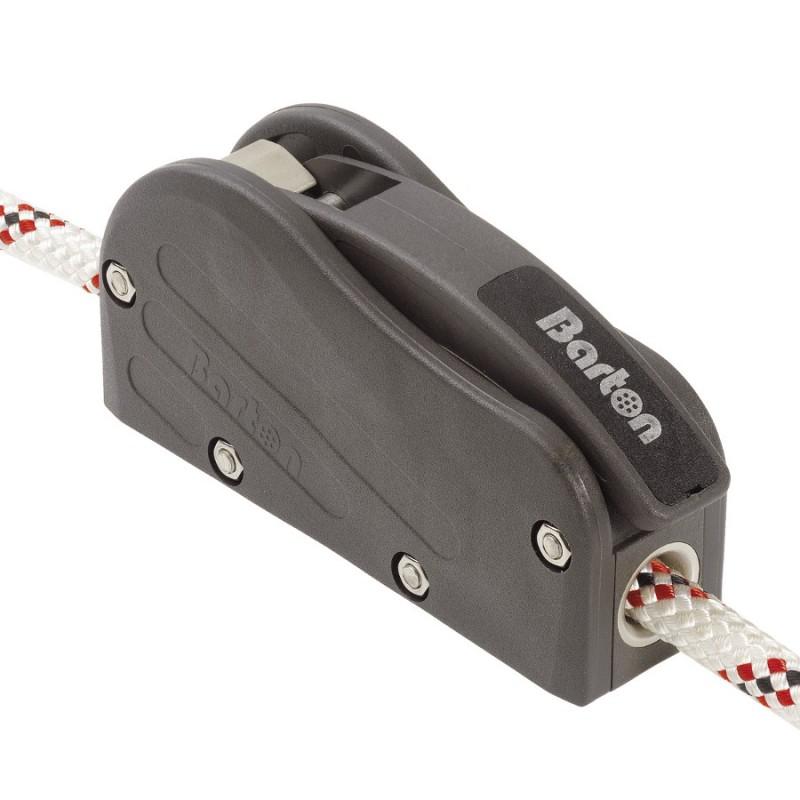

Barton Marine D0550 Rope Clutch

DO550 clutches are designed for yachts up to 11 metres, offering an impressive maximum 550kg holding power.

Cams and bases are made from marine grade aluminium, 'spectro@ anodised for long life in a harsh marine environment.

The true clutch mechanism allows line to be tensioned while the lever is locked with minimal slippage.

Release under load is positive and requires little effort.

The DO550 also features a positive handle lock.

The tooth design is specially tempered to give maximum grip with minimal slippage whilst still being kind to the line.

The entry and exit points feature stainless steel bushes which protect both line and clutch.

Bolt together construction means that the units can be easily serviced, with spares readily available.

The robust, easy to grip, ergonomically designed handle facilitates a positive smooth lock and unlock action.

Removable inserts on the top face of the handle are a new feature to improve immediate line recognition and prevent potentially embarrassing crew errors.

• New updated and improved construction
• Modern, high-performance materials
• True clutch mechanism
• Sympathetic design for reduced abrasion
• Stainless steel rope fairleads at entry and exit point
• Bolt-together construction for ease of servicing
• Removable inserts for immediate line recognition
• The DO550 moulded parts are made from high grade plastics which are strong, light and impact resistant.
