Barton Marine Size 1 Ball Bearing Blocks - 30mm
Barton Marine Size 1 Ball Bearing Blocks - 30mm
No reviews
Location:
SKU:BR-BAN11160
Regular price
£11.95
Regular price
Sale price
£11.95
Unit price
/
per
The 30mm sheave Size 1 block range is available in plain and ball bearing assembly.
Engineered for dinghy sailors and small craft enthusiasts, the series defines high strength, keen performance and lightweight design for racing and day boats. Also ideal for lead blocks, flag pennants and small line systems on larger yachts.
- Break load 710kg
- SWL 355kg
- Max. rope 8mm
- Sheave diameter 30mm x 12mm
Product Code | Product Title | Length | Breakload | Rope or Wire Diameter |
Width | Height | Weight |

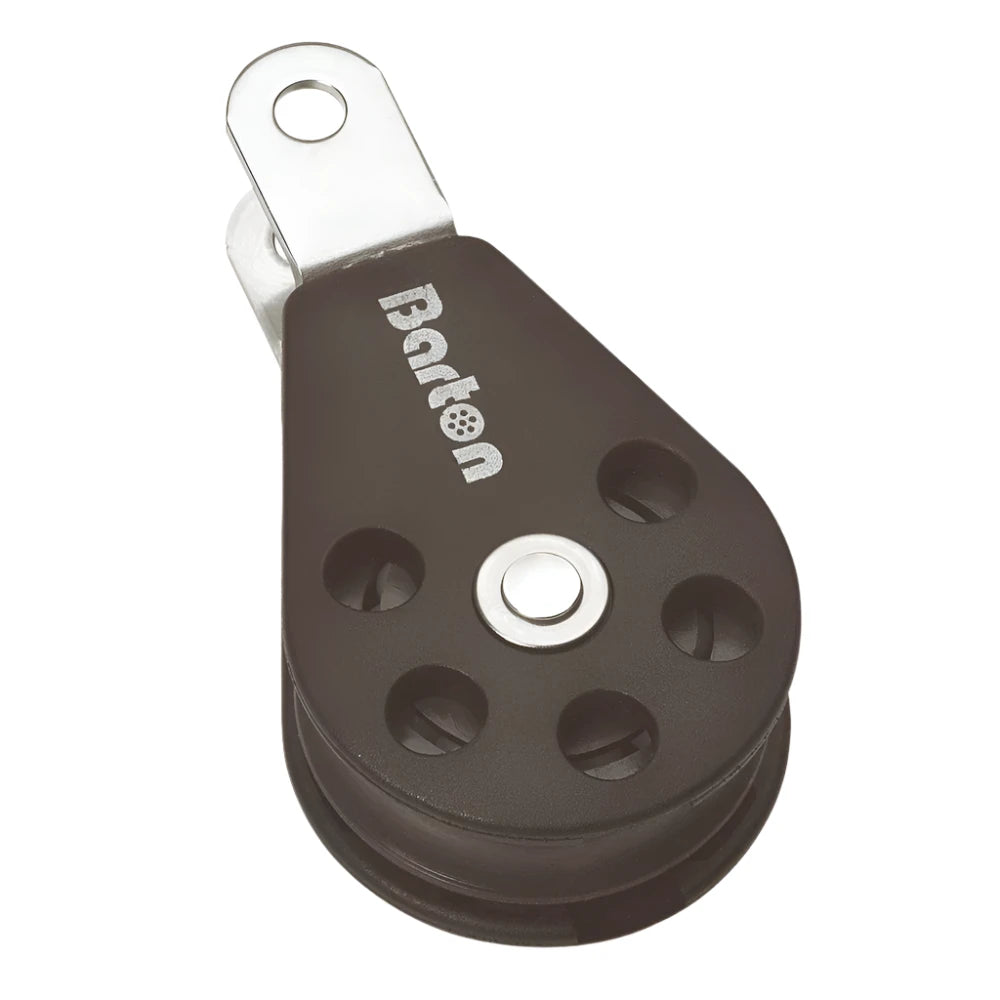

BAN11090 | Single, Double Tang | 66 mm | 710 kg | 8 mm | 32 mm | 25 mm | 46 g |

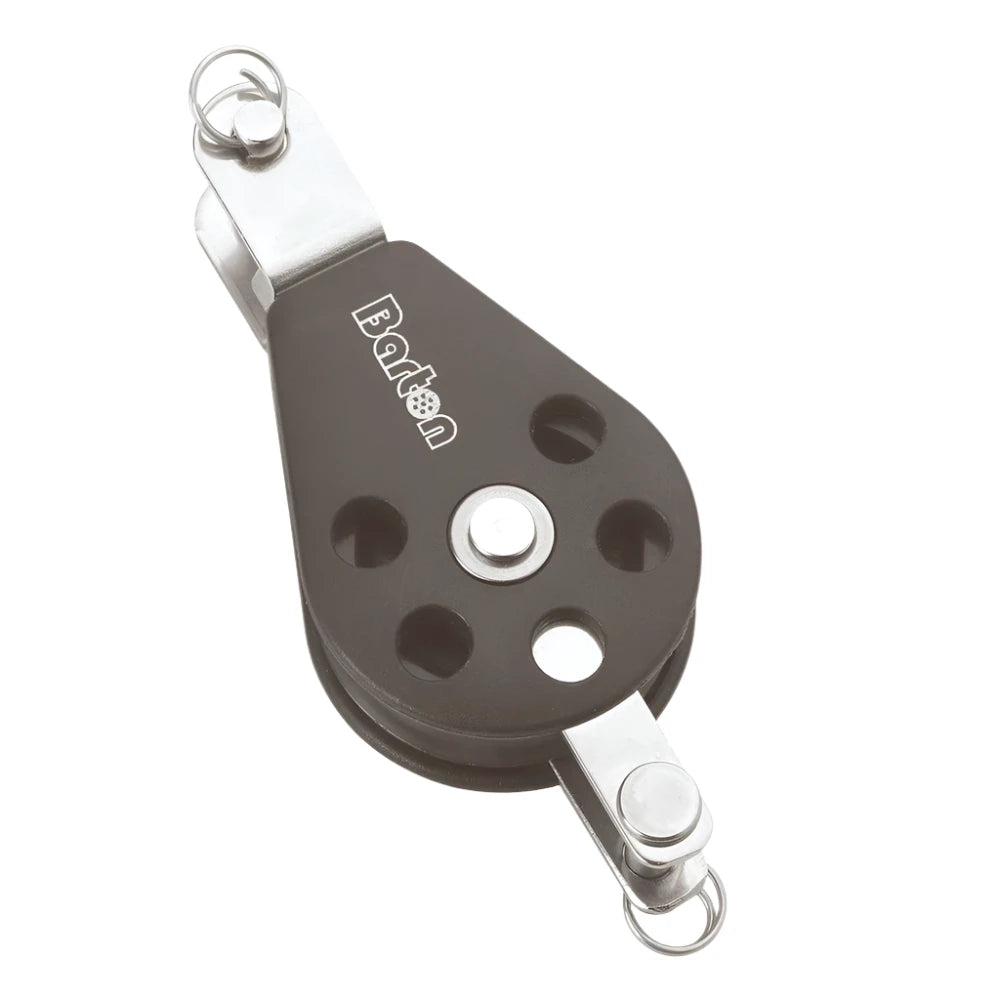

BAN11091 | Single, Double Tang & Becket | 81 mm | 710 kg | 8 mm | 32 mm | 25 mm | 54 g |

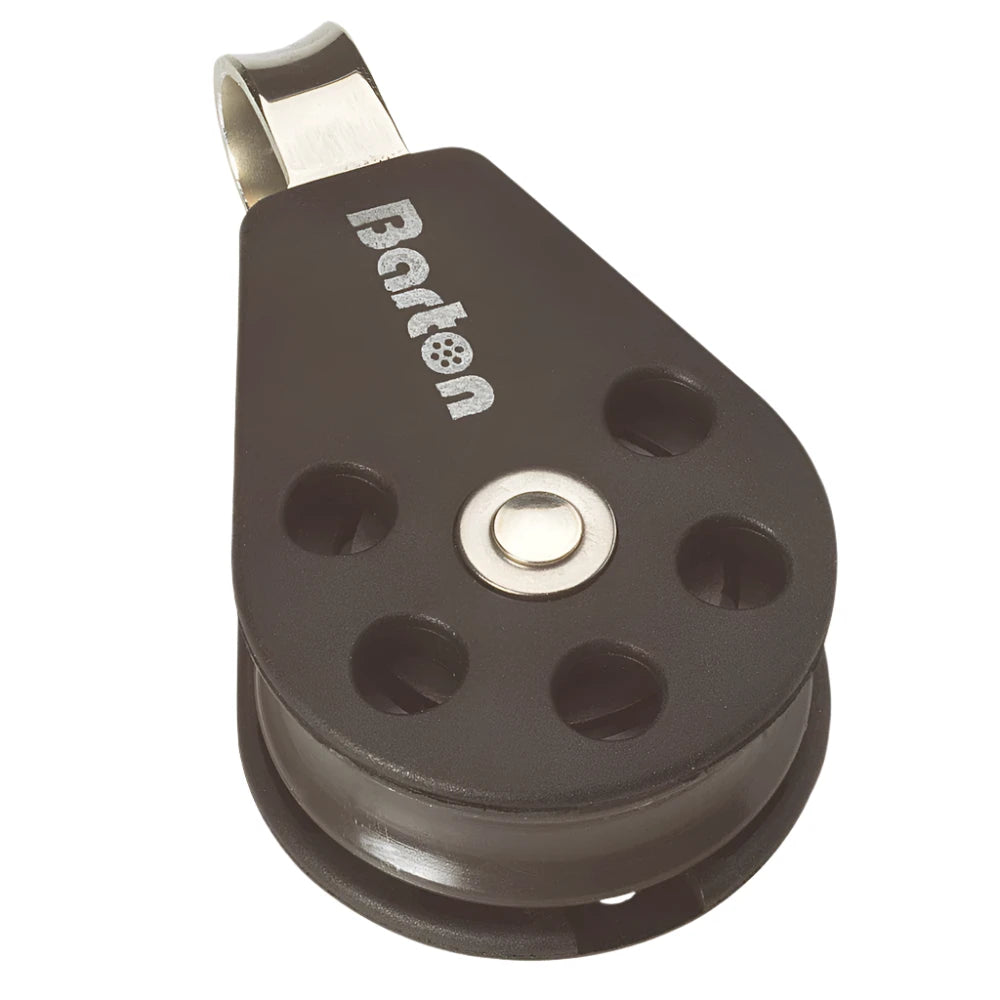

BAN11110 | Single, Fixed Eye | 57 mm | 710 kg | 8 mm | 32 mm | 25 mm | 34 g |

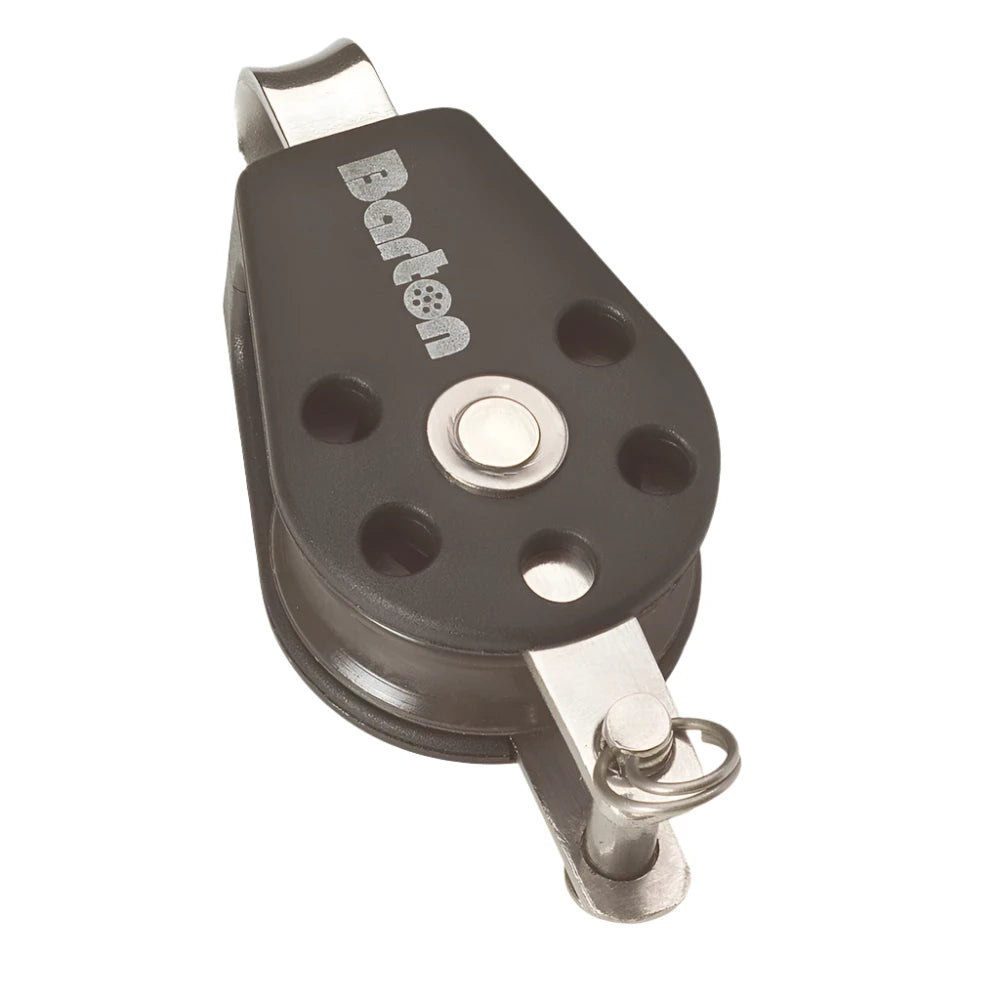

BAN11111 | Single, Fixed Eye & Becket | 72 mm | 710 kg | 8 mm | 32 mm | 25 mm | 42 g |

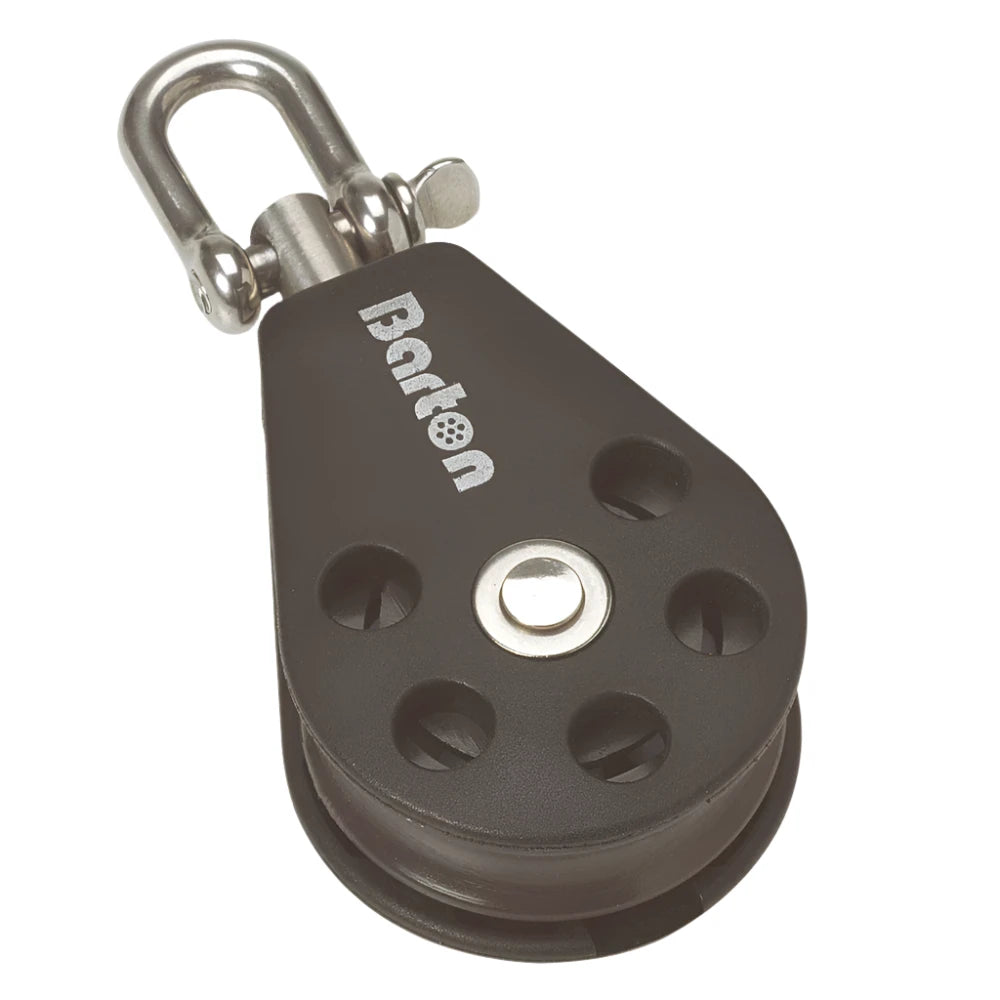

BAN11130 | Single, Swivel | 70 mm | 710 kg | 8 mm | 32 mm | 25 mm | 42 g |

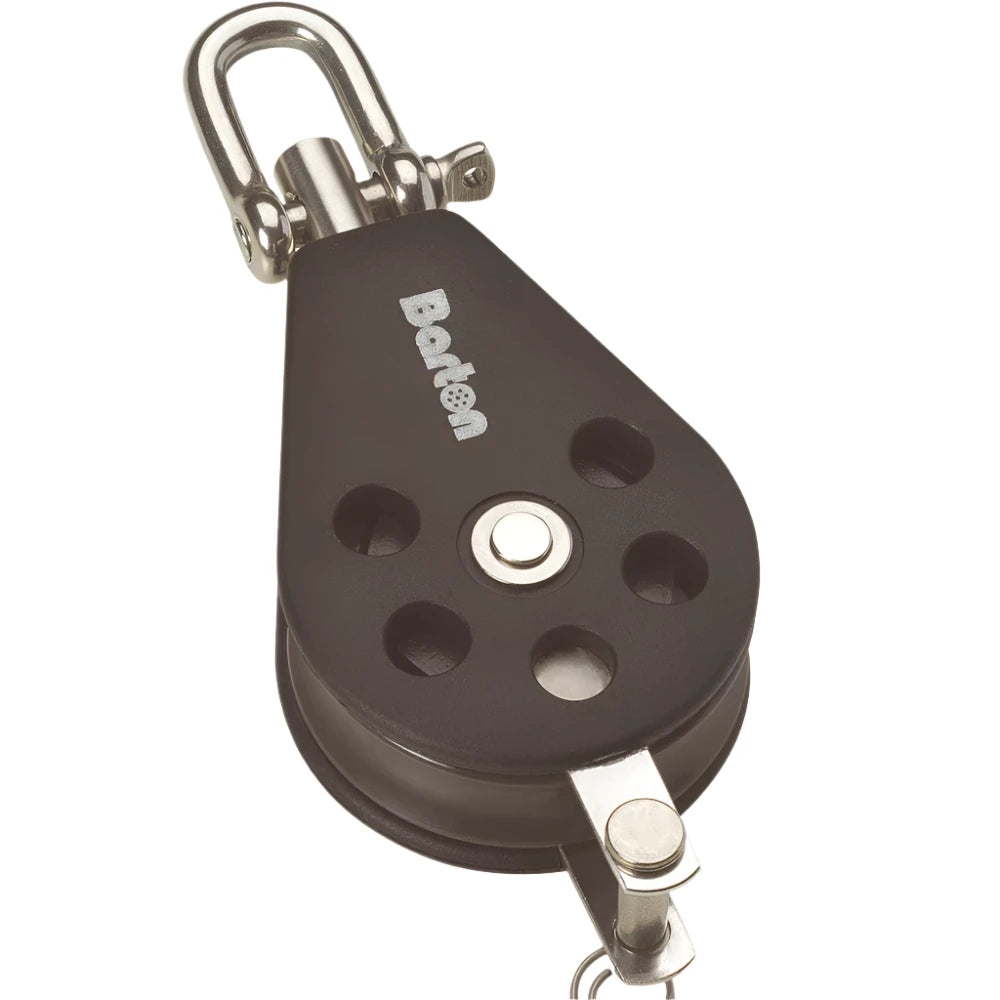

BAN11131 | Single, Swivel & Becket | 85 mm | 710 kg | 8 mm | 32 mm | 25 mm | 49 g |

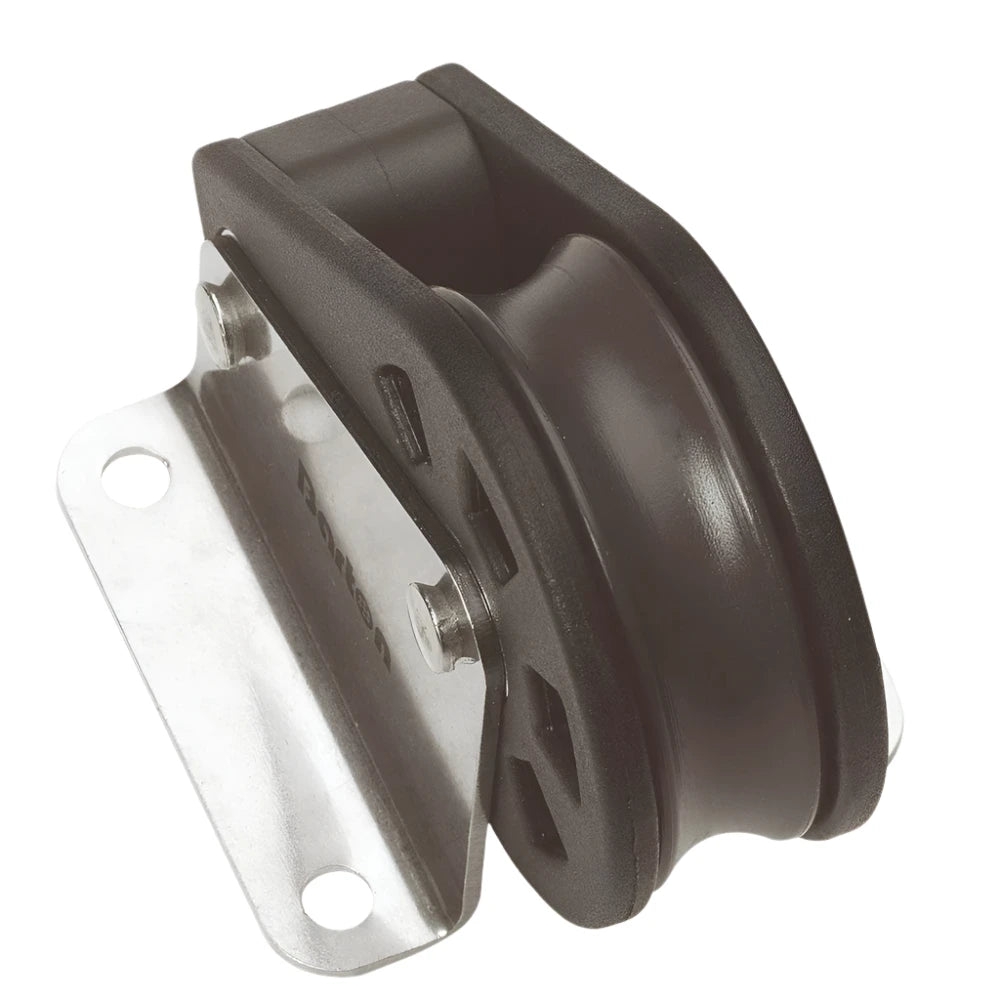

BAN11150 | Single, Upright | 52 mm | 710 kg | 8 mm | 47 mm | 44 mm | 61 g |

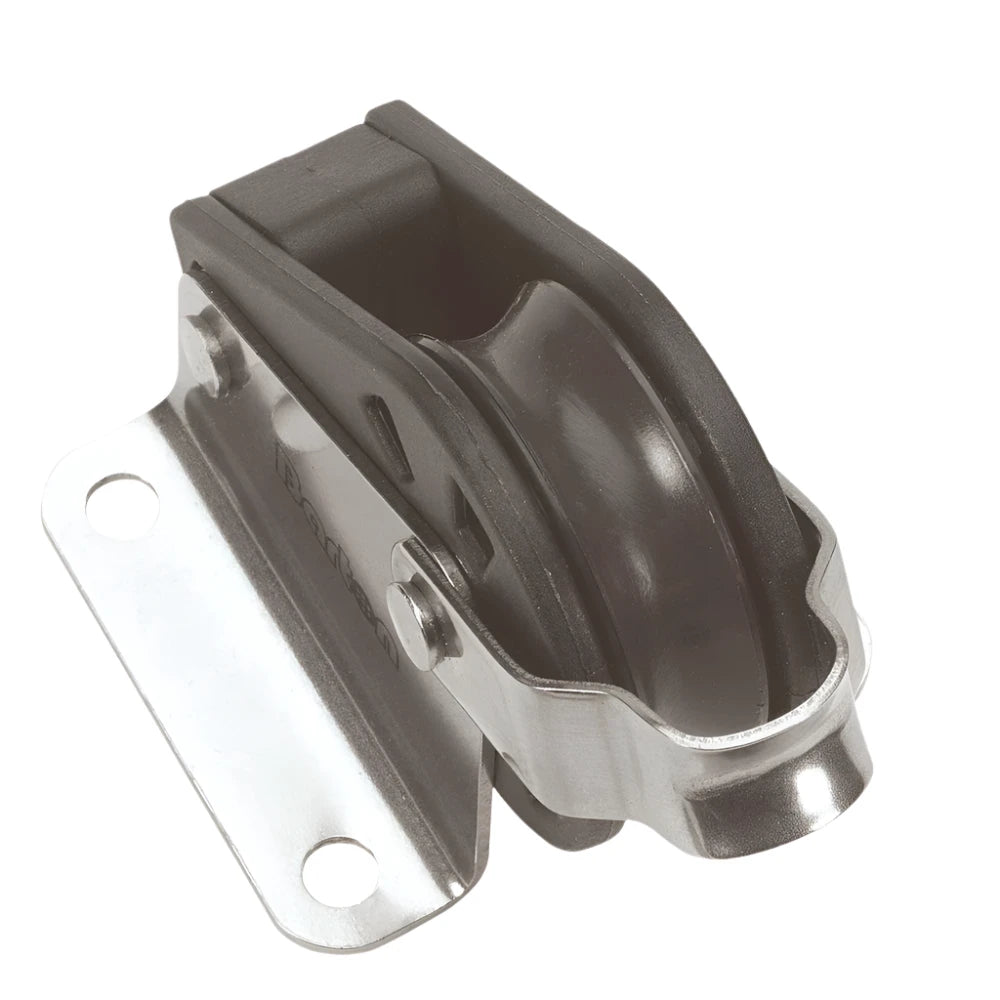

BAN11151 | Single, Upright With Fairlead | 65 mm | 710 kg | 8 mm | 47 mm | 44 mm | 69 g |

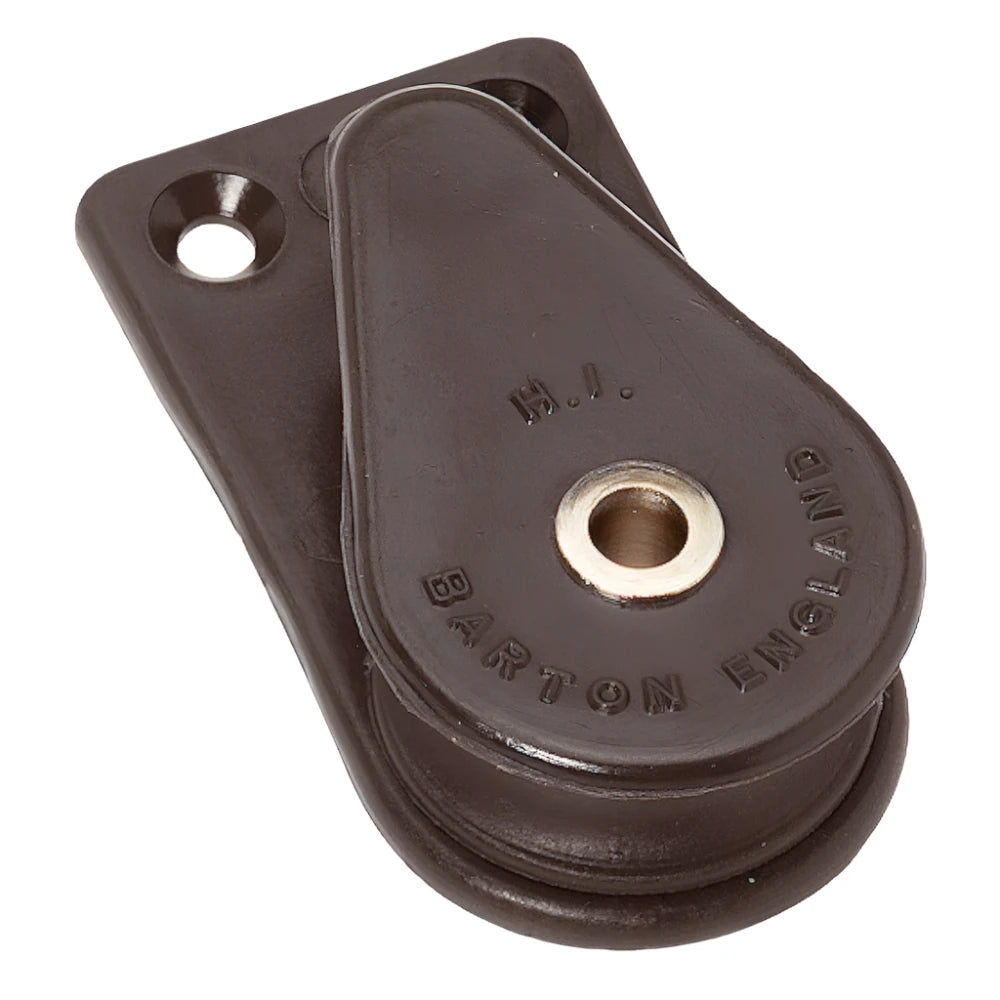

BAN11160 | Lightweight Cheek Block | 56 mm | 710 kg | 8 mm | 30 mm | 18 mm | 20 g |

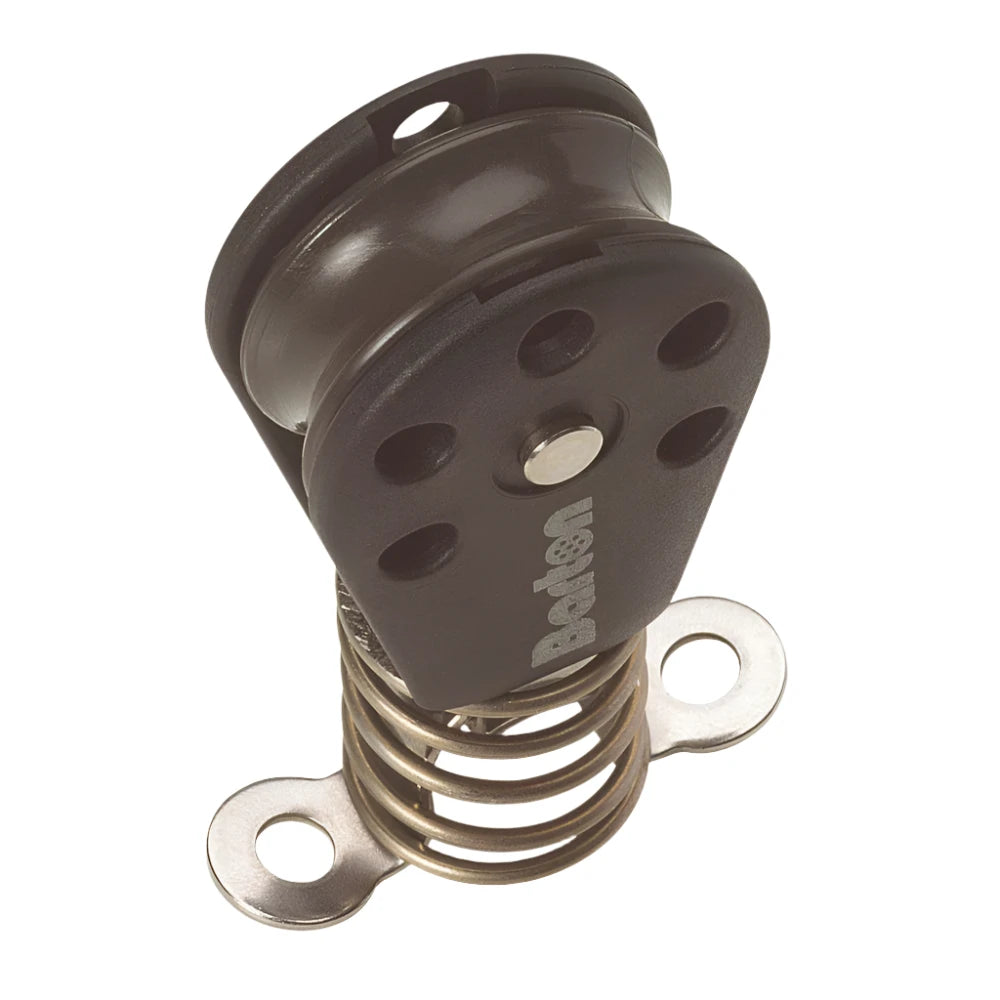

BAN11170 | Single, Stand Up Block | 67 mm | 710 kg | 8 mm | 47 mm | 26 mm | 41 g |

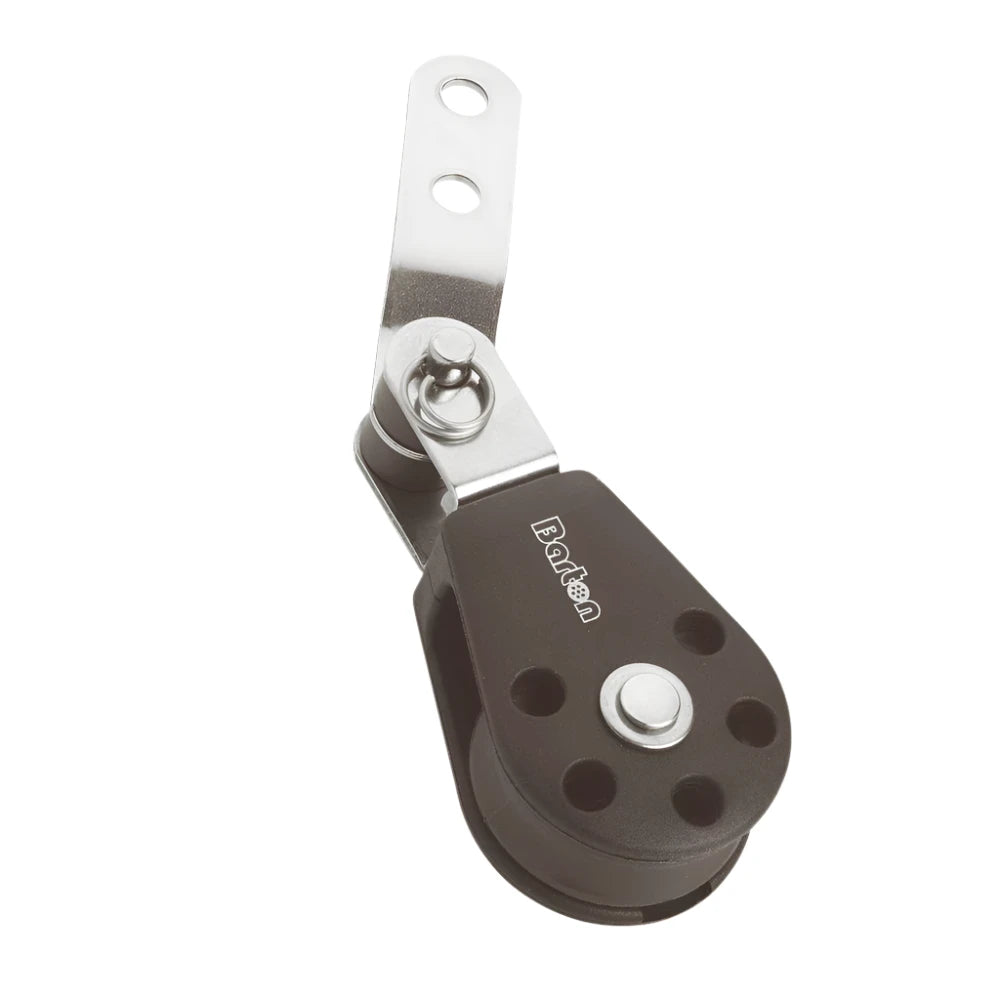

BAN11180 | Single, Spinnaker Lead | 107 mm | 710 kg | 8 mm | 32 mm | 25 mm | 56 g |

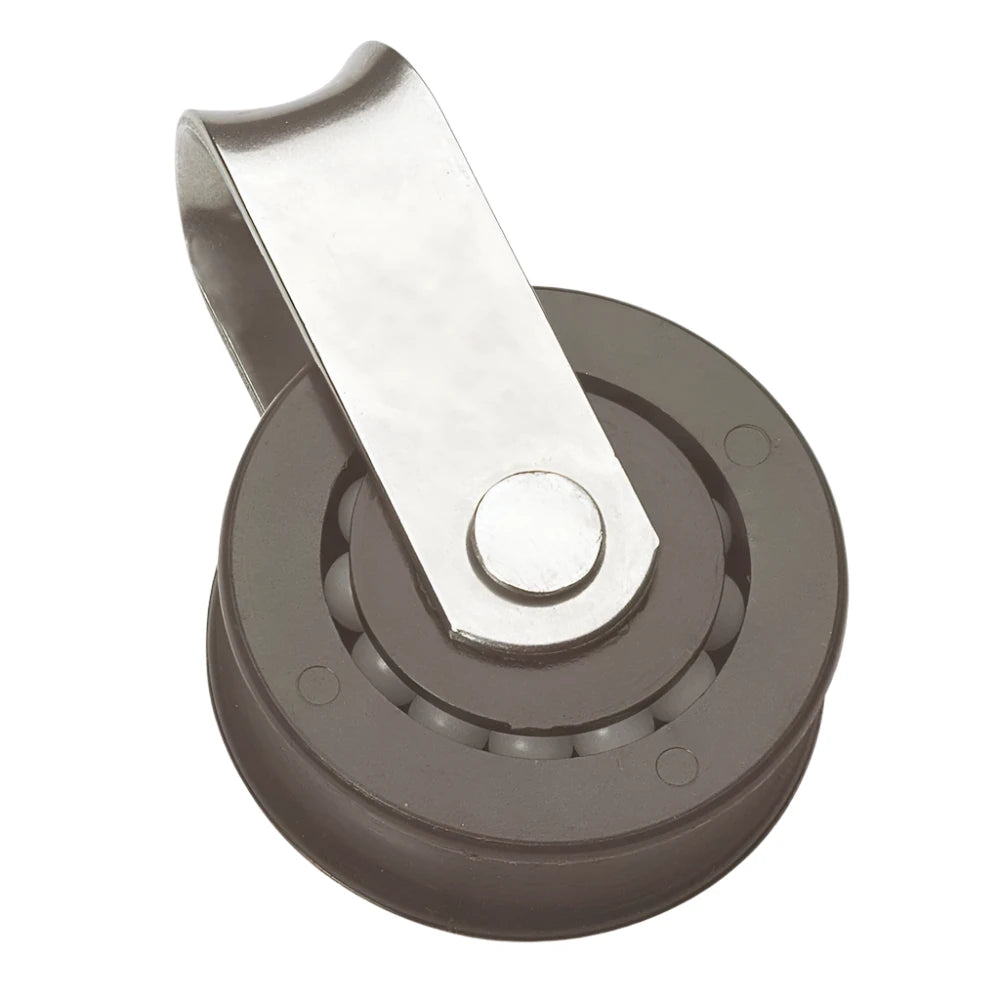

BAN11190 | Lightweight Lead Block | 45 mm | 710 kg | 8 mm | 30 mm | 18 mm | 18 g |

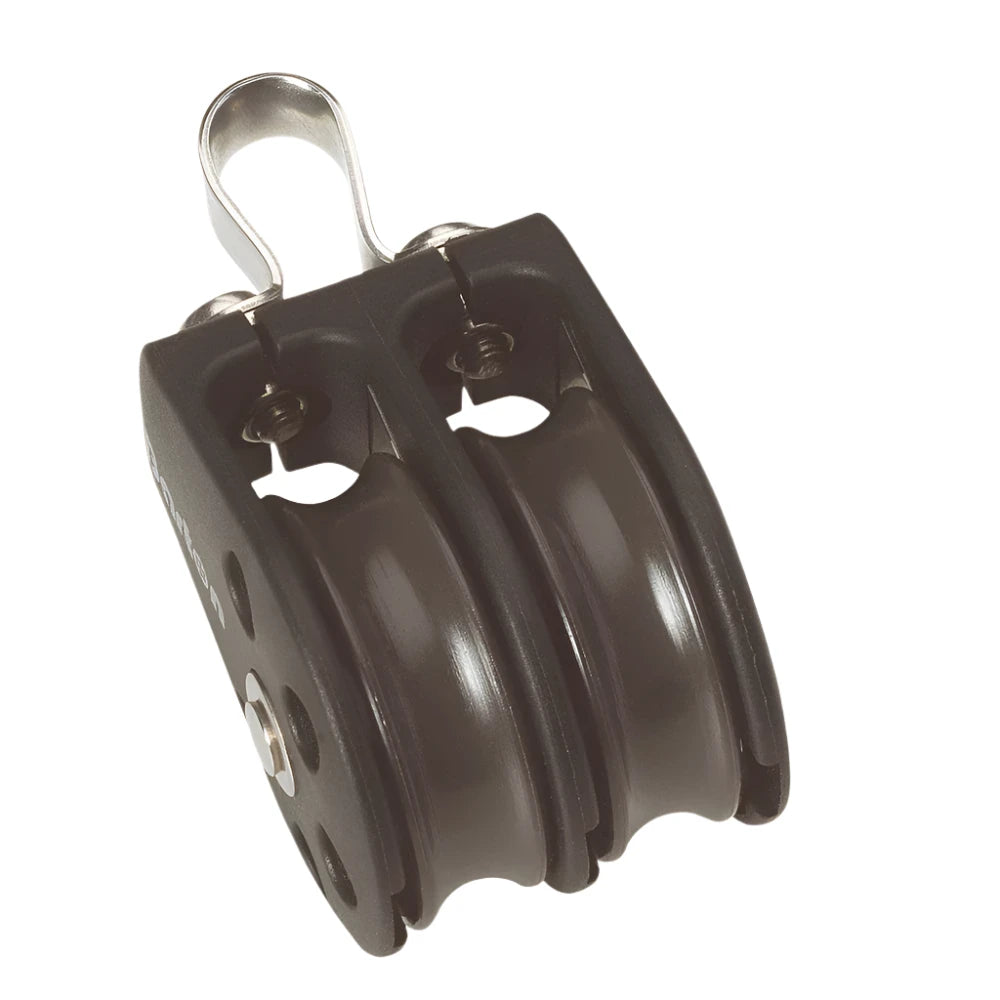

BAN11210 | Double, Fixed Eye | 62 mm | 710 kg | 8 mm | 40 mm | 32 mm | 61 g |

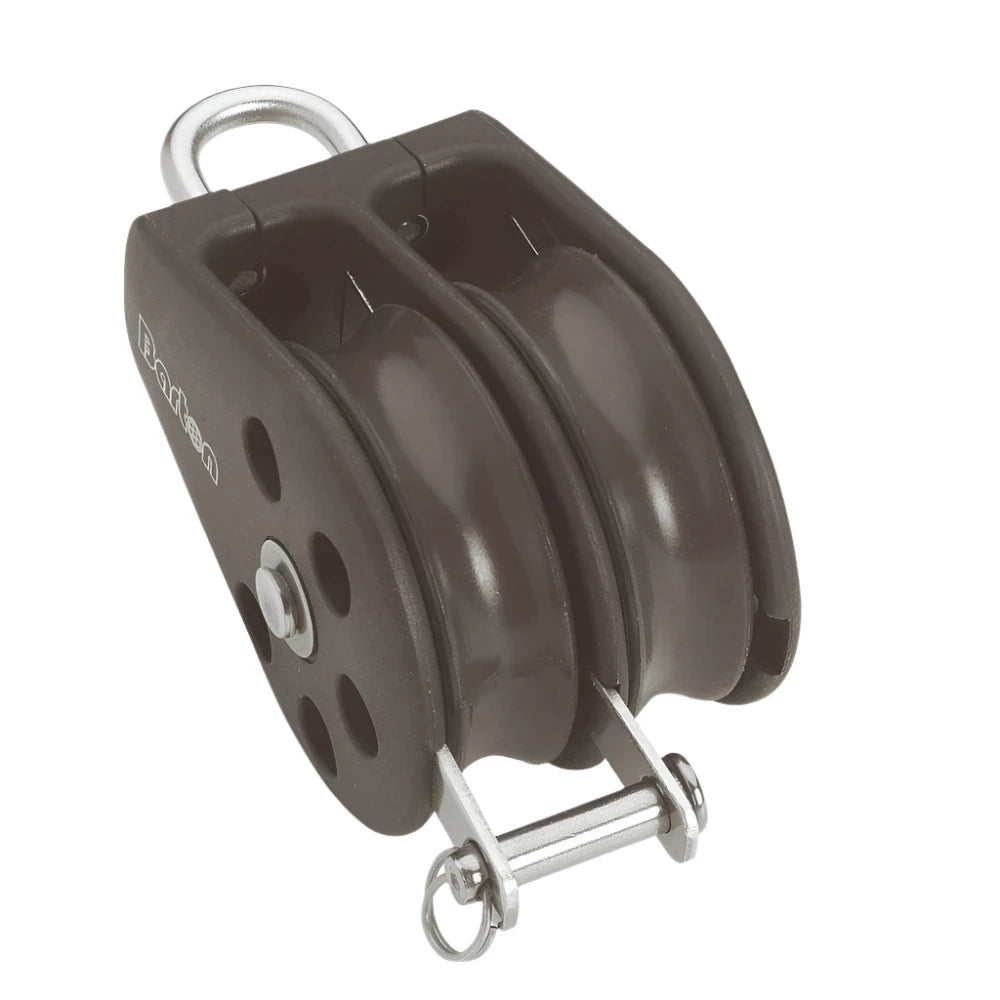

BAN11211 | Double, Fixed Eye & Becket | 78 mm | 710 kg | 8 mm | 40 mm | 32 mm | 69 g |

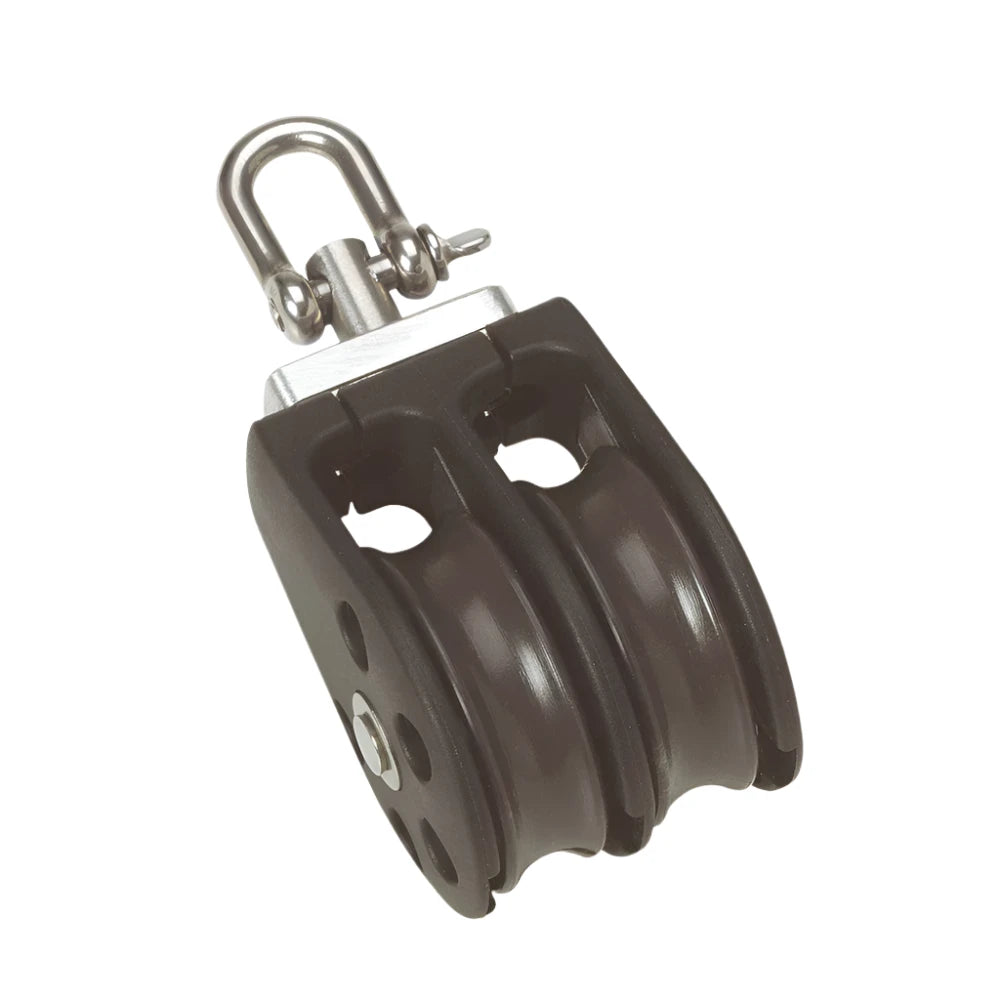

BAN11230 | Double, Swivel | 78 mm | 710 kg | 8 mm | 40 mm | 32 mm | 76 g |

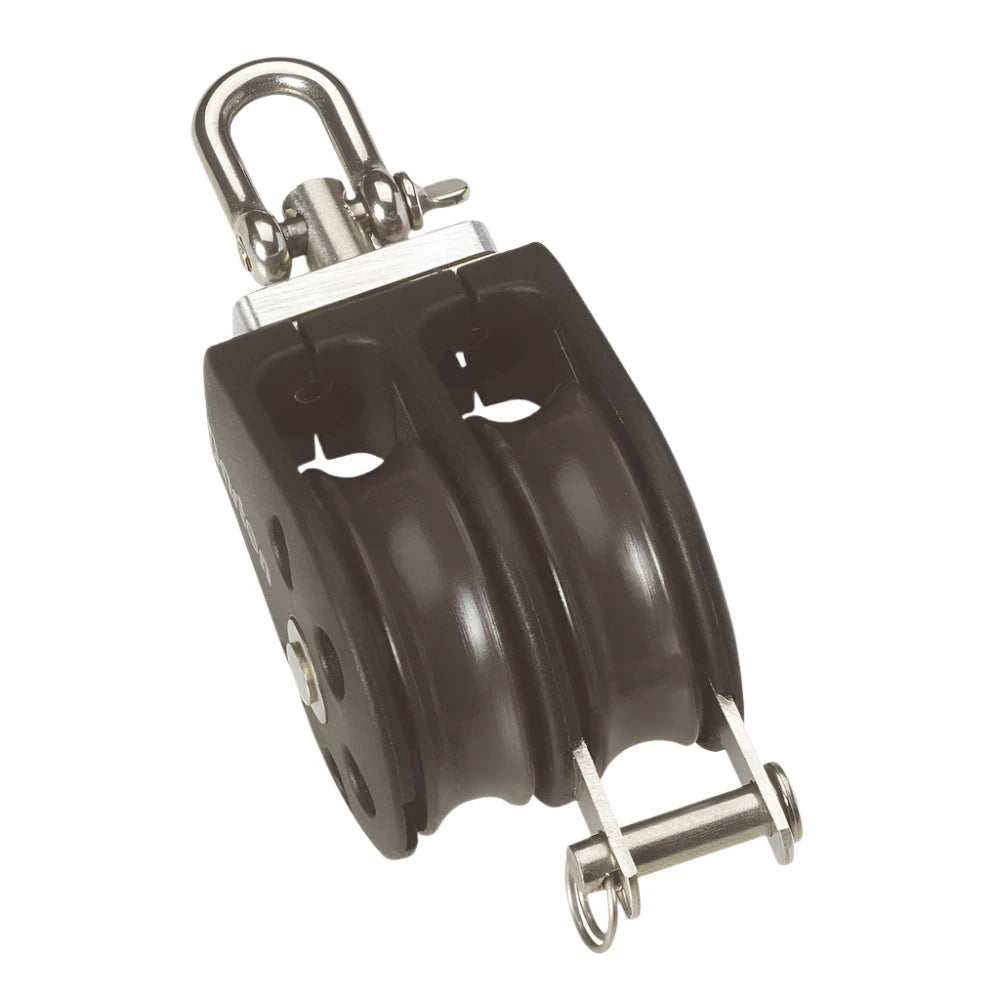

BAN11231 | Double, Swivel & Becket | 93 mm | 710 kg | 8 mm | 40 mm | 32 mm | 82 g |

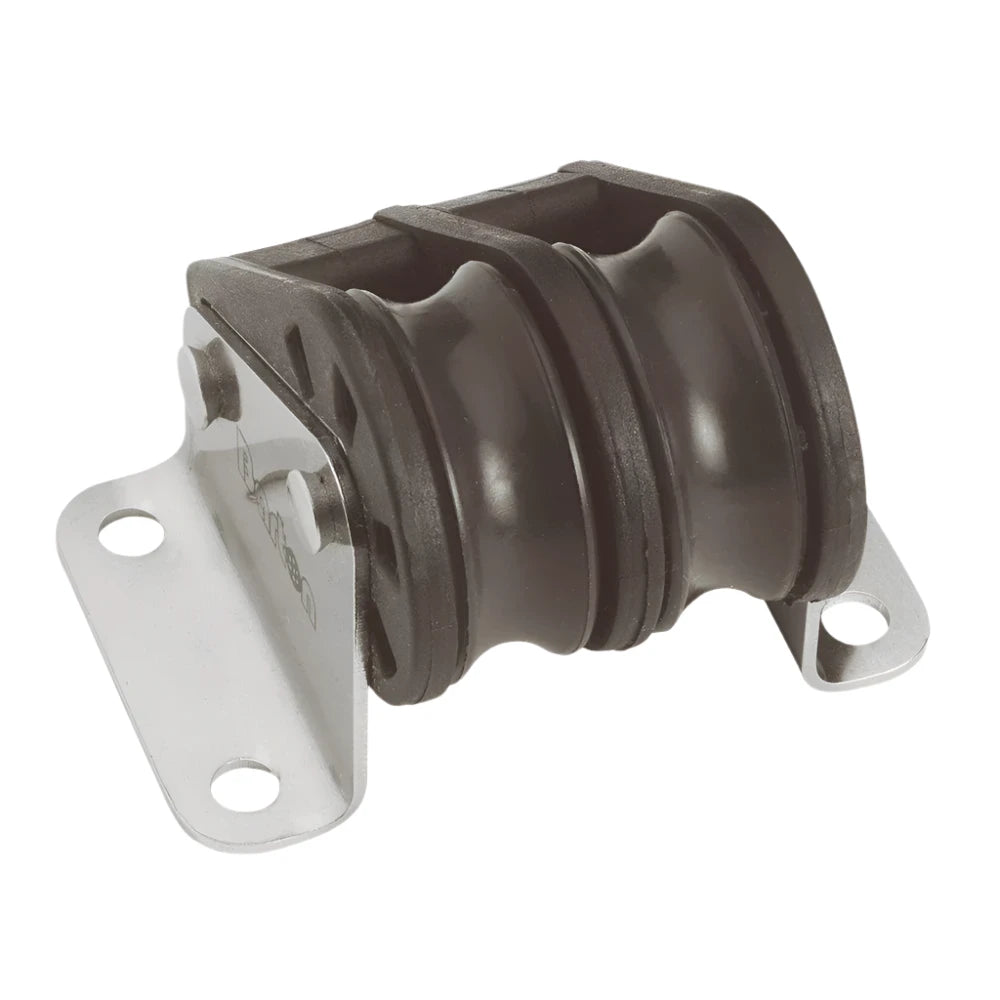

BAN11250 | Double, Upright | 52 mm | 710 kg | 8 mm | 62 mm | 45 mm | 83 g |

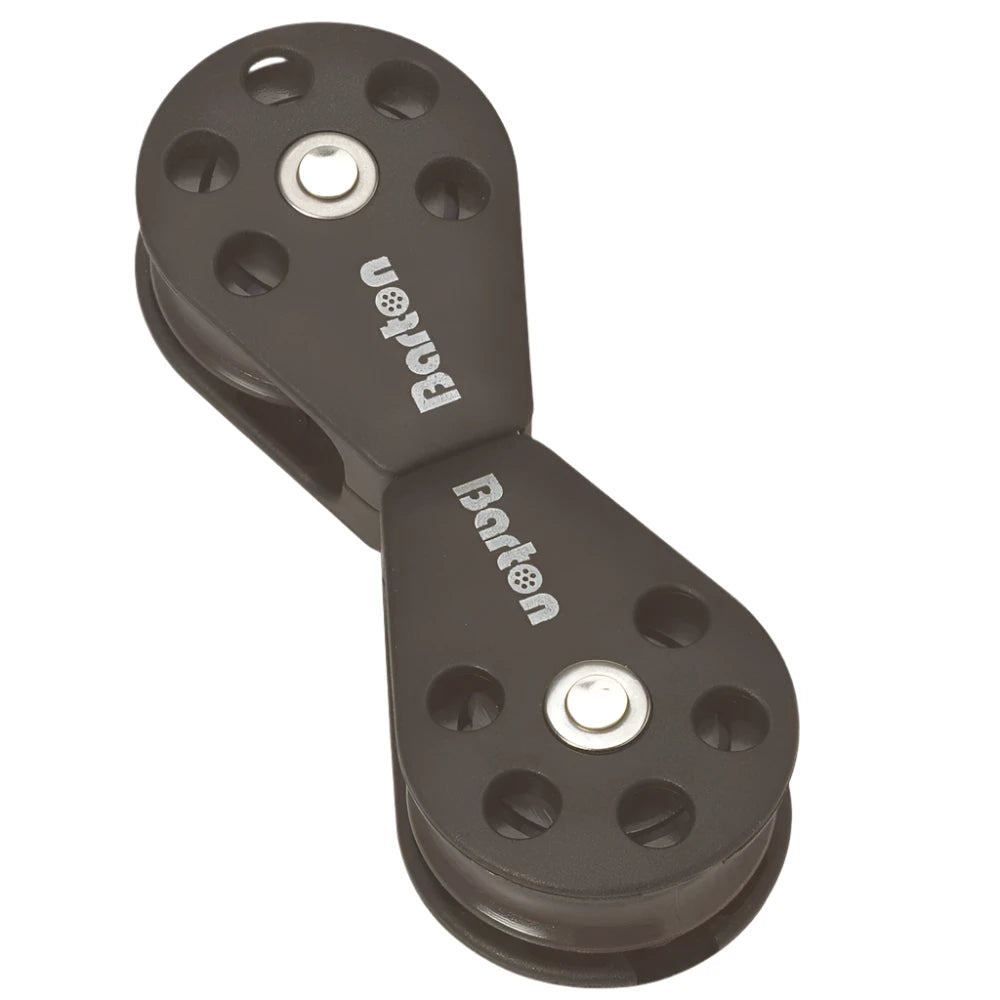

BAN11280 | Back,To,Back Swivel | 89 mm | 710 kg | 8 mm | 32 mm | 25 mm | 64 g |

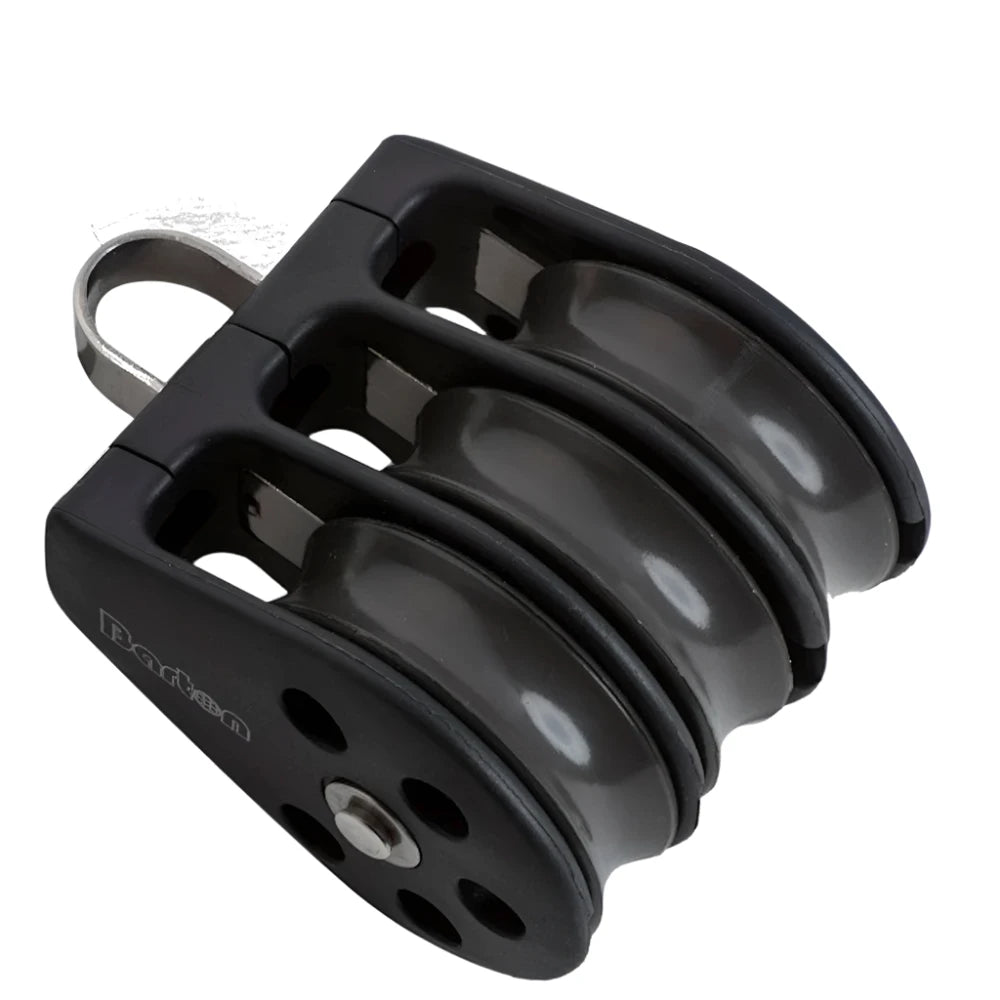

BAN11310 | Triple, Fixed Eye | 57 mm | 710 kg | 8 mm | 56 mm | 32 mm | 82 g |

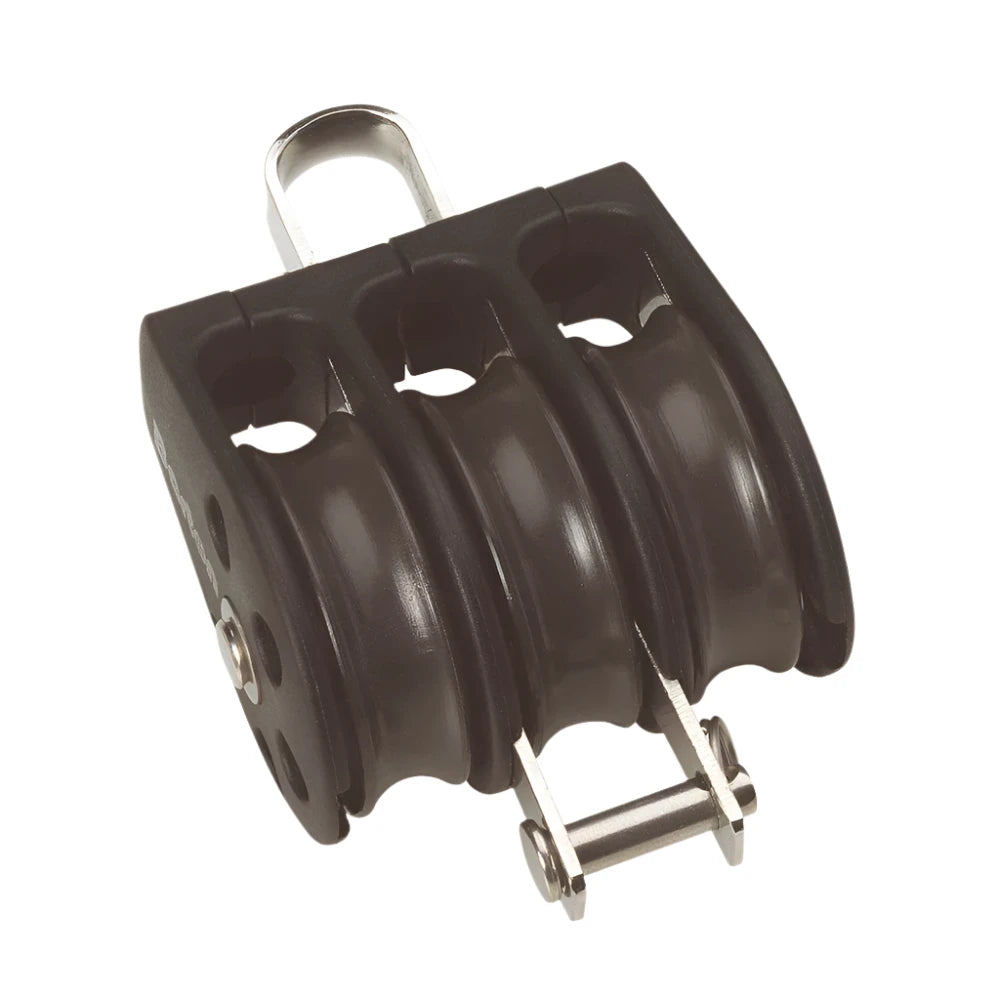

BAN11311 | Triple, Fixed Eye & Becket | 70 mm | 710 kg | 8 mm | 56 mm | 32 mm | 88 g |

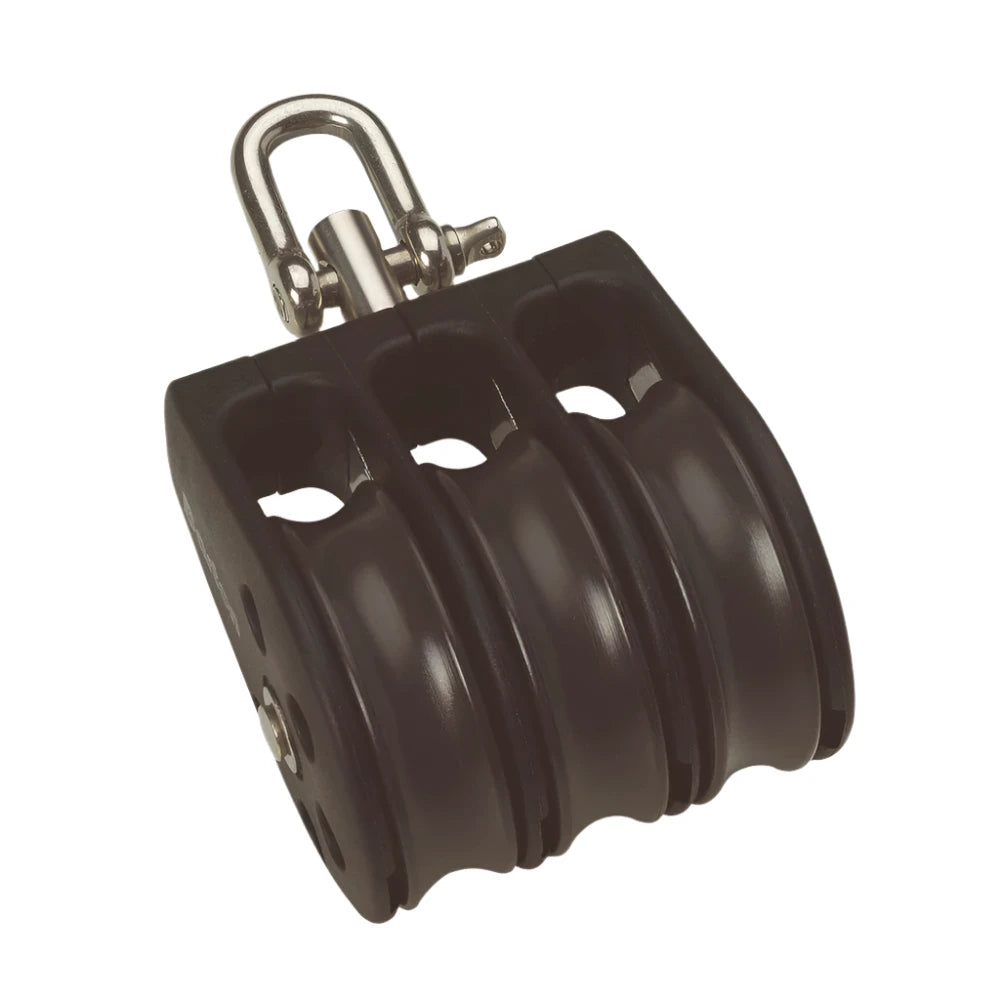

BAN11330 | Triple, Swivel | 70 mm | 710 kg | 8 mm | 56 mm | 32 mm | 90 g |

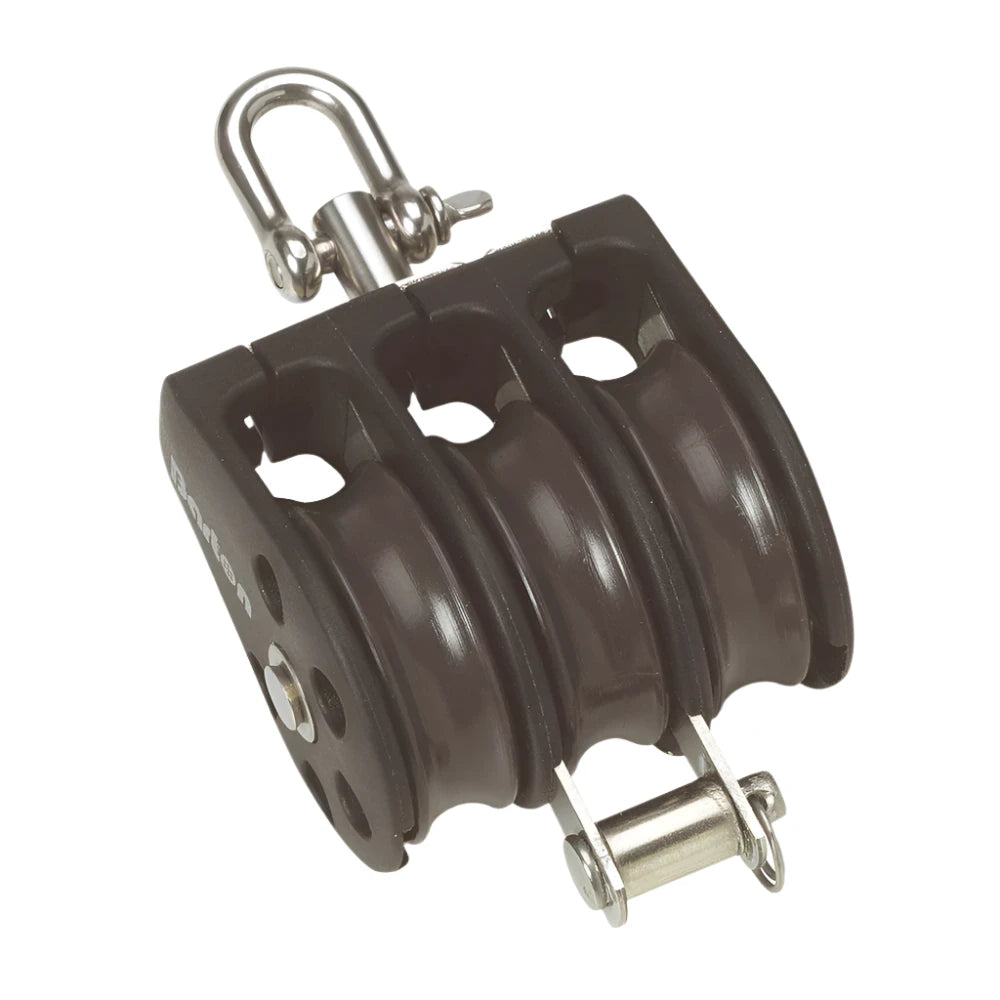

BAN11331 | Triple, Swivel & Becket | 85 mm | 710 kg | 8 mm | 56 mm | 32 mm | 98 g |
