Barton Marine Size 2 Plain Blocks - 35mm

Barton Marine Size 2 Plain Blocks - 35mm

Get 7% Off Everything*, Use Coupon Code SALE7 *Excludes Liferafts & Windlasses

BR-BAN02160

£16.95
£16.95
Sale Sold out
Tax included. Shipping calculated at checkout.
Style

Delivery available  |  lead times vary

Collection available  |  usually ready in 2-4 days

The 35mm sheave Size 2 block range provides high performance and load values
in a variety of assemblies. The range has an internal stainless steel frame and
precision components with plain or ball bearing sheave options. The lightweight
design makes this range perfect for a multitude of uses on every yacht.

Engineered for dinghy sailors and small craft enthusiasts, the series defines high strength, keen performance and lightweight design for racing and day boats. Also ideal for lead blocks, flag pennants and small line systems on larger yachts.

  • Break load 740kg
  • SWL 370kg
  • Max. rope 8mm
  • Sheave diameter 35mm x 11mm
Product Code Product Title Length Breakload Rope or Wire
Diameter		 Width Height Weight

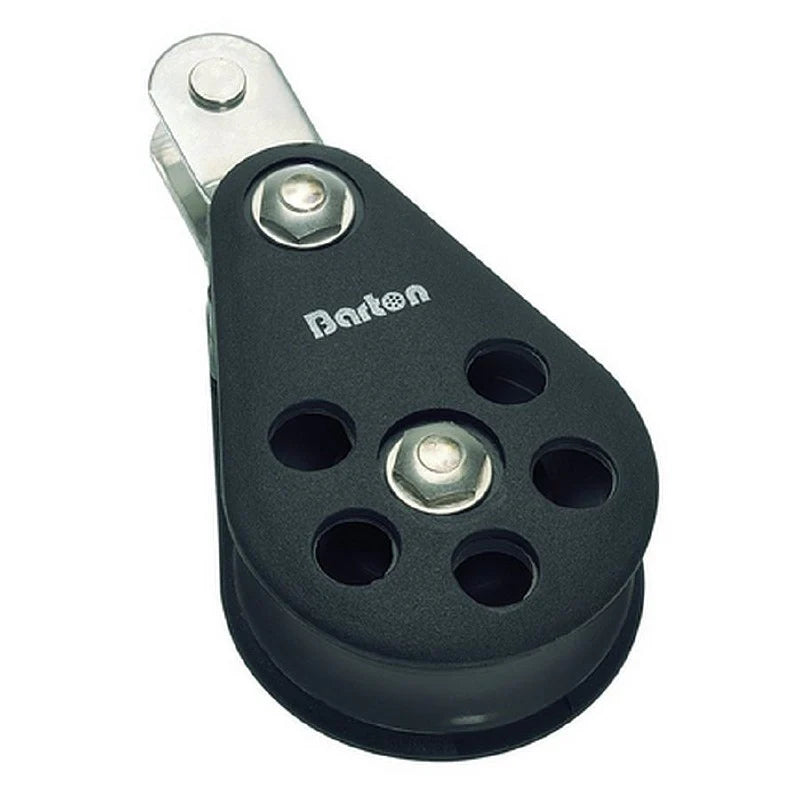

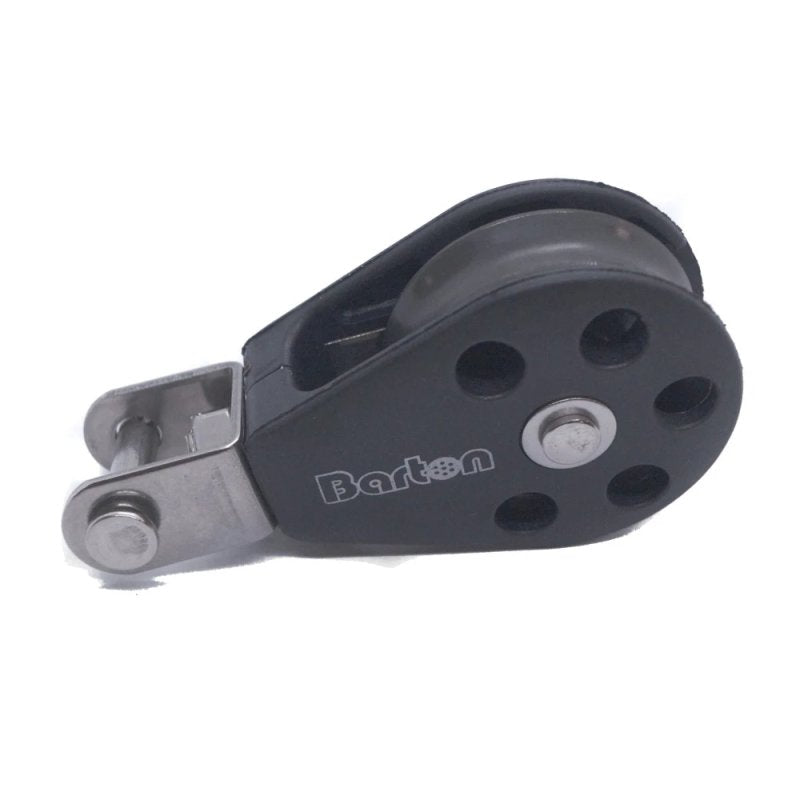

BAN02090 Barton Marine 35 mm Block - Single, Double Tang 73 mm 740 kg 8 mm 38 mm 24 mm 52 g
BAN02091 Barton Marine 35 mm Block - Single, Double Tang & Becket 88 mm 740 kg 8 mm 38 mm 24 mm 64 g

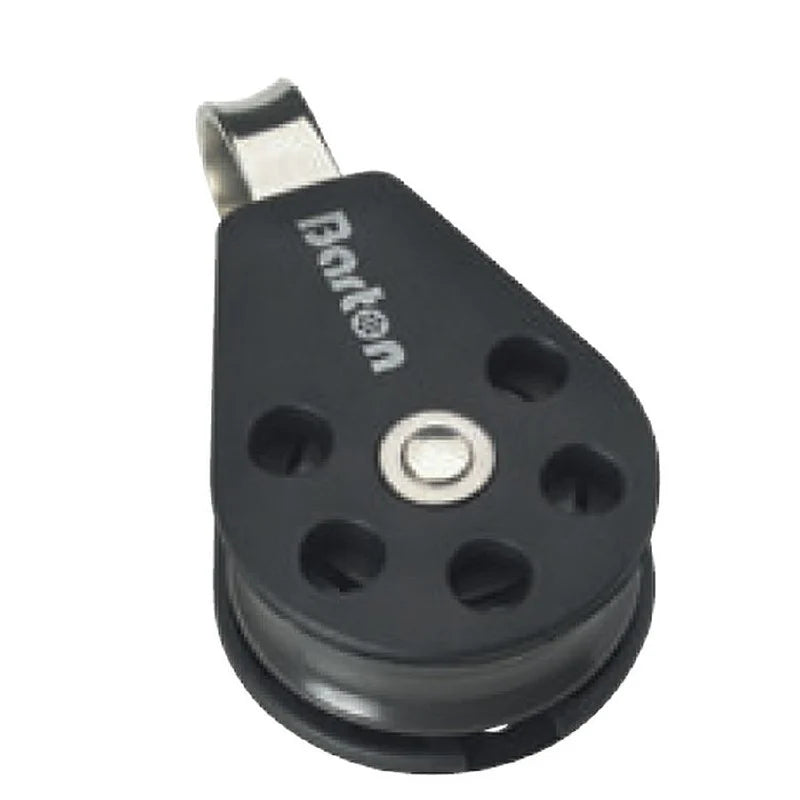

BAN02110 Barton Marine 35 mm Block - Single, Fixed Eye 67 mm 740 kg 8 mm 38 mm 24 mm 42 g

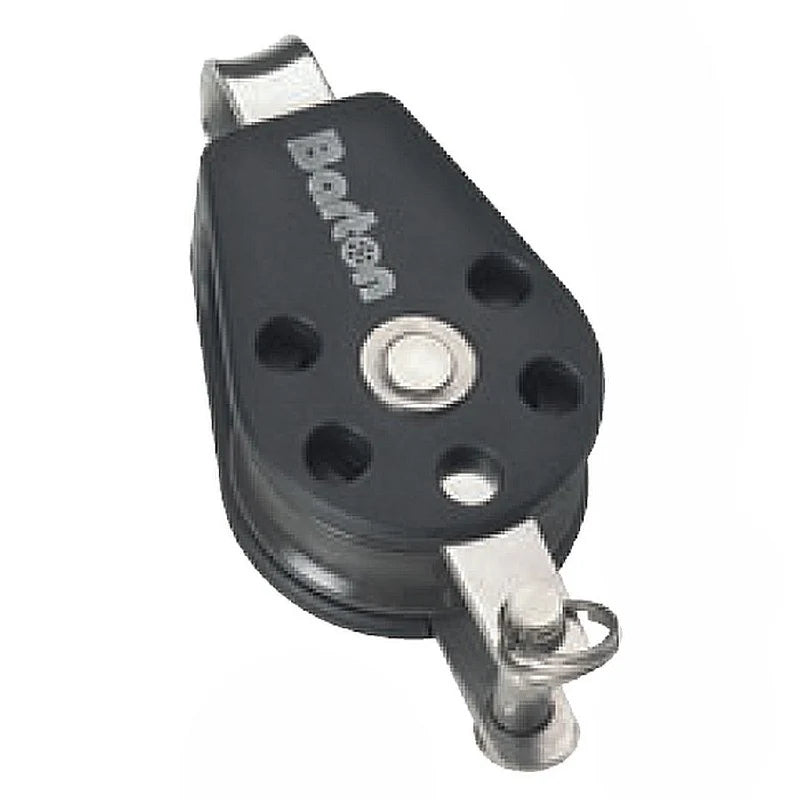

BAN02111 Barton Marine 35 mm Block - Single, Fixed Eye & Becket 85 mm 740 kg 8 mm 38 mm 24 mm 53 g

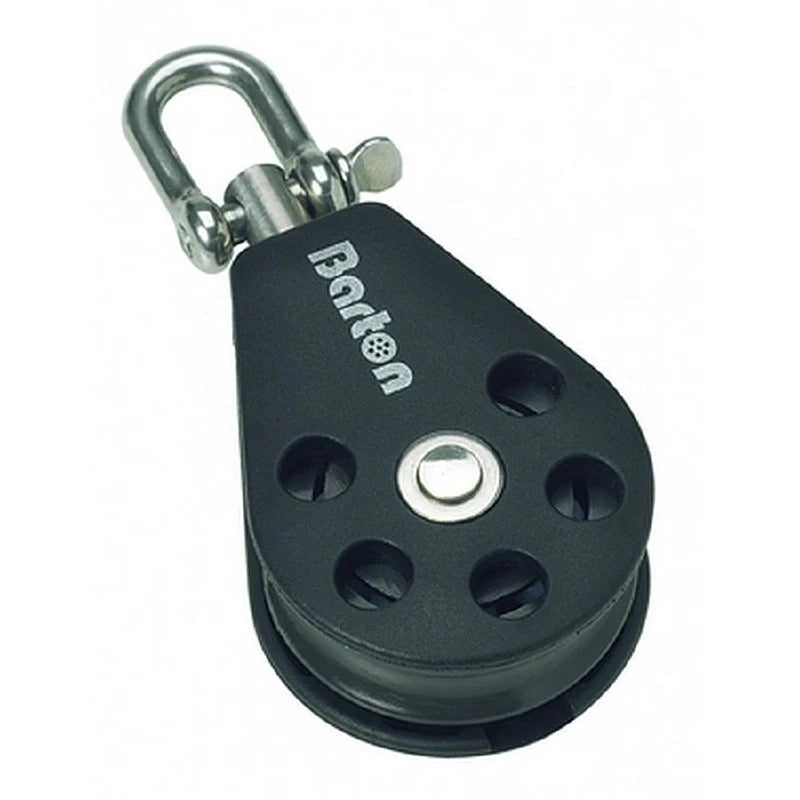

BAN02130 Barton Marine 35 mm Block - Single, Swivel 77 mm 740 kg 8 mm 38 mm 24 mm 48 g

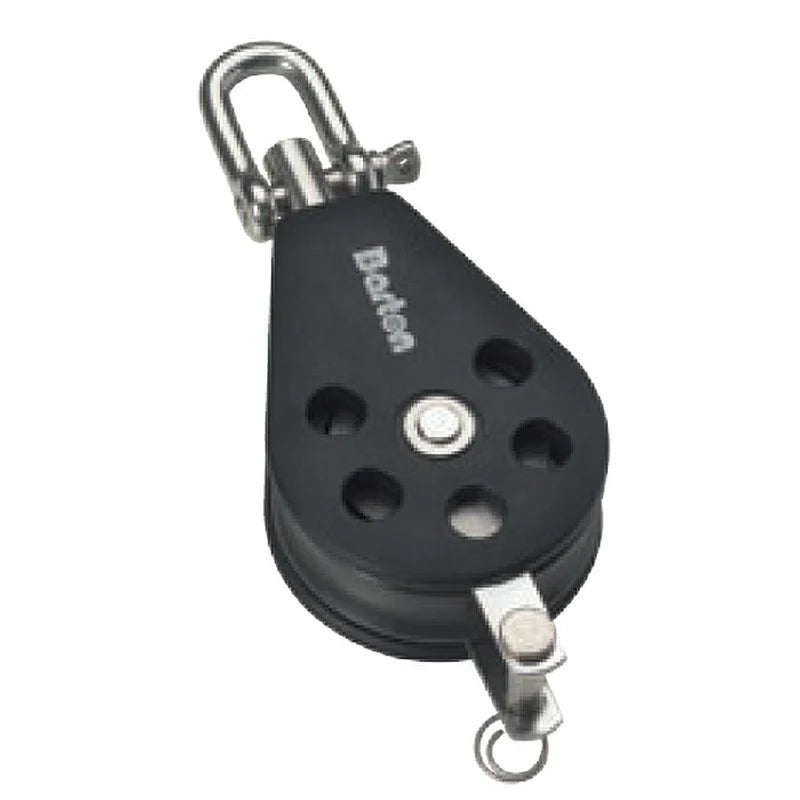

BAN02131 Barton Marine 35 mm Block - Single, Swivel & Becket 93 mm 740 kg 8 mm 38 mm 24 mm 60 g
BAN02140 Barton Marine 35 mm Block - Single, Snap Shackle 93 mm 740 kg 8 mm 38 mm 24 mm 84 g

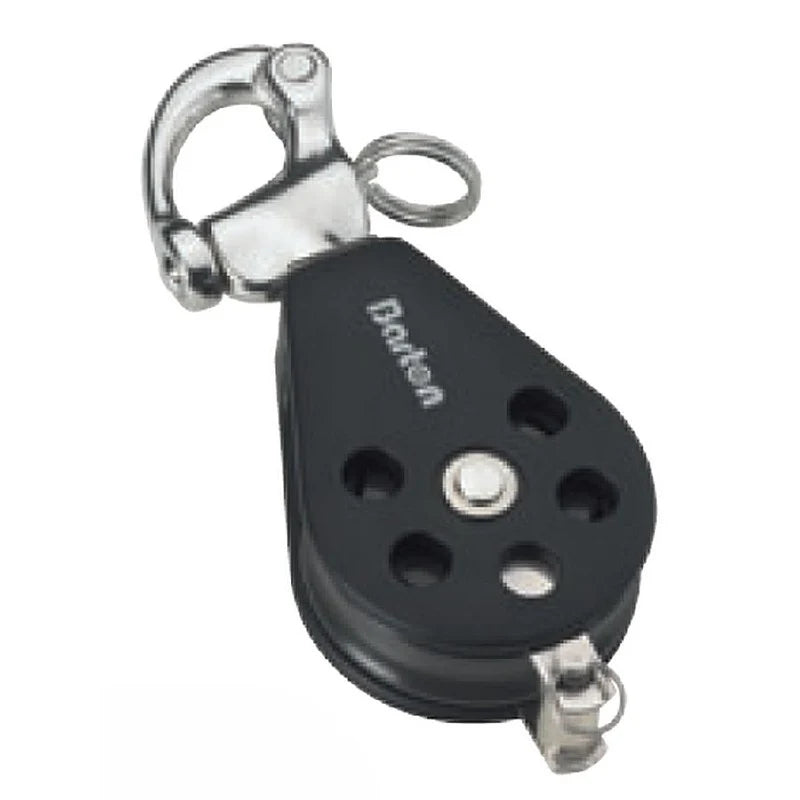

BAN02141 Barton Marine 35 mm Block - Single, Snap Shackle & Becket 109 mm 740 kg 8 mm 38 mm 24 mm 97 g
BAN02150 Barton Marine 35 mm Block - Single, Upright 63 mm 740 kg 8 mm 49 mm 51 mm 78 g
BAN02151 Barton Marine 35 mm Block - Single, Upright With Fairlead 75 mm 740 kg 8 mm 49 mm 51 mm 86 g

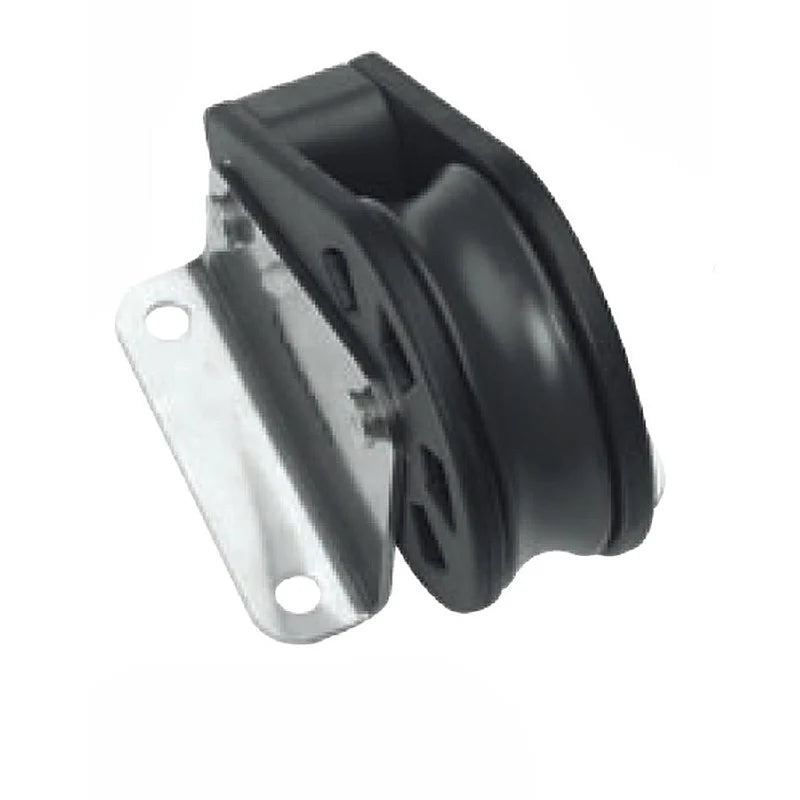

BAN02160 Barton Marine 35 mm Block - Single, Cheek Block With Back Plate 80 mm 740 kg 8 mm 44 mm 21 mm 73 g
BAN02161 Barton Marine 35 mm Block - Curved Backing Plate (For Cheek Block) 80 mm 740 kg 8 mm 44 mm 8 mm 15 g

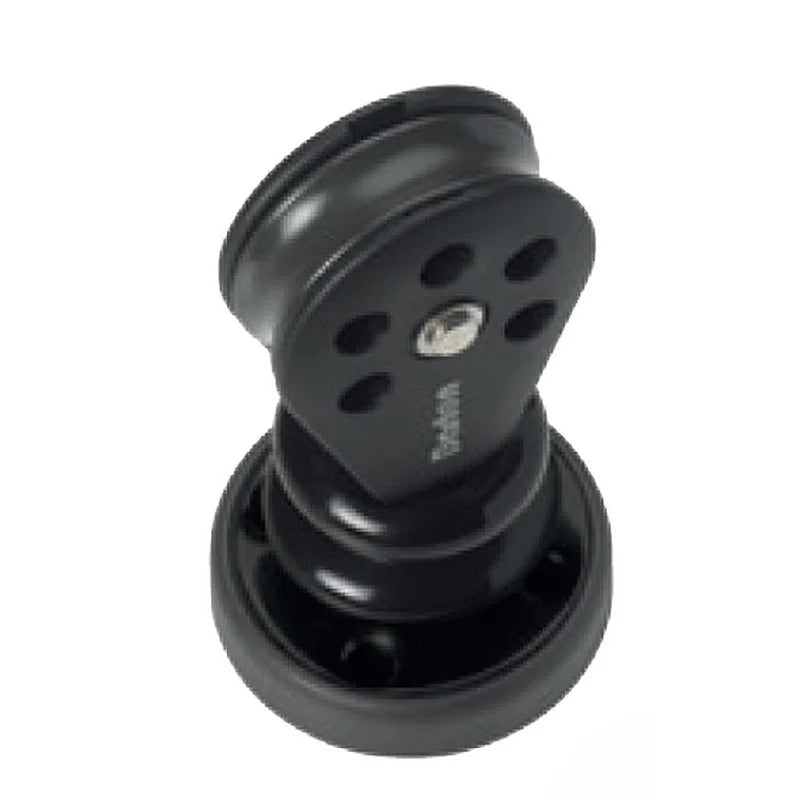

BAN02170 Barton Marine 35 mm Block - Single, Stand Up 95 mm 740 kg 8 mm 58 mm 58 mm 123 g

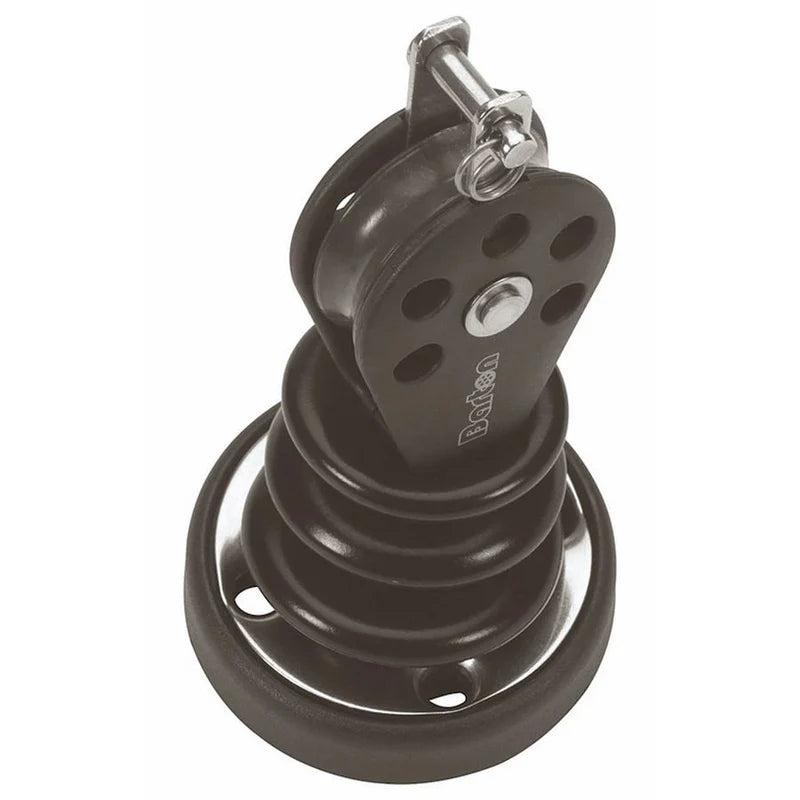

BAN02171 Barton Marine 35 mm Block - Single, Stand Up & Becket 124 mm 740 kg 8 mm 58 mm 58 mm 131 g
BAN02180 Barton Marine 35 mm Block - Single, Spinnaker Lead 113 mm 740 kg 8 mm 38 mm 24 mm 62 g

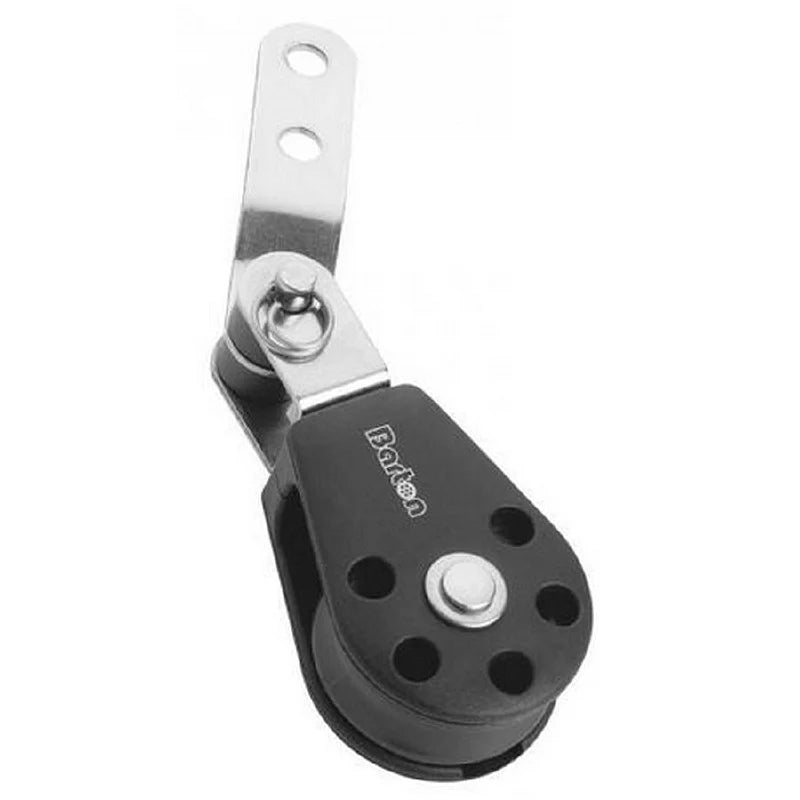

BAN02190 Barton Marine 35 mm Block - Single, Stanchion Lead 97 mm 740 kg 8 mm 38 mm 24 mm 70 g

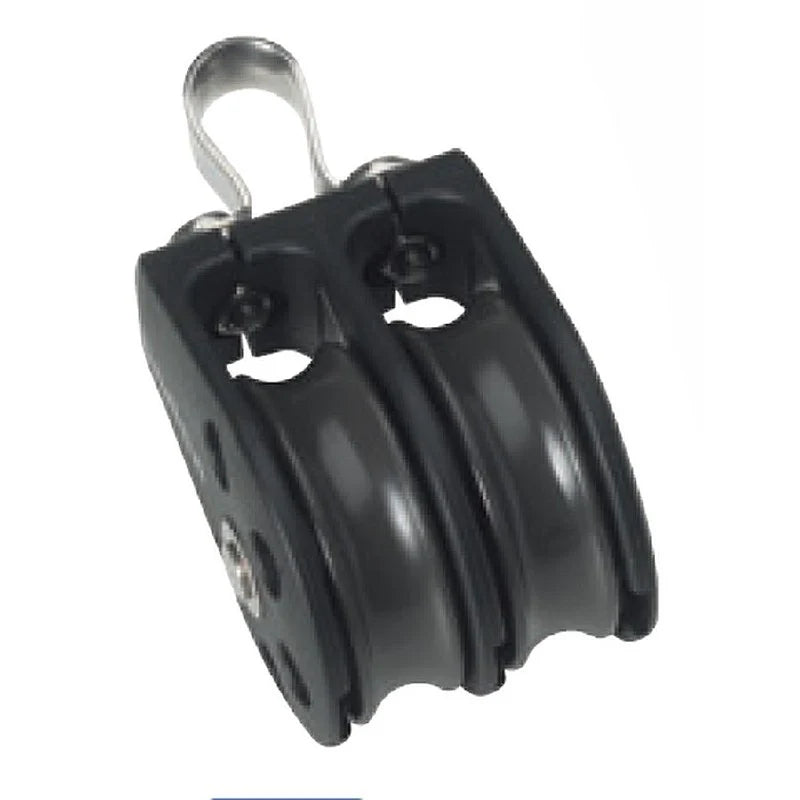

BAN02210 Barton Marine 35 mm Block - Double, Fixed Eye 66 mm 740 kg 8 mm 39 mm 38 mm 73 g
BAN02211 Barton Marine 35 mm Block - Double, Fixed Eye & Becket 81 mm 740 kg 8 mm 39 mm 38 mm 85 g

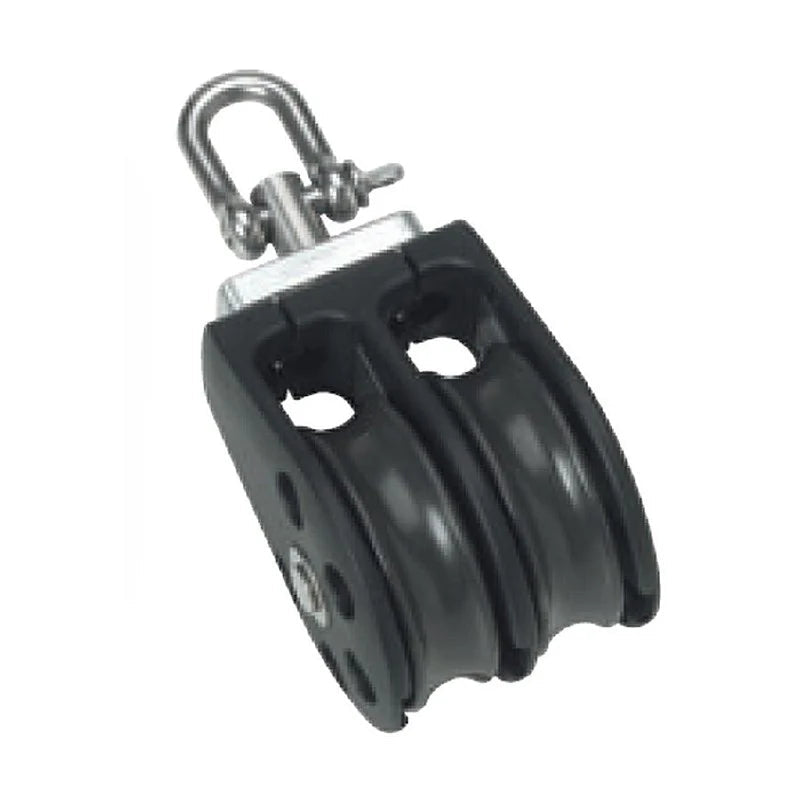

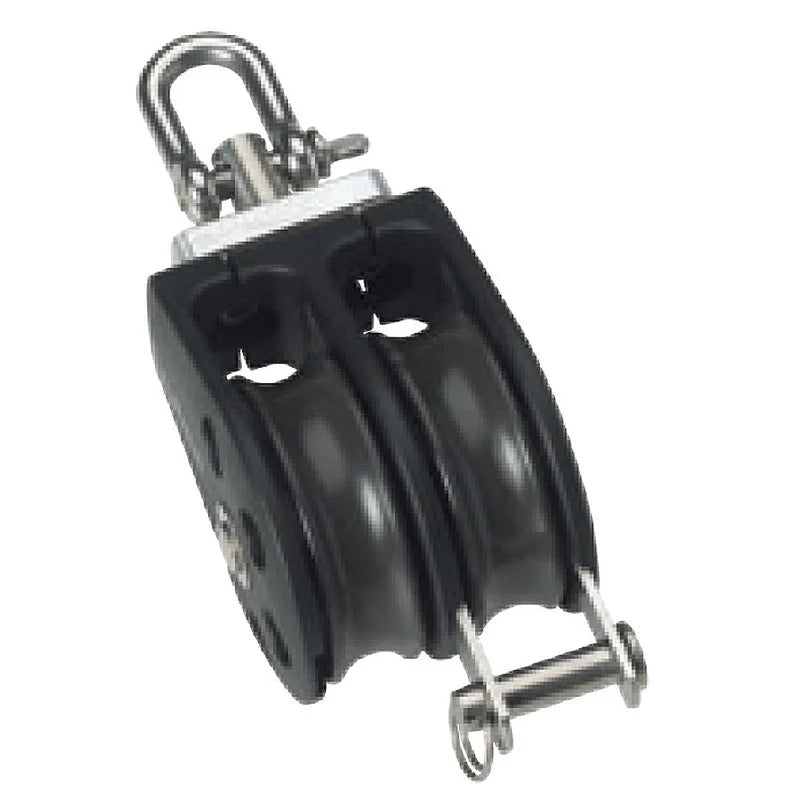

BAN02230 Barton Marine 35 mm Block - Double, Swivel 83 mm 740 kg 8 mm 39 mm 38 mm 87 g
BAN02231 Barton Marine 35 mm Block - Double, Swivel & Becket 100 mm 740 kg 8 mm 39 mm 38 mm 99 g
BAN02250 Barton Marine 35 mm Block - Double, Upright 63 mm 740 kg 8 mm 64 mm 50 mm 109 g

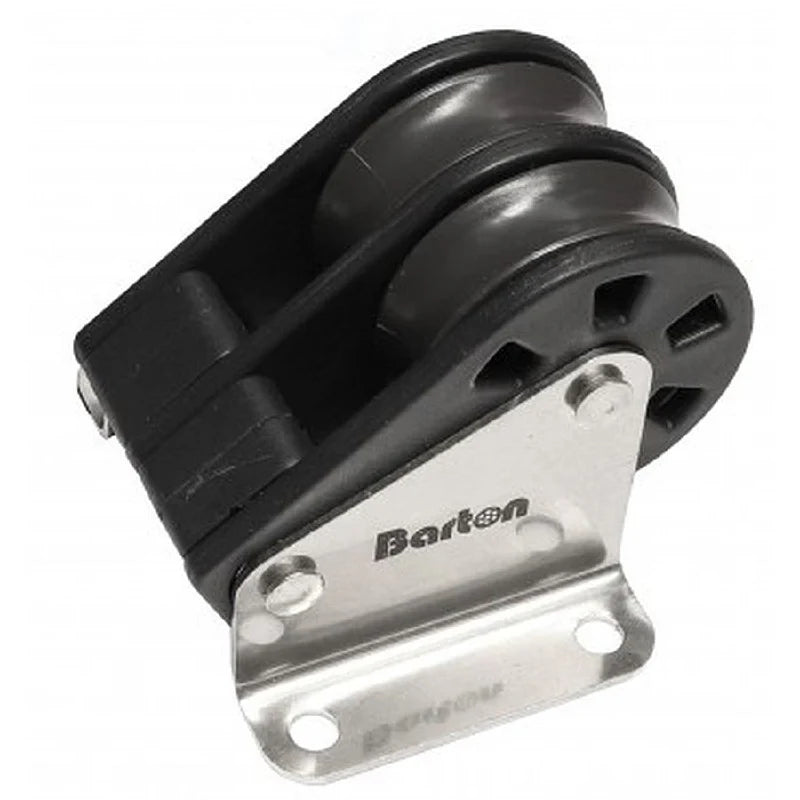

BAN02260 Barton Marine Size 2 35 mm Plain Bearing Pulley Double Cheek Block 80 mm 44 mm 37 mm 104 g

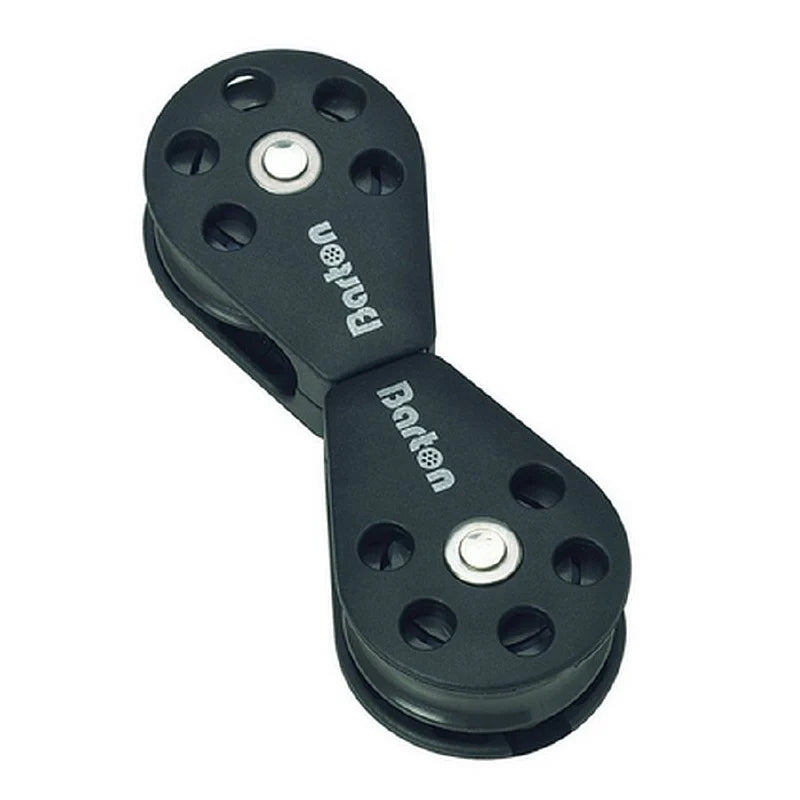

BAN02280 Barton Marine 35 mm Block - Back-To-Back Swivel 103 mm 740 kg 8 mm 38 mm 24 mm 77 g
BAN02290 Barton Marine 35 mm Block - Double, Stanchion Lead 108 mm 740 kg 8 mm 39 mm 38 mm 120 g
BAN02290R Barton Marine Size 2 Double Stanchion Lead Block with Removable Sheaves 740 kg 8 mm
BAN02310 Barton Marine 35 mm Block - Triple, Fixed Eye 65 mm 740 kg 8 mm 55 mm 38 mm 100 g
BAN02311 Barton Marine 35 mm Block - Triple, Fixed Eye & Becket 85 mm 740 kg 8 mm 55 mm 38 mm 113 g

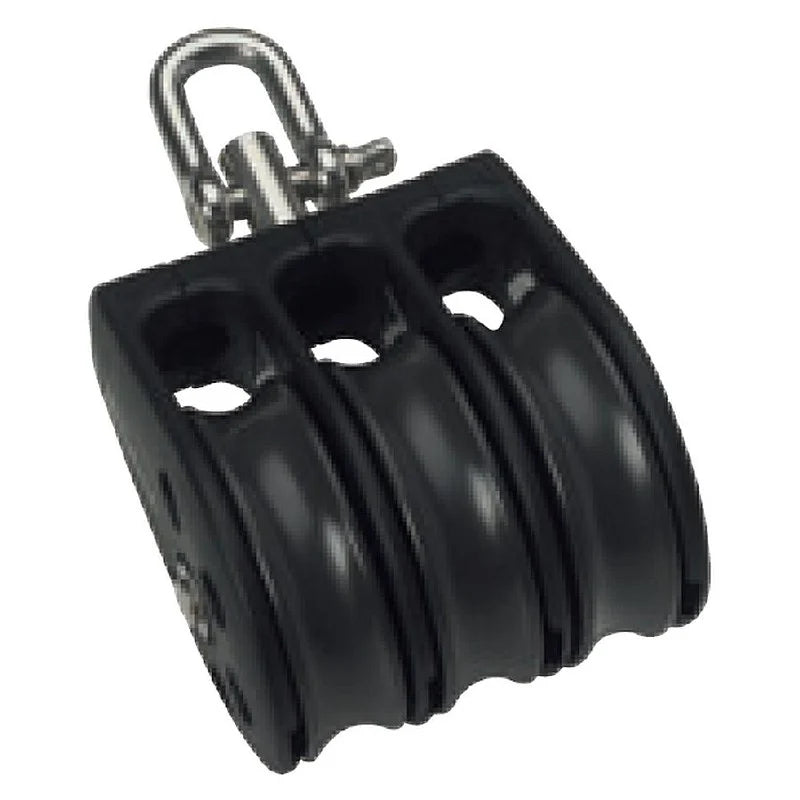

BAN02330 Barton Marine 35 mm Block - Triple, Swivel 74 mm 740 kg 8 mm 55 mm 38 mm 108 g

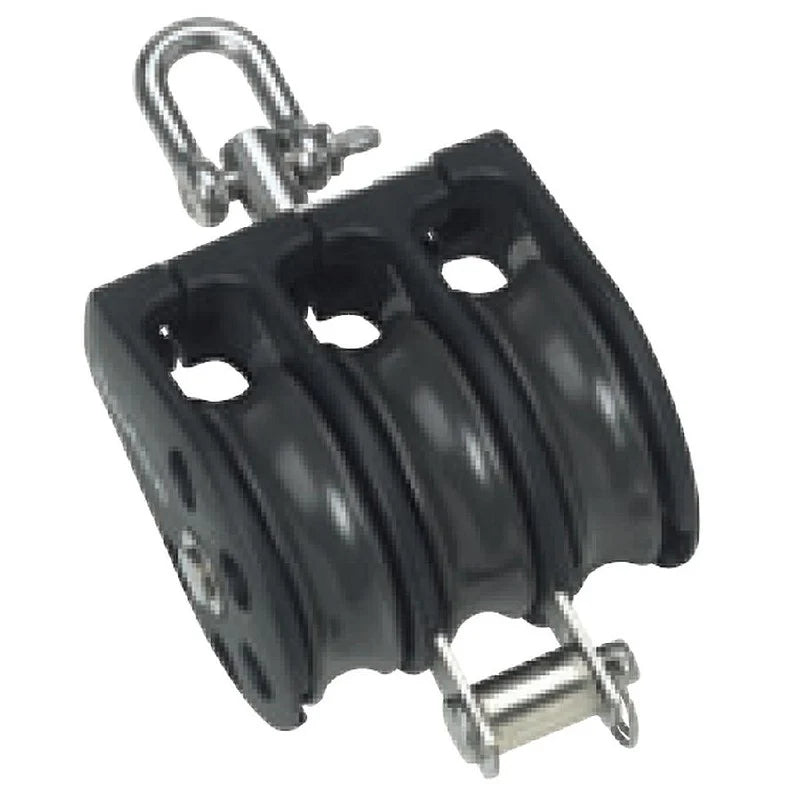

BAN02331 Barton Marine 35 mm Block - Triple, Swivel & Becket 92 mm 740 kg 8 mm 55 mm 38 mm 119 g

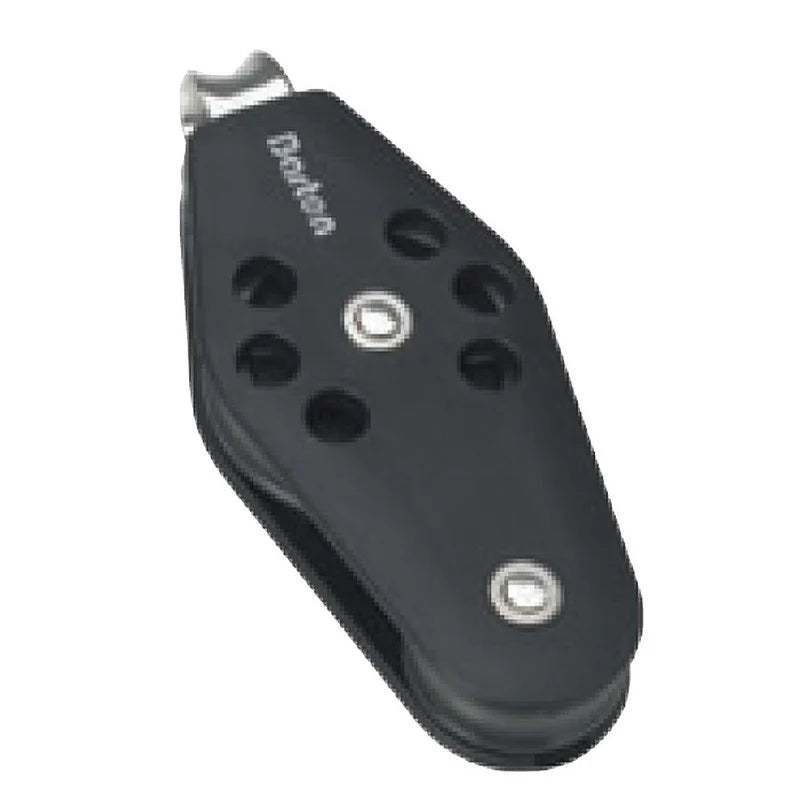

BAN02410 Barton Marine 35 mm Block - Fiddle, Fixed Eye 112 mm 740 kg 8 mm 48 mm 25 mm 89 g

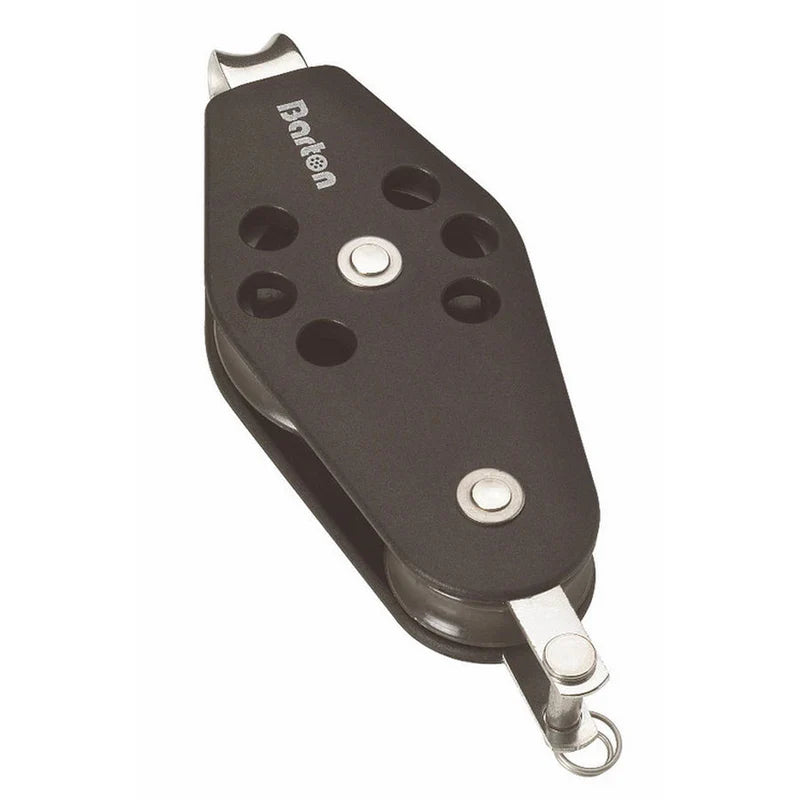

BAN02411 Barton Marine 35 mm Block - Fiddle, Fixed Eye & Becket 131 mm 740 kg 8 mm 48 mm 25 mm 98 g

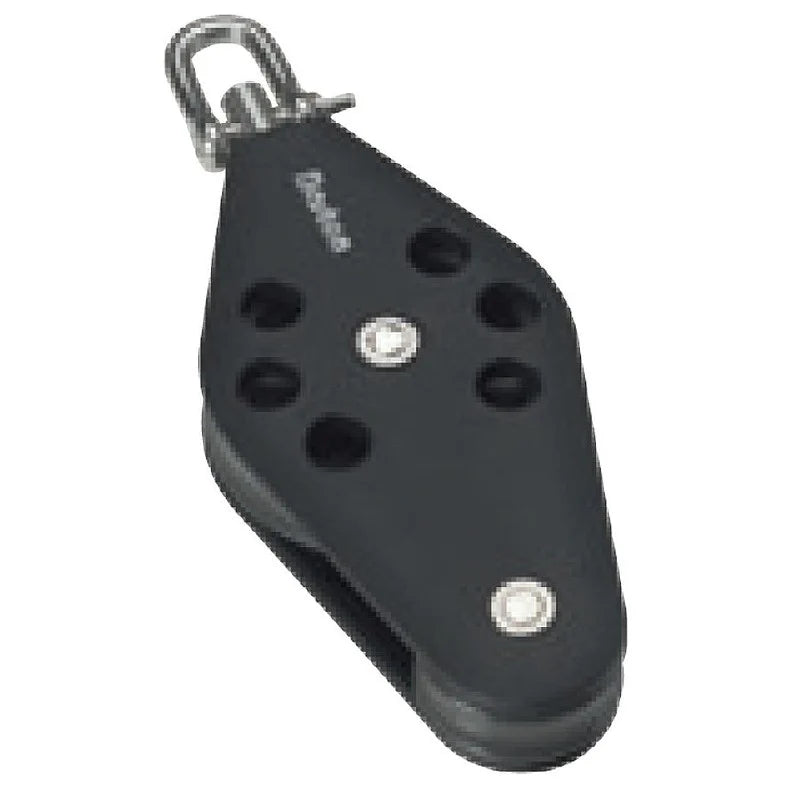

BAN02430 Barton Marine 35 mm Block - Fiddle, Swivel 126 mm 740 kg 8 mm 48 mm 25 mm 97 g

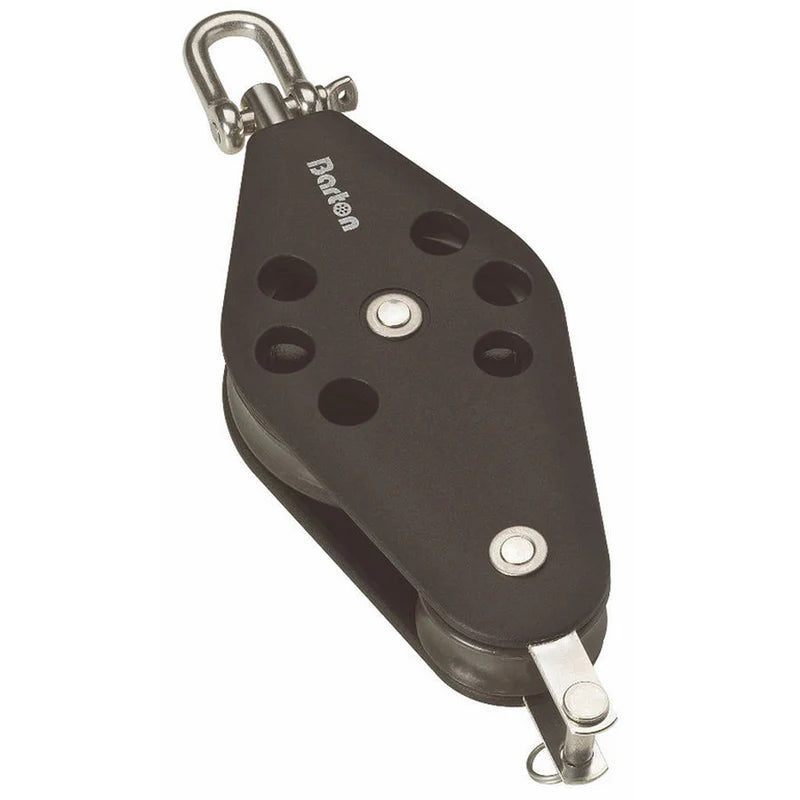

BAN02431 Barton Marine 35 mm Block - Fiddle, Swivel & Becket 145 mm 740 kg 8 mm 48 mm 25 mm 105 g
BAN02440 Barton Marine 35 mm Block - Fiddle, Snap Shackle 143 mm 740 kg 8 mm 48 mm 25 mm 133 g
BAN02441 Barton Marine 35 mm Block - Fiddle, Snap Shackle & Becket 162 mm 740 kg 8 mm 48 mm 25 mm 136 g

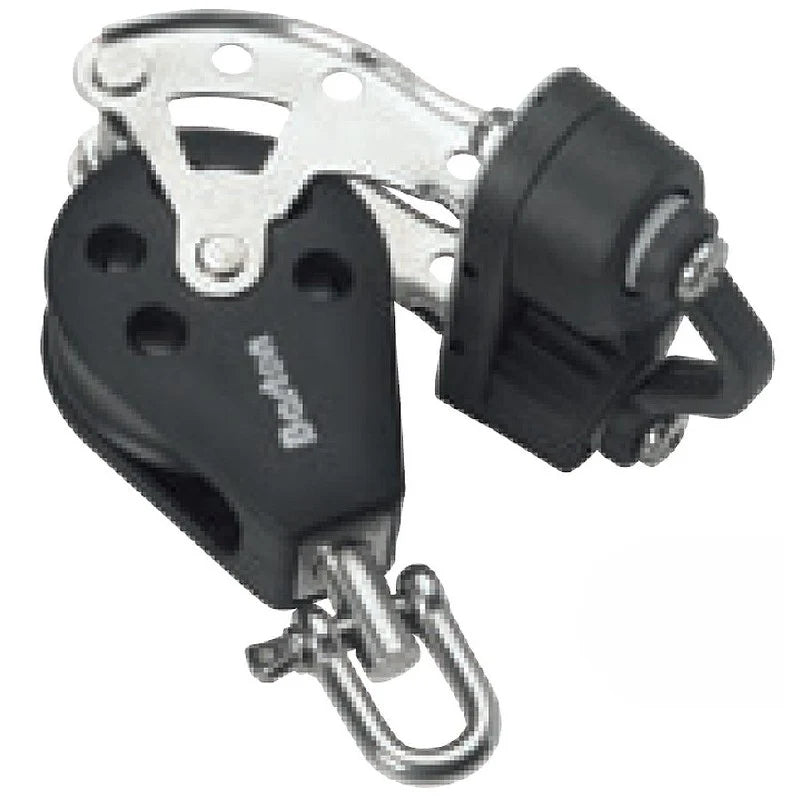

BAN02531 Barton Marine 35 mm Block - Single, Swivel & Becket & Cam 93 mm 740 kg 8 mm 71 mm 51 mm 109 g

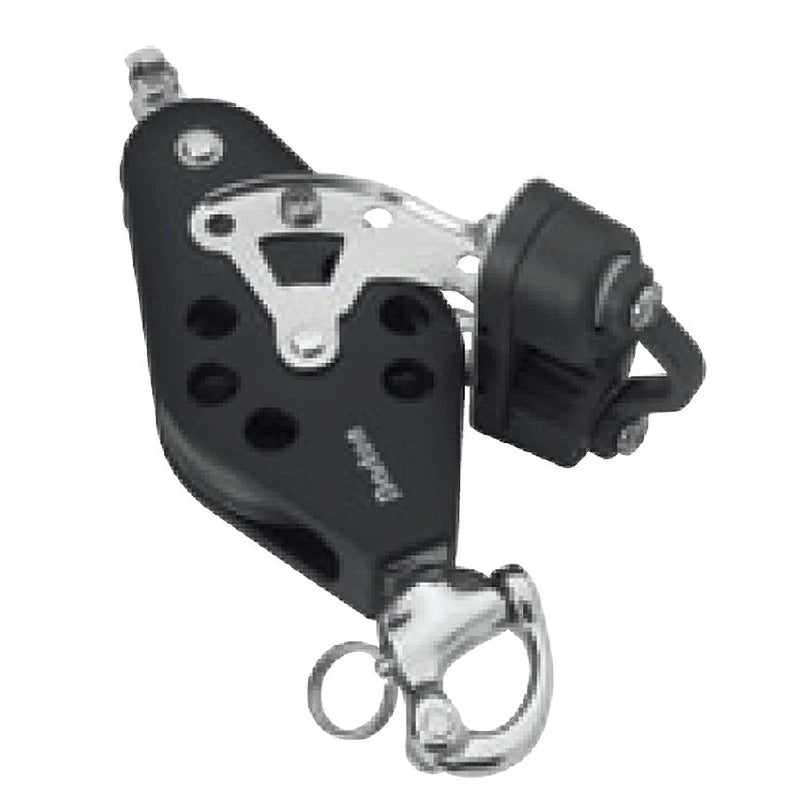

BAN02541 Barton Marine 35 mm Block - Single, Snap,Shackle & Becket & Cam 108 mm 740 kg 8 mm 71 mm 51 mm 145 g
BAN02571 Barton Marine 35 mm Block - Single, Stand Up & Becket & Cam 111 mm 740 kg 8 mm 74 mm 58 mm 183 g

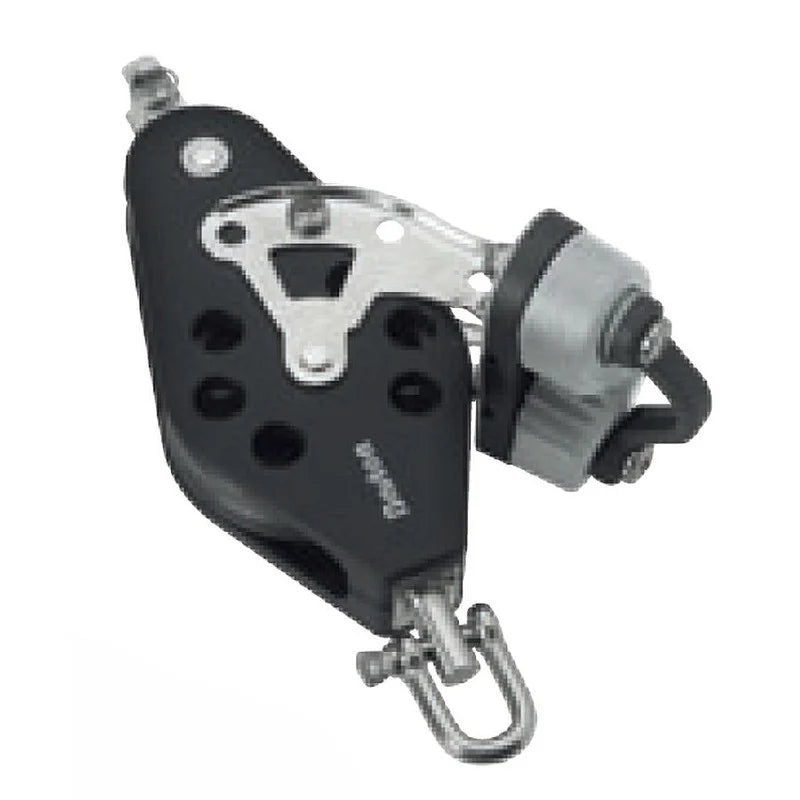

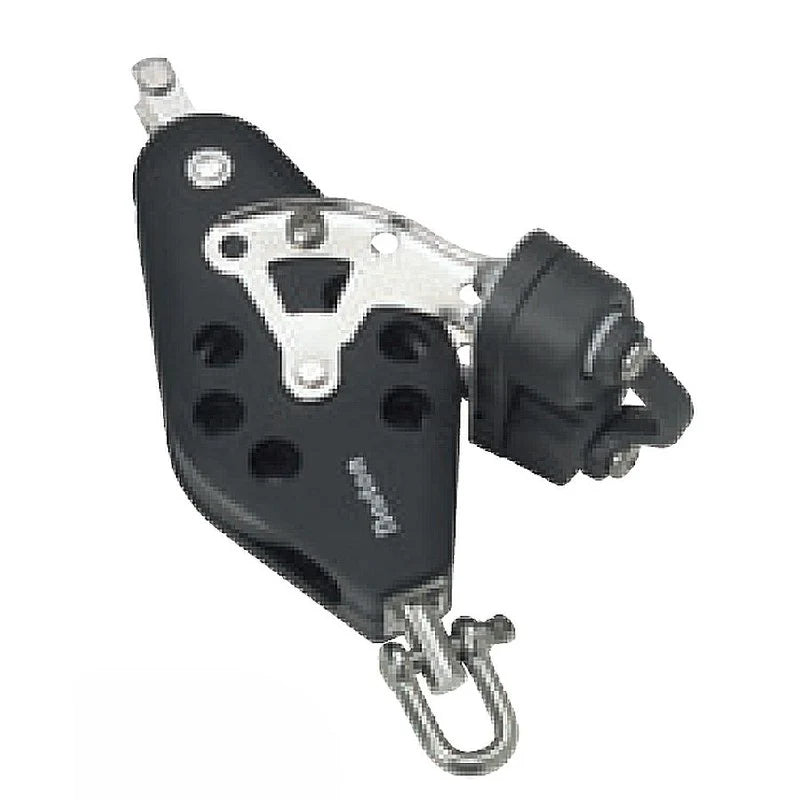

BAN02631 Barton Marine 35 mm Block - Fiddle, Swivel & Becket & Cam 145 mm 740 kg 8 mm 75 mm 51 mm 159 g
BAN02641 Barton Marine 35 mm Block - Fiddle, Snap Shackle & Becket & Cam 162 mm 740 kg 8 mm 75 mm 51 mm 196 g
BAN02731 Barton Marine 35 mm Block - Fiddle, Swivel & Becket & Plastic Cam 145 mm 740 kg 8 mm 75 mm 51 mm 159 g
