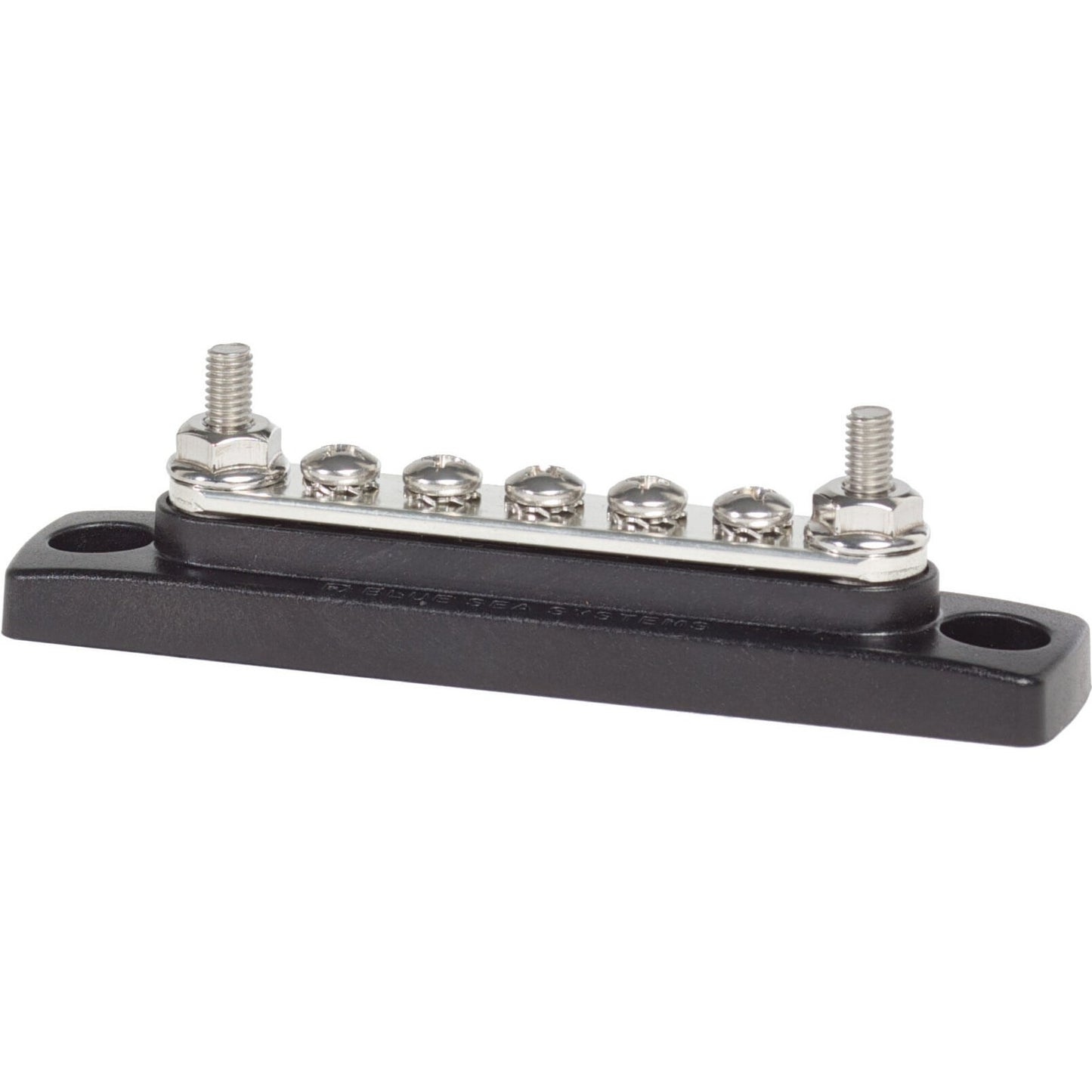

Blue Sea 5 Gang Common Mini BusBar - 100A

Blue Sea 5 Gang Common Mini BusBar - 100A.                           Ref: AF-8-22304

Great for limited space applications in electronics cabinets and under dashboards

Specifications

• Maximum Voltage    300V AC - 48V DC
• Number of Screw Terminals: 5
• Number of Terminal Studs: 2
• Terminal Type: #10-32 Stud, #8-32 Screw
• Continuous Rating; 100A
• Base Material: UL 94-V0 Rated, Glass Reinforced Thermoplastics
• Bus Material: Tin-Plated Copper CDA 110/ UNS11000
• Screw Terminal Torque: 1.69 Nm
• Stud Torque: 2.03 Nm

For detailed dimensions, see second picture.
