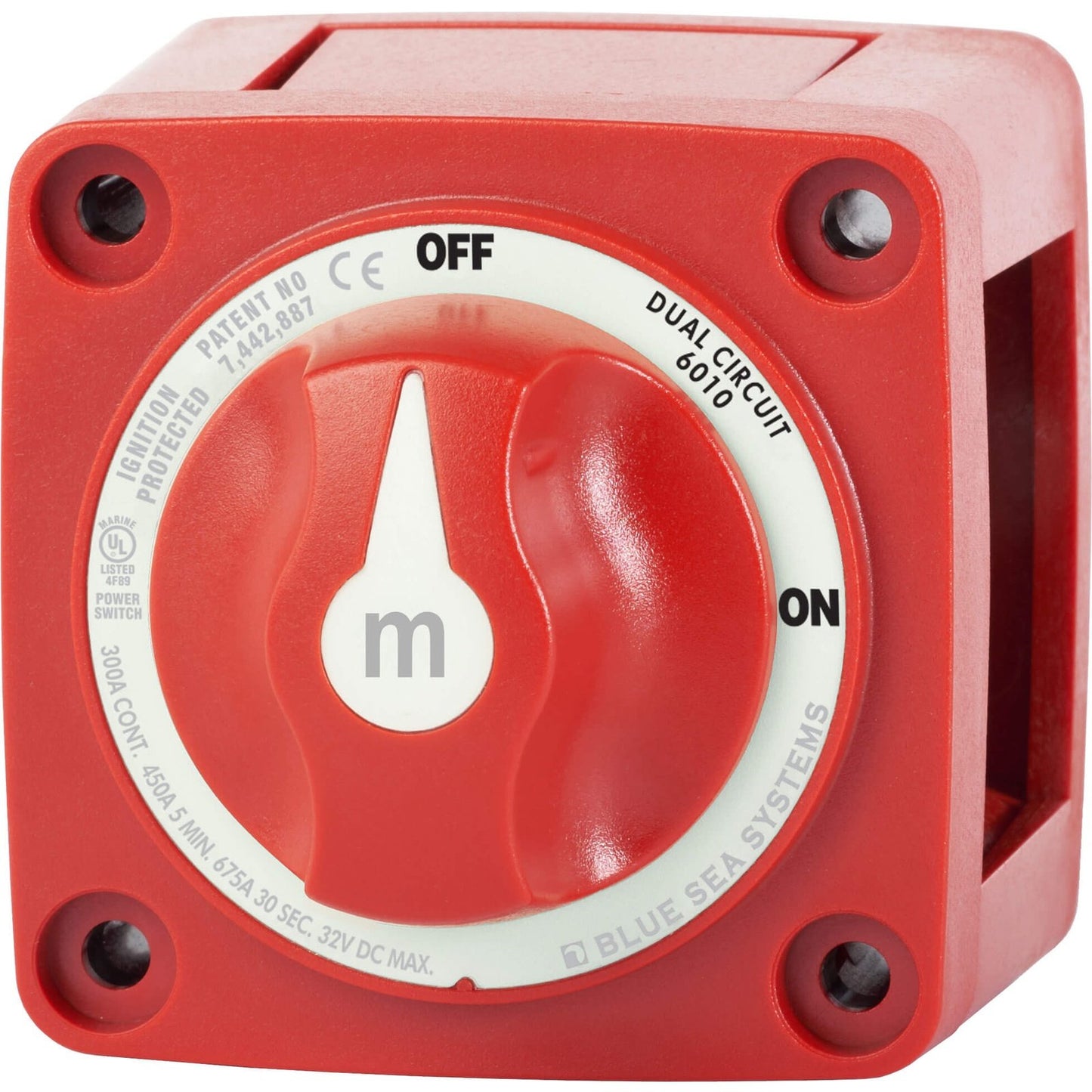

Blue Sea 6010 Mini Dual Circuit Battery Switch

Blue Sea 6010 Mini Dual Circuit Battery Switch.                   Ref: AF-8-26010

Simultaneously switches two isolated battery banks or circuits. May be used to switch the positive and negative conductors for required applications.

Key Features:

• Tin-plated copper studs for maximum conductivity and corrosion resistance
• Studs accept 3/8" (M10) ring terminals
• One-piece terminal stud design never loosens over time
• Isolating cover with three snap-off side pieces protects rear contacts and allows wire access in any direction.

Specifications:

• Switch Type: Dual Circuit
• Color    Red
• Switch Positions    2
• Battery Combine    No
• Alternator Field Disconnect: No
• Maximum Voltage    32V DC
• Stud Size    3/8"
• Terminal Stud Torque    120 in-lb (13.56 Nm)
• Continuous Rating: 300A
• Intermittent Rating: 450A (5 min)
• Cranking Rating 30 sec: 675A per circuit
• Battery Inputs    2
• Cable Clearance For 4/0 AWG Cables    1.12in (28.45 mm)
• Cable Size to Meet Ratings    4/0 AWG (120mm²)
• Mounting Holes    Accept #10 Screw
• Stud Material    Tinned Copper
• Stud Torque    120 in-lb (13.56 Nm)
• Terminal Stud Size    3/8" - 16 (M10)

Blue Sea 6010 - User Manual
