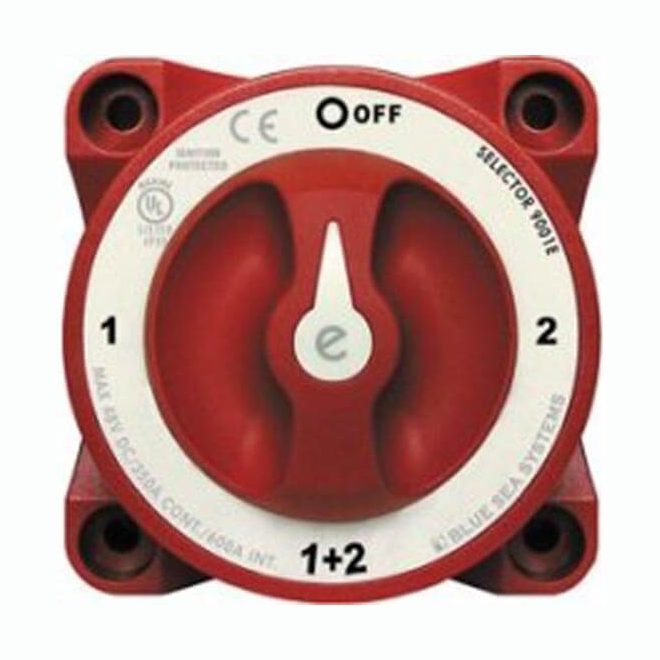

Blue Sea Battery Switch 9001e 340amp

Blue Sea Battery Switch 9001e 340amp

Location:

Use Coupon Code JUNE7 And Get 7% Off Absolutely Everything.

SKU:AF-8-28991

Regular price £65.95
Regular price Sale price £65.95
Sale Sold out
Tax included. Shipping calculated at checkout.

Blue Sea Battery Switch 9001e

  • 350A Continuous Rating - 45% higher than standard switches
  • Ignition protected - safe for installation aboard gasoline powered boats
  • Tactile textures indicate knob position by feel only
  • Case design allows surface or rear panel mounting
  • Accepts up to 4/0 battery cables
  • Fits all Perko and Guest low amperage battery switch hole patterns
  • 7/8" stud length to accept multiple cable terminals
  • 3/8" M10 Tin-plated copper studs for maximum conductivity and corrosion resistance
  • Meets American Boat and Yacht Council (ABYC) requirements for battery switches
  • Make-before-break contact design allows switching between battery banks without power interruption

Specifications

  • Inrush Rating: 0.25 sec (10 repeats)* 1,750 Amperes DC
  • Cranking Rating: 9.75 sec (10 repeats)* 900 Amperes DC
  • Intermittent Rating: 5 min (UL 1107) 600 Amperes DC
  • Continuous Rating: (UL 1107) 350 Amperes DC
  • Terminal Stud, Tin-Plated Copper 3/8" (M10)
  • Torque 140 in-lbs.
  • Cable Size to Meet Ratings1 4/0
  • Voltage Rating 48 Volts DC Maximum
  • Cable Clearance For 4/0 Cables 1.10" (28.0mm)
  • Case Material Reinforced Polycarbonate
  • CE marked
