Blue Sea M Series Battery Switch Mini Dual Circuit Plus 6011

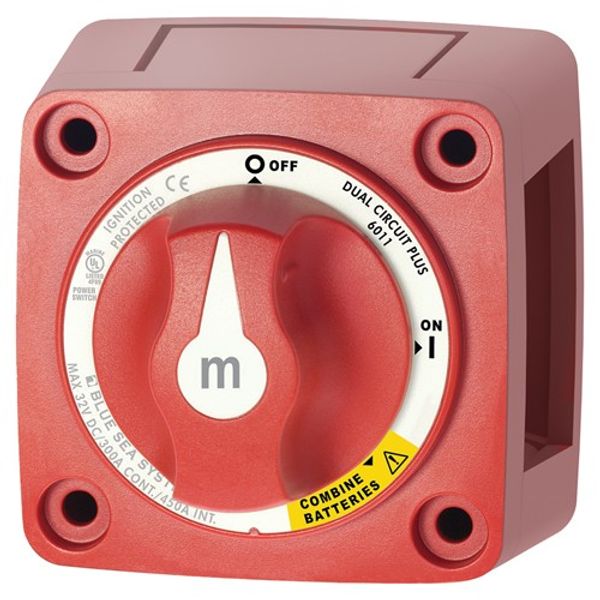

Blue Sea M-Series (Mini) Battery Switch Dual Circuit Plus™  6011

• Measures 2.825" x 2.825"
• Ignition protected - safe for installation aboard gasoline powered boats
• Tactile textures indicate knob position by feel only
• Case design allows surface, front panel, or rear panel mounting
• Label with international ON/OFF legends
• Ideal for marine or RV applications
• Accepts up to 4/0 AWG battery cables
• All non-corrosive marine grade metals
• Molded in durable reinforced polycarbonate
• ICON label set included for circuit identification
• Removable knob remains positively retained
• 3/8"-16 (M10) Tin-plated copper studs for maximum conductivity and corrosion resistance
• 7/8" Long stud length to accept multiple cable terminals
• Isolator cover protects rear contacts

Specifications

• Inrush Rating: 0.25 sec (10 repeats)* 1,200 Amperes DC
• Cranking Rating: 9.75 sec (10 repeats)* 600 Amperes DC
• Intermittent Rating: 5 min (UL 1107) 450 Amperes DC
• Continuous Rating: (UL 1107) 300 Amperes DC
• Terminal Stud, Tin-Plated Copper 3/8"-16 (M10)
• Torque 140 in-lbs.
• Cable Size to Meet Ratings1 4/0 AWG
• MaximumVoltage Rating 32 Volts DC
• Cable Clearance For 4/0 Cables 1.12" (25.4mm)
• Case Material Reinforced Polycarbonate
• CE marked
