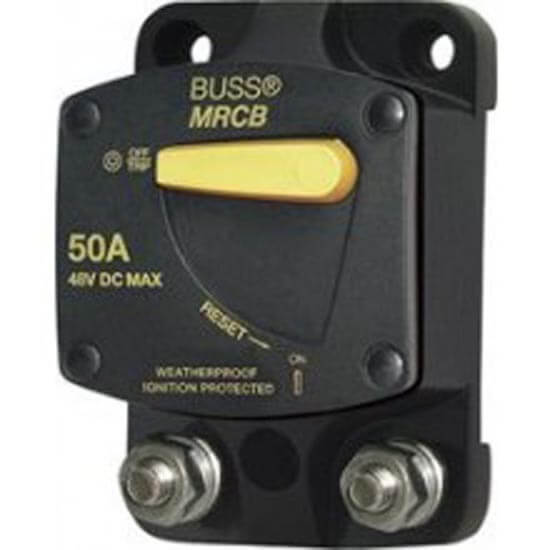

Blue Sea Circuit Breaker 187 Surface Mount 50A

Blue Sea Circuit Breaker 187 Surface 50A.

• Combines switching and circuit protection into a single device
• All components meet SAE J1171 external ignition protection requirements
• Clear, single lever operation
• "Trip Free" design cannot be held "ON" during fault current condition
• Waterproof
• Recessed mounting holes for clean appearance
• Large clearance around terminal studs accept heavy gauge wire lugs
• Robust 5/16 terminals provide high torque connections
• Large lever with vertical/horizontal orientation provides indication of trip status
• Ignition protected - safe for installation aboard gasoline powered boats

Specifications

• Circuit Breaker Class Type III - Switchable/Manual Reset - Trip Free
• Type Thermally Responsive Bi-Metal Blade
• Case Material Thermoset Polyester
• Amperage 25-150 Amperes
• Voltage Rating 48 Volts DC Maximum
• Interrupt Rating 5,000 Amperes@12 Volts DC
• 3,000 Amperes@24 Volts DC
• 1,500 Amperes@42 Volts DC
• Operating Temperature Range
• -25C° to +82C°
