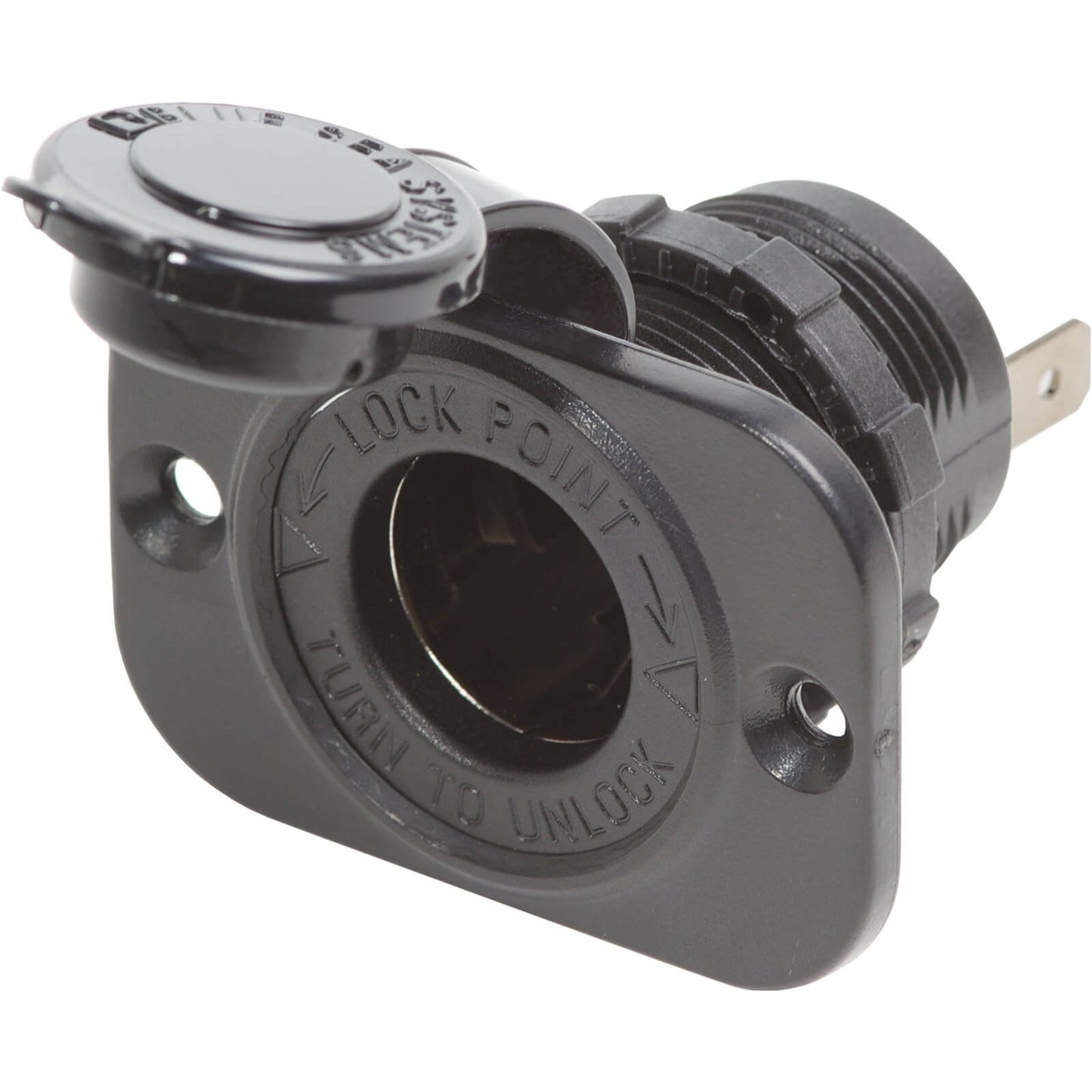

Blue Sea Dash Socket 12V DC with Watertight Cap

Blue Sea Dash Socket 12V DC with Watertight Cap.                      Ref: AF-8-21011

Designed to withstand the rigors of wet environments and constant vibration, comes with a watertight cap and a twist locks securely with plug.

Key Features:

• Large contact surfaces for good electrical connection
• Twist lock system—plug locks securely into socket
• Internal strain relief and cord seal
• Nickel plated copper alloy used for all current carrying components
• Front panel, rear panel, or surface mount
• Easy Installation
• Twist lock compatible with Bue Sea System plugs model '1010', '1013' and '1017' (Not Included)

Specifications:

• Maximum Amperage: 15A
• Maximum Voltage: 12V DC
• Cut Out Dimensions: 1 1⁄8 in (28.58 mm) dia. hole
• Weight    0.05 kg

For more detailed dimensions, see second picture.
