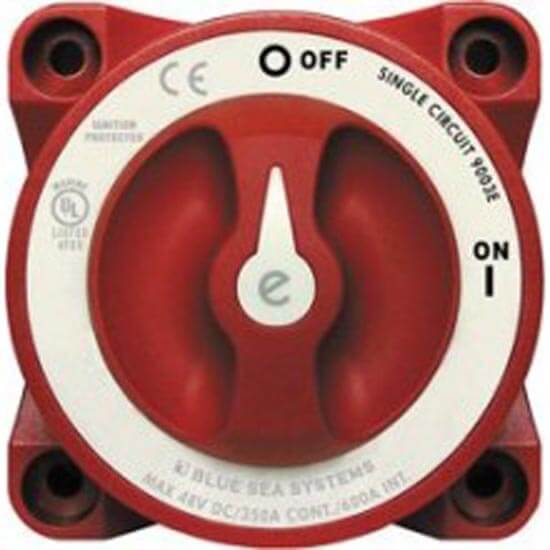

Blue Sea E - Series Battery Master Switch On / Off

Blue Sea E-Series Battery Master Switch Single Circuit ON/OFF

• 350A Continuous Rating for small inboard gasoline or diesel engines.
• 350A Continuous Rating - 45% higher than standard switches
• Ignition protected - safe for installation aboard gasoline powered boats
• Tactile textures indicate knob position by feel only
• Case design allows surface or rear panel mounting
• Accepts up to 4/0 battery cables
• Fits all Perko and Guest low amperage battery switch hole patterns
• 7/8" stud length to accept multiple cable terminals
• 3/8" M10 Tin-plated copper studs for maximum conductivity and corrosion resistance
• Meets American Boat and Yacht Council (ABYC) requirements for battery switches

Specifications

• Inrush Rating: 0.25 sec (10 repeats)* 1,750 Amperes DC
• Cranking Rating: 9.75 sec (10 repeats)* 900 Amperes DC
• Intermittent Rating: 5 min (UL 1107) 600 Amperes DC
• Continuous Rating: (UL 1107) 350 Amperes DC
• Terminal Stud, Tin-Plated Copper 3/8" (M10)
• Torque 140 in-lbs.
• Cable Size to Meet Ratings1 4/0
• Voltage Rating 48 Volts DC Maximum
• Cable Clearance For 4/0 Cables 1.10" (28.0mm)
• Case Material Reinforced Polycarbonate
• CE marked
