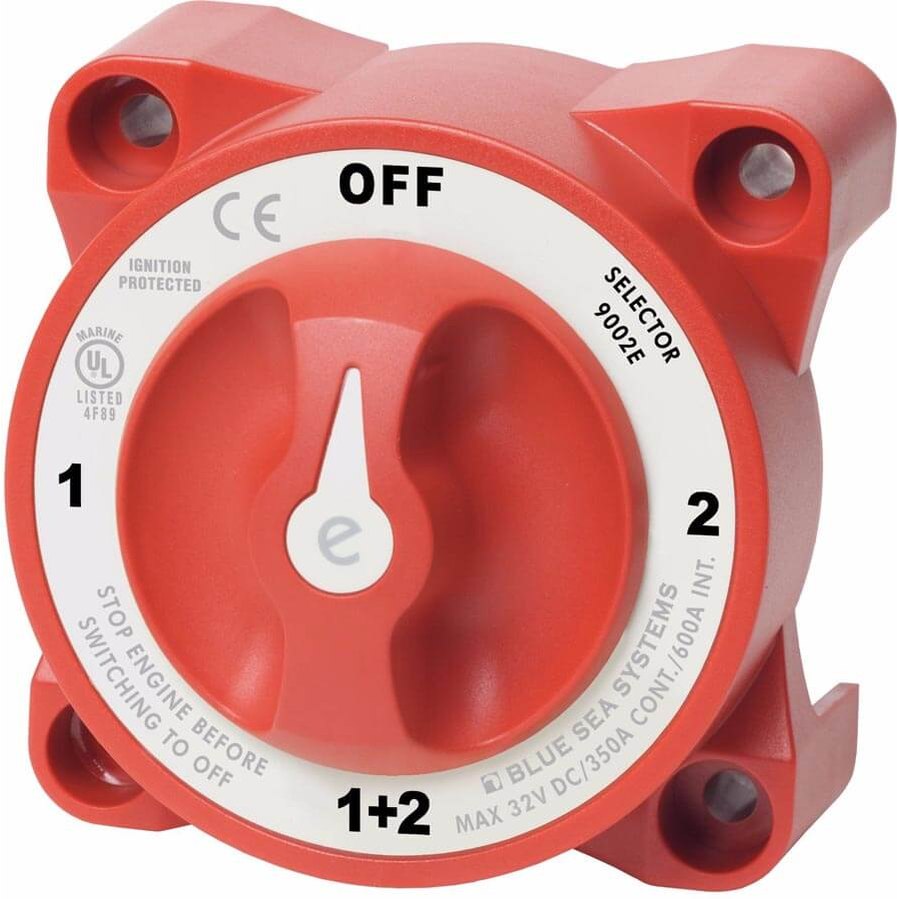

Blue Sea E Series Battery Switch 9002E

Blue Sea E Series Battery Switch 9002E.                         Ref:  AF-8-29002

Switches isolated battery banks to all loads or combines battery banks to all loads.

Features

• Includes AFD (Alternator Field Disconnect)
• Make-before-break contact design allows switching between battery banks without power interruption
• Ignition protected—safe for installation aboard gasoline powered boats
• Case design allows surface or rear panel mounting

• Switch Type Selector 4 Position
• Color Red
• Switch Positions 4
• Battery Combine Yes
• Alternator Field Disconnect Yes
• Maximum Voltage 32V DC
• Continuous Rating 350A
• Intermittent Rating 600A (5 min)
• Cranking Rating 10 sec 2000A
• Cranking Rating 1 min 1000A
• Battery Inputs 2
• Cable Clearance For 4/0 AWG Cables 1.10in (27.94 mm)
• Cable Size to Meet Ratings 4/0 AWG (120mm²)
• Mounting Holes Accept 1/4" (M6) Screw
• Terminal Stud Size 3/8"-16 (M10)
• Terminal Stud Torque 140 in-lb (15.82 Nm)
• Weight 1.30lb (0.59 kg)
