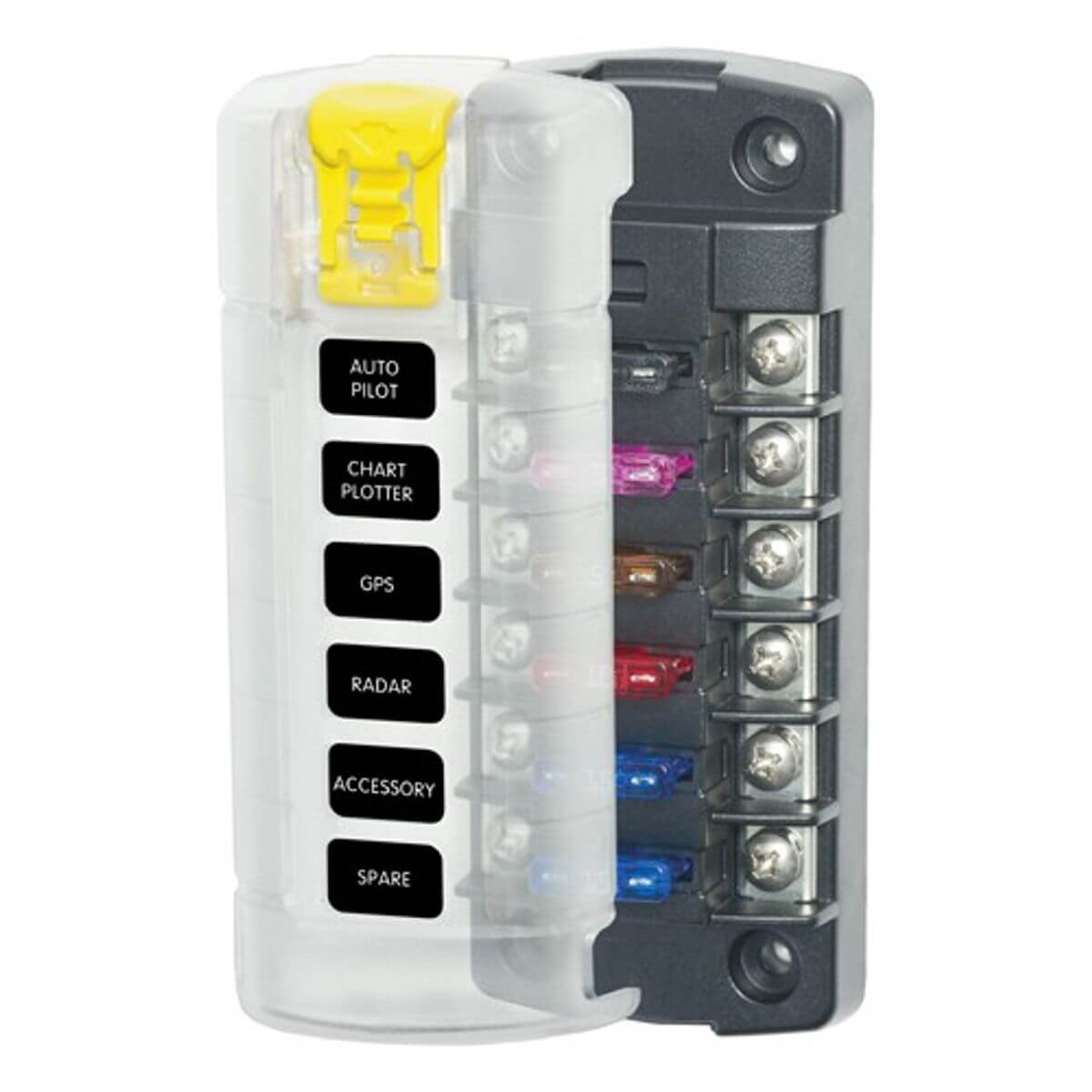

Blue Sea Fuse Block ST Blade 6 Independent Circuit with Cover

Blue Sea Fuse Block ST Blade 6 Independent Circuit with Cover.       Ref20: AF-8-25035

ST Blade Fuse Blocks Screw Terminal Compact ATO®/ATC® fuse block consolidates branch circuits and eliminates the tangle of in-line fuses for electronics and other appliances.

Key Features:

• Can be used for 24-hour circuits
• Clear insulating cover with label recesses accepts Small Format Labels
• Cover satisfies ABYC/USCG insulation requirements
• Accepts ring terminals
• Easy to open, push button latch provides easy access to fuses
• Tin-plated copper buses and fuse clips
• Fuse Blocks with covers include 20 write-on circuit labels
• Fuses sold separately

Specifications

• Voltage Max Operating: 32V DC
• Amperage Max Operating: 30A (per circuit)
• Fuse Type: ATO® or ATC® Fuses
• Screw Terminal: #8-32 Screws with
• Captive Star Lock washer
• Mounting: #8 Screw (M4)
