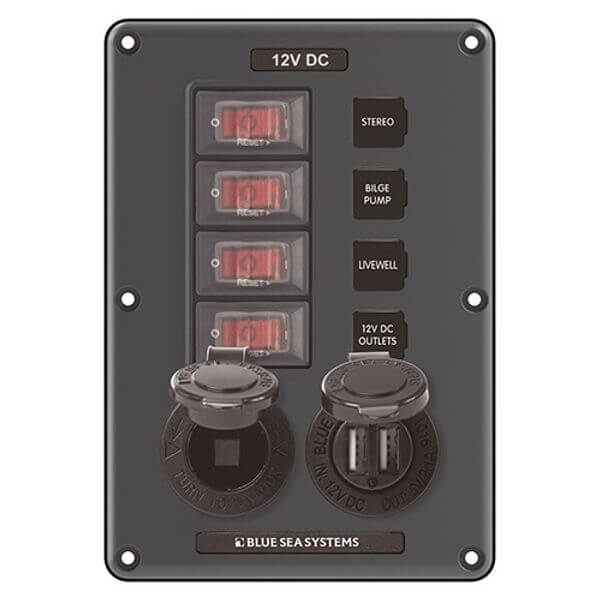

Blue Sea IP66 4 Position Circuit Breaker Switch Panel With 12V Socket - 2.1A USB Charger.

Blue Sea IP66 4 Position Circuit Breaker Switch Panel With 12V Socket - 2.1A USB Charger.

Location:

Use Coupon Code JUNE7 And Get 7% Off Absolutely Everything.

SKU:AF-8-24321

Regular price £79.95
Regular price Sale price £79.95
Sale Sold out
Tax included. Shipping calculated at checkout.

Blue Sea 4 Position With 12V Socket And 2.1A USB Charger.  Circuit Breaker Switch Panel.  Ref: AF-8-24321

Designed for exposed mounting applications Illuminated 15A circuit breakers provide switching, ON indication and overcurrent protection. Industry-standard sizes and mounting allow these panels to be easily retrofitted in an existing application. Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode.

Silicon breaker boots and gasket protects against water ingress Low profile makes it easy to install in tight spaces. Fast-on circuit breaker connectors make it quick to wire. Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections.

Specifications:



  • Nominal Voltage: 12V DC
  • 4 x Circuit Breakers
  • 2.1A USB Charger
  • 12v DC Socket
  • Water Resistant
  • Amperage Max. Operating: 45A
  • Terminal Type: 1/4" Male quick connect
  • Hardware: S/Steel #6 x 5/8" mounting screws
  • Ring Terminal Size: M5 (#10)
  • Regulatory: Panel front is IP66 when mounted with gasket in place - protected against powerful water jets.
  • Colour: Grey
  • Width: 117.47mm
  • Height: 168.27mm
  • Depth: 44.45mm
  • Width Mounting Centres: 104.77mm
  • Height Mounting Centres: 155.57mm
