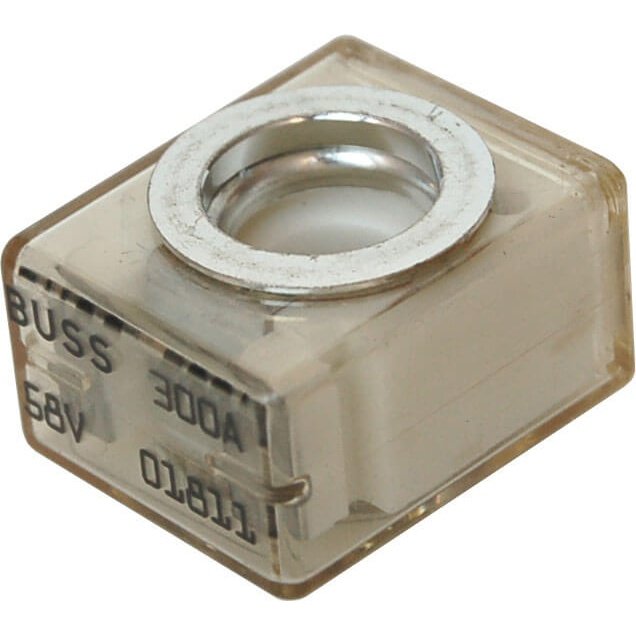

Blue Sea 5190 MRBF Terminal Fuse - 300A

Blue Sea 5190 MRBF Terminal Fuse - 300A

Requires the use of Terminal Fuse Blocks PN 5191 or PN 2151—do not mount the fuse directly to the battery terminal

Key Features:

• Interrupt rating satisfies ABYC requirements for DC Main circuit protection on large battery banks
• Ignition protected—safe for installation aboard gasoline powered boats
• Clear window—visual indication of blown condition
• Color coded for each amperage

Specifications

• Amperage:   300A
• Ignition Protected:  Yes
• Maximum Voltage:    58V DC

Interrupt Capacity The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage.

• 10000A @ 14V DC
• 5000A @ 32V DC
• 2000A @ 58V DC
