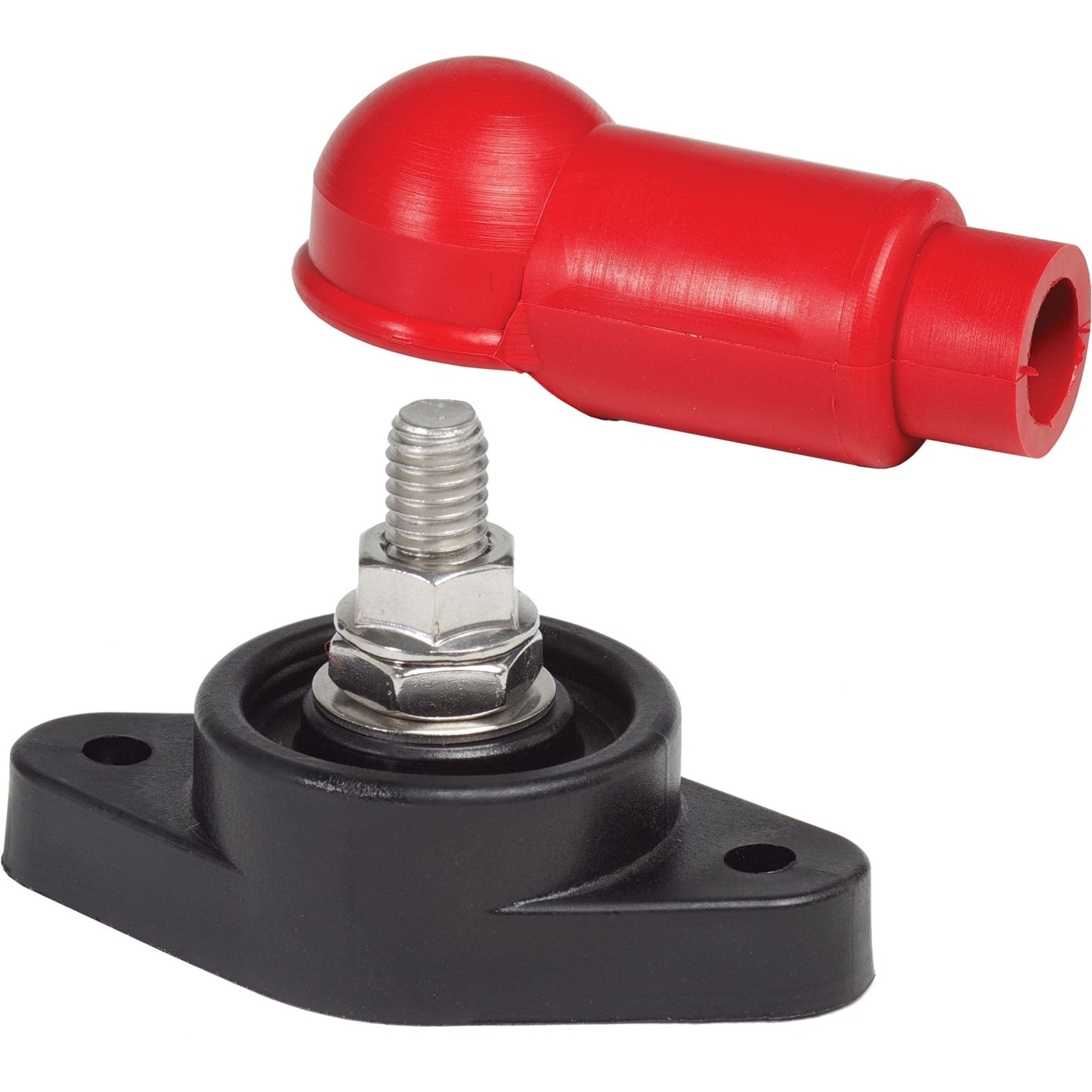

Blue Sea PowerPost Cable Connector
Blue Sea PowerPost Cable Connector
SKU: AF-8-22010
The Blue Sea Systems PowerPost High Amperage Cable Connector provides a secure and reliable solution for terminating multiple heavy-duty electrical cables on boats, RVs, off-grid systems, and other high-current DC installations. Featuring a corrosion-resistant stainless steel stud mounted in a durable glass-reinforced nylon base, the PowerPost creates a convenient connection point for distributing power between multiple conductors.
Delivery available | lead times vary
Collection available | usually ready in 2-4 days
Description
Description
The Blue Sea Systems PowerPost High Amperage Cable Connector provides a secure and reliable solution for terminating multiple heavy-duty electrical cables on boats, RVs, off-grid systems, and other high-current DC installations. Featuring a corrosion-resistant stainless steel stud mounted in a durable glass-reinforced nylon base, the PowerPost creates a convenient connection point for distributing power between multiple conductors.
Supplied with a protective insulating cover, the PowerPost helps reduce the risk of accidental short circuits while keeping electrical installations neat and organised. Designed for systems up to 48V DC, the connector carries current between the cables attached to the stud, with the current capacity determined by the size of the cable and terminals used.
- Heavy-duty insulated PowerPost for high current cable connections
- Stainless steel stud offers excellent corrosion resistance
- Allows multiple large conductors to terminate on a single connection point
- Includes protective insulating cover
- Durable glass-reinforced nylon base for long service life
- Suitable for marine, automotive, RV and off-grid electrical systems
- Maximum operating voltage of 48V DC
| Part No. | Imperial | Metric |
|---|---|---|

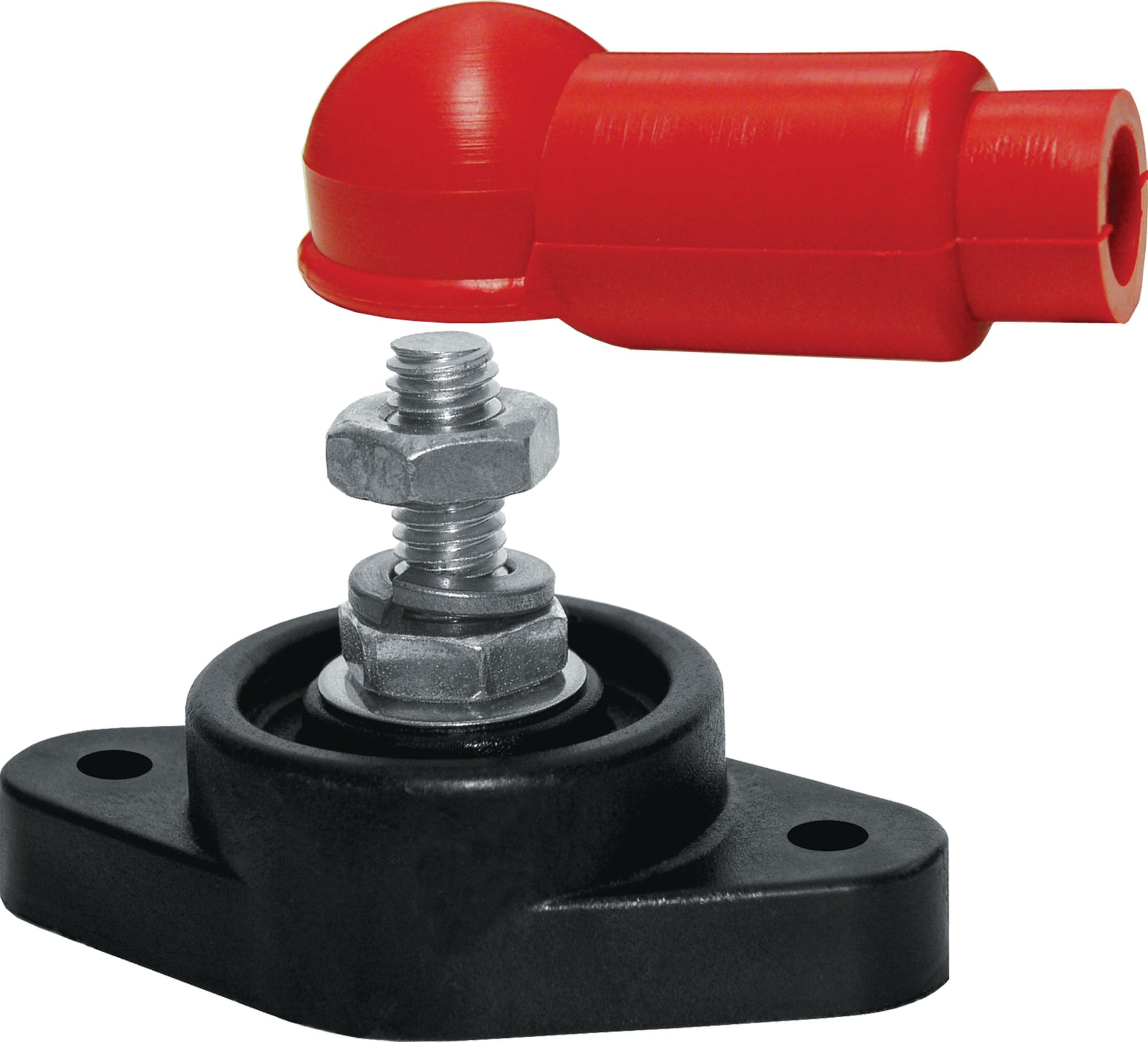

| 2001 | 1/4"-20 UNC | Ø6.35 × 1.27 mm pitch |

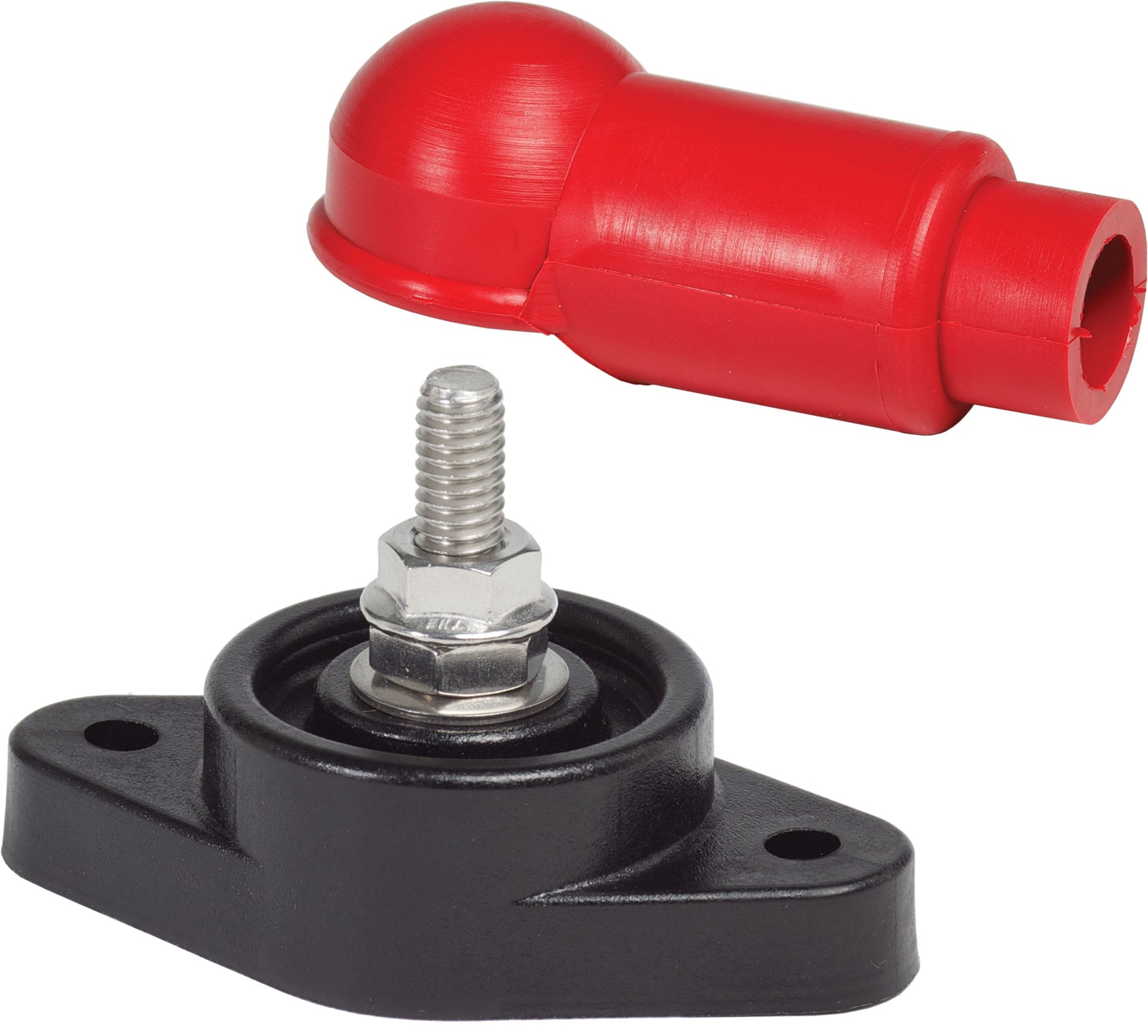

| 2002 | 5/16"-18 UNC | Ø7.94 × 1.41 mm pitch |

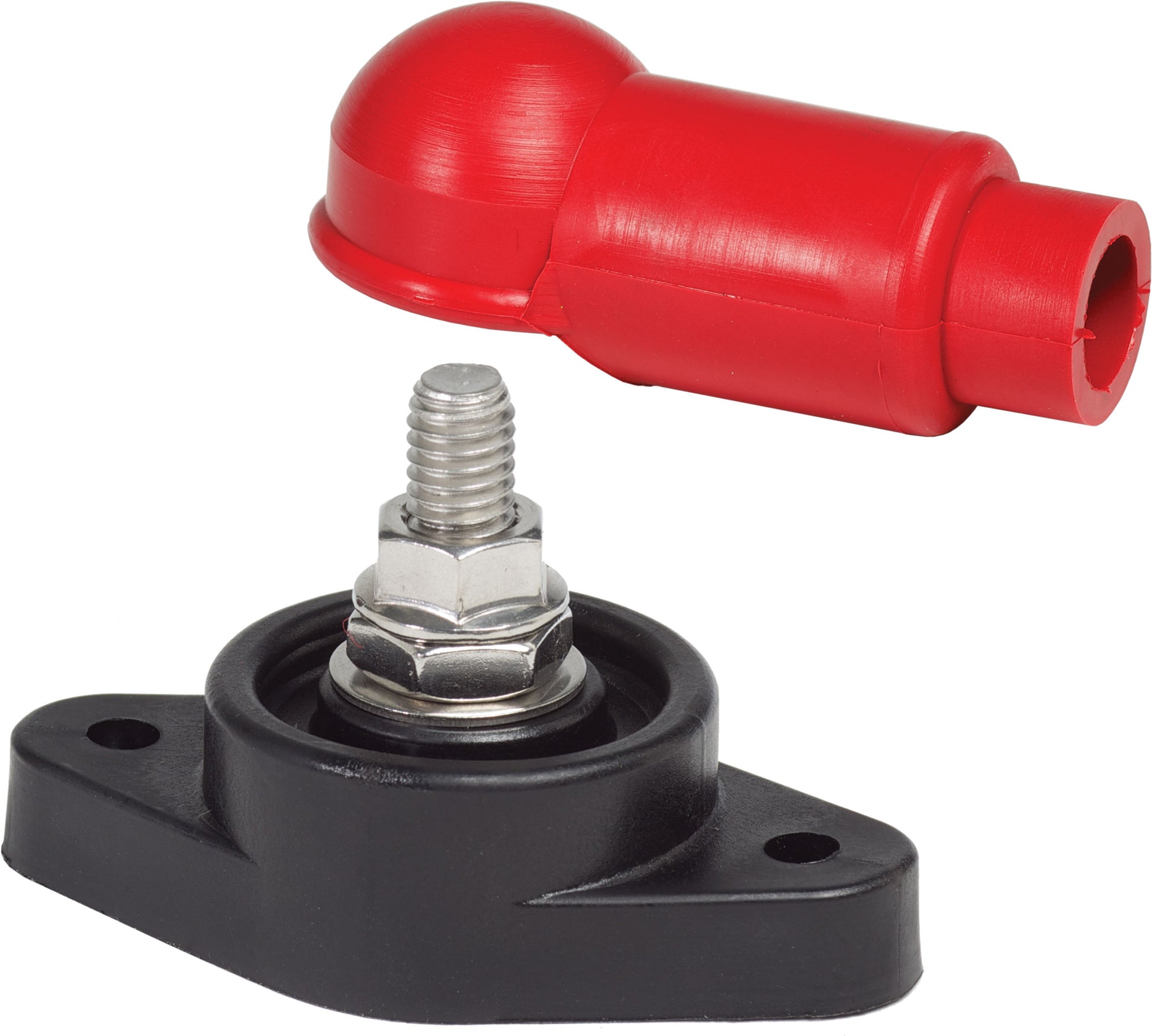

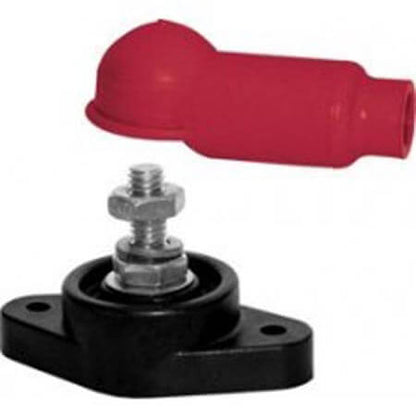

| 2003 | 3/8"-16 UNC × 7/8" long | Ø9.53 × 1.59 mm pitch × 22.23 mm long |

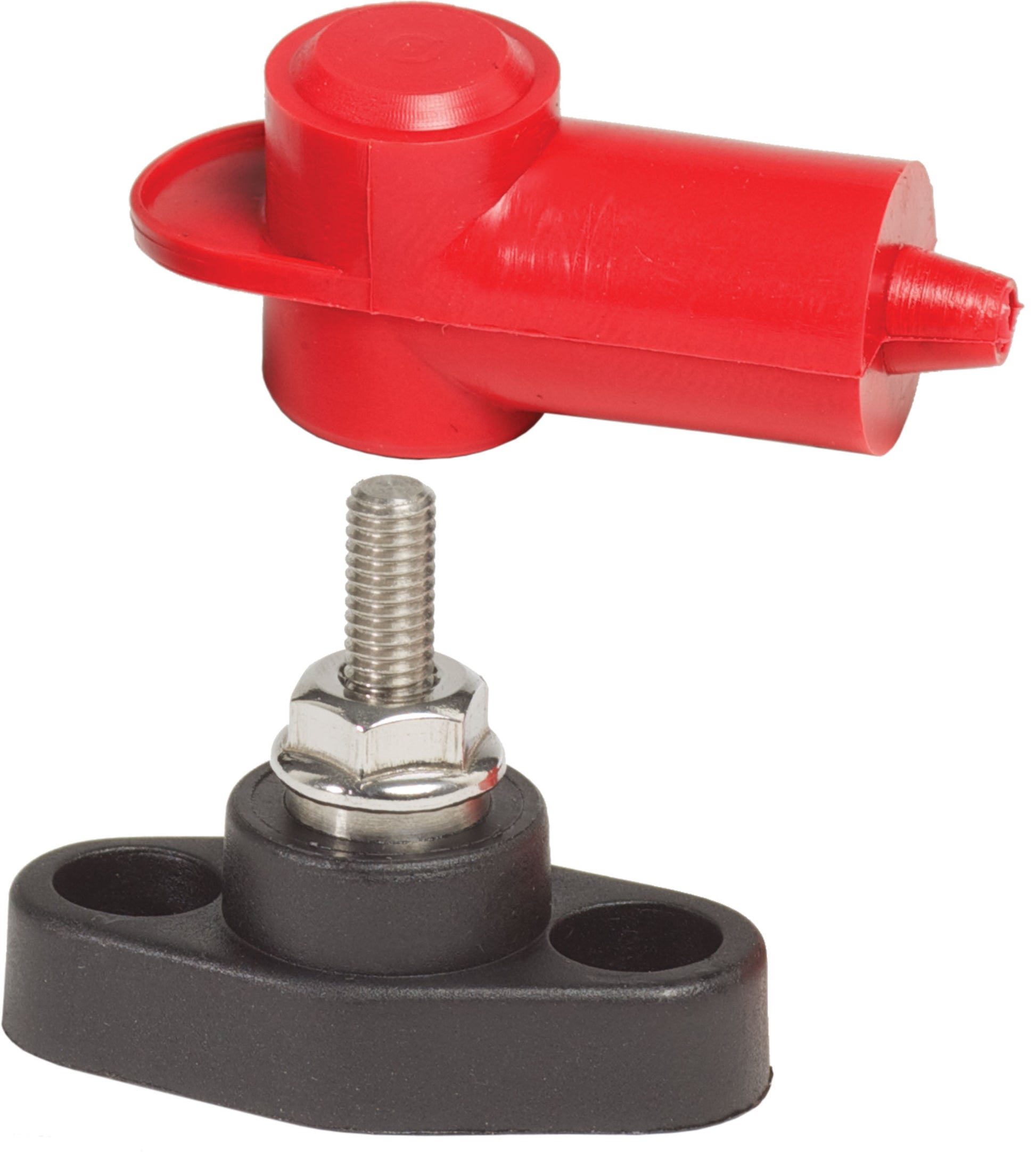

| 2010 | #10-32 UNF × 5/8" long | Ø4.83 × 0.79 mm pitch × 15.88 mm long |

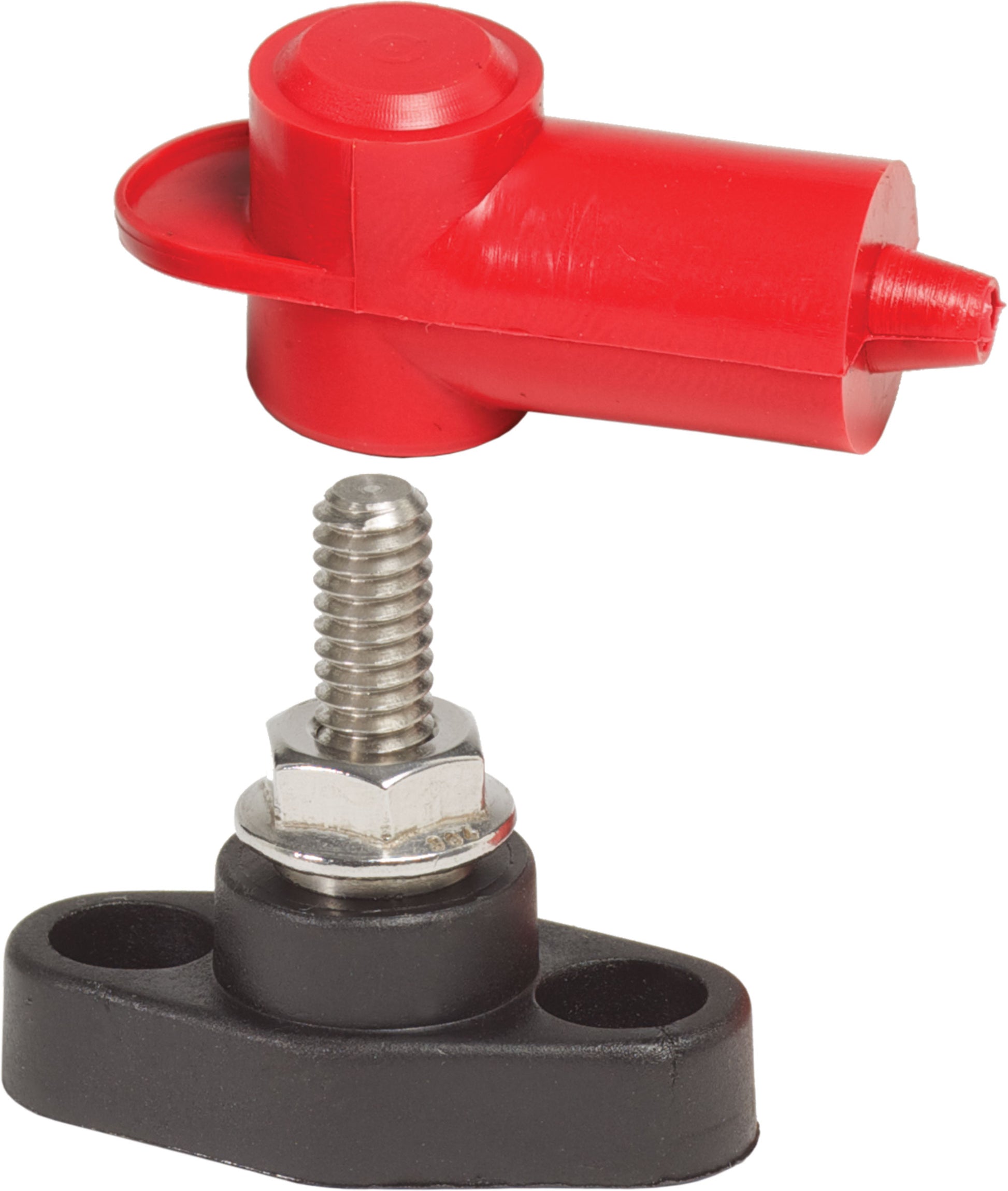

| 2011 | 1/4"-20 UNC × 3/4" long | Ø6.35 × 1.27 mm pitch × 19.05 mm long |
Specification
Specification
| Part No. | Imperial | Metric |
|---|---|---|
| 2001 | 1/4"-20 UNC | Ø6.35 × 1.27 mm pitch |
| 2002 | 5/16"-18 UNC | Ø7.94 × 1.41 mm pitch |
| 2003 | 3/8"-16 UNC × 7/8" long | Ø9.53 × 1.59 mm pitch × 22.23 mm long |
| 2010 | #10-32 UNF × 5/8" long | Ø4.83 × 0.79 mm pitch × 15.88 mm long |
| 2011 | 1/4"-20 UNC × 3/4" long | Ø6.35 × 1.27 mm pitch × 19.05 mm long |
