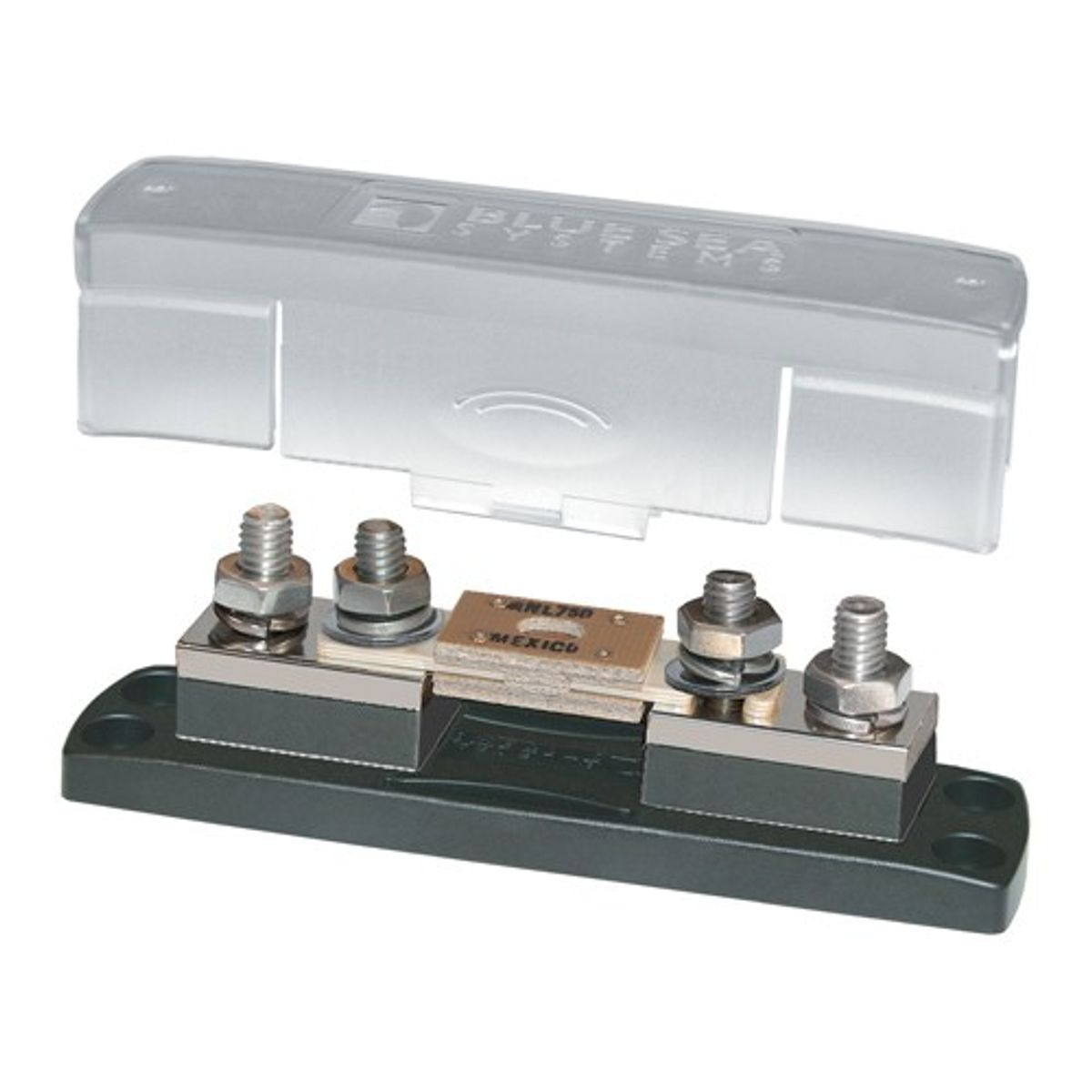

Blue Sea Systems ANL Fuse Block
Blue Sea Systems ANL Fuse Block
SKU: AF-8-25005
The Blue Sea Systems Fuse Blocks 5005 and 5503 provide safe and reliable protection for high-current DC electrical systems in marine, automotive, RV and industrial applications. Designed for demanding environments, these heavy-duty fuse holders feature corrosion-resistant components and insulated covers that meet ABYC/USCG requirements.
Delivery available | lead times vary
Collection available | usually ready in 2-4 days
Description
Description
The Blue Sea Systems Fuse Blocks 5005 and 5503 provide safe and reliable protection for high-current DC electrical systems in marine, automotive, RV and industrial applications. Designed for demanding environments, these heavy-duty fuse holders feature corrosion-resistant components and insulated covers that meet ABYC/USCG requirements.
A convenient swing-out design allows the fuse to be replaced without removing the mounting fasteners, making maintenance quick and simple. Stainless steel studs and tin-plated copper fuse mounting blocks provide excellent conductivity, corrosion resistance and secure high-torque electrical connections.
Suitable for systems up to 32V DC, both fuse blocks accept 5/16" (M8) ring terminals, while integrated cover breakouts allow cables to enter from multiple directions for a clean, flexible installation. Fuse sold separately.
- Genuine Blue Sea Systems fuse blocks
- Suitable for systems up to 32V DC
- Swing-out design allows fuse replacement without removing fasteners
- Accepts 5/16" (M8) ring terminals
- Stainless steel studs provide excellent corrosion resistance
- Tin-plated copper fuse mounting blocks for maximum conductivity
- UL 94 V-0 high heat-resistant base
- Insulating cover meets ABYC/USCG insulation requirements
- Cover breakouts allow cable entry from multiple directions
- Supports high-current marine and vehicle electrical systems
- Fuse sold separately
| Part No. | 5005 | 5503 |
|---|---|---|
| Maximum Voltage | 32V DC | 32V DC |
| Maximum Amperage | 300A | Dependent on installed fuse |
| Base Material | Red Glass-Reinforced Nylon (UL 94 V-0) | Reinforced Polycarbonate |
| Maximum Cable Size | 2/0 AWG | 4/0 AWG |
| Stud Size | 5/16" - 18 (M8) | 5/16" - 18 (M8) |
| Maximum Terminal Torque | 110 in-lb (12.43 N·m) | 107 in-lb (12.09 N·m) |
| Stud Torque | — | 107 in-lb (12.09 N·m) |
| Weight | 0.35 lb (0.16 kg) | 1.06 lb (0.48 kg) |
