CAN-SB Plastic Skin Fitting With Stainless Steel Finish Cover
CAN-SB Plastic Skin Fitting With Stainless Steel Finish Cover
No reviews
Location: Z10, J63, and P31
SKU:AF-3-87115
Regular price
£20.95
Regular price
Sale price
£20.95
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability

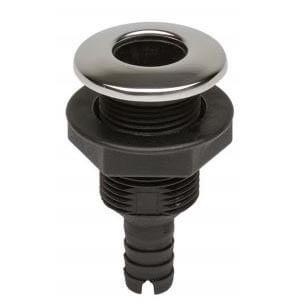

CAN-SB plastic skin fittings offer easy thru hull installation for over board drainage, as well as having a stylish stainless steel finish to enhance your boat appearance.
| Material | Plastic | Plastic | Plastic | Plastic | Plastic | Plastic | Plastic |
| Fitting | Skin Fitting | Skin Fitting | Skin Fitting | Skin Fitting | Skin Fitting | Skin Fitting | Skin Fitting |
| Hose Tail Size | 16mm / 5/8" | 19mm / 3/4" | 25mm / 1" | 28.5mm / 1-1/8" | 32mm / 1-1/4" | 38mm / 1-1/2" | 51mm / 2" |
| Primary Construction | Plastic | Plastic | Plastic | Plastic | Plastic | Plastic | Plastic |
| Shape Description | Inclined Head | Inclined Head | Inclined Head | Inclined Head | Inclined Head | Inclined Head | Inclined Head |
| Brand | Can SB | Can SB | Can SB | Can SB | Can SB | Can SB | Can SB |
| Length | Overall: 80mm, Thread: 50mm | Overall: 80mm, Thread: 50mm | Overall: 80mm, Thread: 50mm | Overall: 80mm, Thread: 50mm | Overall: 95mm, Thread: 50mm | Overall: 95mm, Thread: 50mm | Overall: 118mm, Thread: 63mm |
| Diameter Description | Head OD: 48mm, ID: 22mm | Head OD: 48mm, ID: 22mm | Head OD: 48mm, ID: 22mm | Head OD: 48mm, ID: 22mm | Head OD: 60mm, ID: 28mm | Head OD: 60mm, ID: 28mm | Head OD: 82.5mm, ID: 47mm |
| Angle | Straight | Straight | Straight | Straight | Straight | Straight | Straight |

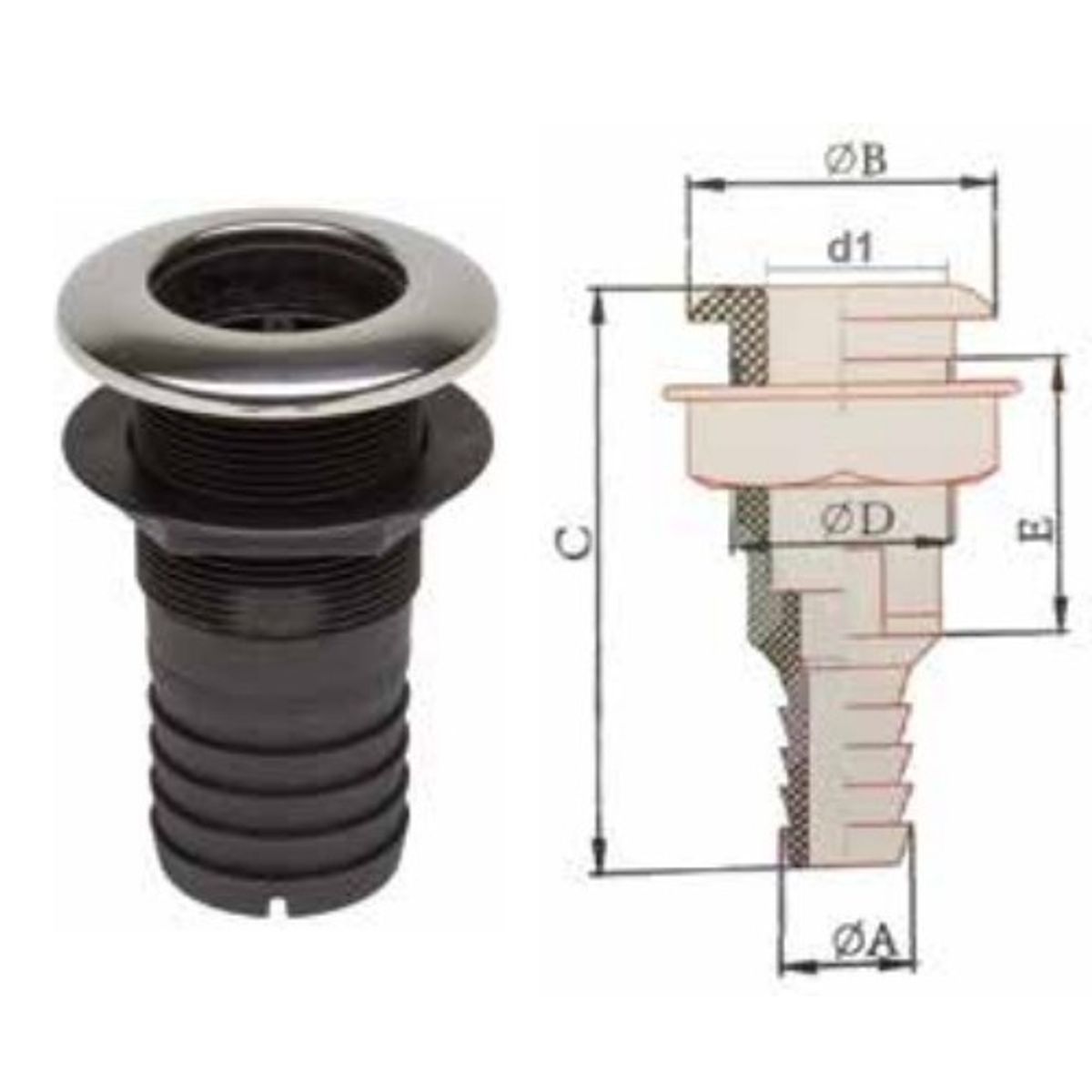

| Part No | A | B | C | D | E | d1 |
| mm | mm | mm | " | mm | mm | |
| 3-87115 | 16 | 48 | 80 | 1 | 50 | 22 |
| 3-87120 | 19 | 48 | 80 | 1 | 50 | 22 |
| 3-87130 | 25 | 48 | 80 | 1 | 50 | 22 |
| 3-87135 | 30 | 48 | 80 | 1 | 50 | 22 |
| 3-87140 | 32 | 60 | 95 | 1 1/4 | 50 | 28 |
| 3-87150 | 38 | 60 | 95 | 1 1/4 | 50 | 28 |
| 3-87160 | 50 | 82.5 | 118 | 2 | 63 | 47 |
