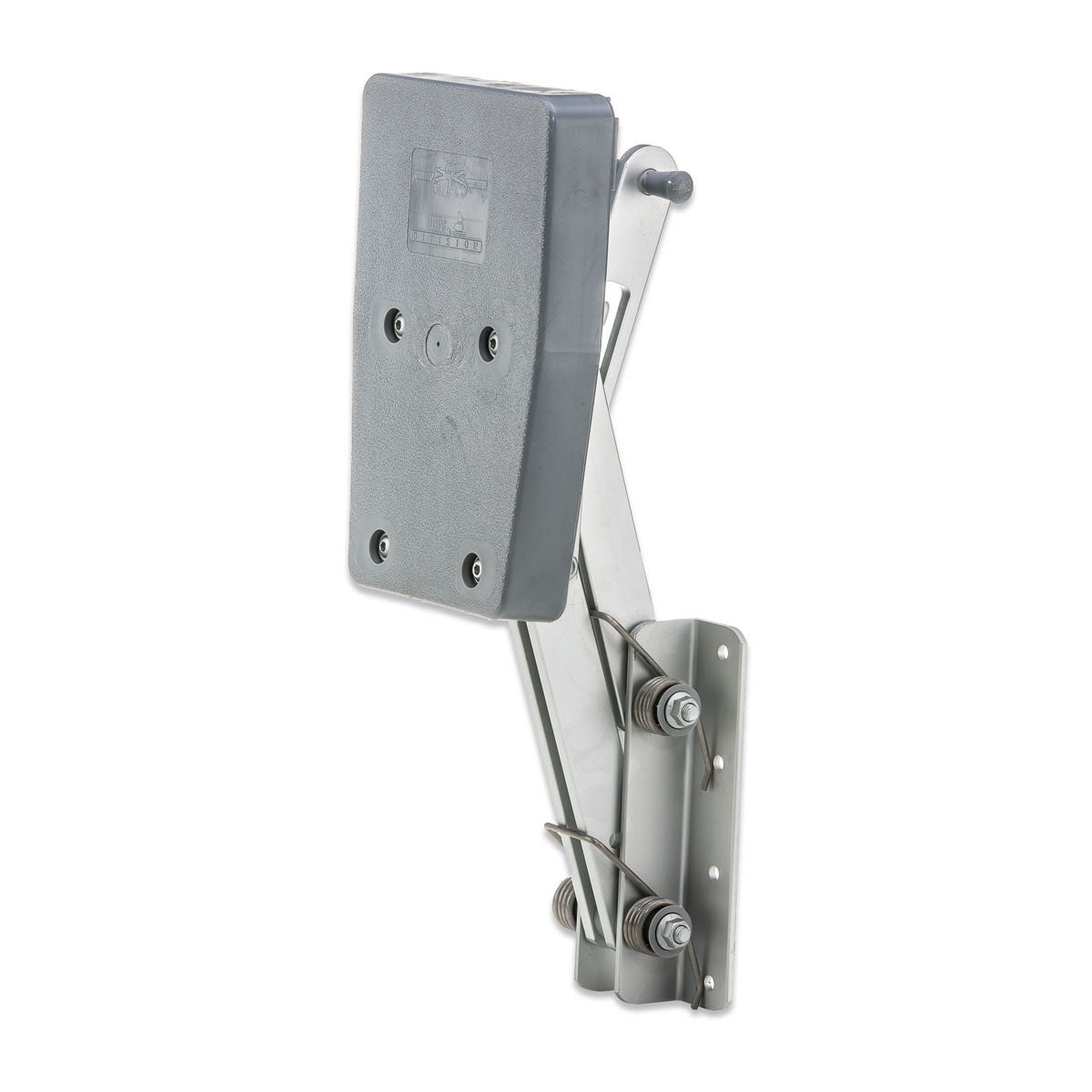

Aluminium Outboard Bracket - White Pad - Up To 15hp

Aluminium Outboard bracket for engines up to 15hp or 30Kg            AAA-501003-RY

Can be bolted to the transom. Manufactured in aluminium. High resistance plastic board, unalterable over time.

Key Features:

• Max HP: 15
• Max Engine Weight: 30Kg
• 4 Height Settings
• Pad colour - white

Dimensions (See second picture for ref):

• A mm: 205
• B mm: 260
• C mm: 49
• Height clearance: 300 mm.

Please note: this bracket is supplied with a white pad and NOT a grey pad as shown in the image.

Aluminium Outboard Bracket - User Manual

Dimensions Graph
