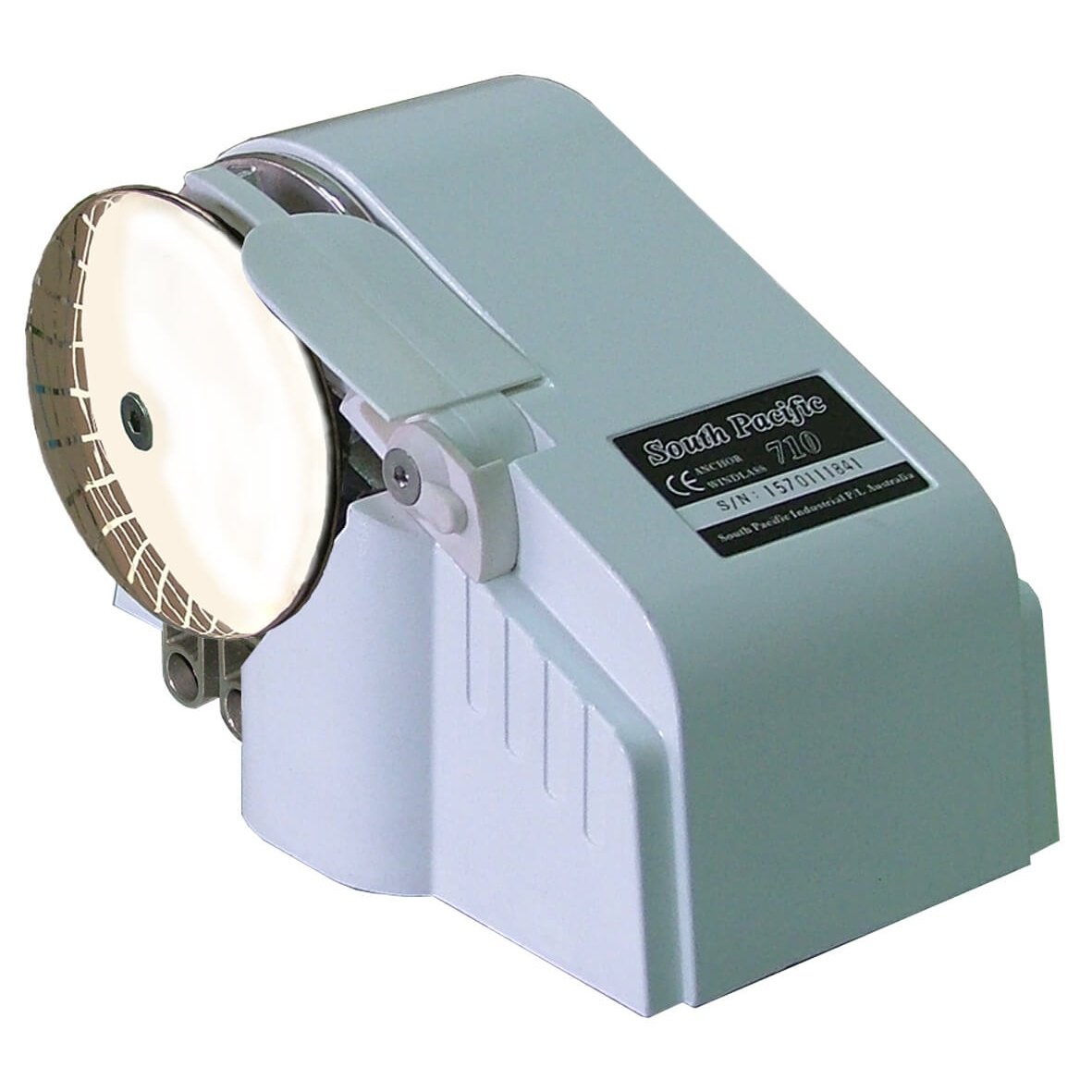

South Pacific PRO 710HS Gypsy Horizontal Windlass Kit - 12v

South Pacific PRO 710HS Gypsy Horizontal Windlass Kit - 12v.                     Ref: MZ-62002

The 710 series are specially designed for smaller size boats, with a compact, easy operating and easy to install by yourself. The durable nylon or stainless steel gypsy runs both rope and chain smoothly.

The South Pacific 710HS is designed for smaller size boats from 15ft to 20ft or to handle an anchor up to 6.8kg. This compact windlass is easy to operate and install and is supplied as a complete kit with a switch, circuit breaker, fixing bolts and manual.

Key Features:

• Stainless steel gypsy takes both rope and chain
• Efficient DC motor minimises heat
• Stainless steel drive shaft and parts
• A torque limiter absorbs sudden impacts, delivers smoother operation and greater reliability
• Compact one-piece housing ensures water resistance
• Aluminium alloy case with powder coated finish
• Installation is simple with the whole one-piece unit fitting on deck.
• Switch controls automatical free fall for free fall models

This kit includes:

• Windlass 710HS
• Direct Control Switch SW-200 (no solenoid required)
• Circuit Breaker CB-001-30
• Fixing Bolts
• User Manual
• Mounting Template

Specifications

• Power: 300W
• Operating Voltage : 12V DC
• Max Working Load : 120 kg
• Typical Working Load : 20 kg
• Retrieval Speed : 17 m/min
• Pay-Out Speed : 710H(s) 22 m/min
• Current Draw (Typical) : 15 amp
• Gearing: Worm Gear
• Dimensions (LxWxH) : 230mm x
• 120mm x 135mm
• Weight : 4.6kg
• Suit Chain Size : 6mm DIN766
• Suit Rope Size : 12mm
• Suit Deck Thickness : 3mm~60mm

For detailed dimensions, see second picture.
