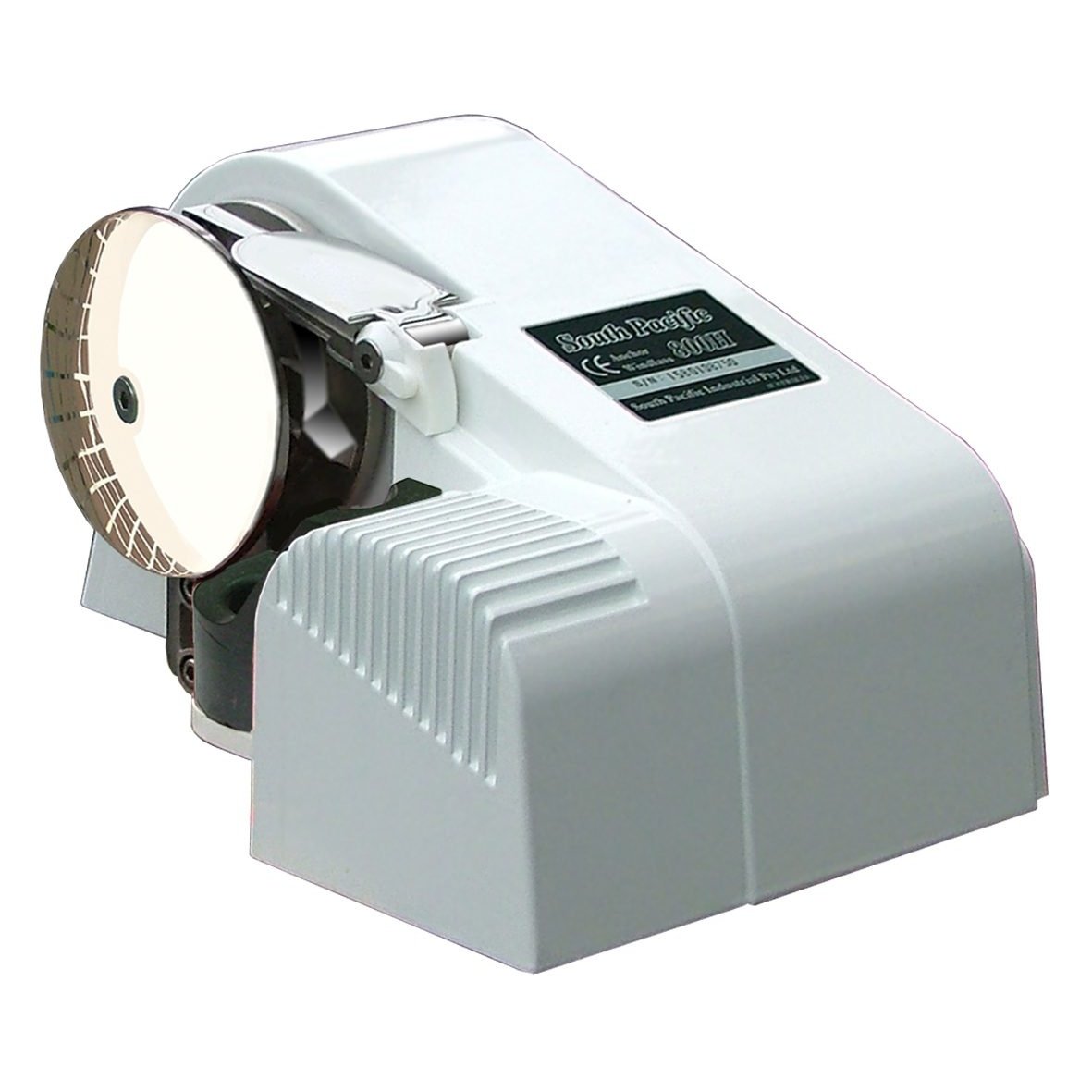

South Pacific PRO 900M Gypsy Horizontal Windlass Kit - 8mm / 12v

South Pacific PRO 900M Gypsy Horizontal Windlass Kit - 8mm / 12v.                     Ref: MZ-62014

South Pacific Pro Horizontal Windlass of 900M, the "Mighty" for slower retrieval of heavier ones.. The South Pacific Pro 900Mighty is designed for boats from 28 to 45ft or to handle an anchor up to 20.4kg. The Pro 900 series has been developed using efficient spur gears rather than traditional worm gearing which can reduce power consumption by up to 40%. The Stainless Steel Gypsy takes both rope and chain and the tremendous lifting capacity and fast retrieval speed are provided by a heavy duty DC motor whilst a heat radiating system minimises motor overheating.

The 900 series have been developed using up-to-date technology and ideals, with efficient spur gears instead of traditional worm gears which can reduce of 30%~50% of motor power consumption. The stainless steel Gypsy takes both rope and chain. The tremendous lifting capacity and fast retrival speed are provided by a heavy duty DC motor and a heat radidting system allow it to prevent motoe overheating.

This kit comes with:

• Windlass Pro 900M

• Circuit Breaker CB-001-30
• Fixing Bolts
• User Manual
• Mounting Template

Features:

• Stainless steel gypsy takes both rope and chain
• DC motor minimises heat
• Switch select free fall or power out mode
• Stainless steel drive shaft and parts
• A torque limiter absorbs sudden impacts, delivers smoother operation and greater reliability
• Compact one-piece housing ensures water resistance
• Aluminium alloy case with powder coated finish
• Installation is simple with the whole one-piece unit fitting on deck.
• Efficient spur gears, low current draw, high output power
• Efficient heavy duty DC motor produce less heat
• Switch controls automatic free fall
• Selectable free fall or power out mode

Specifications

• Gear Type: Spur gear
• Operating Voltage : 12V DC only
• Max Working Load : 500 kg (1100lb)
• Typical Working Load : 90 kg (200lb)
• Retrieval Speed : 18 m(60ft)/min
• Pay-Out Speed : free fall or 19 m/min (63 ft/min)
• Current Draw (Typical) : 32 amp(12V)
• Motor Type / Efficiency : permanent magnet / 82 %
• Motor Wattage I/O : 1100W / 450W
• Gear Type / Efficiency : spur gear / 92%~98%

Dimension:

• (LxWxH) : 304 mm x 197 mm x 153mm
• Weight : 9.2 kg
• Suit Chain Size : 8mm DIN766
• Suit Rope Size : 12mm - 14mm
• Suit Deck Thickness : 3mm~60mm
