Ultraflex T71 Fast Connect Mid Feedback Steering Helm - Up to 150 HP

Ultraflex T71 Fast Connect Mid Feedback Steering Helm - Up to 150 HP

Location:

Get 10% Off Everything*, Use Coupon Code SALE10 *Excludes Liferafts & Windlasses

AF-4-T71FC

£103.95
£103.95
Sale Sold out
Tax included. Shipping calculated at checkout.

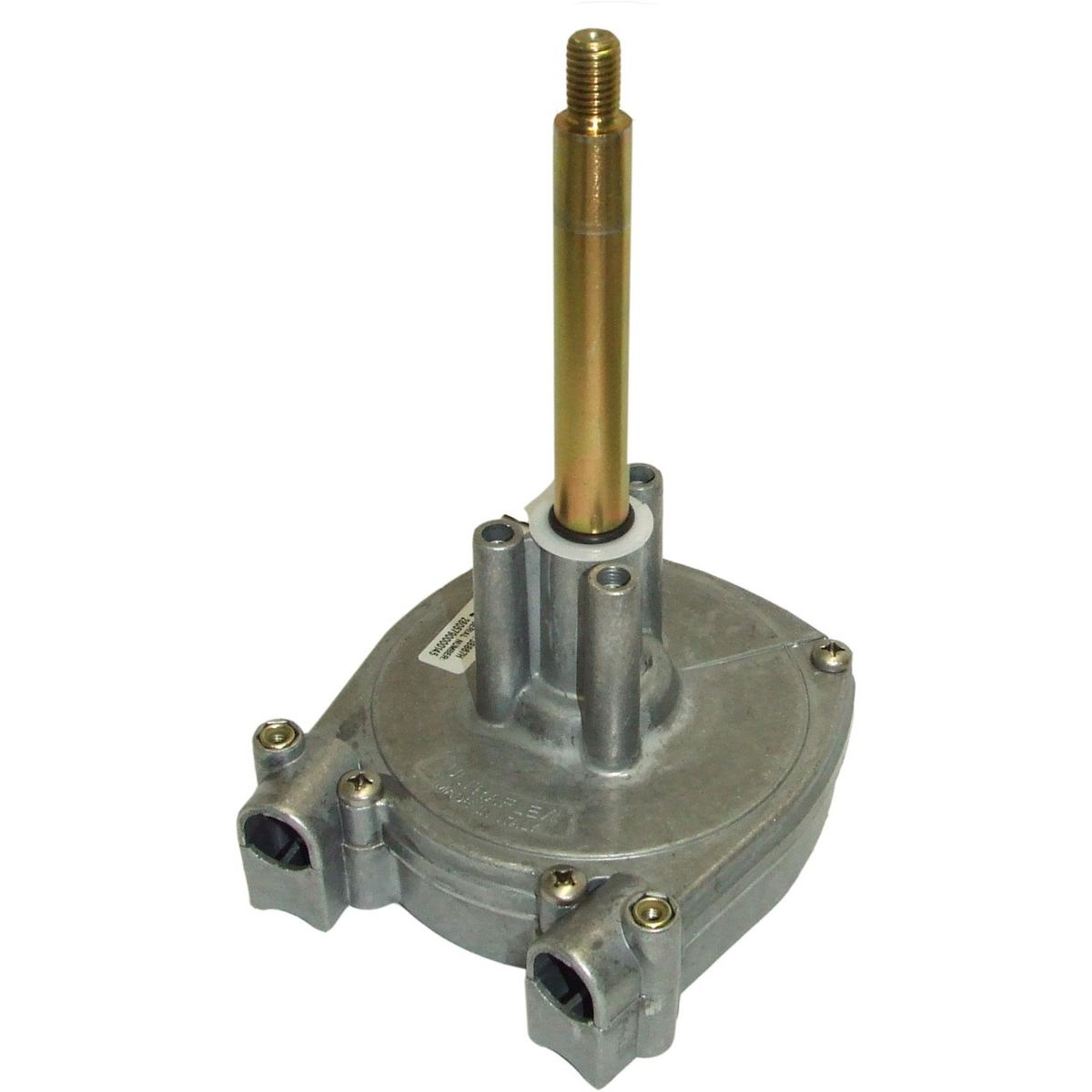

The Ultraflex T71FC rotary steering helm system is compatible with the Ultraflex M66 steering cable and features a standard 3/4' taper to suit Ultraflex, Morse & Teleflex steering wheels.

The T71FC is a suitable steering helm for boats with outboard engines, sterndrives or an inboard with a rudder. It has a compact design and is simple to install.

  • Fast connect, simple installation.
  • Most suitable where clearance is limited.
  • Ideal for boats with outboard engines, sterndrives or an inboard with a rudder.
  • Optional 90 or 20 degree installation kit is required (sold separately)
  • Standard 3/4" tapered shaft.
  • All stainless steel cable output ends.
  • Made exclusively in corrosion resistant materials.
  • Lock-to-lock steering wheel turns: approx 3-8
  • Stroke: 228 mm
  • Maximum allowable steering wheel diameter: 200 mm
  • Minimum steering cable bend radius: 200 mm
  • T71FC steering systems are not to be used on boats equipped with engines that exceed the maximum horsepower rating of the boat.
Material Corrosion resistant material and the cable output ends are all stainless steel
Suitable For 6123** SC-16 or M66 Cable
Feedback Yes
Helm Bezel Heavy Duty Helms
Number of Cables Single
Steering Wheel Turns 3.8 Lock to Lock
Stroke 228mm (9")
Taper 3/4"
Brand Ultraflex
Application Maximum boat length: 9 Meters (Outboard) 10.5 Meters (Inboard/Sterndirve). 6123** (SC-16 or M66) Cable
Model T71FC
