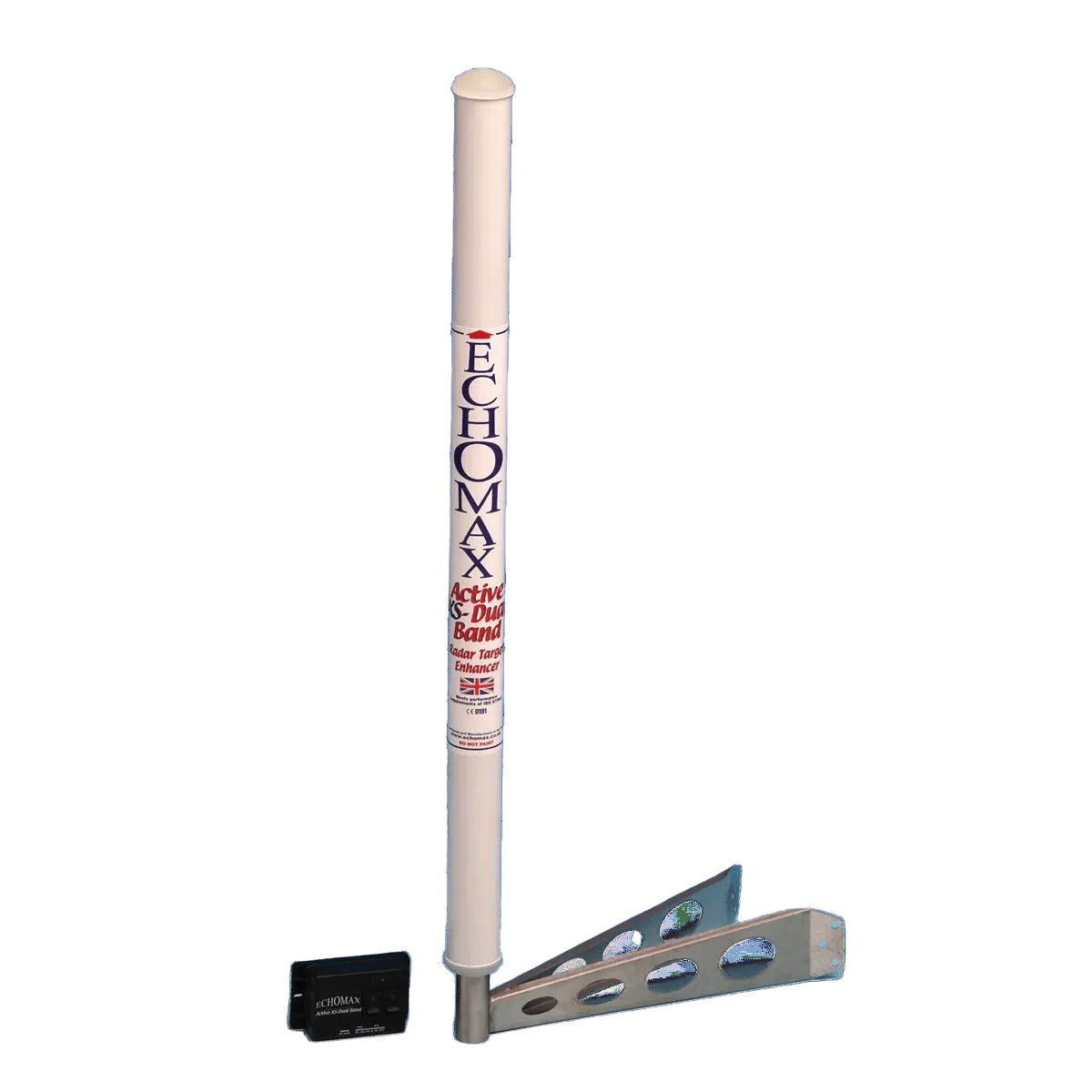

Echomax Active XS Dual Band RTE Active Radar Reflector With Standard Control Box
Echomax Active XS Dual Band RTE Active Radar Reflector With Standard Control Box
SKU: MZ-38085
Increase your vessel's visibility to nearby radar-equipped ships with the Echomax Active XS Radar Target Enhancer (RTE). Designed to actively respond to both X Band and S Band marine radar, the Active XS exceeds the ISO 8729-2 performance standard, providing a significantly stronger radar return than passive reflectors alone.
Delivery available | lead times vary
Collection available | usually ready in 2-4 days
Description
Description
Increase your vessel's visibility to nearby radar-equipped ships with the Echomax Active XS Radar Target Enhancer (RTE). Designed to actively respond to both X Band and S Band marine radar, the Active XS exceeds the ISO 8729-2 performance standard, providing a significantly stronger radar return than passive reflectors alone.
The compact system consists of an external antenna and an internal control unit. When an incoming radar pulse is detected, the unit automatically transmits an enhanced response while providing clear visual and audible indication. Separate LEDs identify whether an X Band or S Band radar has been detected, and a selectable buzzer alerts the crew to nearby radar activity.
Built for reliable marine operation, the control unit features surge and reverse polarity protection, an externally accessible fuse, relay contacts for remote alarms or indicators, and flexible base or rear cable entry. The antenna can be mounted on either the mast or deck, making installation suitable for a wide range of sailing and motor vessels.
- Active radar target enhancer for improved vessel detection
- Responds to both X Band and S Band marine radar
- Exceeds ISO 8729-2 radar reflector performance standard
- Internal control unit with visual and audible radar alerts
- Green LED indicates X Band radar detection
- Yellow LED indicates S Band radar detection
- Selectable audible alarm when radar pulses are received
- Relay output for remote alarm or indicator connection
- Alternative base or rear cable entry
- Externally accessible fuse for easy maintenance
- FCC certified
- Suitable for deck or mast mounting
| Specification | Details |
|---|---|
| Radar Reception Frequency | X Band: 9.3–9.5 GHz / S Band: 2.9–3.1 GHz |
| Operating Voltage | 12V DC (surge and reverse polarity protected) |
| Standby Current | <23mA |
| Current Consumption | X Band: 190mA (typical) / S Band: 155mA (typical) |
| Position Accuracy | Within 1 metre |
| Antenna Dimensions | 685 × 40.5mm |
| Antenna Weight | 573g (excluding cable) |
| Control Box Dimensions | 51 × 92 × 38mm (H × W × D) |
| Cable | 24m, 3-core, 0.5mm² |
| System Weight | 1075g |
| Mounting Options | Deck or mast mount |
| Certification | FCC Certified |
| Heel Angle | X Band RCS | S Band RCS |
|---|---|---|
| None | 118.33m² | 15.75m² |
| ±10° | 65.07m² | 16.2m² |
| ±20° | 19.49m² | 13.4m² |
