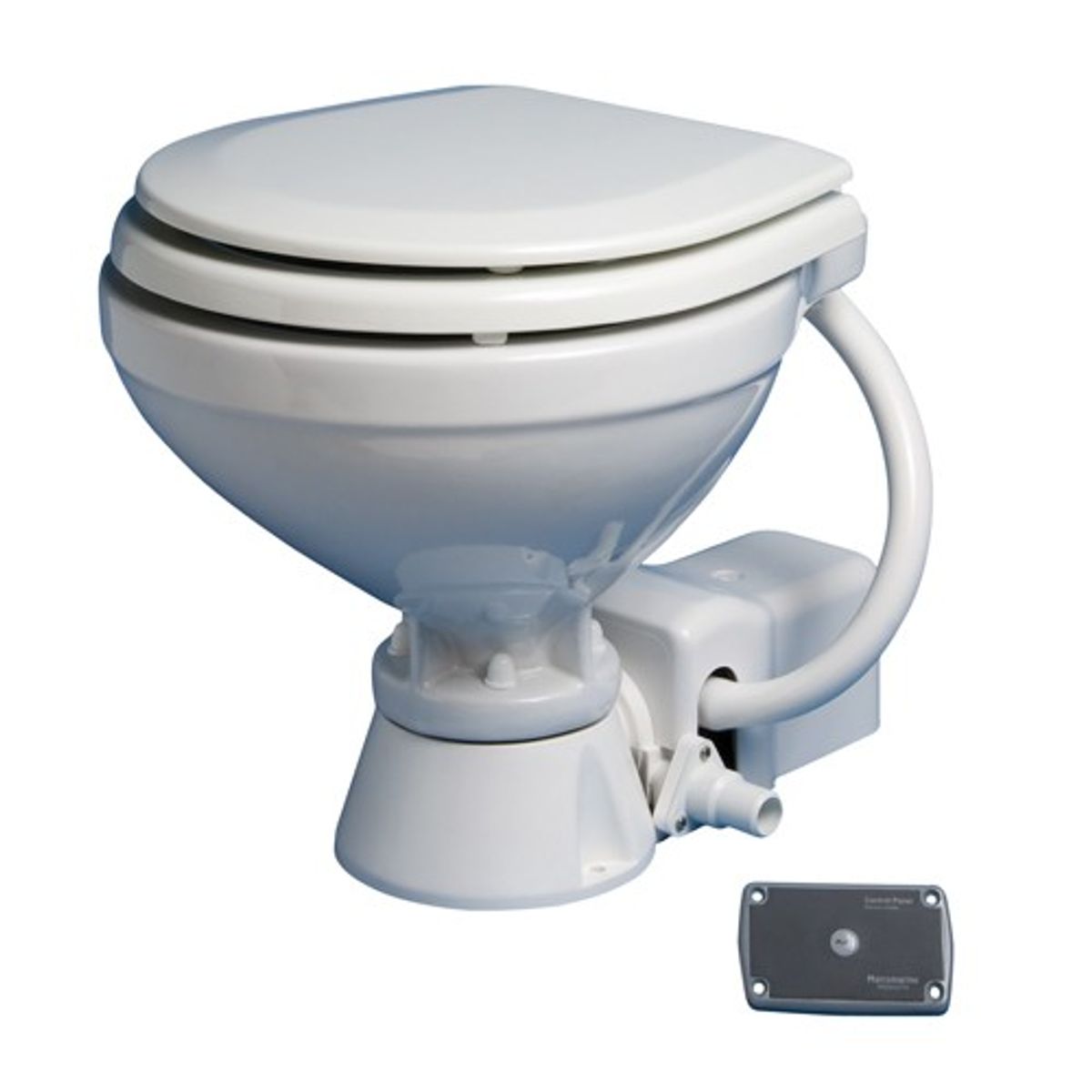

Ocean Electric Standard Wooden Seat Compact Toilet - 12V

Electric Standard Wooden Seat Compact Toilet  - 12V.                    Ref: AF-9-53006                        KA

The well proven and popular electric standard toilets with combined pump unit for flushing and wasting.The base is in impact resistant material. Can be installed either above or below the sea level. A special macerator pump allows the expulsion up to 3.50 m in height. Self priming up to 1.5 mt. vertically. Equipped with seat lid and control panel. Space saving thanks to the possibility of rotating 90 degrees the pump and provided accessibility for servicing.

Key Features:

• Bowl made from white vitreous porcelain with corrosion resistant parts throughout
• Fitted with two part electric seawater inlet and waste macerator pump to rinse and flush in one operation
• Supplied with single button panel
• Toilet can be mounted above and below the waterline using appropriate vented loop
• Self priming water inlet pump operation up to 1.5m vertically
• Macerator discharge pump operation up to 3.50m vertically

Specifications:

• Voltage: 12v
• Amp. Draw: 17
• Outlet connection: 25mm (1")
• Inlet connection: 19mm (3/4")
• Weight: 12 KG

Dimensions (See second picture for ref):

• A: 345mm
• B: 692mm
• C: 373mm
• D: 209mm
• E:  216mm
