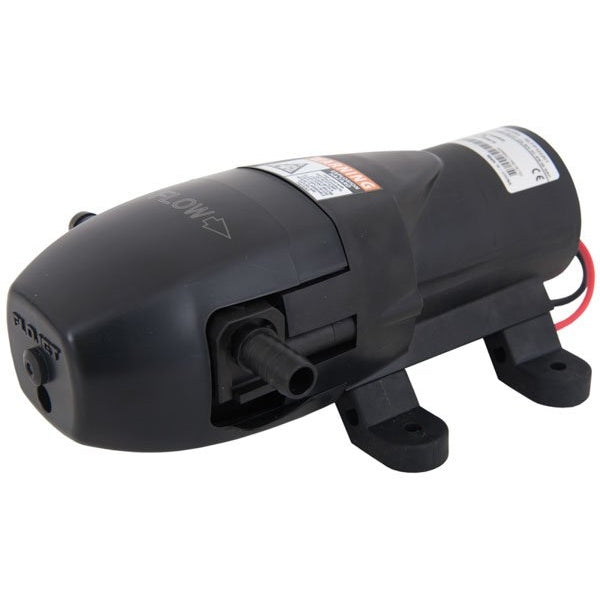

Flojet LF Plus Series Self Priming Diaphragm Demand Pump
Flojet LF Plus Series Self Priming Diaphragm Demand Pump
No reviews
Location:
Get 10% Off Everything*, Use Coupon Code BLACK10 *Excludes Liferafts & Windlasses
SKU:DP-RLFP122201D
Regular price
£119.95
Regular price
Sale price
£119.95
Unit price
/
per
Tax included.
Shipping calculated at checkout.
Couldn't load pickup availability
These pumps are the ideal solution for many applications including spraying, fluid transfer, filtration, cooling, dispensing and pressure boosting.
- Sealed pressure switch automatically starts and stops pump when discharge valve opens and closes
- Self-priming so pump can be located above supply tank
- Can run dry for extended periods of time without damage
- Built-in thermal protector
- Low amp draw for battery-powered
| PUMP DESIGN | Reciprocating diaphragm | |
| VOLTAGE** | 12V DC, 24V DC, 115V AC | |
| MAX FLOW RATE | 0.6 GPM (2.3 LPM)—1 GPM (3.8 LPM) | |
| DUTY CYCLE | Intermittent | |
| MAX PRESSURE | 40 psi (2.8 bar) when no pressure switch is present |
|
| PRESSURE SWITCH SETTING** | 40 psi (2.8 bar) off, 25 psi (1.7 bar) on | |
| SELF-PRIMING | Vertical height 30" (76cm) | |
| PORTS* | Quick connect barb 1/4" (6mm) and 3/8" (10mm); John Guest/quick fit 1/4" (6mm) and 3/8" (10mm) straight and elbow | |
| HOUSING | Polypropylene | |
| CHECK VALVE SPRING | Stainless steel | |
| LIQUID TEMPERATURE RANGE | 36°F (2°C) to 110°F (43°C) | |
| CE | VOLTAGE | OPEN FLOW | SWITCH | BYPASS | MAX AMP DRAW |
DIAPHRAGM | CHECK VALVE |
PORTS |
| RLFP122201D | 12V DC | 1 GPM (3.8 LPM) | 35 psi (2.4 bar) |
No | 3.5A | EP/PP blend | FKM | Quick disconnect 3/8" (10mm) HB straight |
| RLFP122202D | 12V DC | 1 GPM (3.8 LPM) | 35 psi (2.4 bar) |
No | 3.5A | EP/PP blend | EPDM | Quick disconnect 3/8" (10mm) HB straight |
| RLFP222002D | 24V DC | 1 GPM (3.8 LPM) | No | No | 3.5A | EP/PP blend | EPDM | Quick disconnect 3/8" (10mm) HB straight |
