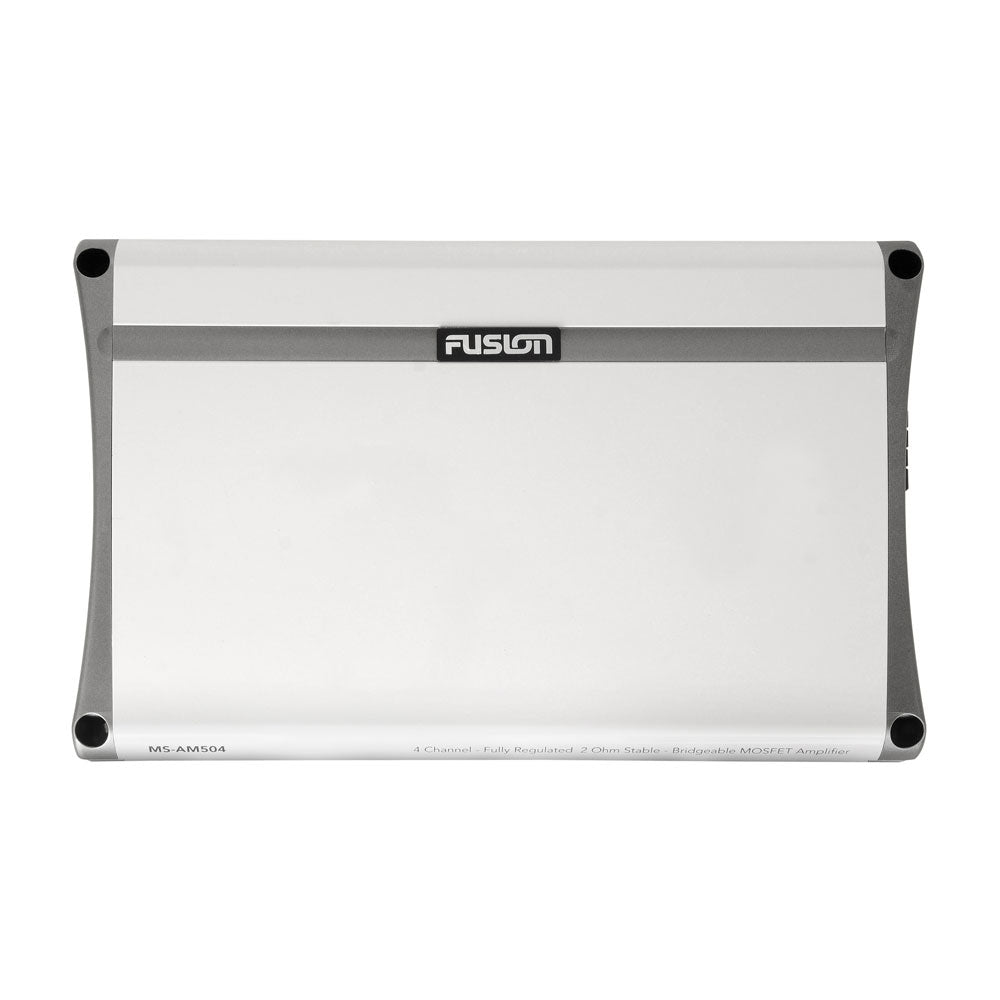

Fusion MS-AM504 4 Channel Marine Amplifier 500W

With 4 channels and a 500 Watt peak power output, the MS-AM504 will power either a pair of Fusion speakers plus a 10” subwoofer, or up to four pairs of speakers (with 2 speakers in parallel each channel at 2 Ohms), to spread the sound around the vessel.

• Amplifier Class: Class-AB
• Frequency Response: 5Hz - 38kHz +/- 3dB
• Peak Power: 500 Watts
• Rated Power (4 Ohms): 65 Watts RMS x 4 @ 14.4V - 4Ω 1% THD
• Rated Power (2 Ohms): 100 Watts RMS x 4 @ 14.4V - 2Ω 1% THD
• Rated Power (4 Ohms Bridged): 200 Watts RMS x 2 @ 14.4V - 4Ω Bridged 1% THD

Value-packed and purpose-built for quality audio amplification on the water.

The FUSION AM Series marine amplifiers are purpose-built for the marine environment. Boasting some of the most impressive environmental protection available, they deliver performance on the water like never before.

With 4 channels and a 500 Watt peak power output, the MS-AM504 will power either a pair of Fusion speakers plus a 10” subwoofer, or up to four pairs of speakers (with 2 speakers in parallel each channel at 2 Ohms), to spread the sound around the vessel.

Incorporating heat-tempered and conformal coated PCBs for maximum product life, and gold-plated connectors for improved signal flow, the MS-AM504 reproduces clean and powerful audio with enough power to rock the boat.

Features:

• 500W peak power output to power up to eight speakers
• Class-AB amplifier – power efficient with less cross-over distortion
• Conformal coated PCBs – water resistant protection from salt air and moisture
• FUTRANZ heat sink technology – transfers heat more efficiently and provides more thermal stability with maximum component reliability
• F.R.A.T (Fusion Regulated Amplifier Technology) – provides enormous power output at low voltage.
• F.I.S.T (Fusion Intercooled Semi-Conductor Technology) – clamps down internal power switching to rapidly remove heat from all associated semi-conductors


The Fusion AM Series marine amplifiers are the perfect complement to any Fusion marine stereo system.
