Glomex RA106GRPSB18 900mm Fibreglass Sailboat Whip VHF Antenna
Glomex RA106GRPSB18 900mm Fibreglass Sailboat Whip VHF Antenna
SKU:BR-GLRA106GRPSB18
Delivery available | lead times vary
Collection available | usually ready in 2-4 days
The RA106 series antennas are reliable and solid, ideal for any type of boat, whether a sailboat or a motorboat and for tenders as well (version RIB).

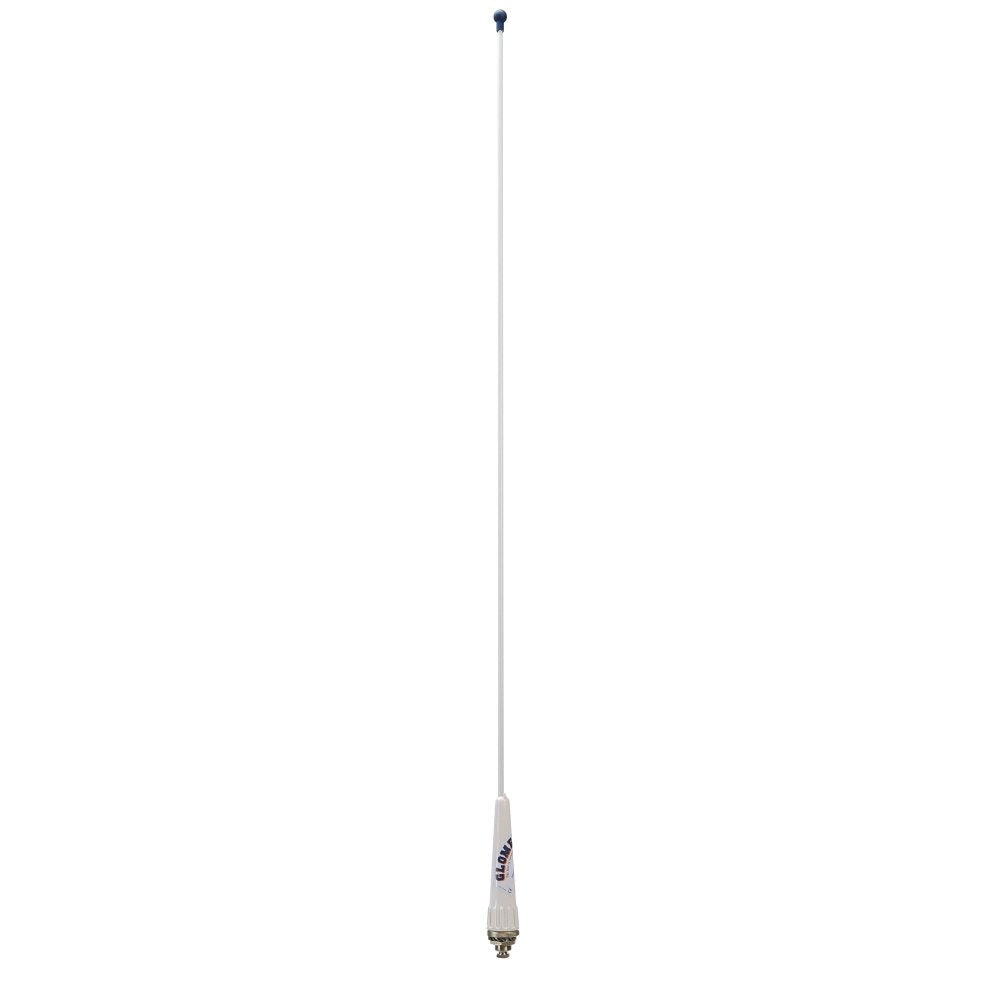

RA106GRPSB18 is a VHF antenna designed for sailboats with a fibreglass rod which takes advantage of white polyurethane paint, assuring a total protection of the antennas’ inside copper components.
It’s equipped with Glomex “RA106 solderless” special connector, waterproof and solderless, easing the installation.

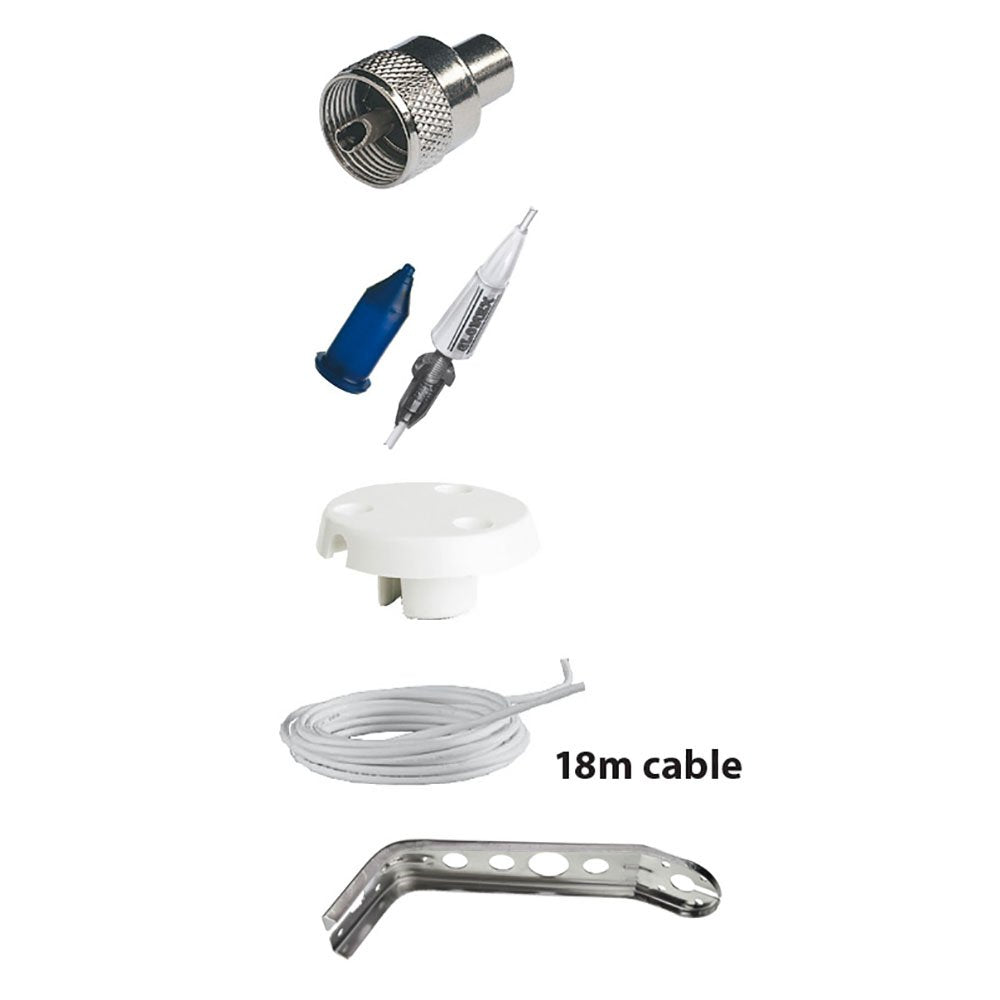

SUPPLIED ACCESSORIES:
COAXIAL CABLE – 18m/59′ RG58ALL
PL259 male nichel-plated CONNECTOR (code RA132)
PVC rubber protection for connector (code RA138)
NYLON FEED-THRU (code RA140)
ELECTROPOLISHED STAINLESS STEEL MASTHEAD BRACKET (code RA106BRACKINOX)
| FREQUENCY RANGE | 156/162 MHz |
| GAIN AVERAGE | 3dB |
| IMPEDANCE | 50 ohms |
| POLARIZATION | Vertical |
| SWR | ≤ 1,3 at 156,8 MHz |
| MAX IMPUT POWER | 100 W |
| DC GROUND | yes |
| LENGHT | 900mm/35” |
| WEIGHT | 180g/6,35oz |
| TERMINATION | RA106 solderless connector |
