Glydus K115 Outboard Hydraulic Steering Kit - Up To 115HP
Glydus K115 Outboard Hydraulic Steering Kit - Up To 115HP
SKU: MA-K115

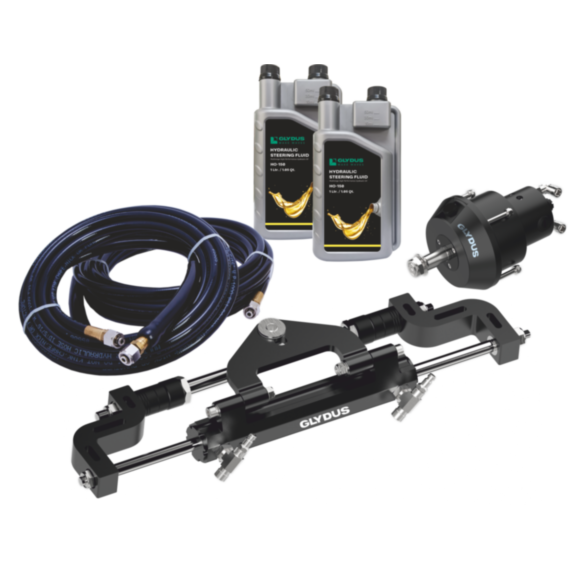

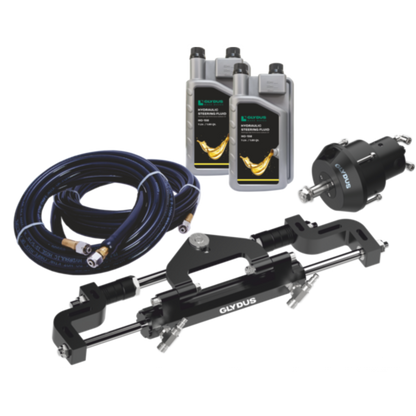

The Glydus K115 Hydraulic Steering Kit is a packaged single-cylinder steering system for compatible single outboard engines up to 115HP. It includes an H18M 18cc mid-mount helm pump, OC-115U steering cylinder, two 5m factory-crimped hydraulic hoses and two litres of HO-150 hydraulic steering fluid.
Delivery available | lead times vary
Collection available | usually ready in 2-4 days
Description
Description
The Glydus K115 Hydraulic Steering Kit is a packaged single-cylinder steering system for compatible single outboard engines up to 115HP. It includes an H18M 18cc mid-mount helm pump, OC-115U steering cylinder, two 5m factory-crimped hydraulic hoses and two litres of HO-150 hydraulic steering fluid.
The standard catalogue configuration provides approximately five steering-wheel turns from lock to lock. Compatibility must be confirmed by engine manufacturer, model, year, gearcase, cylinder code and available splashwell space.
Product Identification
- Brand: Glydus
- Product name: Glydus K115 Outboard Hydraulic Steering Kit
- Kit part number: K115
- Marine Scene SKU: MA-K115
- Product category: Single-outboard hydraulic steering kit
- Configuration: Single cylinder / single outboard
- Maximum engine rating: Up to 115HP, subject to application compatibility

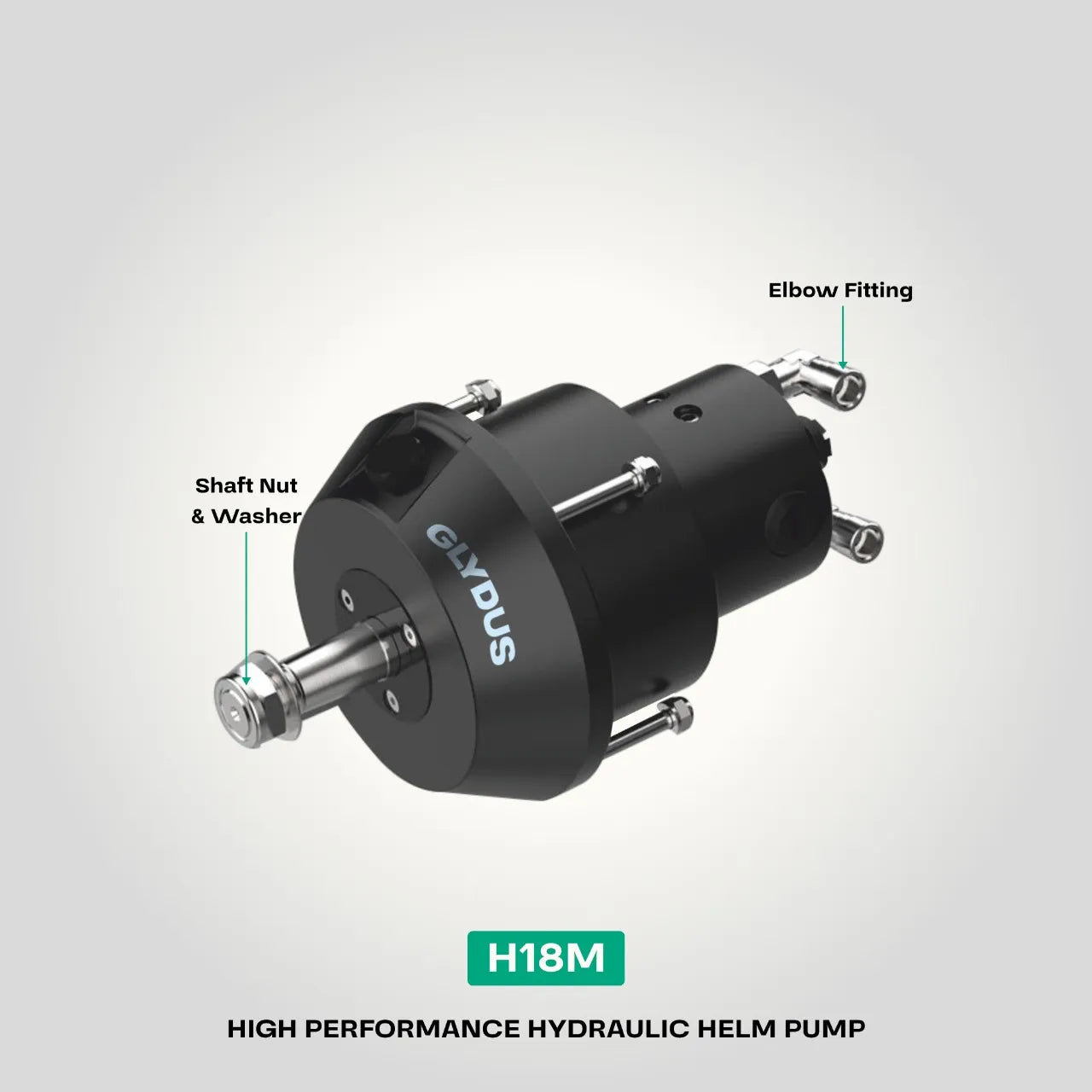

- Helm pump: H18M mid-mount, 18cc

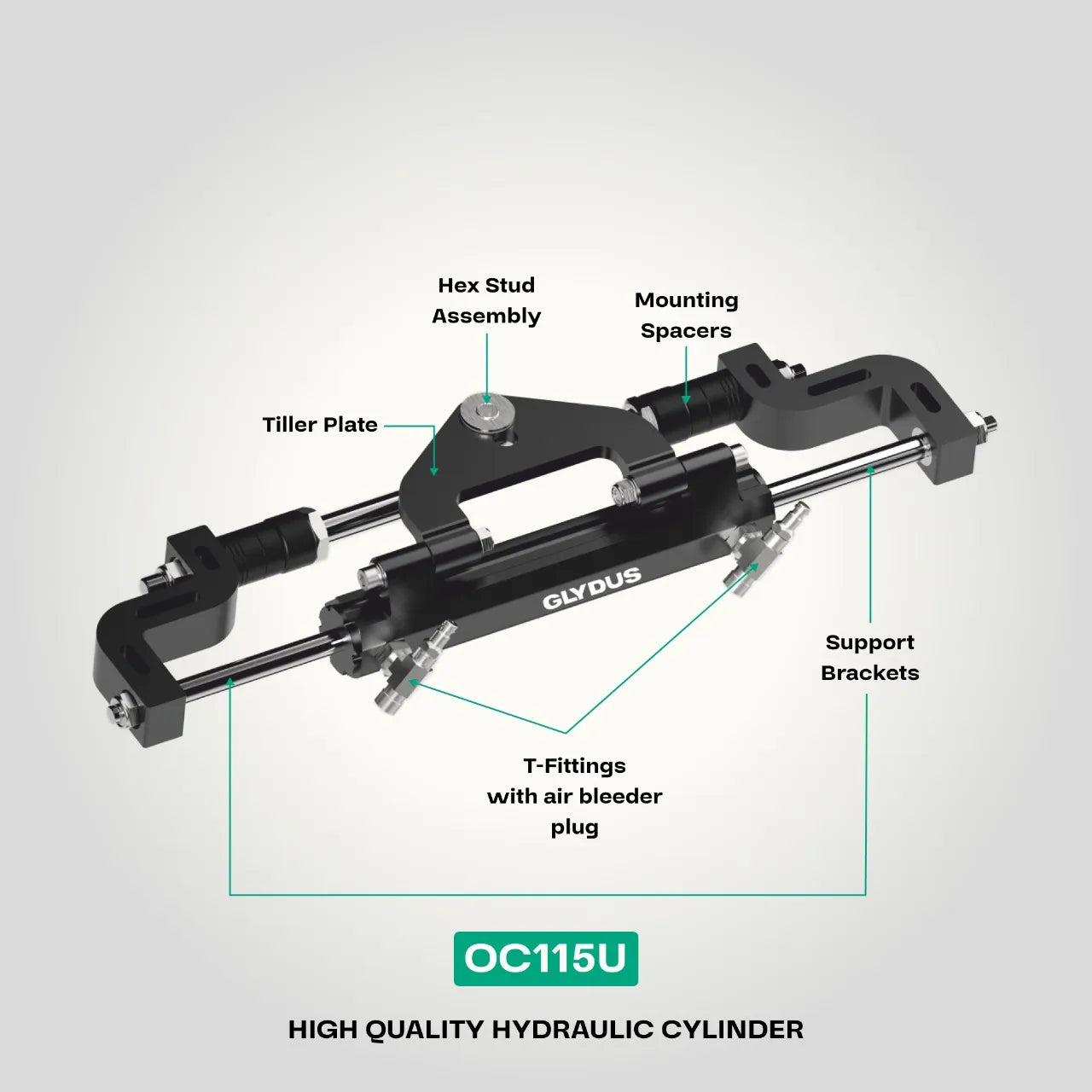

- Steering cylinder: OC-115U
- Hydraulic hoses: Two CT-5.0 hoses, 5m each
- Steering fluid: Two litres of HO-150
- Standard wheel turns: Approximately five lock-to-lock
- Steering wheel included: No
What Is the Glydus K115 Used For?
The K115 provides hydraulic steering for compatible small and medium single-outboard boats.
- Compatible single outboards up to 115HP
- Small leisure powerboats
- Fishing boats
- RIBs
- Open boats
- New steering installations
- Compatible mechanical-to-hydraulic conversions
The engine must match the Glydus application guide. A lower engine horsepower does not automatically mean the standard OC-115U cylinder will fit.
What Is Included?
- One Glydus H18M 18cc mid-mount helm pump
- One Glydus OC-115U steering cylinder
- Two Glydus CT-5.0 hydraulic hoses
- Each hose measures 5m
- Factory-crimped hose connectors
- Two litres of Glydus HO-150 hydraulic steering fluid
What Is Not Included?
- Steering wheel
- Alternative cylinder variants
- SP1 spacer kit
- Glydus 350HP cylinder where required
- Engine-specific tiller plate or steering hook
- Additional hose length
- Dual-station components
- Installation labour
- Transom or splashwell modifications
Will the K115 Fit Every Outboard Up to 115HP?
No. Compatibility depends on more than horsepower.
- Confirm the outboard make and model.
- Confirm the model year.
- Check whether the engine is two-stroke or four-stroke.
- Match the required cylinder code.
- Check the gearcase type.
- Measure the splashwell.
- Check the engine clamp-bracket arrangement.
- Confirm spacer, steering-hook or tiller-plate requirements.
- Measure the hydraulic-hose route.
The standard package contains an OC-115U cylinder. Applications specifying OC115N, OC115I, OC175, OC175I, OC350 or another cylinder require a different configuration.
Important Engine-Compatibility Notes
- Note A: Certain installations require modification of the outboard clamp brackets and direct bolting of the engine to the transom.
- Note B: Some Yamaha applications require steering hook part number 63D-48511-00-4D.
- Note C: High-performance 115HP engines and outboards using a 4-3/4-inch gearcase, including certain Command Thrust models, require a Glydus 350HP cylinder.
- Honda 1998–2010 115HP: Listed as not applicable in the K115 application guide.
- Johnson 115HP two-stroke: The tiller plate may need to be inverted.
Professional confirmation is recommended before ordering any safety-critical steering equipment.
What Is the Difference Between K115 and K175?
- K115: H18M mid-mount helm, OC-115U cylinder, two 5m hoses and approximately five turns lock-to-lock.
- K175: H18 helm, OC-175 cylinder, two 7.5m hoses and approximately 6.8 turns lock-to-lock.
Select the kit by exact engine compatibility and installation geometry, not solely by choosing the higher horsepower rating.
How Do I Check Splashwell Clearance?
The cylinder and hoses must move freely throughout the complete steering, trim and tilt range.
- Check port and starboard cylinder travel.
- Maintain clearance from transom mouldings.
- Observe the minimum hydraulic-hose bend radius.
- Keep the cylinder clear of engine-control cables.
- Maintain access to bleed fittings.
- Check full engine trim and tilt movement.
- Retain access for installation and future servicing.
Construction and Design
- H18M 18cc mid-mount helm pump
- OC-115U hydraulic cylinder
- Two-line hydraulic circuit
- Factory-crimped hose assemblies
- Marine-grade corrosion-resistant components
- Serviceable helm and cylinder seals
- Cylinder bleed fittings
- Reduced steering feedback compared with mechanical systems
- Packaged for a standard single-engine installation
Installation and Safety
- Confirm the exact engine application before installation.
- Read the Glydus helm and cylinder manuals.
- Verify dashboard strength and helm mounting clearance.
- Check splashwell dimensions.
- Route hoses away from sharp edges, heat and moving parts.
- Do not kink or crush the hoses.
- Protect hoses at bulkhead penetrations.
- Fit the cylinder in the manufacturer-specified orientation.
- Fill using compatible hydraulic steering fluid.
- Bleed all air from the circuit.
- Check every connection for leakage.
- Confirm full steering travel.
- Check steering with the engine trimmed and tilted.
- Do not operate the vessel if steering is spongy, restricted or leaking.
Maintenance
- Inspect the helm and cylinder for fluid leakage.
- Check the cylinder rod for corrosion or physical damage.
- Inspect hoses for chafe, cracking or flattening.
- Confirm that all fittings remain secure.
- Check the helm mounting.
- Test full steering movement.
- Investigate increased wheel play.
- Maintain the correct hydraulic-fluid level.
- Bleed the system if steering becomes spongy.
- Replace damaged hoses or fittings.
- Use the correct service kit for the H18M helm and OC-115U cylinder.
Key Features
- Packaged hydraulic steering kit
- For compatible single outboards up to 115HP
- Single-cylinder configuration
- H18M 18cc mid-mount helm
- OC-115U cylinder
- Two 5m factory-crimped hoses
- Two litres of HO-150 fluid
- Approximately five turns lock-to-lock
- Reduced mechanical steering effort
- Serviceable helm and cylinder
- Corrosion-resistant marine components
Frequently Asked Questions
Does the K115 fit every outboard below 115HP?
No. The engine make, model, year and cylinder code must match the Glydus application guide.
Does the kit include a steering wheel?
No. A compatible steering wheel must be ordered separately.
How long are the hoses?
The standard package includes two 5m factory-crimped hoses.
How much hydraulic fluid is included?
Two litres of Glydus HO-150 steering fluid are included.
What is the difference between H18M and H18?
The K115 package uses the H18M mid-mount 18cc helm. The K175 package uses the H18 helm.
How many turns does the K115 require?
The standard catalogue configuration is approximately five turns from lock to lock. Alternative configurations may differ.
Can I use the K115 on a high-performance 115HP engine?
Not automatically. Glydus states that high-performance 115HP engines and certain 4-3/4-inch gearcases require a 350HP cylinder.
What if the guide specifies OC115I or OC115N?
The standard kit contains OC-115U. A different cylinder code requires an alternative kit or confirmed cylinder substitution.
Kit Specifications
| Specification | K115 |
|---|---|
| Brand | Glydus |
| Marine Scene SKU | MA-K115 |
| Configuration | Single cylinder / single outboard |
| Maximum engine rating | Up to 115HP, subject to application guide |
| Helm pump | H18M mid-mount |
| Helm displacement | 18cc |
| Steering cylinder | OC-115U |
| Hydraulic fluid | HO-150 |
| Fluid quantity | 2 litres |
| Hydraulic hoses | Two CT-5.0 hoses |
| Hose length | 5m each |
| Hose connectors | Factory crimped |
| Standard wheel turns | Approx. 5 lock-to-lock |
| Steering wheel included | No |
Included Component Specifications
| Specification | H18M | OC-115U | HO-150 | CT-5.0 |
|---|---|---|---|---|
| Component type | Mid-mount hydraulic helm | Outboard steering cylinder | Hydraulic steering fluid | Hydraulic hose |
| Quantity supplied | 1 | 1 | 2 litres | 2 hoses |
| Primary specification | 18cc displacement | Standard K115 cylinder | Glydus steering-system fluid | 5m per hose |
| Connections | Hydraulic helm ports | Cylinder hydraulic fittings | Fluid container | Factory-crimped hose ends |
Confirm the exact outboard make, model, year, gearcase, required cylinder code and splashwell dimensions before ordering. The standard K115 package is not a direct replacement for applications requiring OC115N, OC115I, OC175, OC175I, OC350 or another cylinder.
