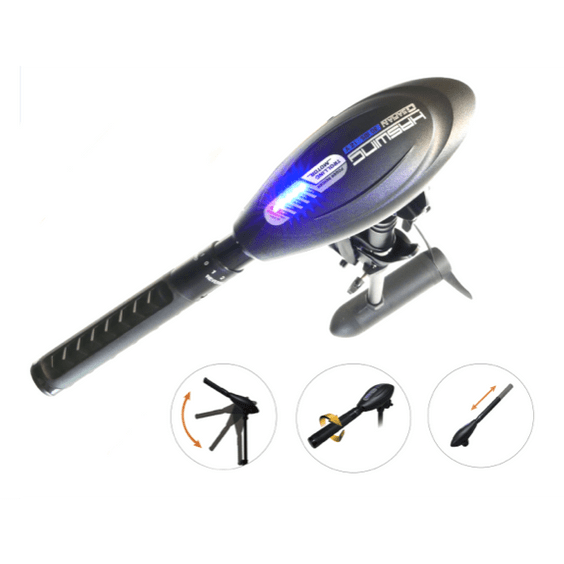

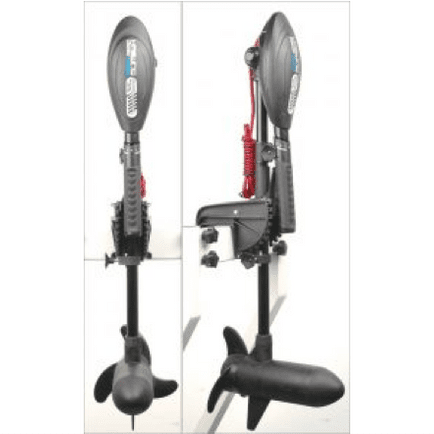

HASWING Osapian30 Electric Outboard Trolling Motor - 30lbs
HASWING Osapian30 Electric Outboard Trolling Motor - 30lbs
SKU: MD-1177
The Osapian 30lb Electric Trolling Motor is a lightweight, compact and efficient trolling motor designed for reliable performance on small boats. Suitable for both saltwater and freshwater use, it delivers 30lb of thrust, making it ideal for boats up to 4 metres with a maximum payload of 250kg.
Delivery available | lead times vary
Collection available | usually ready in 2-4 days
Description
Description
The Osapian 30lb Electric Trolling Motor is a lightweight, compact and efficient trolling motor designed for reliable performance on small boats. Suitable for both saltwater and freshwater use, it delivers 30lb of thrust, making it ideal for boats up to 4 metres with a maximum payload of 250kg.
Featuring a durable 12V heavy-duty motor, telescopic control handle and multiple speed settings, the Osapian 30 provides smooth, precise manoeuvring. Its folding design makes transport and storage easy, while premium construction ensures dependable operation on every trip.
- 30lb maximum thrust electric trolling motor
- Suitable for saltwater and freshwater use
- Ideal for boats up to 4m with maximum 250kg load
- Powerful 12V heavy-duty motor
- 5 forward and 3 reverse speed settings
- Multi-function twist grip throttle and steering control
- Telescopic handle extends up to 350mm
- Folding upper body and handle for compact storage
- 360° steering with steering lock
- 10-position tilt bracket
- Adjustable immersion depth collar
- Integrated motor fin helps protect the propeller from underwater impacts

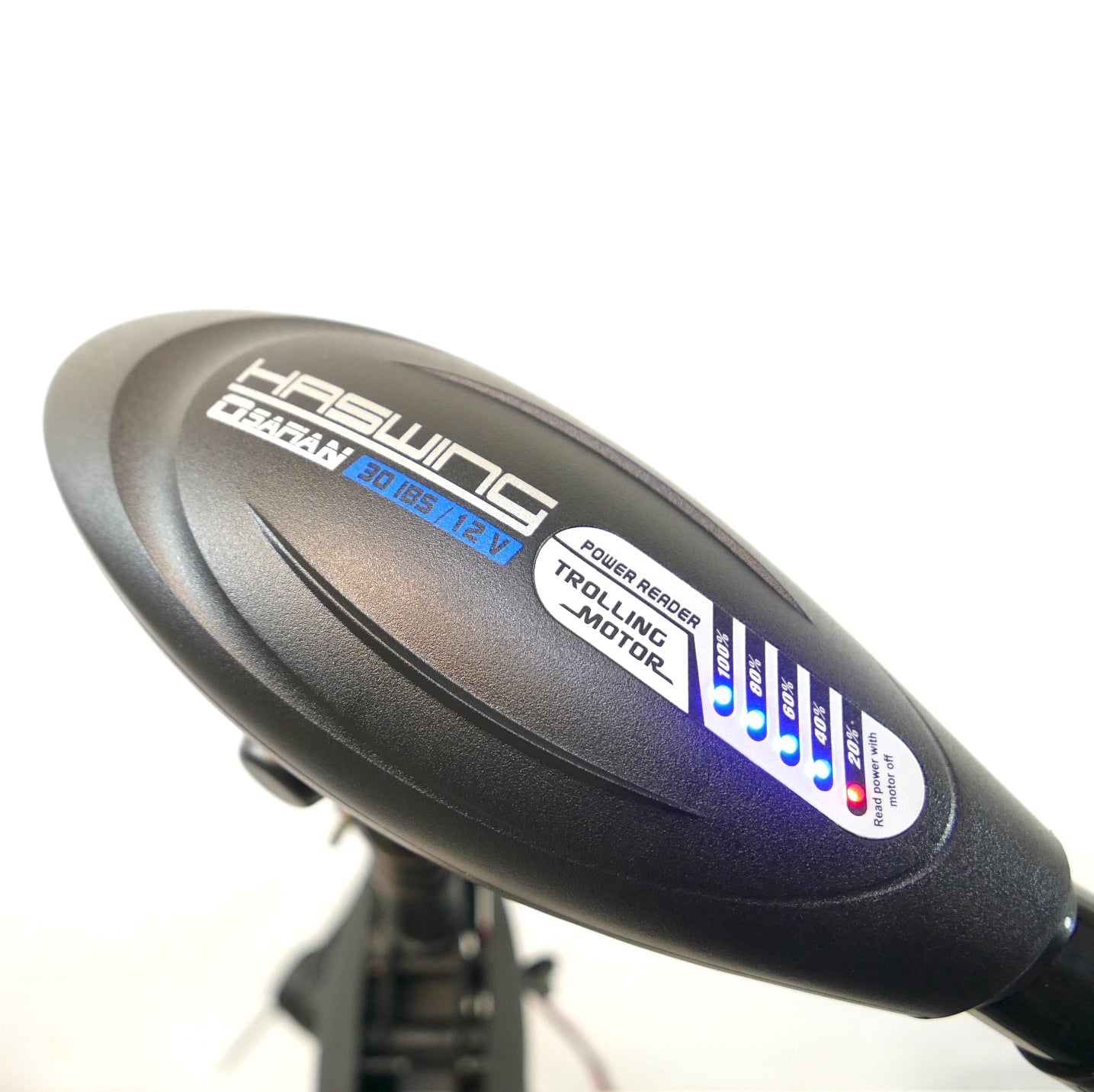

- 5-level LED battery status indicator
- Quiet operation with sound level below 50dB
- Clamp screws accept a padlock for added security
- Supplied with sacrificial anode, propeller fixing kit and user manual
- Recommended battery: 12V 105Ah deep cycle (leisure) battery
| Model | Max Thrust (lbs) | Max Battery Voltage (V) | Rated Amp (Max) | Rated Power | Shaft Length | Propeller | Prop Speed (Max RPM) | Weight (kg) | Dimensions (mm) | Recommended Boat Size |
|---|---|---|---|---|---|---|---|---|---|---|
| Osapian 30 | 30 | 12 | 26A – 30A | - | 30" / 760mm | 2 blade, 9" diameter | 1200 | 6.6 | L 560 × H 1120 × W 150 | Up to 4m boat length, max load 250kg |
| Osapian 40 | 40 | 12 | 36A – 40A | 432W (Forward Slow), 480W (Forward Fast) | 36" / 914mm | 2 blade, 9" diameter | 1400 | 7.0 | L 560 × H 1120 × W 150 | Up to 4.7m boat length, max load 320kg |
| Osapian 55 (90cm Shaft) | 55 | 12 | 45A – 55A | - | 36" / 914mm | 3 blade, 9.3" diameter | 1400 | 8.2 | L 560 × H 1230 × W 150 | Up to 5.5m boat length, max load 400kg |
| Osapian 55 (66cm Short Shaft) | 55 | 12 | 45A – 55A | - | 26" / 660mm | 3 blade, 9.3" diameter | 1400 | 8.15 | L 560 × H 990 × W 150 | Up to 5.5m boat length, max load 400kg |
Specification
Specification
| Model | Max Thrust (lbs) | Max Battery Voltage (V) | Rated Amp (Max) | Rated Power | Shaft Length | Propeller | Prop Speed (Max RPM) | Weight (kg) | Dimensions (mm) | Recommended Boat Size |
|---|---|---|---|---|---|---|---|---|---|---|
| Osapian 30 | 30 | 12 | 26A – 30A | - | 30" / 760mm | 2 blade, 9" diameter | 1200 | 6.6 | L 560 × H 1120 × W 150 | Up to 4m boat length, max load 250kg |
| Osapian 40 | 40 | 12 | 36A – 40A | 432W (Forward Slow), 480W (Forward Fast) | 36" / 914mm | 2 blade, 9" diameter | 1400 | 7.0 | L 560 × H 1120 × W 150 | Up to 4.7m boat length, max load 320kg |
| Osapian 55 (90cm Shaft) | 55 | 12 | 45A – 55A | - | 36" / 914mm | 3 blade, 9.3" diameter | 1400 | 8.2 | L 560 × H 1230 × W 150 | Up to 5.5m boat length, max load 400kg |
| Osapian 55 (66cm Short Shaft) | 55 | 12 | 45A – 55A | - | 26" / 660mm | 3 blade, 9.3" diameter | 1400 | 8.15 | L 560 × H 990 × W 150 | Up to 5.5m boat length, max load 400kg |
