HASWING Osapian40 Electric Outboard Trolling Motor - 40lbs
HASWING Osapian40 Electric Outboard Trolling Motor - 40lbs
SKU: MD-1178
The Osapian 40lb Electric Trolling Motor is a compact, lightweight and powerful solution for anglers and small boat owners seeking dependable auxiliary propulsion. Designed for both saltwater and freshwater use, it delivers 40lb of thrust and is suitable for boats up to 4.7 metres with a maximum payload of 320kg.
Delivery available | lead times vary
Collection available | usually ready in 2-4 days
Description
Description
The Osapian 40lb Electric Trolling Motor is a compact, lightweight and powerful solution for anglers and small boat owners seeking dependable auxiliary propulsion. Designed for both saltwater and freshwater use, it delivers 40lb of thrust and is suitable for boats up to 4.7 metres with a maximum payload of 320kg.

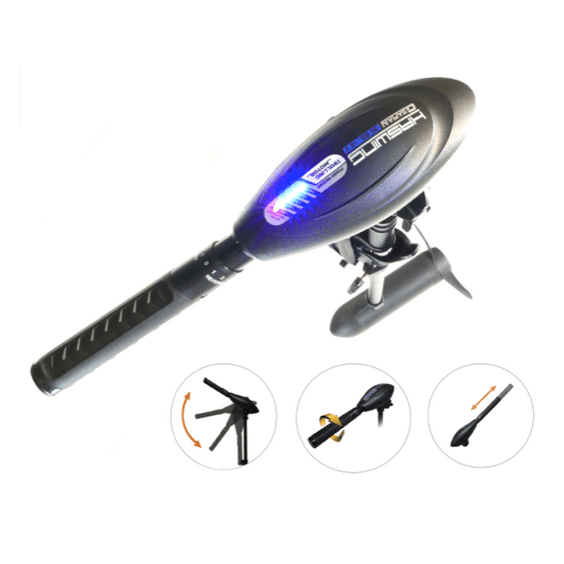

Built with premium materials and practical features, the Osapian 40 offers smooth control through its multi-function telescopic handle, adjustable shaft depth and 360° steering. Its folding design makes transport and storage simple, while the durable heavy-duty 12V motor provides reliable performance on every trip.
- 40lb maximum thrust electric trolling motor
- Suitable for saltwater and freshwater use
- Ideal for boats up to 4.7m with maximum 320kg load
- Powerful 12V heavy-duty motor
- 5 forward and 3 reverse speed settings
- Multi-function twist grip throttle and steering control
- Telescopic handle extends up to 350mm
- Folding upper body and handle for compact storage
- 360° steering with steering lock
- 10-position tilt bracket
- Adjustable immersion depth collar
- Integrated motor fin helps protect the propeller from underwater impacts

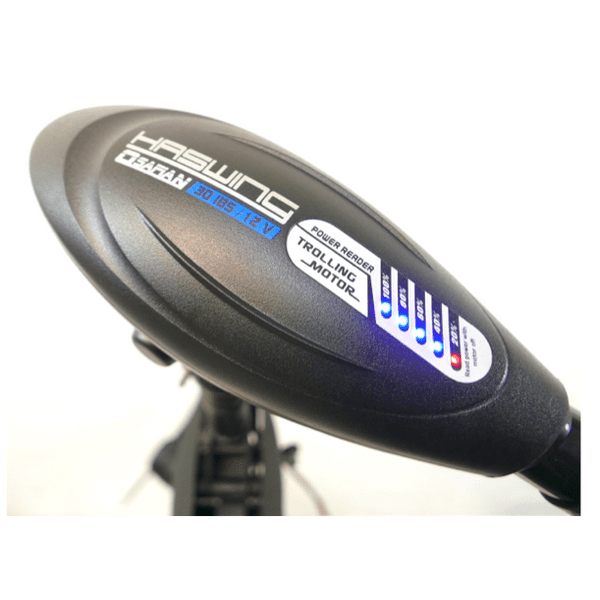

- 5-level LED battery status indicator
- Quiet operation with sound level below 50dB
- Clamp screws accept a padlock for added security
- Supplied with sacrificial anode, propeller fixing kit and user manual
- Recommended battery: 12V 105Ah deep cycle (leisure) battery
| Model | Max Thrust (lbs) | Max Battery Voltage (V) | Rated Amp (Max) | Rated Power | Shaft Length | Propeller | Prop Speed (Max RPM) | Weight (kg) | Dimensions (mm) | Recommended Boat Size |
|---|---|---|---|---|---|---|---|---|---|---|
| Osapian 30 | 30 | 12 | 26A – 30A | - | 30" / 760mm | 2 blade, 9" diameter | 1200 | 6.6 | L 560 × H 1120 × W 150 | Up to 4m boat length, max load 250kg |
| Osapian 40 | 40 | 12 | 36A – 40A | 432W (Forward Slow), 480W (Forward Fast) | 36" / 914mm | 2 blade, 9" diameter | 1400 | 7.0 | L 560 × H 1120 × W 150 | Up to 4.7m boat length, max load 320kg |
| Osapian 55 (90cm Shaft) | 55 | 12 | 45A – 55A | - | 36" / 914mm | 3 blade, 9.3" diameter | 1400 | 8.2 | L 560 × H 1230 × W 150 | Up to 5.5m boat length, max load 400kg |
| Osapian 55 (66cm Short Shaft) | 55 | 12 | 45A – 55A | - | 26" / 660mm | 3 blade, 9.3" diameter | 1400 | 8.15 | L 560 × H 990 × W 150 | Up to 5.5m boat length, max load 400kg |
