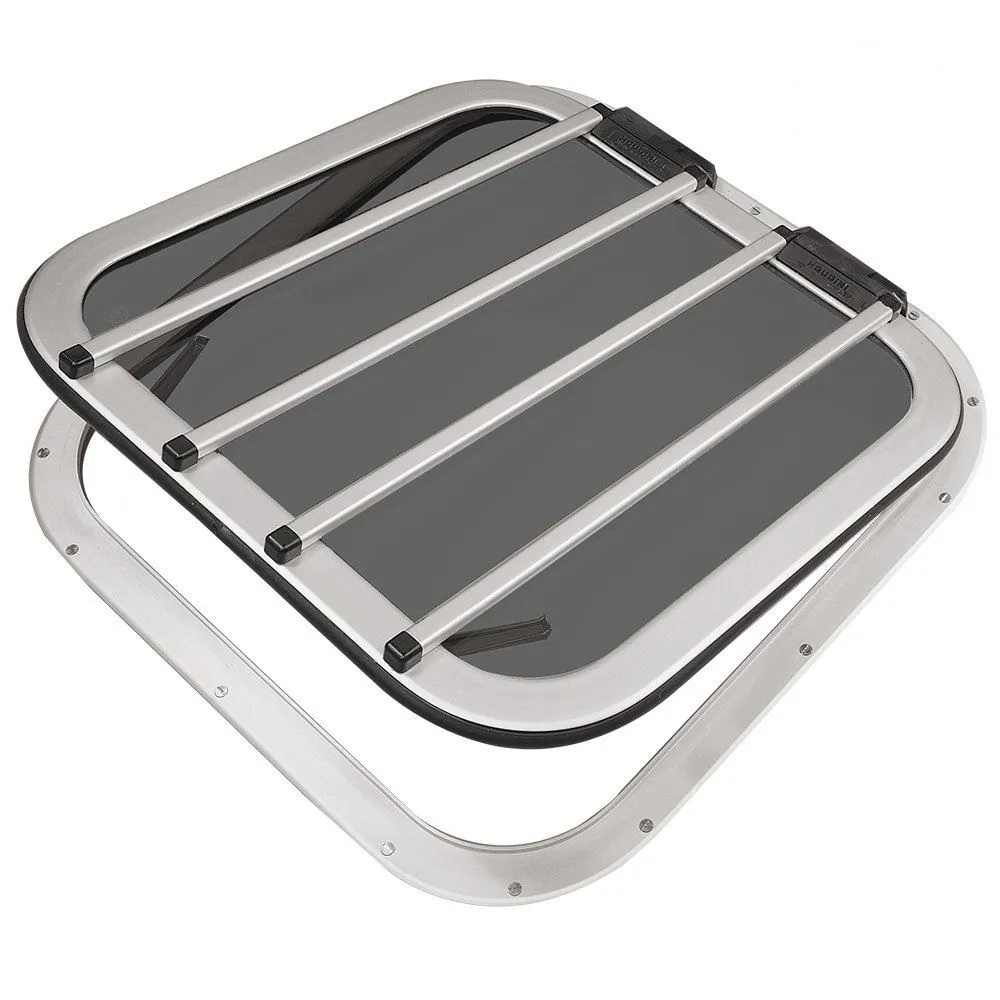

Houdini Type 5 Super 50 Marine Deck Hatch - 50 x 50cm

Houdini Type 5 Super 50 Marine Deck Hatch - 50 x 50cm

Location: US12

SKU:MZ-35050

Regular price £421.95
Regular price Sale price £421.95
Sale Sold out
Tax included. Shipping calculated at checkout.

Houdini Marine deck hatch has been manufacturing marine windows for over 30 years and Houdini Hatches have a worldwide reputation for robust construction, quality materials and economic pricing.  Ref:  MZ-35050

The Houdini Super 50 deck hatch (500mm x 500mm) is the standard deck hatch.

The standard specification

  • Anodised aluminium
  • Alloy safety bars
  • 6mm grey tinted toughened glass
  • Stay arm
  • Aperture size 500 x 500
  • Aperture radius 100
  • Overall size 534 x 534
  • Clear opening 470 x 470
  • Adjustable stay arm (optional extra)
  • Cat A. safety standard.

Materials and Construction

Frames are constructed in marine grade aluminium (HE9). All joints are sealed against ingress of water, fish-plated and screwed. The seal is of extruded neoprene or similar. The hatches are glazed with 6mm tinted toughened glass with the exception of the Type 6 which has 8mm.

Installation

All hatches must be fitted to a flat surface and bedded down on a good quality non-setting mastic. The outer flange is drilled and countersunk for no.8 self tapping screws or M5 machine screws.

Inner Backing Trim

Inner backing trim for the deck head is not necessarily required if the hatch can be screwed securely into the deck. If an inner backing trim is used there are three types available. These are detailed on this web site under Houdini Hatch accessories.
