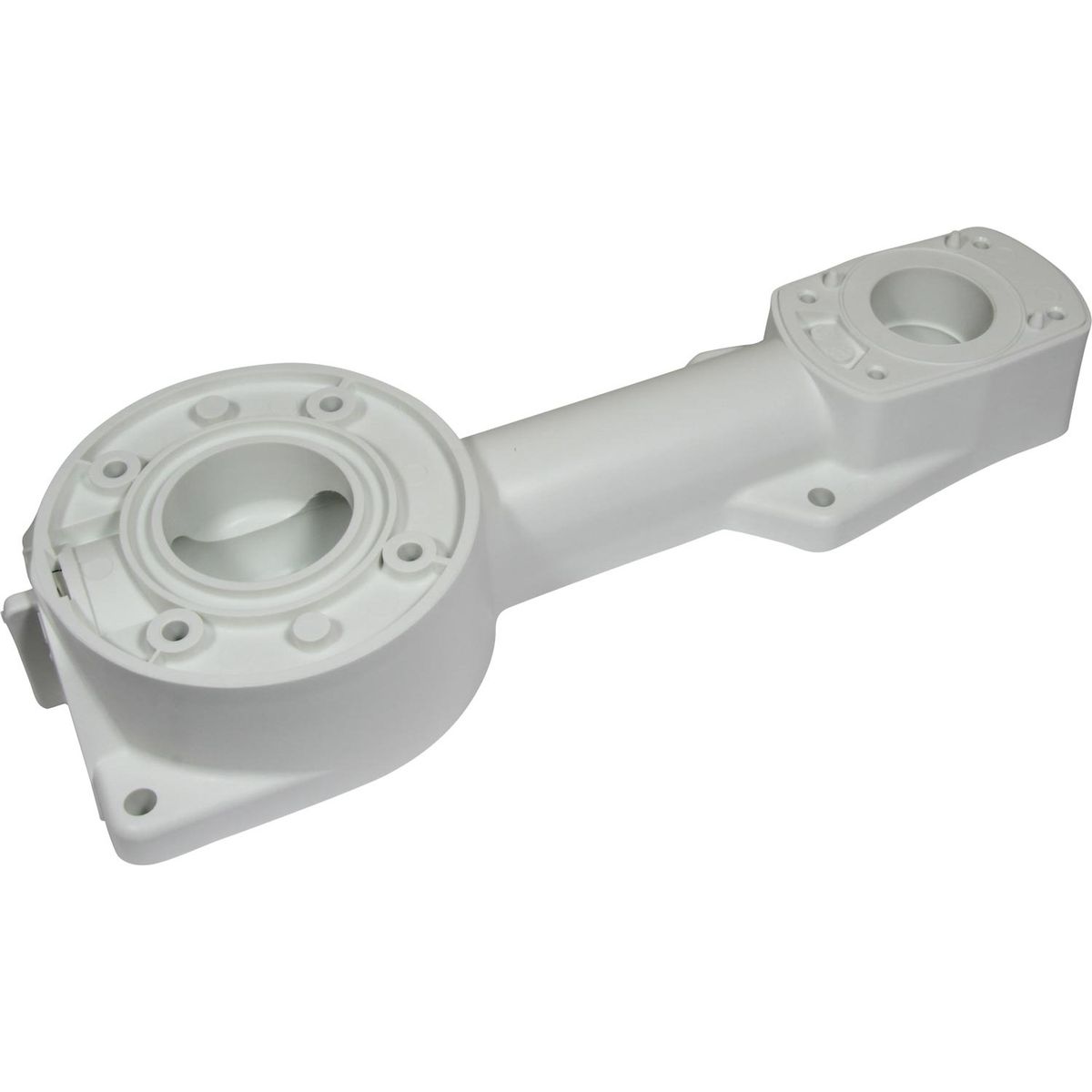

Jabsco 29041-1000 Manual Toilet Replacement Base Assembly

The Jabsco 29041-1000 is a moulded replacement base for compatible 29090 and 29120 manual marine toilets manufactured from 1986 onward.

It forms the lower mounting and waste-channel assembly beneath the ceramic bowl. The base can be renewed independently when the existing pump, bowl or seat remains serviceable.

Product Identification

• Brand: Jabsco
• Product name: Jabsco 29041-1000 Manual Toilet Replacement Base Assembly
• Model / part number: 29041-1000
• Marine Scene SKU: ASAP-JAB-29041-1000
• Product category: Manual marine toilet replacement base
• Quantity supplied: One selected product or kit

What Is the Jabsco 29041-1000 Replacement Base Used For?

It replaces a cracked, distorted or damaged base on compatible compact and regular Jabsco manual toilets. Compatibility must be confirmed from the toilet model, product generation and parts diagram.

What Is Included?

• One Jabsco 29041-1000 moulded toilet base assembly

What Is Not Included?

• The complete parent product
• Other seals, gaskets, fasteners or accessories unless specifically listed

Which Products or Systems Is This Compatible With?

• Jabsco 29090 compact manual toilet range
• Jabsco 29120 regular manual toilet range
• Selected 29090-2, 29120-2, 29090-3 and 29120-3 toilets
• Applicable manual toilets manufactured from 1986 onward

How Do I Select the Correct Model or Confirm Compatibility?

• Read the toilet model number from the product label or parts diagram
• Match part number 29041-1000 and diagram reference 15
• Inspect the bowl-to-base O-ring and mounting bolts before reassembly
• Order service kit 29047-0000 where the associated O-ring and bolts require replacement

Construction and Design

• Moulded corrosion-resistant plastic base
• Mounting interface for the ceramic bowl
• Waste passage and pump connection points
• Approximate component weight 0.5 kg

Installation and Safety

Confirm the exact Jabsco model and part number before dismantling the equipment. Isolate electrical power where applicable, close seacocks or valves, drain and clean the system, and follow the manufacturer’s service procedure. Do not overtighten fasteners into plastic components.

Maintenance

Inspect the repaired assembly for leakage, secure mounting and normal operation. Recheck connections after the first use and retain the old part number for future servicing reference.

Key Features

• Genuine model-specific replacement base
• Fits compatible compact and regular manual toilet ranges
• Allows base replacement without renewing the ceramic bowl
• Associated O-ring and bolt kit available separately

Frequently Asked Questions

Is the bowl-to-base O-ring included?
No. The related O-ring and mounting-bolt kit is Jabsco 29047-0000 where required.

Does this include the pump assembly?
No. The pump, bowl, seat and installation hardware are separate unless purchased as a bundle.

How do I know whether this part is compatible?
Match the exact Jabsco model or part number first, then confirm the connection size, voltage, dimensions and application shown in the specification table.

Are installation accessories included?
Only the components listed under “What Is Included?” are supplied. Hose, wiring, fittings, switches and fasteners are excluded unless stated otherwise.

Specifications
