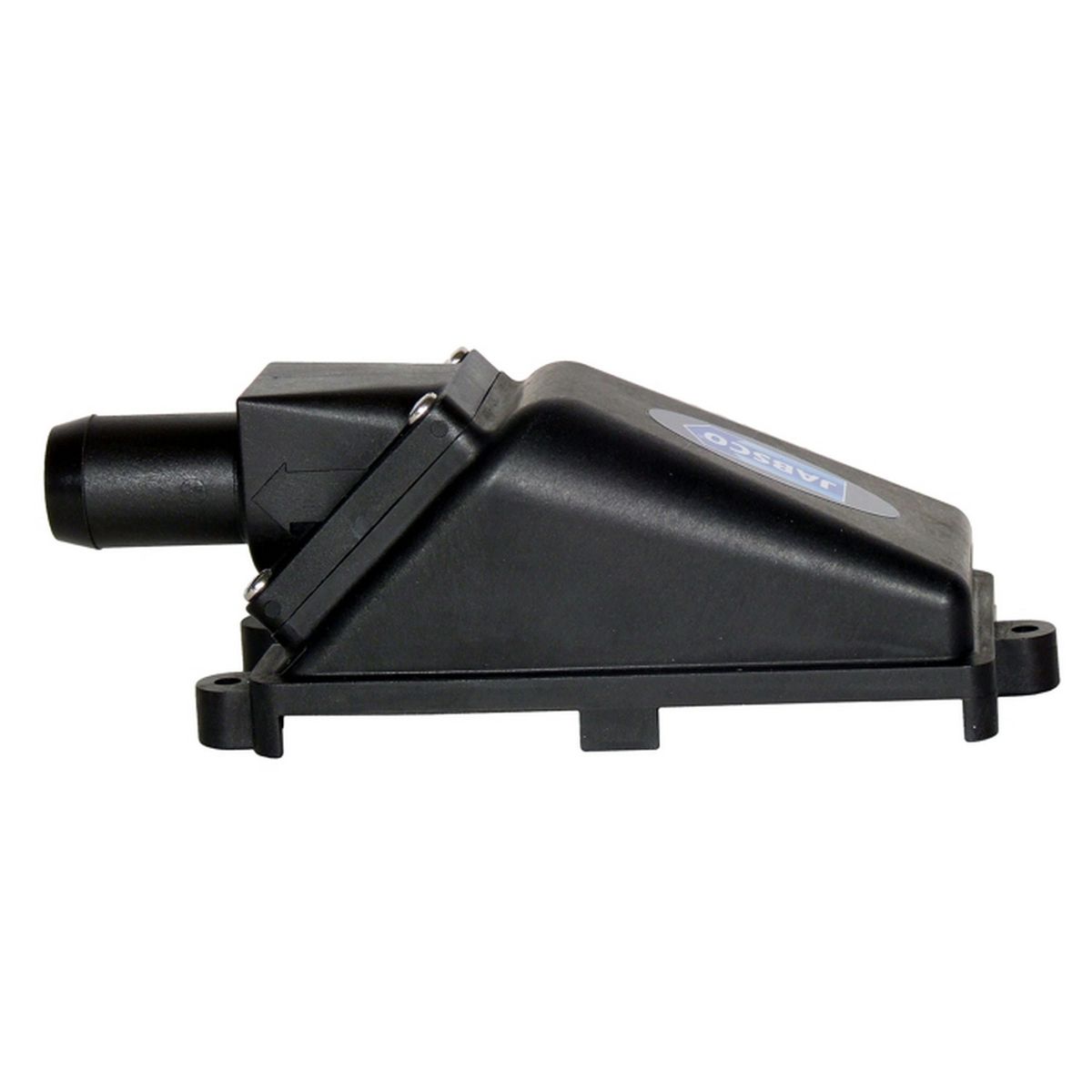

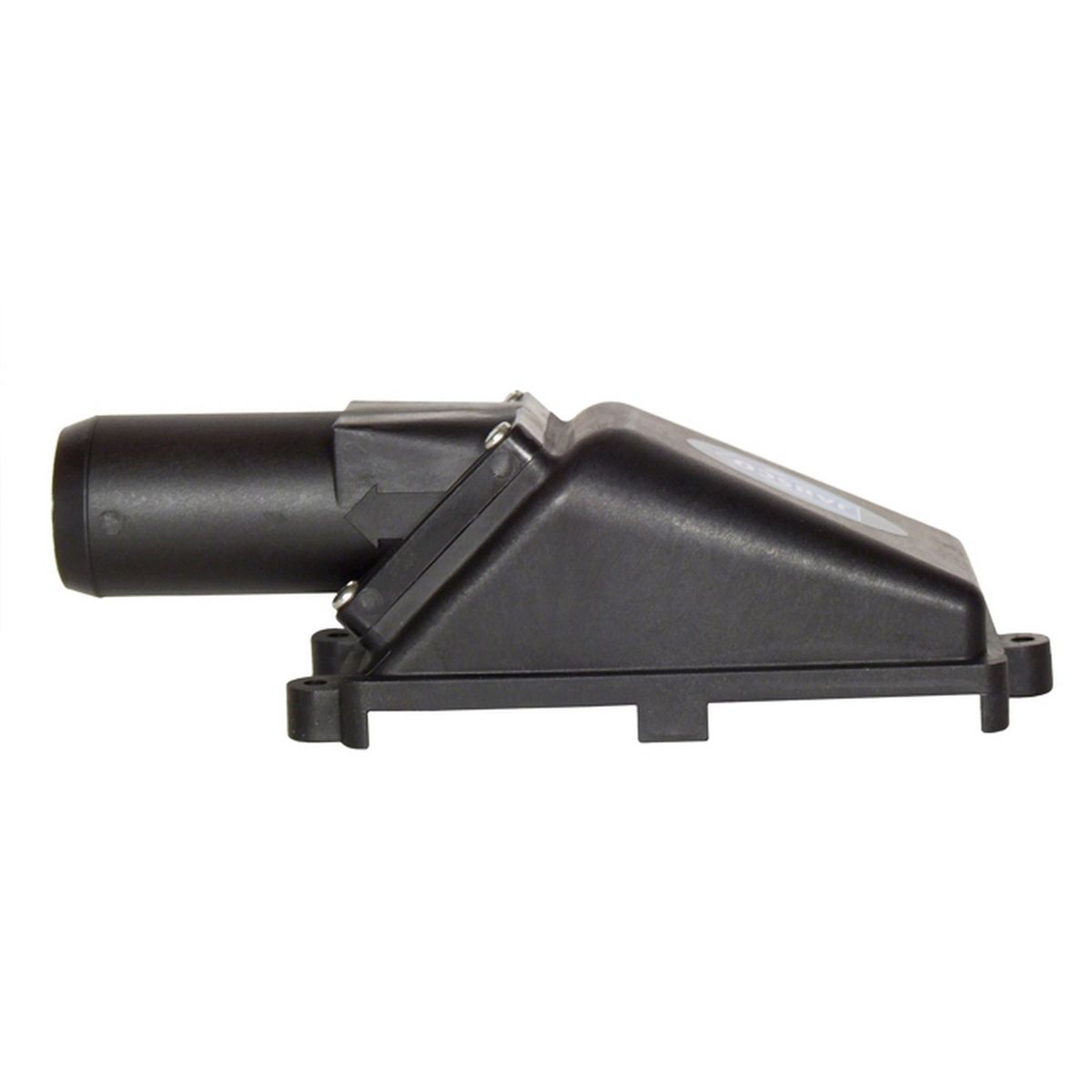

Jabsco 29290 Series Strum Box Strainers

The Jabsco 29290 strum box protects a bilge-pump suction line from debris and is available with a 25 mm or 38 mm hose tail.

Its low-profile plastic housing includes an adjustable outlet direction and removable strainer plate for cleaning. It is fitted at the lowest practical point of the bilge ahead of the suction hose.

Product Identification

• Brand: Jabsco
• Product name: Jabsco 29290 Strum Box Bilge Strainer
• Model / part number: 29290-1000, 29290-1010
• Marine Scene SKU: CW-29290-1000, CW-29290-1010
• Product category: Bilge-pump suction strainer
• Quantity supplied: One selected product or kit

What Is the Jabsco 29290 Strum Box Used For?

The strum box prevents larger debris from entering and restricting the suction hose of a remote bilge pump.

What Is Included?

• One Jabsco strum box in the selected hose size
• Removable strainer plate

What Is Not Included?

• Pump, hose or pipework
• Hose clips, adaptors and mounting hardware unless listed

Which Products or Systems Is This Compatible With?

• Remote bilge-pump suction systems
• 25 mm (1 in) hose for 29290-1000
• 38 mm (1-1/2 in) hose for 29290-1010

How Do I Select the Correct Model or Confirm Compatibility?

• Match the hose internal diameter to the selected model
• Confirm 170 x 72 x 60 mm installation space
• Use the 38 mm version only where the complete suction path is sized accordingly

Construction and Design

• Robust moulded plastic body
• Removable cleaning plate
• Adjustable hose-tail orientation
• Low-profile strum-box form

Installation and Safety

Install the strainer on the pump inlet in an accessible position, match the connection size exactly and support the connected hose. Check the sealing O-ring, tighten by hand where appropriate and leak-test the system after installation.

Maintenance

Inspect the transparent cover or strainer body regularly. Isolate the system before opening, remove debris, rinse the screen, check the O-ring and refit the cover securely before leak-testing.

Key Features

• 25 mm and 38 mm variants
• Helps prevent suction-line blockage
• Removable strainer plate
• Adjustable outlet direction
• 170 mm long low-profile housing

Frequently Asked Questions

Does a strum box replace regular bilge cleaning?
No. The bilge and strainer must still be inspected and cleared regularly.

How do I know whether this part is compatible?
Match the exact Jabsco model or part number first, then confirm the connection size, voltage, dimensions and application shown in the specification table.

Are installation accessories included?
Only the components listed under “What Is Included?” are supplied. Hose, wiring, fittings, switches and fasteners are excluded unless stated otherwise.

Specifications
