Jabsco 50070 Series Impeller Removal Tool

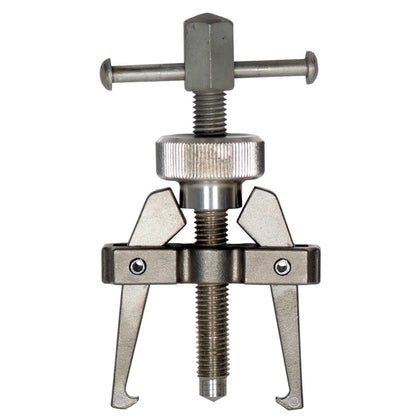

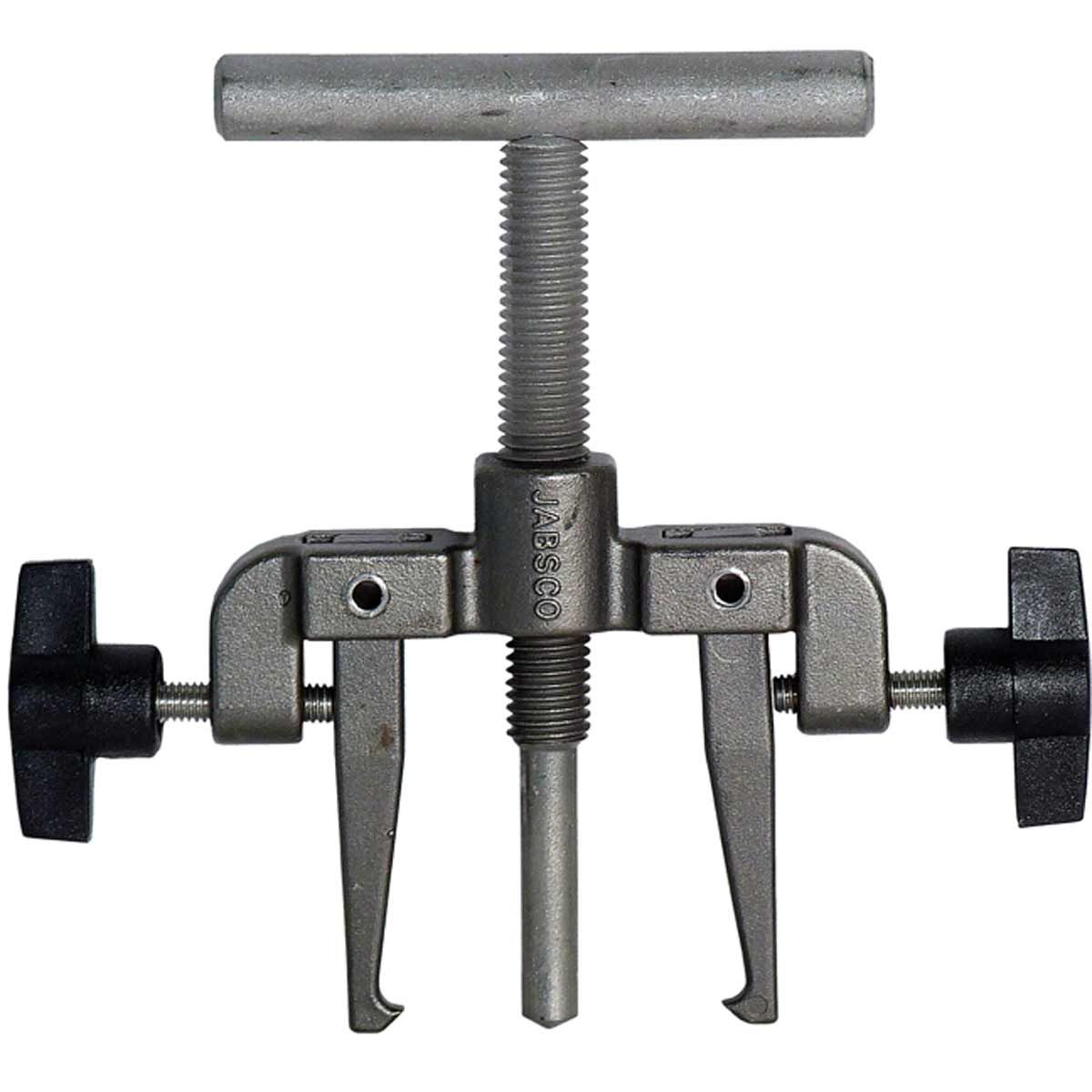

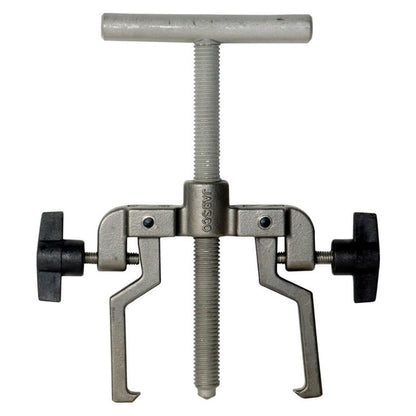

The Jabsco 50070 flexible impeller removal tool range provides a centred screw-action method for extracting flexible impellers from marine and industrial pumps. Choose 50070-0080 for 40–57 mm impellers, 50070-0040 for 40–65 mm impellers or 50070-0200 for 65–118 mm impellers.

Each puller is manufactured from stainless steel and is designed to grip the impeller hub and draw it straight out of the pump body. This reduces the risk of damaging the pump housing, cover face or impeller compared with levering the impeller out using screwdrivers or improvised tools.

Product Identification

• Brand: Jabsco
• Product name: Jabsco 50070 Flexible Impeller Removal Tool
• Models / part numbers: 50070-0080, 50070-0040 and 50070-0200
• Product category: Stainless-steel flexible-impeller puller
• Impeller diameter options: 40–57 mm, 40–65 mm or 65–118 mm
• Variant option: Impeller Diameter Range
• Quantity supplied: One removal tool

What Is the Jabsco Impeller Removal Tool Used For?

It is used to remove flexible impellers from pump bodies during inspection, servicing or replacement. The centred screw action pulls the impeller out axially and avoids applying leverage against the pump casting.

What Is Included?

• One Jabsco stainless-steel impeller removal tool in the selected size

What Is Not Included?

• Replacement impeller
• Pump end-cover gasket or O-ring
• Hand tools required to remove the pump end cover
• Pump service lubricant

How Do I Select the Correct Size?

Measure or confirm the outside diameter of the installed impeller, then select a tool whose stated range includes that diameter. The 50070-0080 and 50070-0040 ranges overlap; choose the compact 50070-0080 where access is restricted, or the wider 50070-0040 where its frame provides better access around the pump.

Is It Compatible With Non-Jabsco Impellers?

Jabsco describes the range as suitable for all makes of flexible impeller, but physical access and impeller diameter must still match the selected tool. Confirm that the puller legs can engage the impeller without contacting or damaging the pump body.

How Is the Tool Used?

Isolate the pump, close relevant seacocks or valves, remove the end-cover screws, cover and gasket, then position the puller evenly on the impeller. Tighten the centre screw progressively so the impeller is drawn straight out. Remove debris from the pump chamber and ports before fitting the replacement impeller and a serviceable gasket.

Care and Maintenance

• Rinse and dry the tool after use, particularly after salt-water service.
• Keep the screw threads clean and apply a light corrosion-resistant lubricant when required.
• Inspect the legs and centre screw for distortion or damaged threads before use.
• Store the puller dry and do not use it as a general-purpose bearing puller.

Key Features

• Three capacities covering flexible impellers from 40 to 118 mm diameter
• Centred screw-action extraction
• Stainless-steel construction
• Reduces the risk of pump-body damage caused by levering
• Suitable for Jabsco and other flexible-impeller makes when size and access match

Frequently Asked Questions

Which model should I choose for a 55 mm impeller?
Both 50070-0080 and 50070-0040 cover 55 mm. Choose the compact 50070-0080 where working space is limited, or the 50070-0040 where the standard frame provides better access.

Can this tool remove a rigid centrifugal impeller?
No. It is designed for flexible impellers and should not be used as a general-purpose gear or bearing puller.

Does the tool include a replacement impeller?
No. The selected listing supplies one removal tool only.

Should the old end-cover gasket be reused?
Fit a serviceable gasket or O-ring in accordance with the pump service instructions. Replace a damaged, compressed or leaking gasket.
