Jabsco 50095-1000 Major 37202 Series Pump Service Kit

The Jabsco 50095-1000 Service Kit is a pump repair and maintenance kit for Jabsco 37202 series diaphragm pumps. It is used to replace key wear parts inside compatible Jabsco diaphragm pump assemblies, including the diaphragm, valve set, valve retainer and pulsation dampener.

This kit is suitable for servicing compatible Jabsco 37202 series pumps used in marine diaphragm pump applications, including shower drain and bilge pump systems where the 37202 pump series is fitted.

What is the Jabsco 50095-1000 used for?

The Jabsco 50095-1000 kit is used for maintenance or repair of compatible Jabsco 37202 series diaphragm pumps. It replaces internal pump components that can wear during operation, including the diaphragm and valve set.

Compatible Pump Series

• Jabsco 37202 series diaphragm pumps

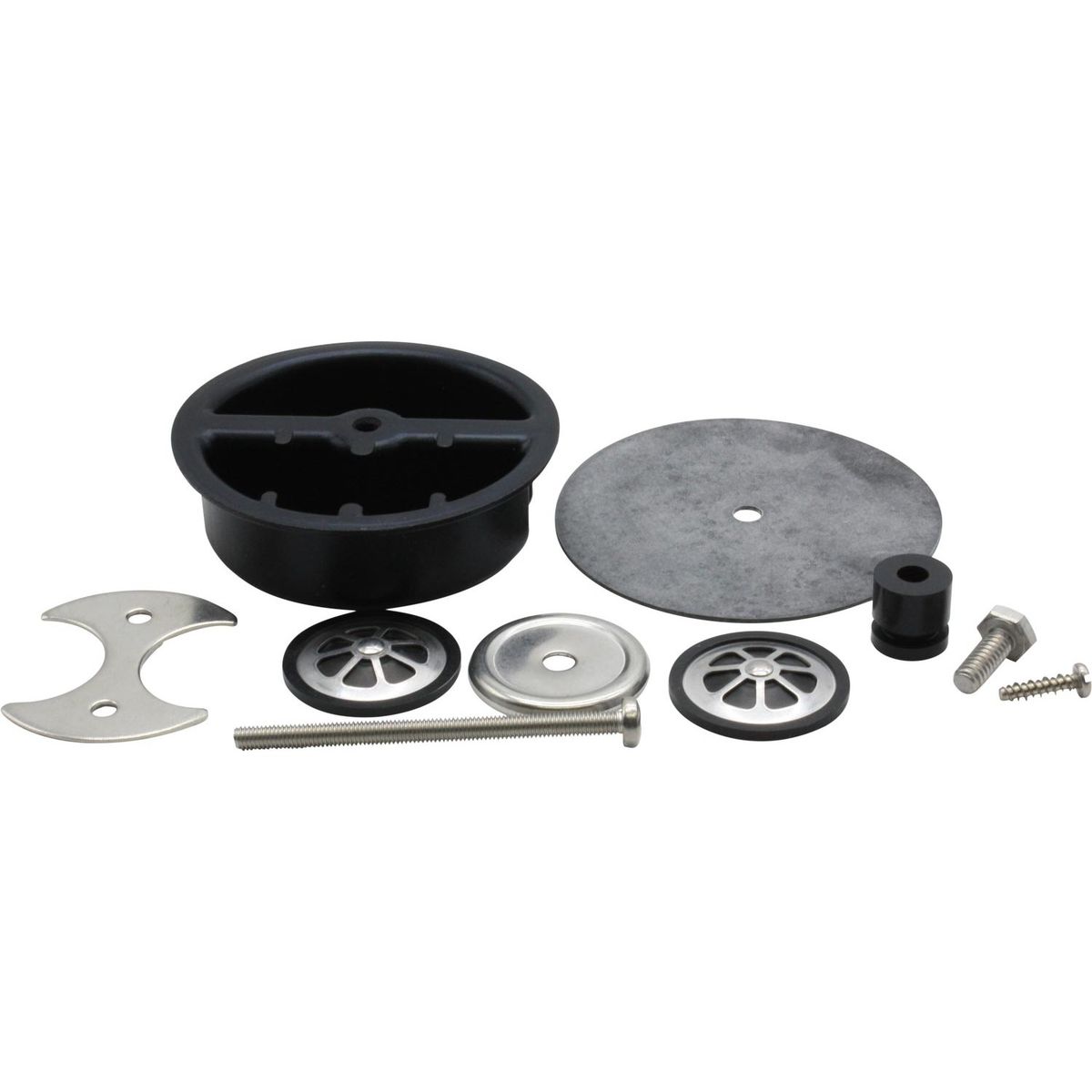

Kit Contents

• 1 x Diaphragm Plate — 35688-0000
• 1 x Diaphragm — 37174-0000
• 1 x Sealing Washer
• 1 x Bolt
• 1 x Valve Retainer — 35816-0000
• 1 x Valve Set — 30005-0000
• 1 x Pulsation Dampener — 37179-0000
• 1 x Grommet
• 1 x Bolt
• 1 x Screw

Compatibility Note

Check the model number on your existing Jabsco pump before ordering. This service kit is intended for Jabsco 37202 series diaphragm pumps.
