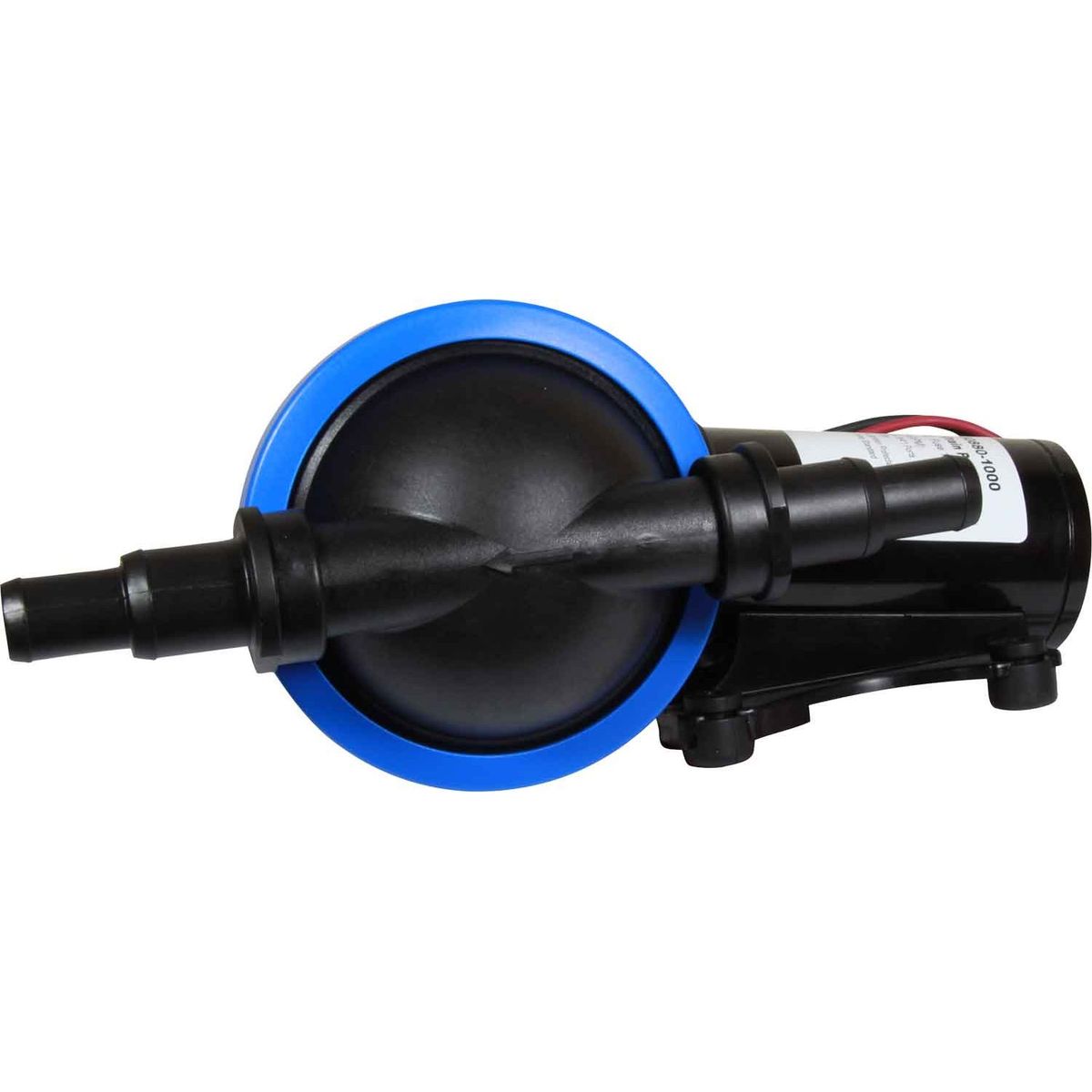

Jabsco 50880 Series Self-Priming Diaphragm Bilge And Shower Pump

The Jabsco 50880 is a self-priming diaphragm pump for shower drains, auxiliary bilge duties and general water transfer, with 12V and 24V models and flow up to 16.3 LPM.

Its diaphragm design can run dry without damage and moves water containing small debris without requiring an inline filter in many drainage applications. The pump is non-automatic and must be controlled by a suitable switch or level-control system.

Product Identification

• Brand: Jabsco
• Product name: Jabsco 50880 Self-Priming Diaphragm Bilge and Shower Pump
• Model / part number: 50880-1000, 50880-1100
• Marine Scene SKU: ASAP-504482, ASAP-504484
• Product category: Diaphragm bilge, shower-drain and general-purpose pump
• Quantity supplied: One selected product or kit

What Is the Jabsco 50880 Pump Used For?

It removes water from shower sumps, bilges and similar collection points, and can be used for compatible general-purpose transfer or livewell circulation duties.

What Is Included?

• One Jabsco 50880 pump in the selected voltage
• Snap-in port fittings supplied with the packaged model
• Factory-fitted electrical leads

What Is Not Included?

• Hose or pipework, clips and through-hull fittings
• Circuit-protection fuse or breaker
• Cable extensions and waterproof electrical connectors
• Control switch unless specifically listed as included

Which Products or Systems Is This Compatible With?

• 12V or 24V DC systems according to model
• Marine shower-drain and auxiliary bilge systems
• General-purpose water transfer within the pump material limits
• External manual or automatic switching sized for the selected model

How Do I Select the Correct Model or Confirm Compatibility?

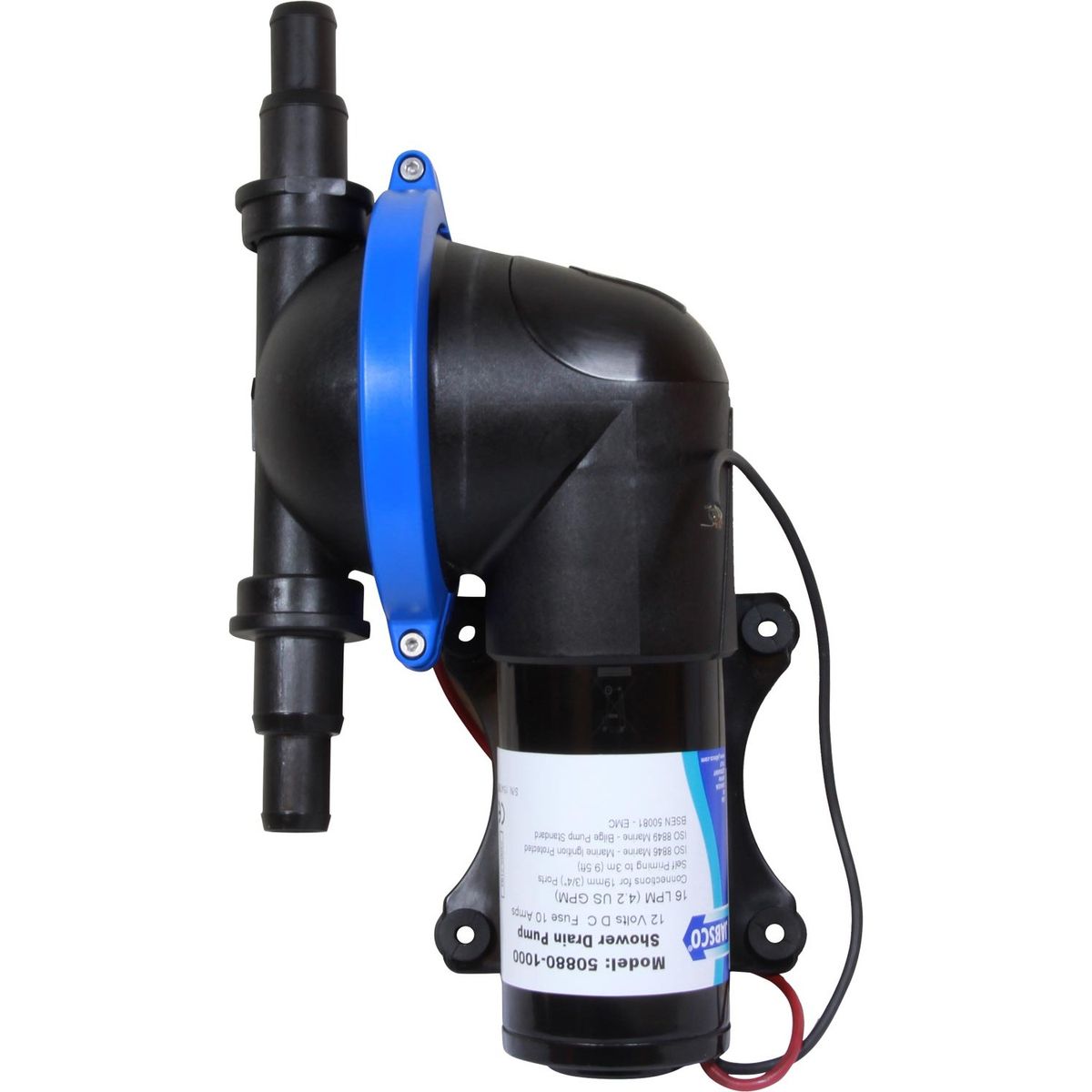

• Choose 50880-1000 for 12V and use a 10A maximum fuse

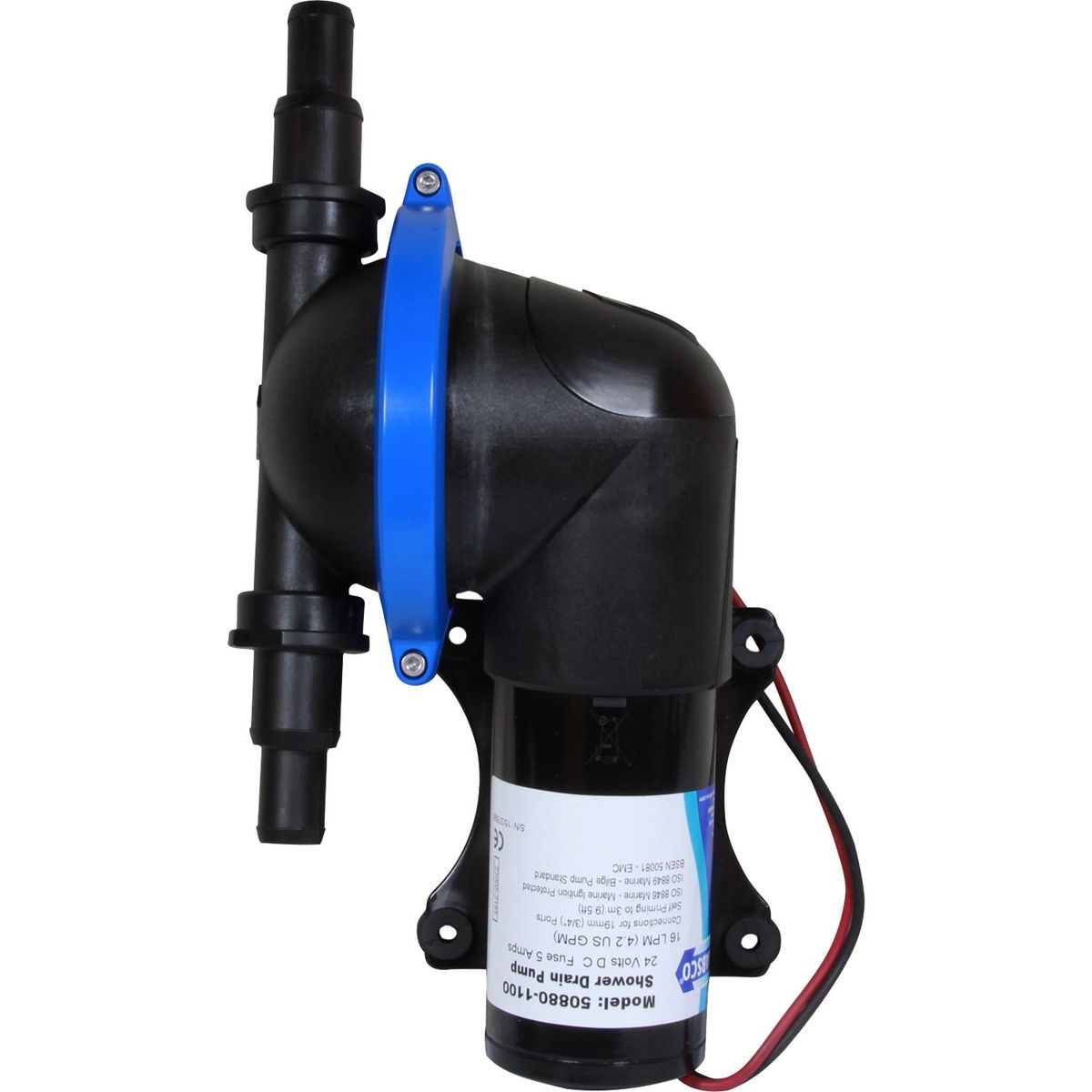

• Choose 50880-1100 for 24V and use a 5A maximum fuse

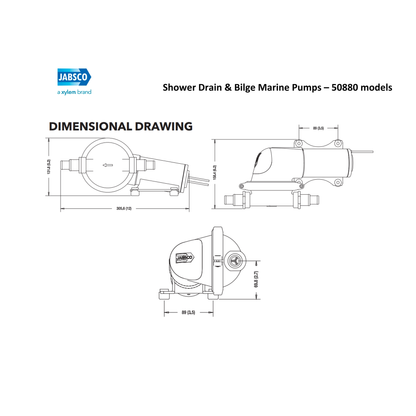

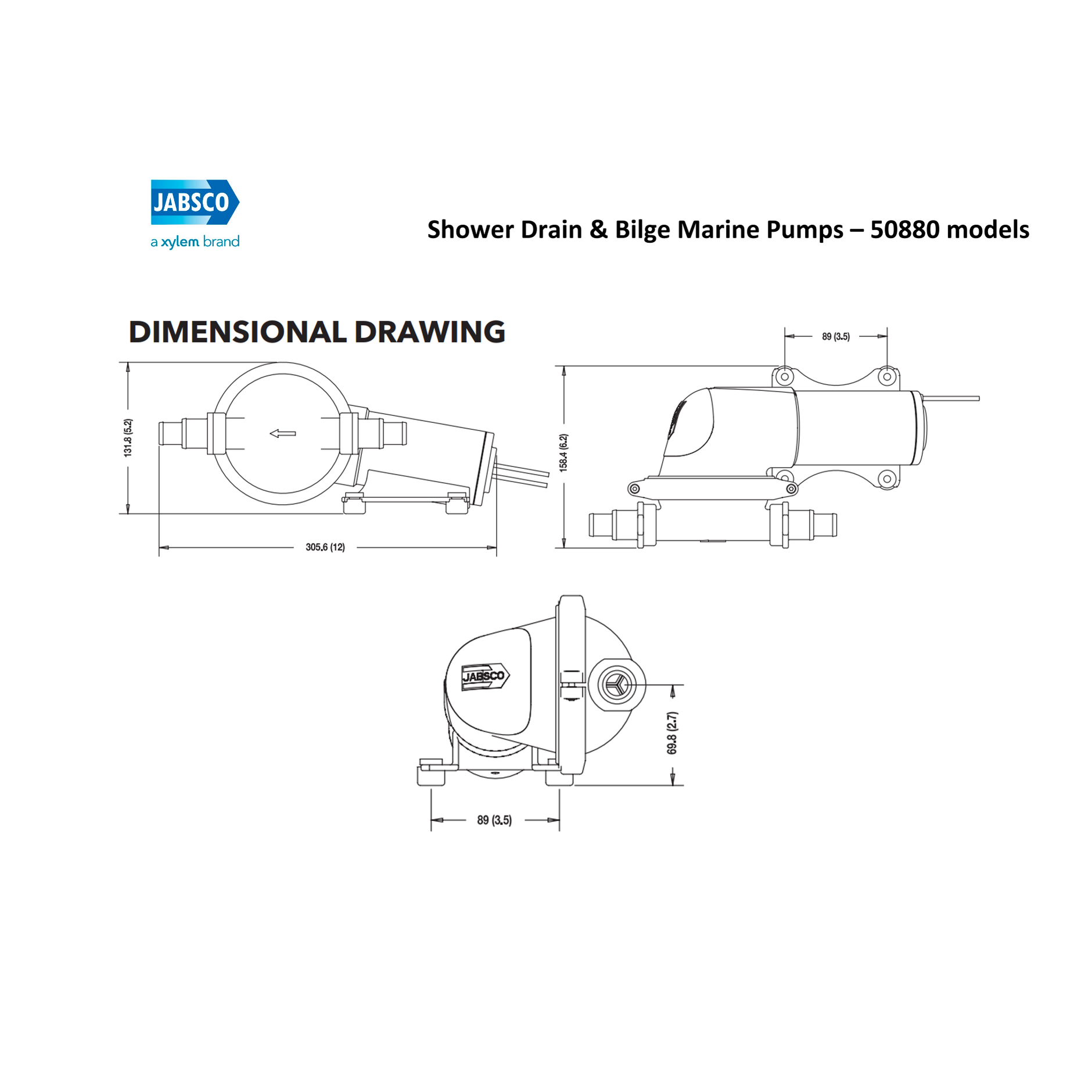

• Confirm hose connections and installation space from the technical drawing
• Allow for reduced output as discharge head and pipe resistance increase

Construction and Design

• Self-priming diaphragm pump head
• Heavy-duty motor with thermal overload protection
• Snap-in ports
• Water-resistant motor coating
• Run-dry-capable pump design

Installation and Safety

Isolate the electrical supply before installation. Match the pump to the vessel voltage, use the specified circuit protection and cable size, keep electrical joints dry and accessible, and support all connected hose or pipework. Follow the Jabsco installation instructions for mounting orientation, priming and duty cycle.

Maintenance

Inspect the pump, wiring, fuse, ports and connected pipework regularly. Clean any inlet strainer, investigate reduced flow or repeated fuse failure, and replace worn seals, diaphragms or impellers with the correct Jabsco service parts.

Key Features

• Up to 16.3 LPM flow
• 12V and 24V variants
• Self-priming diaphragm operation
• Runs dry without damage
• Suitable for shower-drain and auxiliary bilge duties
• Thermal motor protection

Frequently Asked Questions

Is the Jabsco 50880 automatic?
No. Use a separate switch or level-control system appropriate to the installation.

Does it need to be submerged?
No. It is a remote self-priming diaphragm pump and should be mounted in a dry, accessible position.

How do I know whether this part is compatible?
Match the exact Jabsco model or part number first, then confirm the connection size, voltage, dimensions and application shown in the specification table.

Are installation accessories included?
Only the components listed under “What Is Included?” are supplied. Hose, wiring, fittings, switches and fasteners are excluded unless stated otherwise.
